26 ft. Octagon Structure Details

The lumber cut list provided in these instructions will build an octagon wall structure and solid roof structure equal to the dimensions shown in the image, below.

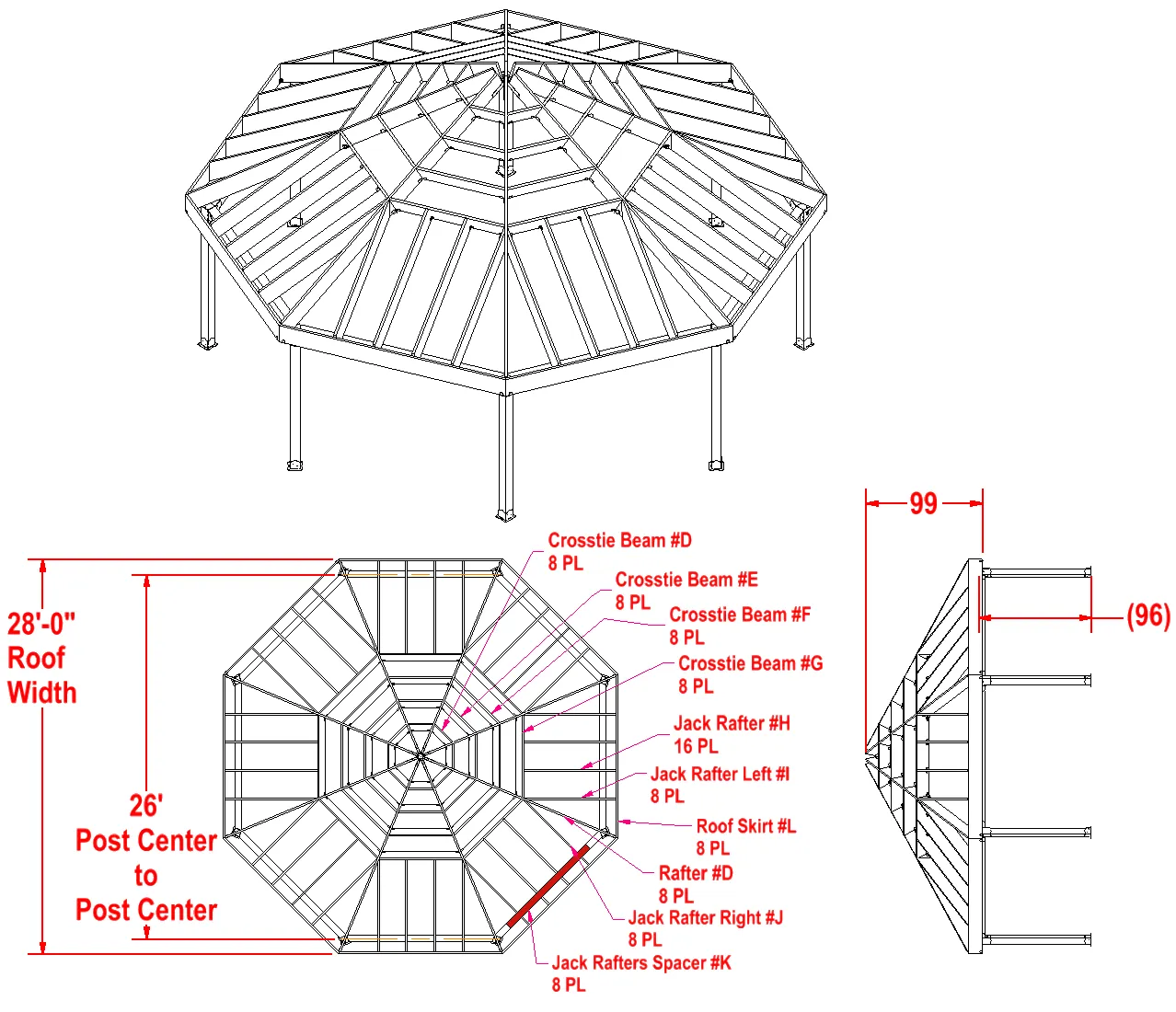

Technical drawing of a large, octagonal pavilion structure with labeled beams and rafters, showing top, side, and sectional views, plus measurements for roof width (28’), post center (26’), and height (99 units).

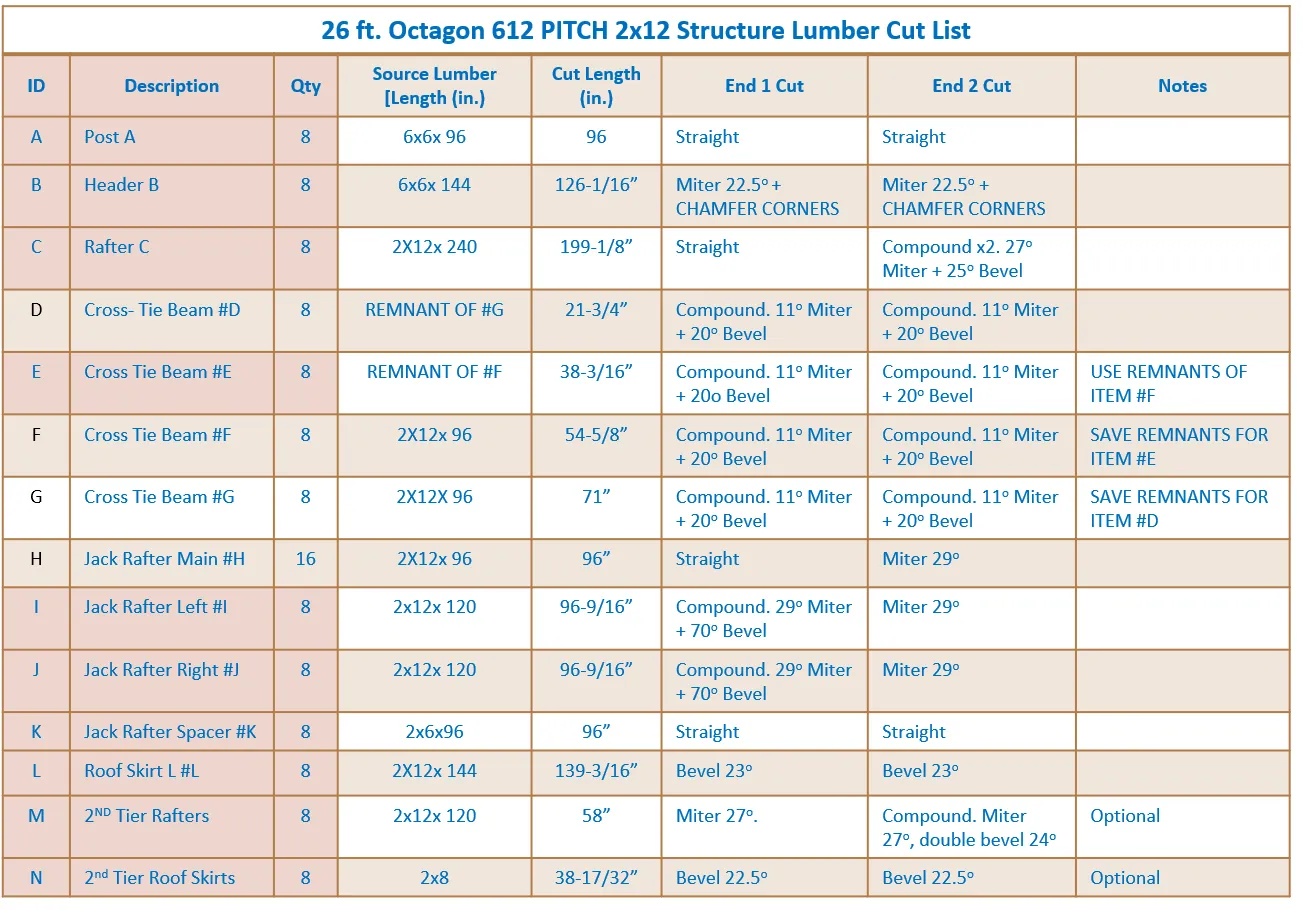

A detailed cut list table for a 26 ft. octagon structure, showing item letters, names, quantities, lumber sizes, and precise cut angles and lengths for each structure member. The table includes special notes for some items.
