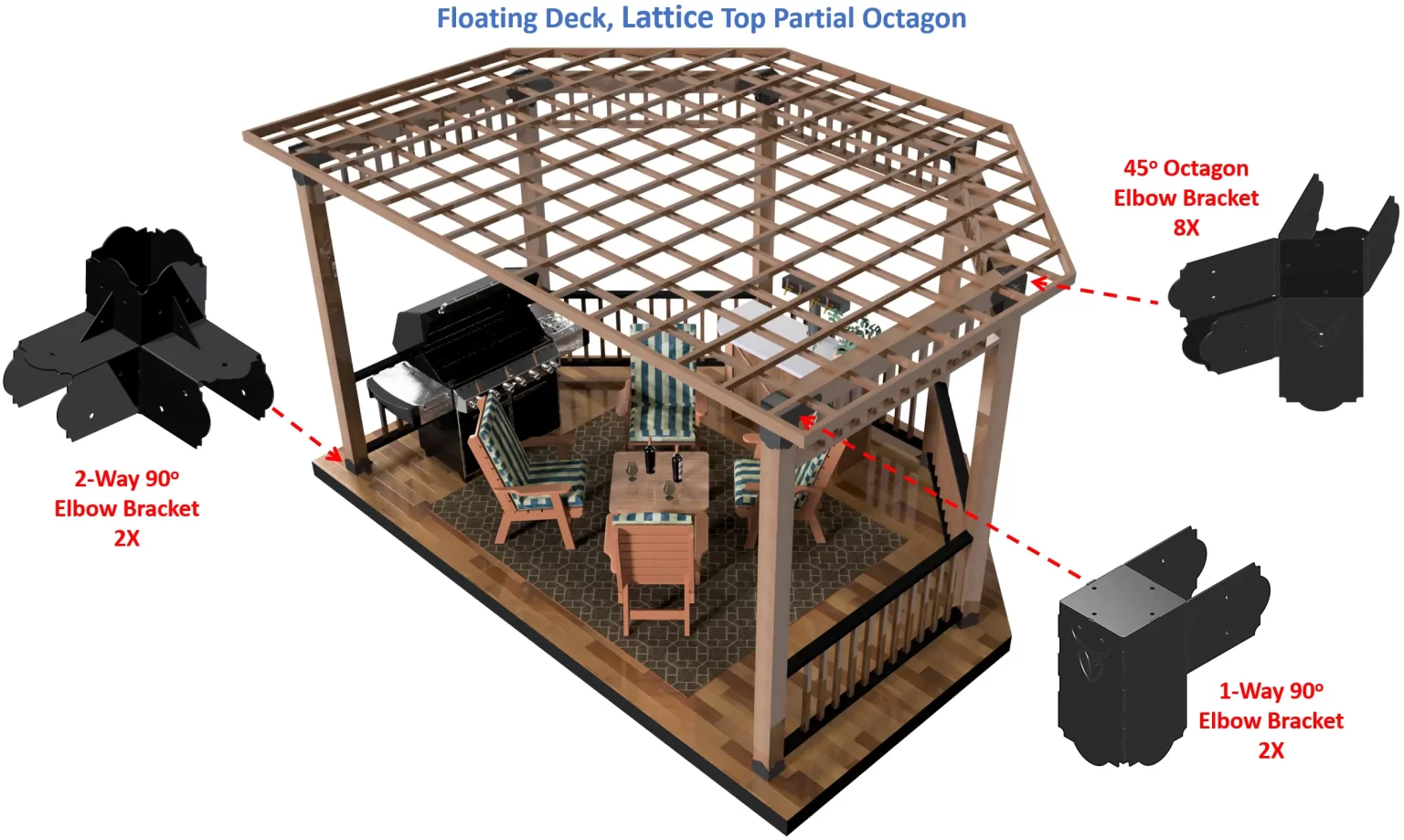

Explore Floating Deck, Lattice Top Partial Octagon

Bracketology

Explore 6F-PO - RioOutdoors.com
Hot Spots
Shop Now

DIY-centric Smart Designs

  • Designed from a  DIYer’s perspective.
  • DIY-Smart Brackets make work fast, easy, and safe.
  • DIY-Smart designs save effort, time, and reduce out of pocket costs drastically.
  • Precision brackets eliminate wood-joinery skills.
  • Highly detailed professional installation instructions are easy to follow by anyone.
Octagon Open Top Series - RioOutdoors.com

Innovative Shapes

4x4, Floating Deck, Freestanding, Partial Octagon Gazebo Brackets Kit - RioOutdoors.com
  • Novel octagon shapes are unique and beautiful.
  • Bracket designs allow creation of complex shapes.
  • Highest quality materials, and workmanship.
  • Unlimited size flexibility to suit every need.
  • Complex wood joints made easy to create.
  • Available for 4×4 and 6×6 post sized structures.

High Quality Brackets

  • Engineered for high load capacity.
  • Precision engineered for consistent product quality.
  • 1/8″ thick high strength steel used on all brackets.
  • 60% thicker metal than competitors for high strength, durability, and long life.
  • High strength brackets create super-strong and permanent joints between lumber members.
  • Brackets allow easy creation of complex shapes.
  • Powder painted black for rust proofing.
A close-up of the 4OL WITH WOOD 1 black metal bracket connecting three wooden beams at a corner joint, with one vertical and two horizontal beams secured by screws.

Gallery

Shop Now
Shopping Cart
MENU
Scroll to Top

Octagon Elbow Bracket

Octagon Elbow Bracket
SKU # 4OL

  • Novel and patented unique DIY-friendly design allows any novice to create a beautiful octagon shaped outdoor living space.
  • 2-way 45 degree heavy duty octagon elbow bracket for 6×6 size lumber members.
  • Designed to create a strong 45 degree joint between two 6×6 lumber members and attach them to the end of a third 6×6.
  • Primarily to be used to create an octagon shape or partial octagon shape.
  • Highest quality materials and workmanship for high durability and long life.
    Smart DIY design allows easy, accurate, and safe assembly work.
  • Open U-channels allow easy and safe placement of header.
  • Decorative laser cut profiles provide refined aesthetics.
    Designed to create a permanent and strong 2-way 45o joints between two 6×6 members.
  • Can be use anywhere a strong 2-way joint is required.
    Can be positioned in any orientation.
  • 8-3/4” deep tube slides over any 6×6 post end.
    Allows bracket to be moved up or down at post ends for height adjustment, if necessary.
  • Heavy welded-on gussets under U-channel provides high load resistance and sway resistance. Eliminates the need for lumber gussets at corners.
    Predrilled 5/16” holes present, 2 holes in each vertical face of U-channels, for securing headers to the bracket using ¼”X 1-1/4” Lag Screws.
  • Four 5/16” holes present in two vertical tube walls to secure post to the bracket using ¼”X 1-1/4” Lag Screws.
  • 1/8” high strength steel, fully welded construction.
  • Black powder painted for corrosion resistance.

Specifications

Length = 16-1/4″
Width = 10-1/4″
Height = 8-3/4″
Weight = 9.3 lbs.
Steel Thickness: 1/8″
Paint Type: Powder Paint
Paint Color: Black

2-Way 90 Degree Elbow Bracket

2-Way 90 Degree Elbow Bracket
SKU # 4C2L

  • 2-way 90o heavy duty elbow bracket for 4×4 size lumber members.
  • Designed to create a strong 3-way 90-degree joint between three 4×4 lumber members.
  • Highest quality materials and workmanship for high durability and long life.
  • Smart DIY design allows easy, accurate, and safe assembly work.
  • Open U-channels allow easy and safe placement of header.
  • Decorative laser cut profiles provide refined aesthetics.
  • Designed to create a permanent and strong 3-way 90o joints between three 4×4 members.
  • Can be use anywhere a strong 3-way joint is required.
  • Can be positioned in any orientation.
  • 8-3/4” deep tube slides over any 4×4 post end.
  • Allows bracket to be moved up or down at post ends for height adjustment, if necessary.
  • Heavy welded-on gussets under U-channel provides high load resistance and sway resistance. Eliminates the need for lumber gussets at corners.
  • Four predrilled 5/16” holes present, 2 holes in each vertical face of U-channels, for securing headers to the bracket using ¼”X 1-1/4” Lag Screws.
  • Four 5/16” holes present in two vertical tube walls to secure post to the bracket using ¼”X 1-1/4” Lag Screws.
  • 1/8” high strength steel, fully welded construction.
  • Black powder painted for corrosion resistance.
  • Can be spray painted over, using any exterior grade paint.

Specifications

Length = 9″
Width = 9″
Height = 9″
Weight = 8 lbs.
Steel Thickness: 1/8″
Paint Type: Powder Paint
Paint Color: Black

One Way 90-Degree Elbow Bracket

One Way 90 Degree Elbow Bracket
SKU # 4C1L

  • Designed to create a permanent and strong 90o joint between any two 4×4 members.
  • 1-Way 90o heavy duty elbow bracket.
  • Highest quality materials and workmanship for high durability and long life.
  • Smart DIY design allows easy, accurate, and safe assembly work.
  • Open U-channel allow easy and safe placement of header.
  • Decorative laser cut profiles provide refined aesthetics.
  • Can be use anywhere a strong L-shaped joint is required.
  • Can be positioned in any orientation.
  • 8-3/4” deep tube slides over 4×4 post end.
  • Allows bracket to be moved up or down at post ends for height adjustment, if necessary.
  • Heavy welded-on gussets under U-channel provides high load resistance and sway resistance. Eliminates the need for lumber gussets at corners.
  • Four predrilled 5/16” holes present, 2 holes in each vertical face, for securing headers to the bracket using ¼”X 1-1/4” Lag Screws.
  • Four 5/16” holes present in two vertical tube walls to secure post to the bracket using ¼”X 1-1/4” Lag Screws.
  • 1/8” high strength steel, fully welded construction.
  • Black powder painted for corrosion resistance.
  • Can be spray painted over, using any exterior grade paint.

Specifications

Length = 8-7/8″
Width = 8-7/8″
Height = 3-7/8″
Weight = 6.2 lbs.
Steel Thickness: 1/8″
Paint Type: Powder Paint
Paint Color: Black
