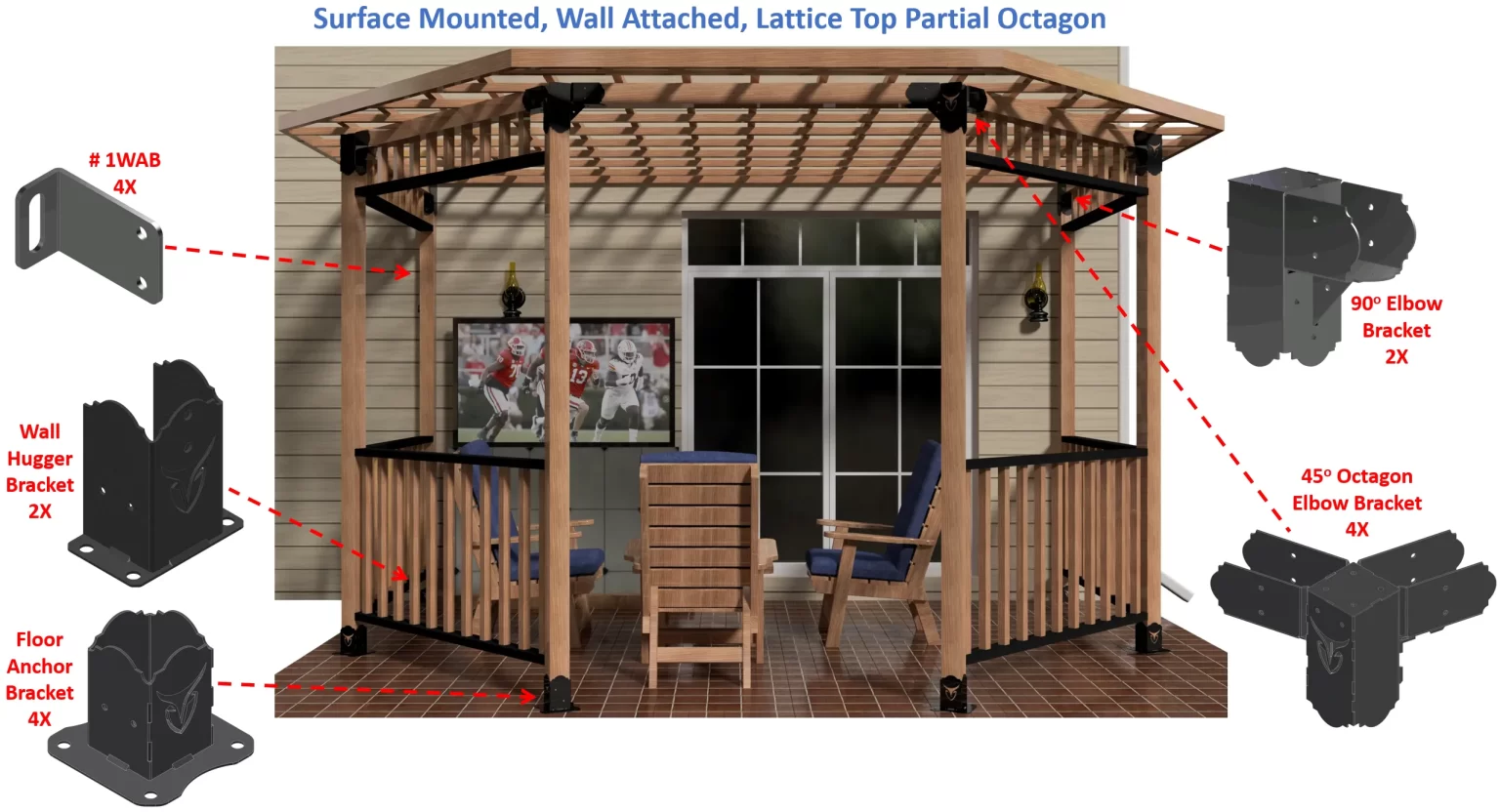

Explore Surface Mounted, Wall Attached, Lattice Top Partial Octagon

Bracketology

Explore 4S-WPO - RioOutdoors.com
Shop Now

DIY-centric Smart Designs

  • Designed from a  DIYer’s perspective.
  • DIY-Smart Brackets make work fast, easy, and safe.
  • DIY-Smart designs save effort, time, and reduce out of pocket costs drastically.
  • Precision brackets eliminate wood-joinery skills.
  • Highly detailed professional installation instructions are easy to follow by anyone.
Octagon Open Top Series - RioOutdoors.com

Innovative Shapes

Octagon Open Top Series - RioOutdoors.com
  • Novel octagon shapes are unique and beautiful.
  • Bracket designs allow creation of complex shapes.
  • Highest quality materials, and workmanship.
  • Unlimited size flexibility to suit every need.
  • Complex wood joints made easy to create.
  • Available for 4×4 and 6×6 post sized structures.

High Quality Brackets

  • Engineered for high load capacity.
  • Precision engineered for consistent product quality.
  • 1/8″ thick high strength steel used on all brackets.
  • 60% thicker metal than competitors for high strength, durability, and long life.
  • High strength brackets create super-strong and permanent joints between lumber members.
  • Brackets allow easy creation of complex shapes.
  • Powder painted black for rust proofing.
3D-rendered image of the Universal 4x4 Post Anchor Bracket in black metal with decorative cutouts, shown alongside four bolts with nuts and four screws, indicating included assembly components for mounting.

Gallery

Shop Now
Shopping Cart
MENU
Scroll to Top

Octagon Elbow Bracket

Octagon Elbow Bracket
SKU # 4OL

  • Novel and patented unique DIY-friendly design allows any novice to create a beautiful octagon shaped outdoor living space.
  • 2-way 45 degree heavy duty octagon elbow bracket for 6×6 size lumber members.
  • Designed to create a strong 45 degree joint between two 6×6 lumber members and attach them to the end of a third 6×6.
  • Primarily to be used to create an octagon shape or partial octagon shape.
  • Highest quality materials and workmanship for high durability and long life.
    Smart DIY design allows easy, accurate, and safe assembly work.
  • Open U-channels allow easy and safe placement of header.
  • Decorative laser cut profiles provide refined aesthetics.
    Designed to create a permanent and strong 2-way 45o joints between two 6×6 members.
  • Can be use anywhere a strong 2-way joint is required.
    Can be positioned in any orientation.
  • 8-3/4” deep tube slides over any 6×6 post end.
    Allows bracket to be moved up or down at post ends for height adjustment, if necessary.
  • Heavy welded-on gussets under U-channel provides high load resistance and sway resistance. Eliminates the need for lumber gussets at corners.
    Predrilled 5/16” holes present, 2 holes in each vertical face of U-channels, for securing headers to the bracket using ¼”X 1-1/4” Lag Screws.
  • Four 5/16” holes present in two vertical tube walls to secure post to the bracket using ¼”X 1-1/4” Lag Screws.
  • 1/8” high strength steel, fully welded construction.
  • Black powder painted for corrosion resistance.

Specifications

Length = 16-1/4″
Width = 10-1/4″
Height = 8-3/4″
Weight = 9.3 lbs.
Steel Thickness: 1/8″
Paint Type: Powder Paint
Paint Color: Black

Floor Anchor Bracket

Floor Anchor Bracket
SKU # 4FA

  • Made to secure a 4×4 Post to a concrete footing, concrete pad or wood deck with proper support structure.
  • Highest quality materials and workmanship for high durability and long life.
  • Smart DIY design allows easy and accurate assembly work and eliminates having to embed posts into concrete footings.
  • Decorative laser cut profiles provide refined aesthetics.
    Includes a 7” X 7” bottom plate for wide load displacement and is 6” tall for high lateral support and sway resistance.
  • Four 5/16” pre drilled holes present, 2 holes on two opposing faces, for securing post to the bracket using ¼”X1-1/4” Lag Screws.
    Four 9/16” Predrilled holes for ½” X 2-3/4 Concrete Anchors.
  • 1/8” high strength steel, welded construction.
    Black powder painted for rust proofing for lifetime.
  • Can be spray painted over, using exterior paints.
    (Qty 4) 1/4″ X 1-1/4″ Hex Hd Lag Screws included to secure post to the bracket.
    (Qty 4) 1/2″ x 2-3/4″ Bull Stud Anchor Bolts included to secure bracket to concrete.
    Easy to follow, highly detailed animated installation instructions are available.

Specifications

Length = 7″
Width = 7″
Height = 6″
Weight = 4.2 lbs.
Steel Thickness: 1/8″
Paint Type: Powder Paint
Paint Color: Black

Post Mount, Wall Hugger Bracket

Post Mount, Wall Hugger Bracket
SKU # 6WM

  • Designed to attach a 6×6 Post to a concrete pad, footing, or deck and adjacent to a wall.
  • An open u-channel heavy duty bracket.
  • Highest quality materials and workmanship for high durability and long life.
  • Smart DIY design allows easy, accurate, and safe assembly work.
  • Open U-channel allow easy and safe placement of post.
  • Decorative laser cut profiles provide refined aesthetics.
  • Can be use anywhere a post butted against a wall is required.
  • Heavy welded construction provides high load resistance and sway resistance.
  • Four predrilled 7/16” holes present, 2 holes in each side face, for securing the post to the bracket using 3/8”X 2” Lag Screws.
  • Four 9/16” holes present in the base plate to secure the bracket using 1/2″ diameter concrete anchors or lag screws to secure the bracket to the floor.
  • 1/8” high strength steel, fully welded construction.
  • Black powder painted for corrosion resistance.
  • Can be spray painted over, using any exterior grade paint.

Specifications

Length = 7-3/4″
Width = 6-1/8″
Height = 8-1/2″
Weight = 6.2 lbs.
Steel Thickness: 1/8″
Paint Type: Powder Paint
Paint Color: Black7

One Way 90-Degree Elbow Bracket

One Way 90 Degree Elbow Bracket
SKU # 4C1L

  • Designed to create a permanent and strong 90o joint between any two 4×4 members.
  • 1-Way 90o heavy duty elbow bracket.
  • Highest quality materials and workmanship for high durability and long life.
  • Smart DIY design allows easy, accurate, and safe assembly work.
  • Open U-channel allow easy and safe placement of header.
  • Decorative laser cut profiles provide refined aesthetics.
  • Can be use anywhere a strong L-shaped joint is required.
  • Can be positioned in any orientation.
  • 8-3/4” deep tube slides over 4×4 post end.
  • Allows bracket to be moved up or down at post ends for height adjustment, if necessary.
  • Heavy welded-on gussets under U-channel provides high load resistance and sway resistance. Eliminates the need for lumber gussets at corners.
  • Four predrilled 5/16” holes present, 2 holes in each vertical face, for securing headers to the bracket using ¼”X 1-1/4” Lag Screws.
  • Four 5/16” holes present in two vertical tube walls to secure post to the bracket using ¼”X 1-1/4” Lag Screws.
  • 1/8” high strength steel, fully welded construction.
  • Black powder painted for corrosion resistance.
  • Can be spray painted over, using any exterior grade paint.

Specifications

Length = 8-7/8″
Width = 8-7/8″
Height = 3-7/8″
Weight = 6.2 lbs.
Steel Thickness: 1/8″
Paint Type: Powder Paint
Paint Color: Black

Octagon Open End Ridge Rafter Bracket

Octagon Open End Ridge Rafter Bracket
SKU # OOE-RR

  • Made to secure a 2×6 or 2×8 rafter to the ridge beam at the open end of of a Partial Octagon structure.
  • Highest quality materials and workmanship for high durability and long life.
  • Smart DIY design allows easy and accurate assembly work and precise positioning.
  • 1/8” high strength steel, welded construction.
  • Black powder painted for rust proofing for lifetime.
  • Can be spray painted over, using exterior paints.
    (Qty 4) 1/4″ X 1-1/4″ Hex Hd lag screws included to secure the bracket to post top and rafter to the bracket.
  • Easy to follow, highly detailed animated installation instructions are available.

Specifications

Length = 14-1/4″
Width = 7-7/8″
Height = 4-7/8″
Weight = 5.5 lbs.
Steel Thickness: 1/8″
Paint Type: Powder Paint
Paint Color: Black
