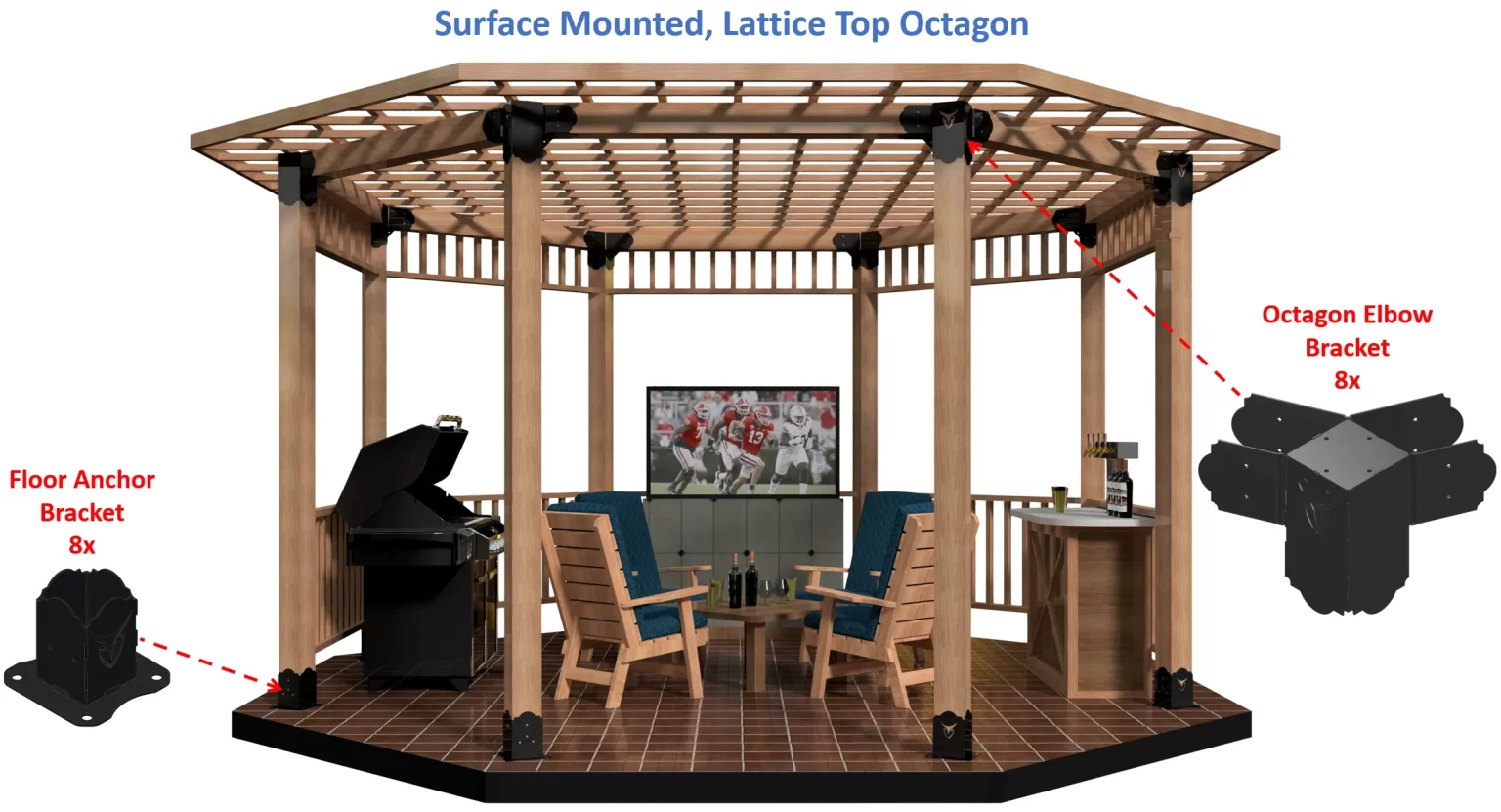

Explore Surface Mounted, Lattice Top Octagon

Bracketology

Explore 6S-O - RioOutdoors.com

DIY-centric Smart Designs

  • Designed from a  DIYer’s perspective.
  • DIY-Smart Brackets make work fast, easy, and safe.
  • DIY-Smart designs save effort, time, and reduce out of pocket costs drastically.
  • Precision brackets eliminate wood-joinery skills.
  • Highly detailed professional installation instructions are easy to follow by anyone.

Innovative Shapes

  • Novel octagon shapes are unique and beautiful.
  • Bracket designs allow creation of complex shapes.
  • Highest quality materials, and workmanship.
  • Unlimited size flexibility to suit every need.
  • Complex wood joints made easy to create.
  • Available for 4×4 and 6×6 post sized structures.

High Quality Brackets

  • Engineered for high load capacity.
  • Precision engineered for consistent product quality.
  • 1/8″ thick high strength steel used on all brackets.
  • 60% thicker metal than competitors for high strength, durability, and long life.
  • High strength brackets create super-strong and permanent joints between lumber members.
  • Brackets allow easy creation of complex shapes.
  • Powder painted black for rust proofing.
Shopping Cart
Scroll to Top

Octagon Elbow Bracket

Octagon Elbow Bracket
SKU # 6OL

  • Novel and patented unique DIY-friendly design allows any novice to create a beautiful octagon shaped outdoor living space.
  • 2-way 45o heavy duty octagon elbow bracket for 6×6 size lumber members.
  • Designed to create a strong 45o joint between two 6×6 lumber members and attach them to the end of a third 6×6.
  • Primarily to be used to create an octagon shape or partial octagon shape.
  • Highest quality materials and workmanship for high durability and long life.
    Smart DIY design allows easy, accurate, and safe assembly work.
  • Open U-channels allow easy and safe placement of header.
  • Decorative laser cut profiles provide refined aesthetics.
    Designed to create a permanent and strong 2-way 45o joints between two 6×6 members.
  • Can be use anywhere a strong 2-way joint is required.
    Can be positioned in any orientation.
  • 8-3/4” deep tube slides over any 6×6 post end.
    Allows bracket to be moved up or down at post ends for height adjustment, if necessary.
  • Heavy welded-on gussets under U-channel provides high load resistance and sway resistance. Eliminates the need for lumber gussets at corners.
    Predrilled 5/16” holes present, 2 holes in each vertical face of U-channels, for securing headers to the bracket using ¼”X 1-1/4” Lag Screws.
  • Four 5/16” holes present in two vertical tube walls to secure post to the bracket using ¼”X 1-1/4” Lag Screws.
  • 1/8” high strength steel, fully welded construction.
  • Black powder painted for corrosion resistance.

Specifications

Length = 16-1/4″
Width = 16-1/4″
Height = 11-3/8″
Weight = 16.25 lbs.
Steel Thickness: 1/8″
Paint Type: Powder Paint
Paint Color: Black

Floor Anchor Bracket

Floor Anchor Bracket
SKU # 6FA

  • Made to secure a 6×6 Post to a concrete footing, concrete pad or wood deck with proper support structure.
  • Highest quality materials and workmanship for high durability and long life.
  • Smart DIY design allows easy and accurate assembly work and eliminates having to embed posts into concrete footings.
  • Decorative laser cut profiles provide refined aesthetics.
    Includes a 8-1/2” X 8-1/2” bottom plate for wide load displacement and is 8-1/2” tall for high lateral support and sway resistance.
  • Four 7/16” pre drilled holes present, 2 holes on two opposing faces, for securing post to the bracket using 3/8”X 2” Lag Screws.
    Four 9/16” Predrilled holes for ½” X 2-3/4 Concrete Anchors.
  • 1/8” high strength steel, welded construction.
    Black powder painted for rust proofing for lifetime.
  • Can be spray painted over, using exterior paints.
    (Qty 4) 3/8″ X 2″ Hex Hd Lag Screws included to secure post to the bracket.
    (Qty 4) 1/2″ x 2-3/4″ Bull Stud Anchor Bolts included to secure bracket to concrete.
    Easy to follow, highly detailed animated installation instructions are available.

Specifications

Length = 8-1/2″
Width = 8-1/2″
Height = 8-1/2″
Weight = 8.2 lbs.
Steel Thickness: 1/8″
Paint Type: Powder Paint
Paint Color: Black
