Explore Surface Mounted, Solid Roofed Partial Hexagon

Brackets Detailed Information & Installation Instructions Videos

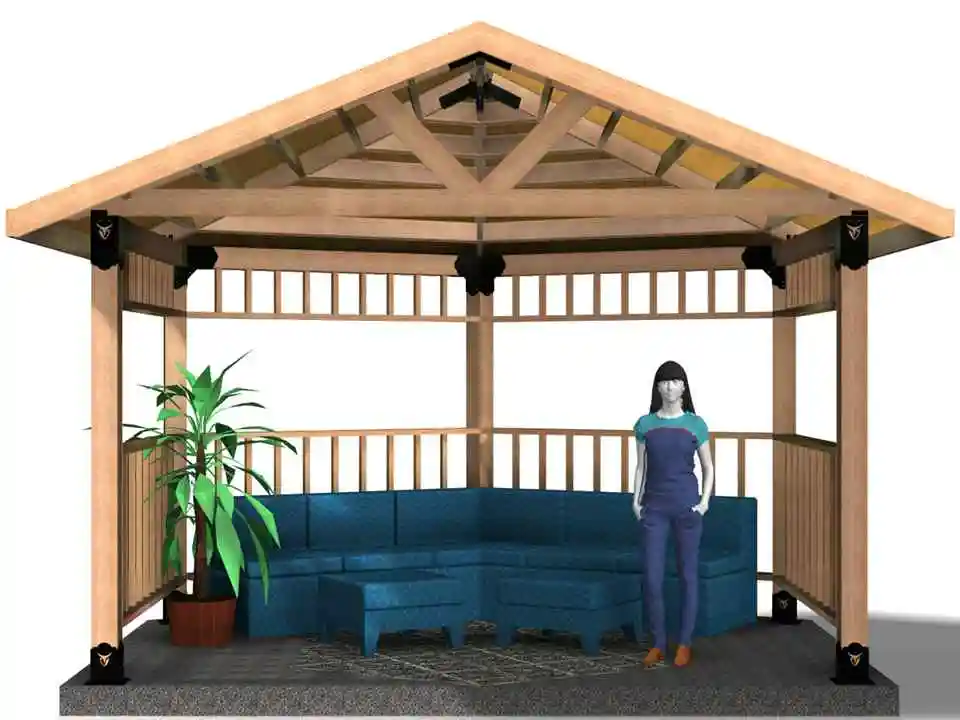

Explore 6S-PHR - RioOutdoors.com
Click on blinking icons
Buy Now
Truss End U-channel Bracket, Left Hand RioOutdoors.com
Click on blinking icons

DIY-centric Smart Designs

  • Designed from a  DIYer’s perspective.
  • DIY-Smart Brackets make work fast, easy, and safe.
  • DIY-Smart designs save effort, time, and reduce out of pocket costs drastically.
  • Precision brackets eliminate wood-joinery skills.
  • Highly detailed professional installation instructions are easy to follow by anyone.

Innovative Shapes

DIY 6x6 Partial Hexagon Pergola/Gazebo Kit - Easy Assembly for Outdoor Retreat - RioOutdoors.com
  • Novel hexagon shapes are unique and beautiful.
  • Bracket designs allow creation of complex shapes.
  • Highest quality materials, and workmanship.
  • Unlimited size flexibility to suit every need.
  • Complex wood joints made easy to create.
  • Available for 4×4 and 6×6 post sized structures.

High Quality Brackets

  • Engineered for high load capacity.
  • Precision engineered for consistent product quality.
  • 1/8″ thick high strength steel used on all brackets.
  • 60% thicker metal than competitors for high strength, durability, and long life.
  • High strength brackets create super-strong and permanent joints between lumber members.
  • Brackets allow easy creation of complex shapes.
  • Powder painted black for rust proofing.
Explore 6S-WPHR - RioOutdoors.com

Gallery

Buy Now
Shopping Cart
MENU
Scroll to Top

Hexagon Elbow Bracket

Hexagon Elbow Bracket
SKU # 6HL

  • Novel and patented unique DIY-friendly design allows any novice to create a beautiful hexagon shaped outdoor living space.
  • 2-way 60-degree heavy duty hexagon elbow bracket for 6×6 size lumber members.
  • Designed to create a strong 60-degree joint between two 6×6 lumber members and attach them to the end of a third 6×6 post.
  • Primarily to be used to create a hexagon shape or partial hexagon shape.
  • Highest quality materials and workmanship for high durability and long life.
    Smart DIY design allows easy, accurate, and safe assembly work.
  • Open U-channels allow easy and safe placement of header.
  • Decorative laser cut profiles provide refined aesthetics.
    Designed to create a permanent and strong 2-way 60-degree joints between two 6×6 members.
  • Can be use anywhere a strong 2-way joint is required.
    Can be positioned in any orientation.
  • 8-3/4” deep tube slides over any 6×6 post end.
    Allows bracket to be moved up or down at post ends for height adjustment, if necessary.
  • Heavy welded-on gussets under U-channel provides high load resistance and sway resistance. Eliminates the need for lumber gussets at corners.
    Predrilled 7/16” holes present, 2 holes in each vertical face of U-channels, for securing headers to the bracket using 3/8”X 2” Lag Screws.
  • Four 5/16” holes present in two vertical tube walls to secure post to the bracket using 3/8”X 2” Lag Screws.
  • 1/8” high strength steel, fully welded construction.
  • Black powder painted for corrosion resistance.

Specifications

Length =15-7/8″
Width = 15-7/8″
Height = 11-1/4″
Weight = 17.2 lbs.
Steel Thickness: 1/8″
Paint Type: Powder Paint
Paint Color: Black

Floor Anchor Bracket

Floor Anchor Bracket
SKU # 6FA

  • Made to secure a 6×6 Post to a concrete footing, concrete pad or wood deck with proper support structure.
  • Highest quality materials and workmanship for high durability and long life.
  • Smart DIY design allows easy and accurate assembly work and eliminates having to embed posts into concrete footings.
  • Decorative laser cut profiles provide refined aesthetics.
    Includes a 8-1/2” X 8-1/2” bottom plate for wide load displacement and is 8-1/2” tall for high lateral support and sway resistance.
  • Four 7/16” pre drilled holes present, 2 holes on two opposing faces, for securing post to the bracket using 3/8”X 2” Lag Screws.
    Four 9/16” Predrilled holes for ½” X 2-3/4 Concrete Anchors.
  • 1/8” high strength steel, welded construction.
    Black powder painted for rust proofing for lifetime.
  • Can be spray painted over, using exterior paints.
    (Qty 4) 3/8″ X 2″ Hex Hd Lag Screws included to secure post to the bracket.
    (Qty 4) 1/2″ x 2-3/4″ Bull Stud Anchor Bolts included to secure bracket to concrete.
    Easy to follow, highly detailed animated installation instructions are available.

Specifications

Length = 8-1/2″
Width = 8-1/2″
Height = 8-1/2″
Weight = 8.2 lbs.
Steel Thickness: 1/8″
Paint Type: Powder Paint
Paint Color: Black

One Way 90-Degree Elbow Bracket

One Way 90 Degree Elbow Bracket
SKU # 6C1L

  • Designed to create a permanent and strong 90o joint between any two 6×6 members.
  • 1-Way 90o heavy duty elbow bracket.
  • Highest quality materials and workmanship for high durability and long life.
  • Smart DIY design allows easy, accurate, and safe assembly work.
  • Open U-channel allow easy and safe placement of header.
  • Decorative laser cut profiles provide refined aesthetics.
  • Can be use anywhere a strong L-shaped joint is required.
  • Can be positioned in any orientation.
  • 11-1/4” deep tube slides over any 6×6 post end.
  • Allows bracket to be moved up or down at post ends for height adjustment, if necessary.
  • Heavy welded-on gussets under U-channel provides high load resistance and sway resistance. Eliminates the need for lumber gussets at corners.
  • Four predrilled 7/16” holes present, 2 holes in each vertical face, for securing headers to the bracket using 3/8”X 2” Lag Screws.
  • Four 7/16” holes present in two vertical tube walls to secure post to the bracket using 3/8”X 2” Lag Screws.
  • 1/8” high strength steel, fully welded construction.
  • Black powder painted for corrosion resistance.
  • Can be spray painted over, using any exterior grade paint.

Specifications

Length =13-1/4″
Width = 11-1/4″
Height = 5-1/4″
Weight = 12.8 lbs.
Steel Thickness: 1/8″
Paint Type: Powder Paint
Paint Color: Black

Post Top Rafter Tie Bracket

Post Top Rafter Tie Bracket
SKU # PTRT

  • Made to secure a 2×6 or 2×8 rafter to the top of each post.
  • Highest quality materials and workmanship for high durability and long life.
  • Smart DIY design allows easy and accurate assembly work and precise positioning.
  • 1/8” high strength steel, welded construction.
  • Black powder painted for rust proofing for lifetime.
  • Can be spray painted over, using exterior paints.
    (Qty 6) 1/4″ X 1-1/4″ Hex Hd lag screws included to secure the bracket to post top and rafter to the bracket.
  • Easy to follow, highly detailed animated installation instructions are available.

Specifications

Length = 3-7/8″
Width = 3-1/2″
Height = 2-3/4″
Weight = 0.7 lbs.
Steel Thickness: 1/8″
Paint Type: Powder Paint
Paint Color: Black

Hexagon Cross Tie Bracket

Hexagon Cross Tie Bracket
SKU # H-CT

This is a novel bracket designed to connect two roof deck support cross tie beams to the main hexagon rafters.

The Hexagon Cross Tie Bracket is designed to attach to the bottom and side surfaces of the main hexagon rafters and provide two cross tie receiver U-channels at precise angles.

These brackets simplify addition of the cross tie beams at perfect angles to form decorative deck support structures in a perfect hexagon shape.

The cross tie bracket attaches to the rafter’s bottom and side surfaces using four (4) 1/4″ x 1-1/4″ lag screws.

The high strength design of this bracket holds the cross tie support beams securely.

The Hexagon Cross Tie Bracket’s arms have upward facing open U-channels to easily receive 2×6 or 2×8 cross tie beams. Each cross tie beam is secured to the U-channel with two (2) 1/4″ x 1-1/4″ lag screws.

Specifications

Length = 6″
Width = 6-3/4″
Height = 2″
Weight = 1.3 lbs.
Steel Thickness: 1/8″
Paint Type: Powder Paint
Paint Color: Black

Partial Hexagon Spider Bracket

Partial Hexagon Spider Bracket
SKU # PH-SPD

A novel 4-way spider hub design which makes it simple to create a super-strong compressive joint between 3 rafters pitched at 20 degree angles and one horizontal ridge beam.

The one and only DIY-Smart design ever created to allow DIYers to easily build a grand solid roofed partial hexagon outdoor living structure easily, fast, and for 1/4 the cost of contracted labor.

The Partial Hexagon Spider Bracket is designed to resist compressive loads at the peak of the octagon roof. The high strength design of this bracket resists compressive loads applied by each rafter and permanently supports 3 rafters.

The Partial Hexagon Spider Bracket’s arms have upward facing open U-channels to easily receive 2×6 or 2×8 rafters. Each rafter is secured to the U-channel with five (5) 1/4″ x 1-1/4″ lag screws.

Specifications

Length = 21-1/2″
Width = 19-1/2″
Height = 6-5/8″
Weight = 11.5 lbs.
Steel Thickness: 1/8″
Paint Type: Powder Paint
Paint Color: Black

Hexagon Open End Ridge Rafter Bracket

Hexagon Open End Ridge Rafter Bracket
SKU # HOE-RR

    • Made to secure a 2×6 or 2×8 rafter to the ridge beam at the open end of of a Partial Hexagon structure.
    • Creates a 22.8 degree angle which conforms to a hexagon roof which has 20 degree rafter pitches.
    • Highest quality materials and workmanship for high durability and long life.
    • Smart DIY design allows easy and accurate assembly work and precise positioning.
    • 1/8” high strength steel, welded construction.
    • Black powder painted for rust proofing for lifetime.
    • Can be spray painted over, using exterior paints.
      (Qty 14) 1/4″ X 1-1/4″ Hex Hd lag screws included to secure the bracket to ridge beam and two rafters to the bracket.
    • Easy to follow, highly detailed animated installation instructions are available.

    Specifications

    Length = 14-1/4″
    Width = 7-7/8″
    Height = 4-7/8″
    Weight = 5.5 lbs.
    Steel Thickness: 1/8″
    Paint Type: Powder Paint
    Paint Color: Black

Open End Rafter Tie Bracket

Open End Rafter Tie Bracket
SKU # OE-RT

  • Made to secure a 2×6 or 2×8 rafter to the top of each post at the open end of a Partial Octagon or Partial Hexagon structure.
  • Highest quality materials and workmanship for high durability and long life.
  • Smart DIY design allows easy and accurate assembly work and precise positioning.
  • 1/8” high strength steel, welded construction.
  • Black powder painted for rust proofing for lifetime.
  • Can be spray painted over, using exterior paints.
  • (Qty 2) 1/4″ X 2″ Hex Hd lag screws included to secure the bracket to post top.
  • Qty 2) 1/4″ X 1-1/4″ Hex Hd lag screws included to secure the rafter to the bracket.
  • Easy to follow, highly detailed animated installation instructions are available.

Specifications

Length = 3-1/2″
Width = 3-3/8″
Height = 2-5/8″
Weight = 0.6 lbs.
Steel Thickness: 1/8″
Paint Type: Powder Paint
Paint Color: Black

Butt Joint Plate, Left Hand

Butt Joint Plate, Left Hand
SKU # BJ-PL

    • Made to secure the end of the left hand 45 degree brace member to the left hand rafter of an open end truss.
    • Creates a strong joint between the 45 degree brace member and the rafter.
    • Highest quality materials and workmanship for high durability and long life.
    • Smart DIY design allows easy and accurate assembly work and precise positioning.
    • 1/8” high strength steel, welded construction.
    • Black powder painted for rust proofing for lifetime.
    • Can be spray painted over, using exterior paints.
      (Qty 9) 1/4″ X 1-1/4″ Hex Hd lag screws included to secure the bracket to the horizonal beam and to teh rafter.
    • Easy to follow, highly detailed animated installation instructions are available.

    • Specifications

      Length = 9″
      Width = 5-5/8″
      Height = 1-5/8″
      Weight = 2.2 lbs.
      Steel Thickness: 1/8″
      Paint Type: Powder Paint
      Paint Color: Black

Truss End Joint Bracket, Right Hand

Truss End Joint Bracket, Right Hand
SKU # TE-UBR

    • Made to secure the end horizontal beam of an open end truss to the main right side rafter.
    • Creates a strong joint between the truss horizontal beam and the rafter.
    • Highest quality materials and workmanship for high durability and long life.
    • Smart DIY design allows easy and accurate assembly work and precise positioning.
    • 1/8” high strength steel, welded construction.
    • Black powder painted for rust proofing for lifetime.
    • Can be spray painted over, using exterior paints.
      (Qty 10) 1/4″ X 1-1/4″ Hex Hd lag screws included to secure the bracket to the horizonal beam and to teh rafter.
    • Easy to follow, highly detailed animated installation instructions are available.

    • Specifications

      Length = 6-1/8″
      Width = 4″
      Height = 1-3/4″
      Weight =  1.1 lbs.
      Steel Thickness: 1/8″
      Paint Type: Powder Paint
      Paint Color: Black

Truss Center Joints Bracket

Truss Center Joints Bracket
SKU # TC-JB

    • Made to secure and support the truss center joint of two 2×6 or 2×8 horizontal beam and provide support for two 45-degree truss brace members.
    • Highest quality materials and workmanship for high durability and long life.
    • Smart DIY design allows easy and accurate assembly work and precise positioning.
    • 1/8” high strength steel, welded construction.
    • Black powder painted for rust proofing for lifetime.
    • Can be spray painted over, using exterior paints.
      (Qty 22) 1/4″ X 1-1/4″ Hex Hd lag screws included to secure the bracket to the truss horizontal beam and the two 45-degree brace members.
    • Easy to follow, highly detailed animated installation instructions are available.

    • Specifications

      Length = 16-1/4″
      Width = 10-3/4″
      Height = 1-7/8″
      Weight = 7.1  lbs.
      Steel Thickness: 1/8″
      Paint Type: Powder Paint
      Paint Color: Black

Truss End Joint Bracket, Left Hand

Truss End Joint Bracket, Right Hand
SKU # TE-UBR

    • Made to secure the end horizontal beam of an open end truss to the main right side rafter.
    • Creates a strong joint between the truss horizontal beam and the rafter.
    • Highest quality materials and workmanship for high durability and long life.
    • Smart DIY design allows easy and accurate assembly work and precise positioning.
    • 1/8” high strength steel, welded construction.
    • Black powder painted for rust proofing for lifetime.
    • Can be spray painted over, using exterior paints.
      (Qty 10) 1/4″ X 1-1/4″ Hex Hd lag screws included to secure the bracket to the horizonal beam and to teh rafter.
    • Easy to follow, highly detailed animated installation instructions are available.

    • Specifications

      Length = 6″
      Width = 4″
      Height = 1-3/4″
      Weight =  1.1 lbs.
      Steel Thickness: 1/8″
      Paint Type: Powder Paint
      Paint Color: Black

Truss End Joint Bracket, Right Hand
SKU # TE-UBR

    • Made to secure the end horizontal beam of an open end truss to the main right side rafter.
    • Creates a strong joint between the truss horizontal beam and the rafter.
    • Highest quality materials and workmanship for high durability and long life.
    • Smart DIY design allows easy and accurate assembly work and precise positioning.
    • 1/8” high strength steel, welded construction.
    • Black powder painted for rust proofing for lifetime.
    • Can be spray painted over, using exterior paints.
      (Qty 10) 1/4″ X 1-1/4″ Hex Hd lag screws included to secure the bracket to the horizonal beam and to teh rafter.
    • Easy to follow, highly detailed animated installation instructions are available.

    • Specifications

      Length = 6-1/8″
      Width = 4″
      Height = 1-3/4″
      Weight =  1.1 lbs.
      Steel Thickness: 1/8″
      Paint Type: Powder Paint
      Paint Color: Black

Butt Joint Plate, Right Hand

Butt Joint Plate, Right Hand
SKU # BJ-PR

    • Made to secure the end of the right hand 45 degree brace member to the right hand rafter of an open end truss.
    • Creates a strong joint between the 45 degree brace member and the rafter.
    • Highest quality materials and workmanship for high durability and long life.
    • Smart DIY design allows easy and accurate assembly work and precise positioning.
    • 1/8” high strength steel, welded construction.
    • Black powder painted for rust proofing for lifetime.
    • Can be spray painted over, using exterior paints.
      (Qty 9) 1/4″ X 1-1/4″ Hex Hd lag screws included to secure the bracket to the horizonal beam and to teh rafter.
    • Easy to follow, highly detailed animated installation instructions are available.

    • Specifications

      Length = 9″
      Width = 5-5/8″
      Height = 1-5/8″
      Weight = 2.2 lbs.
      Steel Thickness: 1/8″
      Paint Type: Powder Paint
      Paint Color: Black
