Heavy Duty Octagon CrossTie Bracket

Parts Included and Parts Application Depiction

Heavy Duty Octagon CrossTie Bracket

SKU# O-CT

Price

Price range: $16.95 through $203.40

- +

Heavy Duty Octagon CrossTie Bracket

Elevate your DIY projects with our Heavy Duty Octagon CrossTie Bracket. Precision-engineered for durability, this bracket ensures secure fastening for your cross tie beams. Perfect for enhancing the stability and strength of your creations.

Optimized for low shipping when you order multiples of this bracket. We combine all brackets into one box and quote lowest shipping price.

Facebook
Twitter
LinkedIn
Pinterest
The Heavy Duty Octagon CrossTie Bracket, made of black metal with three mounting sections, is displayed on a beige surface with seven black screws arranged in two rows below it.

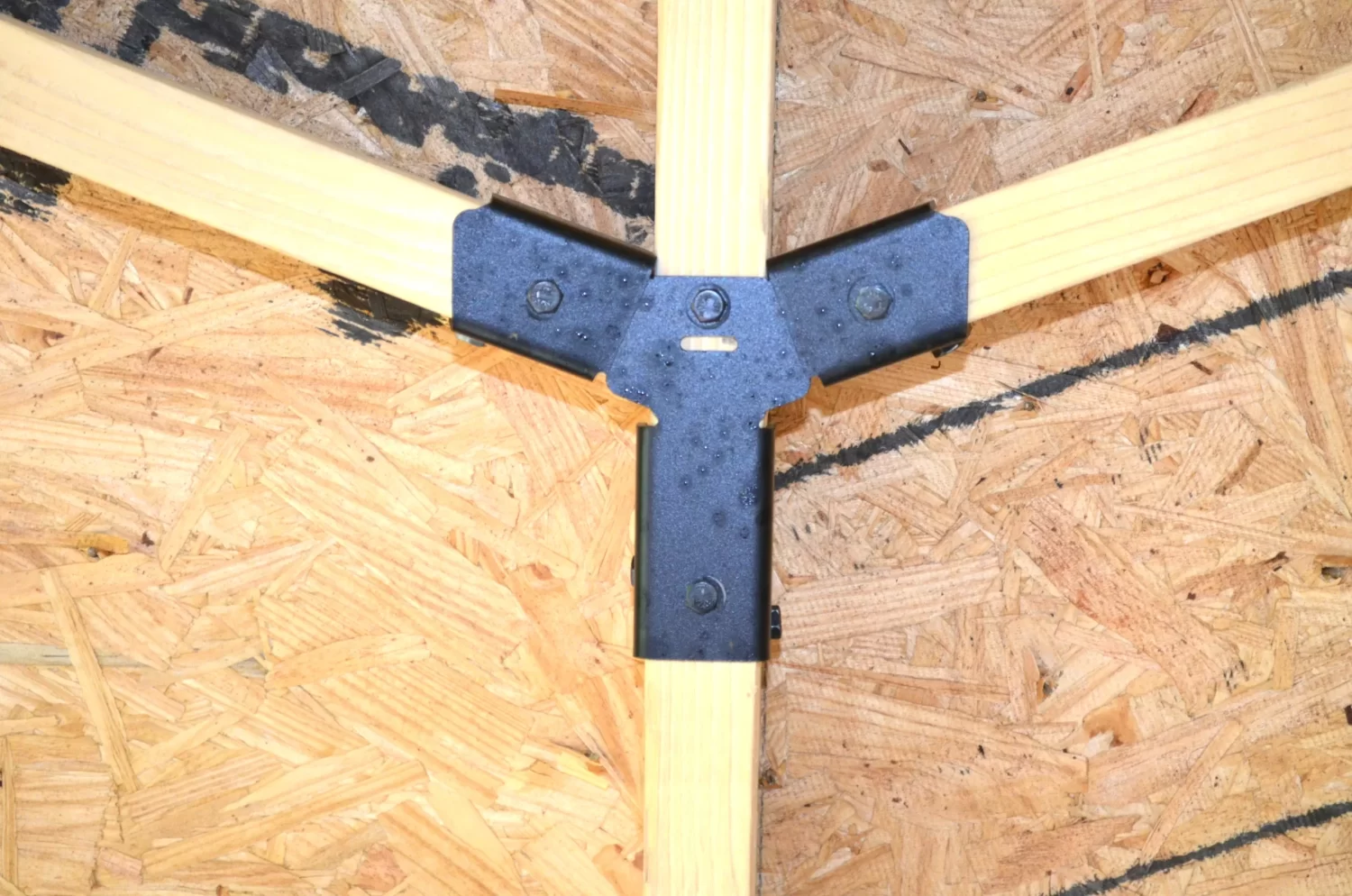

Close-up of a Heavy Duty Octagon CrossTie Bracket joining three light wooden beams on an OSB surface. The bracket is secured with screws, creating a strong triangular connection.

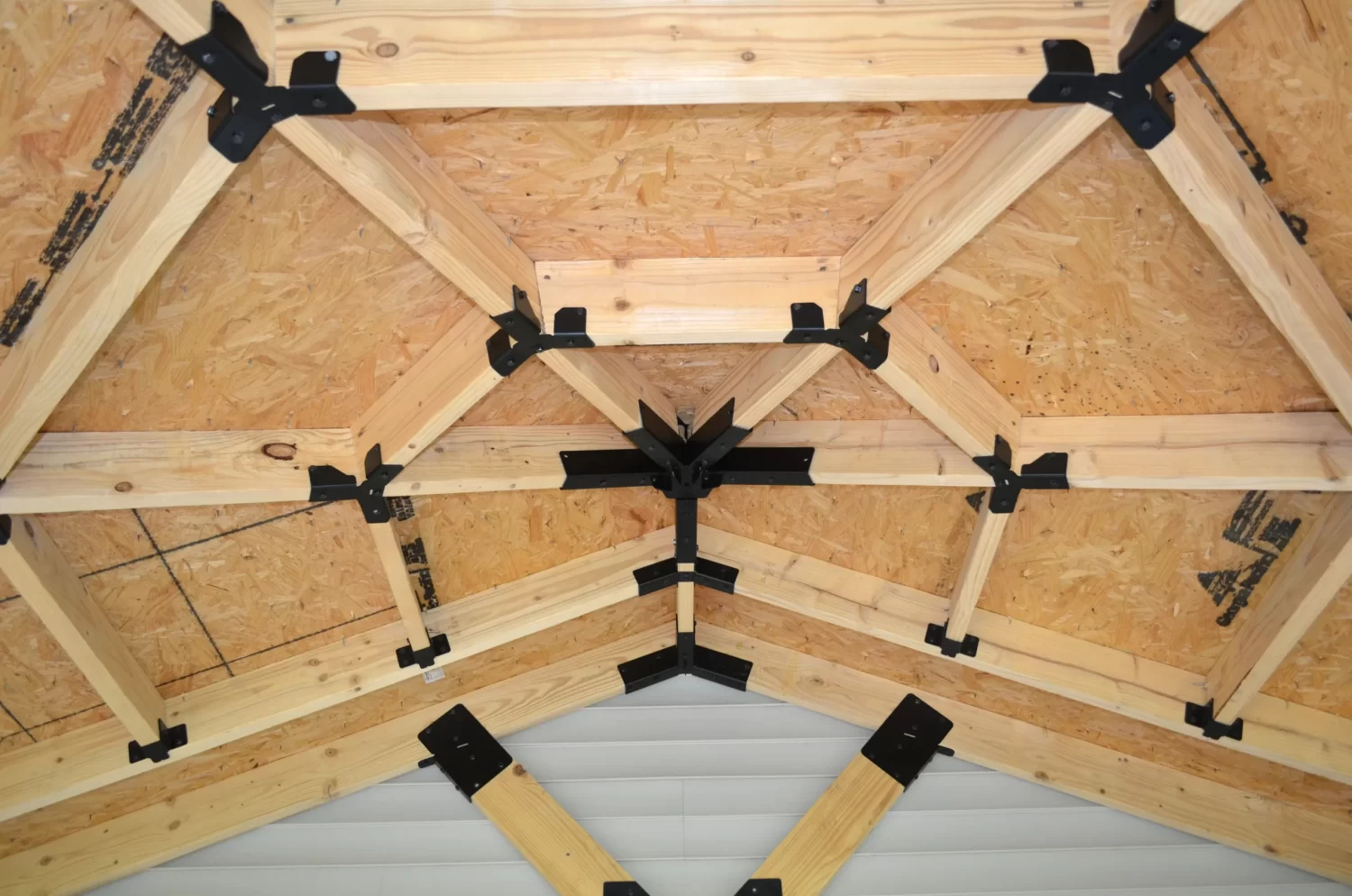

Close-up of a wooden roof truss system featuring light-colored beams and Heavy Duty Octagon CrossTie Brackets at the joints, highlighting the geometric structure and support beneath plywood sheathing.

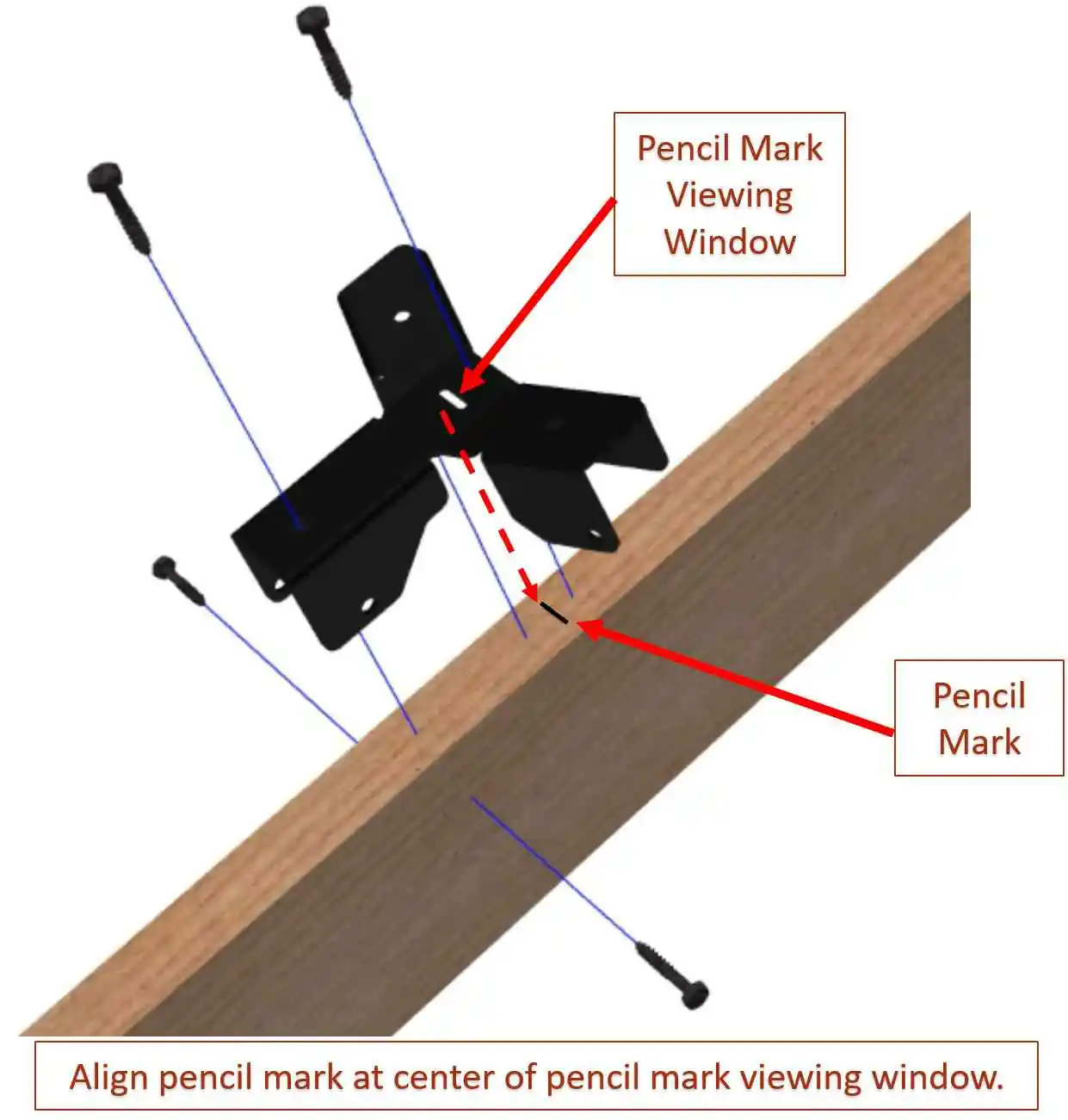

Illustration shows the black Heavy Duty Octagon CrossTie Bracket being aligned with a pencil mark on a wooden board. Arrows and labels highlight the Pencil Mark Viewing Window and show how to center the pencil mark within it.
The Heavy Duty Octagon CrossTie Bracket in black connects three wooden beams at right angles on a concrete surface, demonstrating robust construction hardware for framing or building sturdy structures.

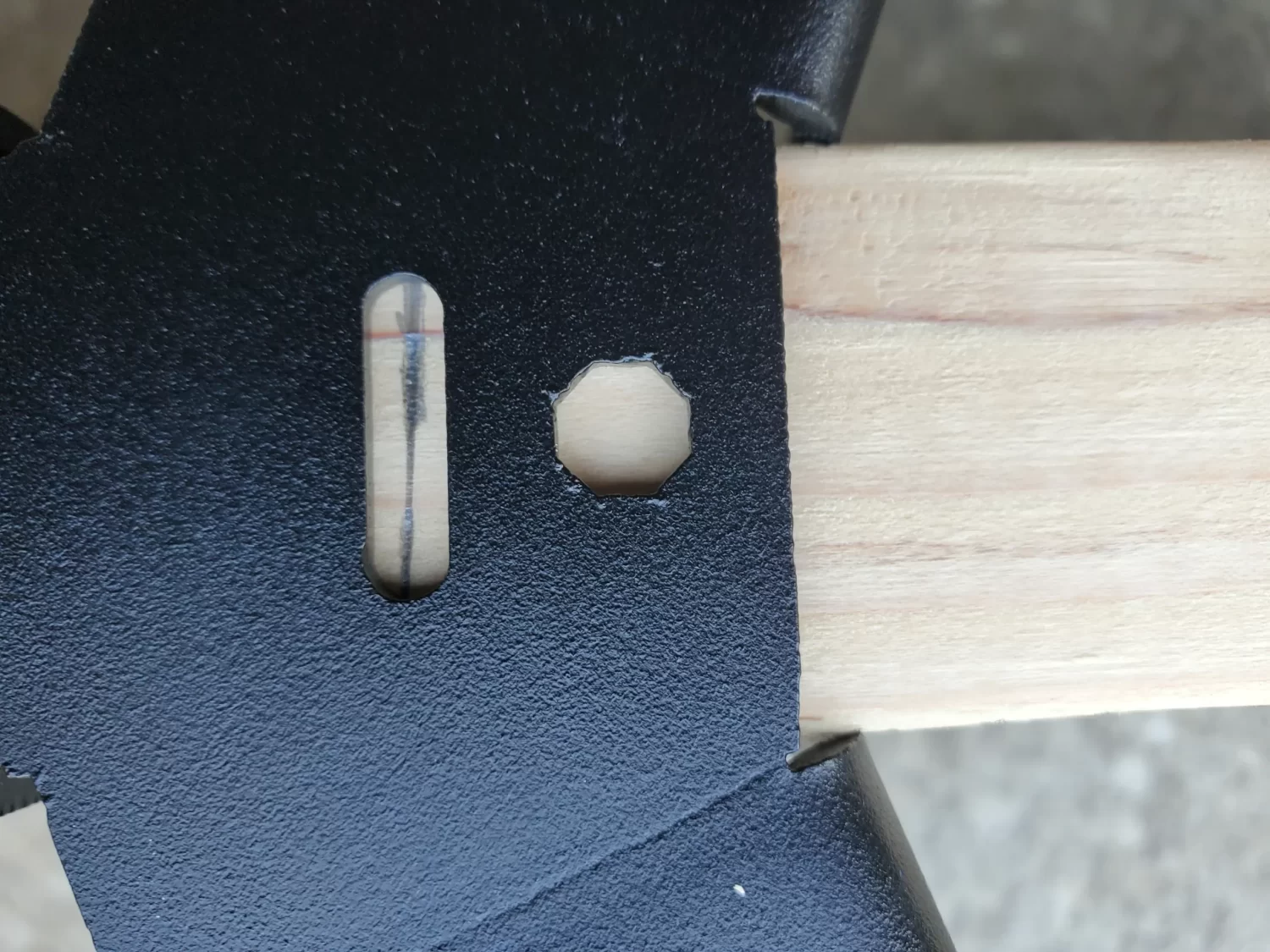

Close-up of a Heavy Duty Octagon CrossTie Bracket mounted on a light wooden beam. The black metal bracket has a vertical oval hole with a bubble level and an adjacent octagonal hole, set against a concrete background.

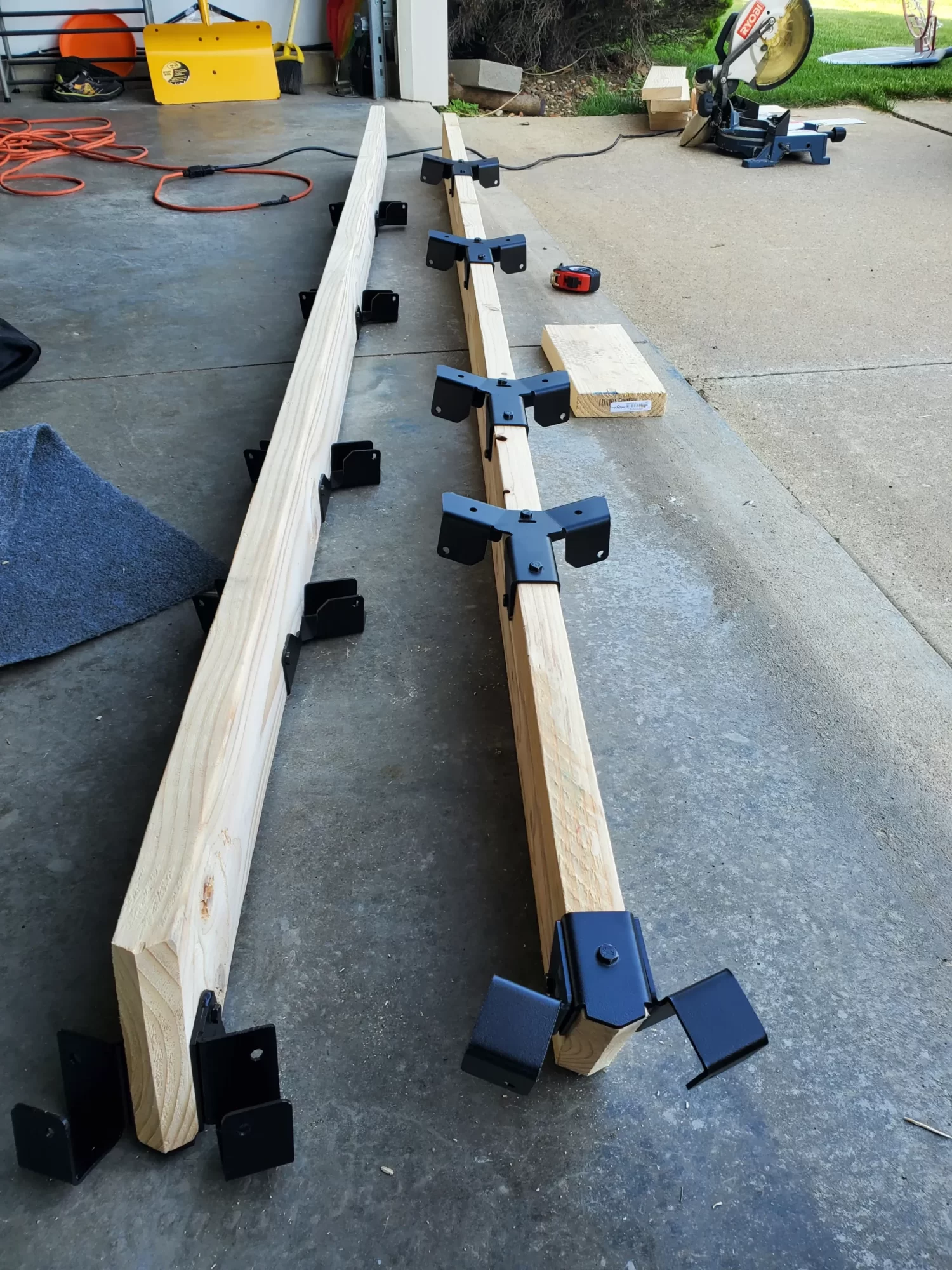

Two long wooden beams on a garage floor, each fitted with multiple Heavy Duty Octagon CrossTie Brackets. In the background near an open garage door are tools, a tape measure, wooden blocks, and cords.

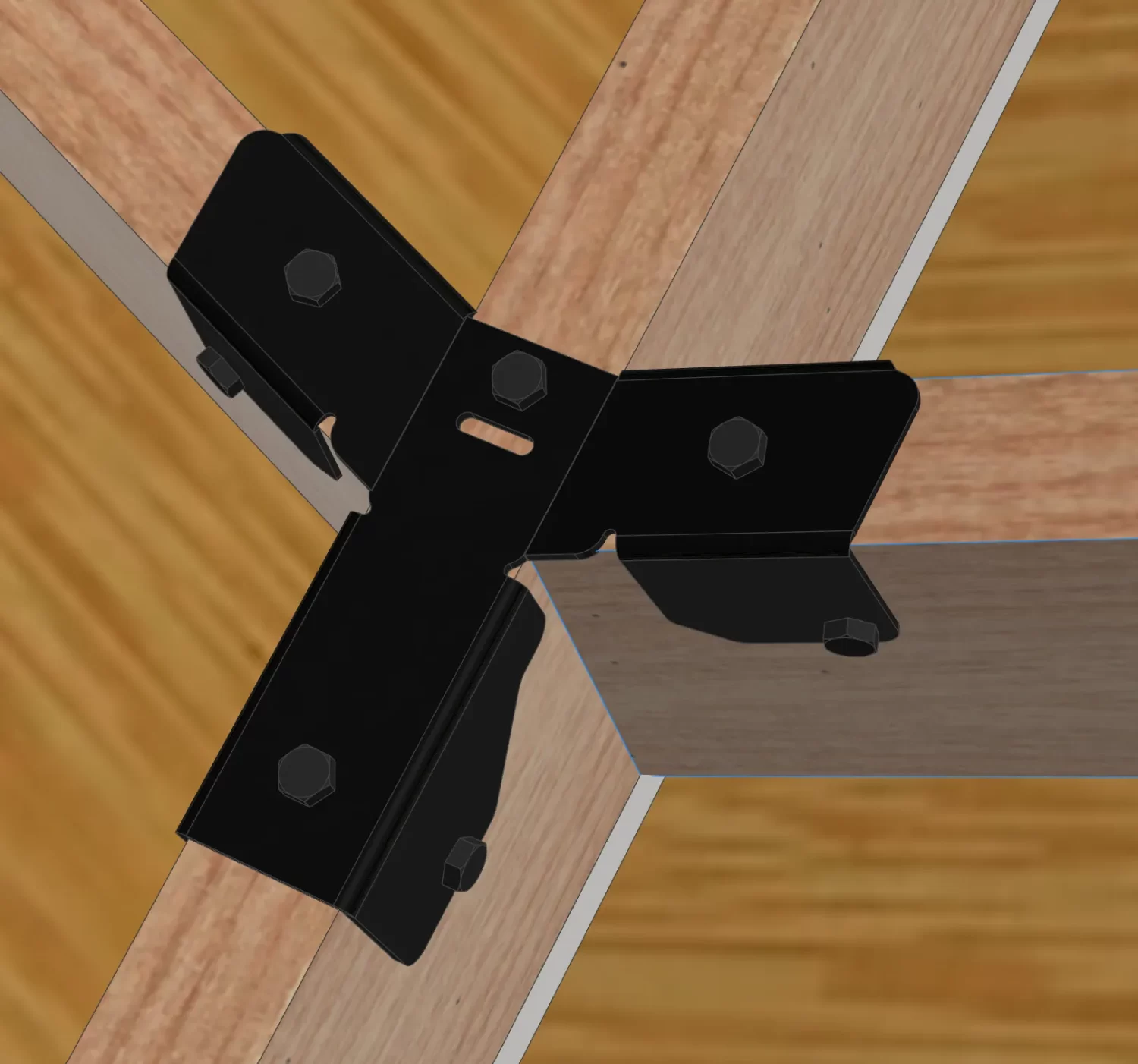

Top-down view of the Heavy Duty Octagon CrossTie Bracket joining three wooden beams at right angles with bolts over a wooden floor. The bracket secures the beams in a sturdy, interlocking configuration.
An overhead view shows a Heavy Duty Octagon CrossTie Bracket in black metal connecting two wooden beams at a right angle with bolts, all positioned on a wooden floor.

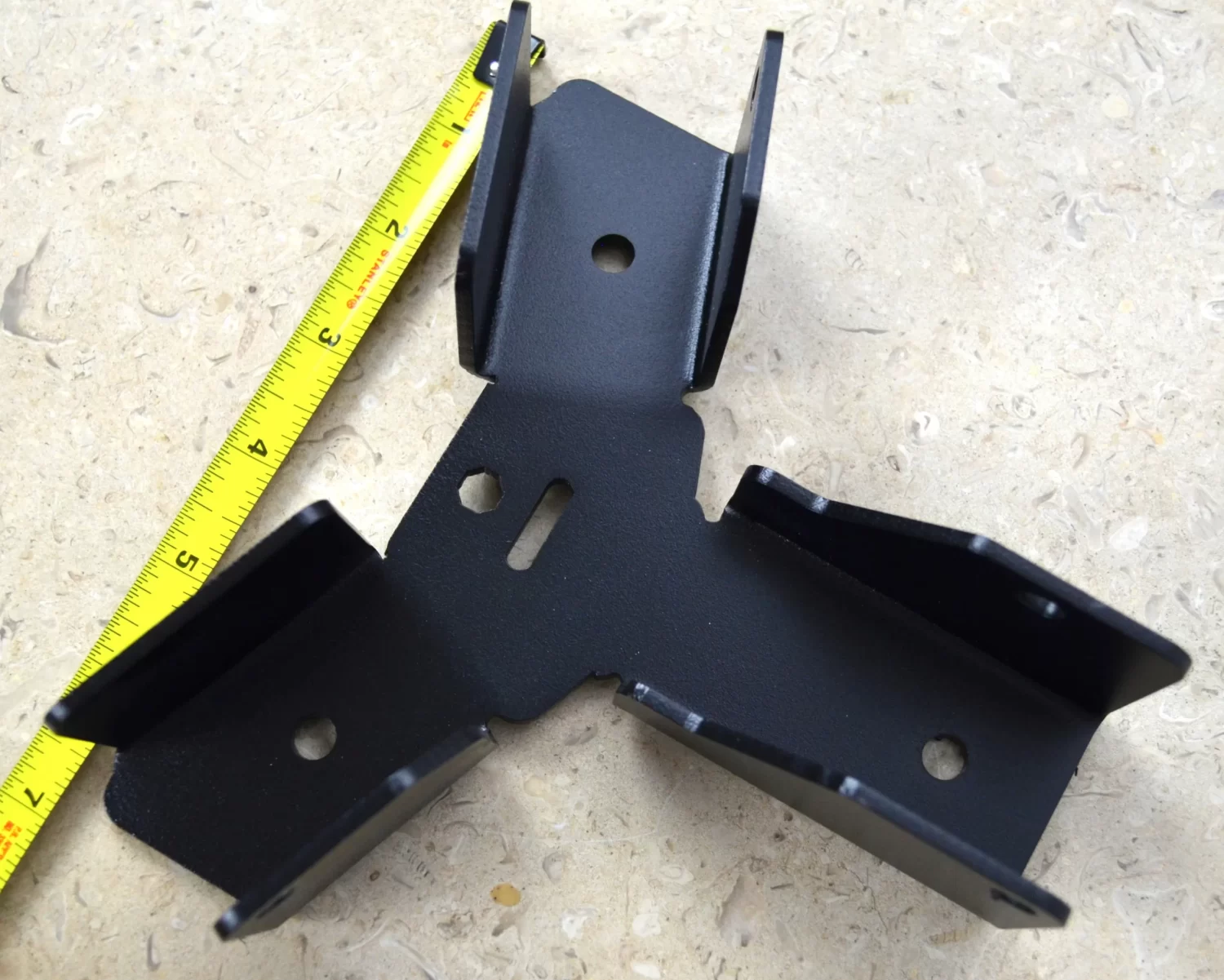

Heavy Duty Octagon CrossTie Bracket featuring multiple angled flanges and holes, shown on a light-colored stone surface beside a yellow measuring tape.

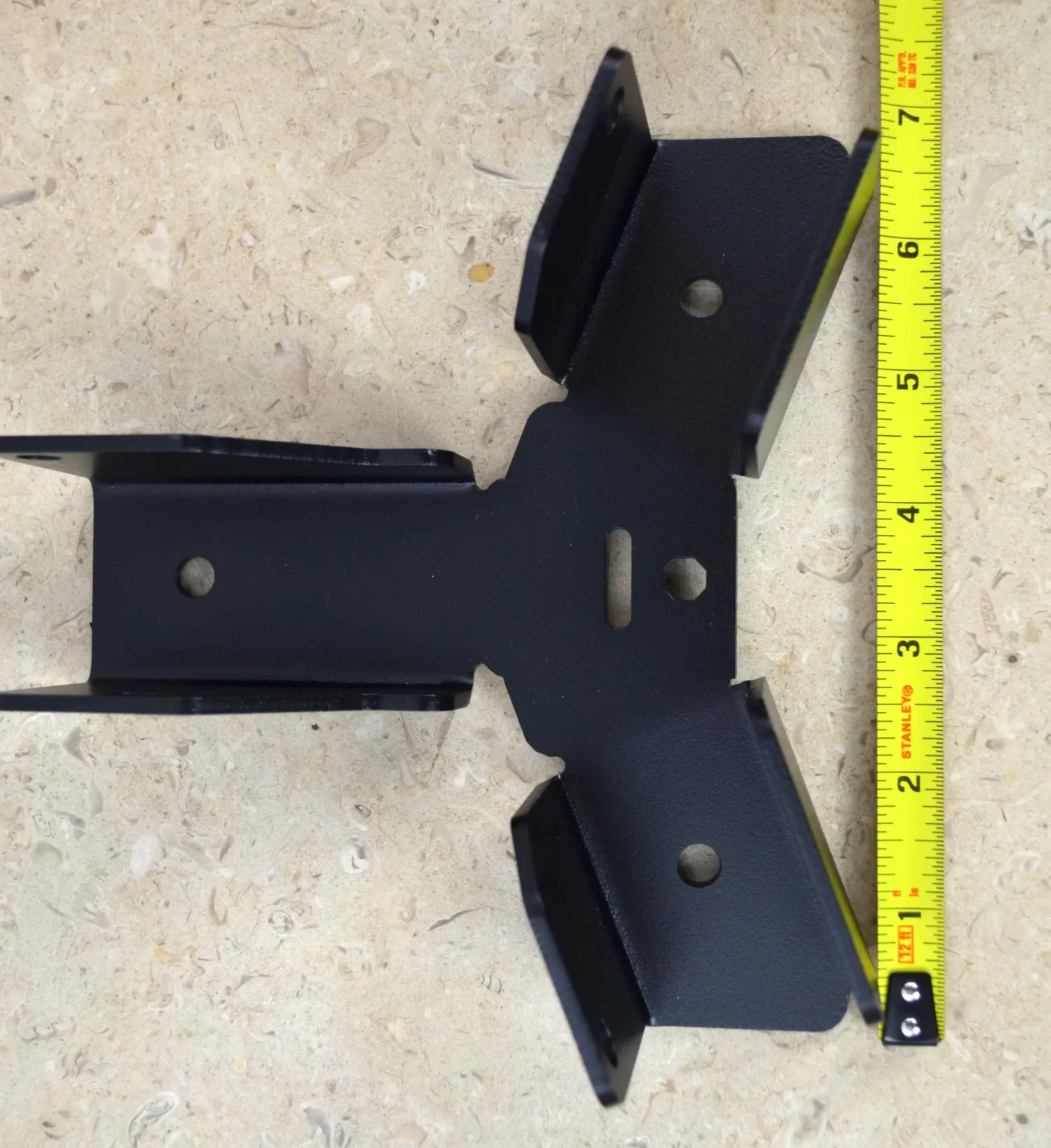

A Heavy Duty Octagon CrossTie Bracket in black metal with multiple holes is placed on a beige textured surface next to a yellow measuring tape showing about 6 inches.

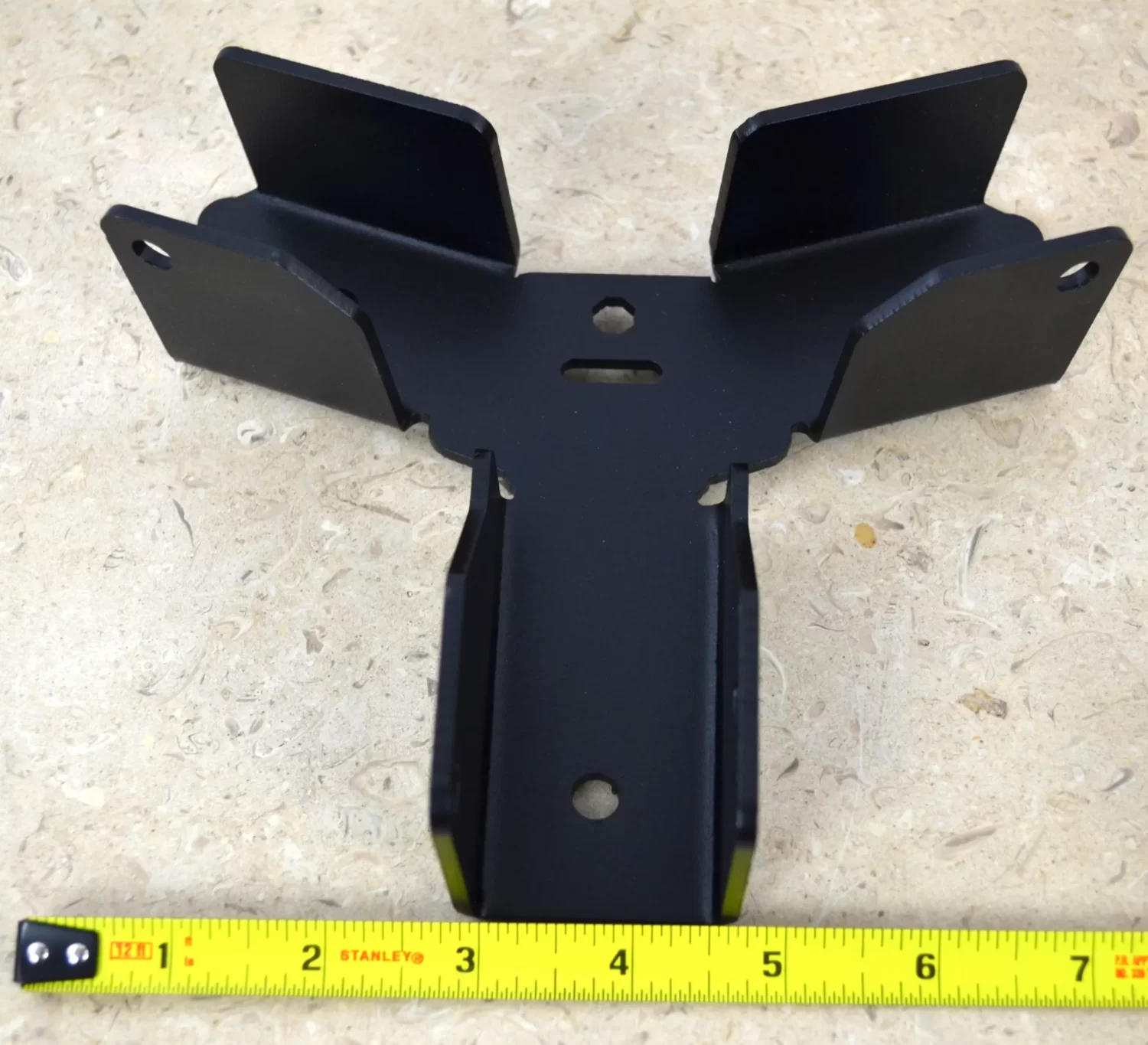

A Heavy Duty Octagon CrossTie Bracket with three flanges rests on a beige speckled surface. A yellow measuring tape beneath the black metal bracket shows its width is approximately 7 inches.

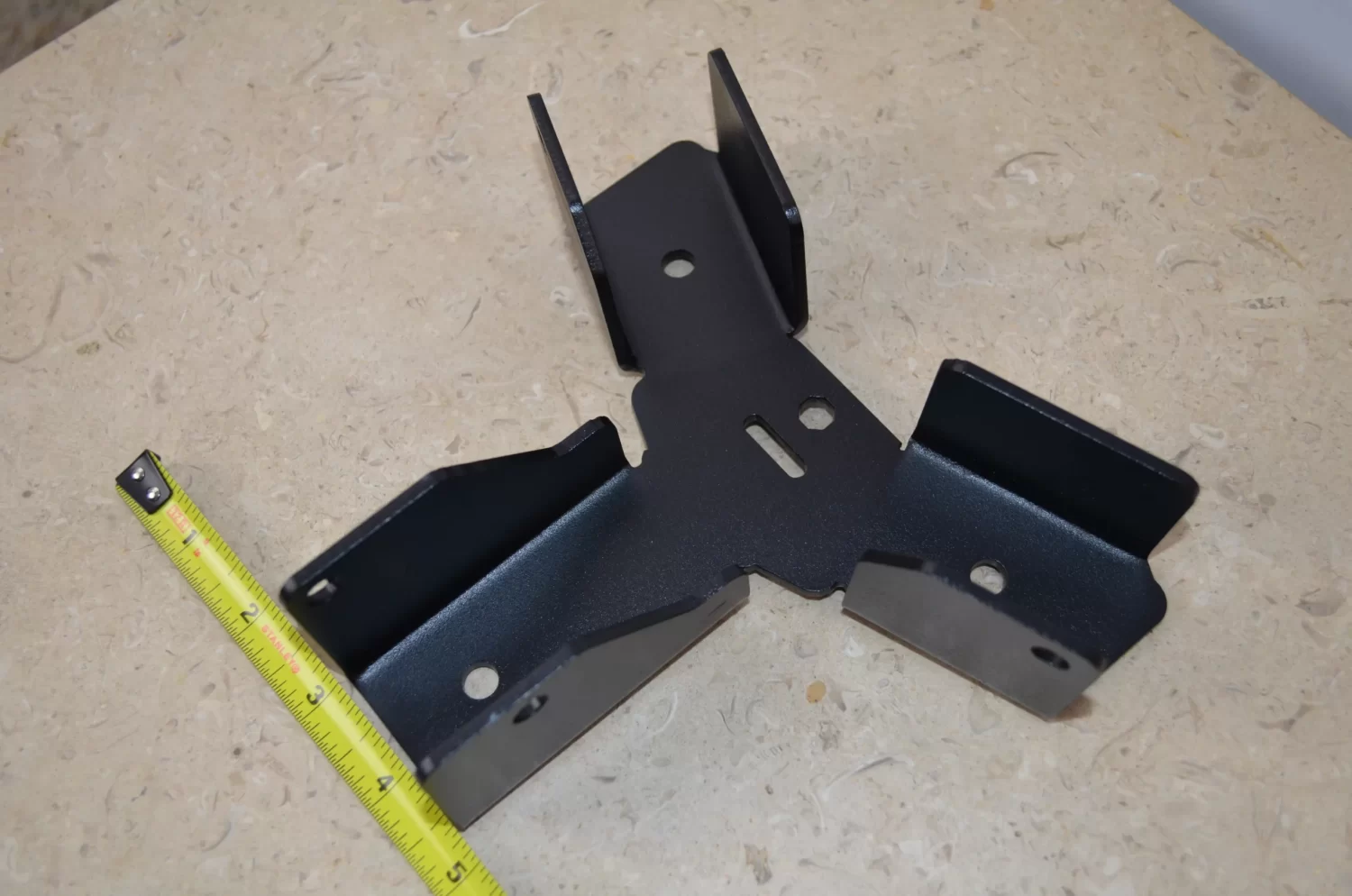

A Heavy Duty Octagon CrossTie Bracket with three angled arms and multiple holes rests on a beige textured surface, with a yellow measuring tape beside it for scale.
A Heavy Duty Octagon CrossTie Bracket in black, featuring three angled sections, sits on a beige textured surface next to a yellow measuring tape showing its width is about 8 inches.
The Heavy Duty Octagon CrossTie Bracket, made of black metal with three mounting sections, is displayed on a beige surface with seven black screws arranged in two rows below it.
Close-up of a Heavy Duty Octagon CrossTie Bracket joining three light wooden beams on an OSB surface. The bracket is secured with screws, creating a strong triangular connection.
Close-up of a wooden roof truss system featuring light-colored beams and Heavy Duty Octagon CrossTie Brackets at the joints, highlighting the geometric structure and support beneath plywood sheathing.
Illustration shows the black Heavy Duty Octagon CrossTie Bracket being aligned with a pencil mark on a wooden board. Arrows and labels highlight the Pencil Mark Viewing Window and show how to center the pencil mark within it.
The Heavy Duty Octagon CrossTie Bracket in black connects three wooden beams at right angles on a concrete surface, demonstrating robust construction hardware for framing or building sturdy structures.
Close-up of a Heavy Duty Octagon CrossTie Bracket mounted on a light wooden beam. The black metal bracket has a vertical oval hole with a bubble level and an adjacent octagonal hole, set against a concrete background.
Two long wooden beams on a garage floor, each fitted with multiple Heavy Duty Octagon CrossTie Brackets. In the background near an open garage door are tools, a tape measure, wooden blocks, and cords.
Top-down view of the Heavy Duty Octagon CrossTie Bracket joining three wooden beams at right angles with bolts over a wooden floor. The bracket secures the beams in a sturdy, interlocking configuration.
An overhead view shows a Heavy Duty Octagon CrossTie Bracket in black metal connecting two wooden beams at a right angle with bolts, all positioned on a wooden floor.
Heavy Duty Octagon CrossTie Bracket featuring multiple angled flanges and holes, shown on a light-colored stone surface beside a yellow measuring tape.
A Heavy Duty Octagon CrossTie Bracket in black metal with multiple holes is placed on a beige textured surface next to a yellow measuring tape showing about 6 inches.
A Heavy Duty Octagon CrossTie Bracket with three flanges rests on a beige speckled surface. A yellow measuring tape beneath the black metal bracket shows its width is approximately 7 inches.
A Heavy Duty Octagon CrossTie Bracket with three angled arms and multiple holes rests on a beige textured surface, with a yellow measuring tape beside it for scale.
A Heavy Duty Octagon CrossTie Bracket in black, featuring three angled sections, sits on a beige textured surface next to a yellow measuring tape showing its width is about 8 inches.
DOWNLOAD: PDF Installation Instructions
Explore Brackets & How-to-videos
Request Customized CutList and Instructions
No reviews to show

Heavy Duty Octagon CrossTie Bracket

Elevate your DIY projects with our Heavy Duty Octagon CrossTie Bracket. Precision-engineered for durability, this bracket ensures secure fastening for your cross tie beams. Perfect for enhancing the stability and strength of your creations.

Create sturdy and resilient structures with our Heavy Duty Octagon CrossTie Bracket. Crafted for DIY enthusiasts looking for reliability and strength in their projects. With easy installation and a sleek design, this bracket is a must-have for your crafting needs.

Take your DIY projects to the next level with our Heavy Duty Octagon CrossTie Bracket. Designed to provide exceptional support and stability, this bracket when used with our DIY Heavy Duty Iron Octagon 8-Way Spider Bracket Kit creates an amazing architectural octagon roof structure. Elevate your creations with this durable and versatile accessory.

This is a novel bracket designed to connect two roof deck support cross tie beams to octagon rafters.
This is a common part used for full octagon shaped gazebo roofs and partial octagon gazebo roofs.
The Octagon CrossTie Bracket is designed to attach to the bottom and side surfaces of the main octagon rafters and provide two cross tie receiver U-channels at precise angles.

These brackets simplify addition of the cross tie beams at perfect angles to form decorative deck support structures in a perfect octagon shape.

DIY-Centric Smart Designs have been injected in these brackets providing precise angular alignment and precise positioning using the “Pencil Mark Viewing Window”.

The high strength design of this bracket holds the cross tie support beams securely.A Heavy Duty Octagon CrossTie Bracket in black with red bolts is mounted on a wooden beam. Its DIY-friendly Pencil Mark Viewing Window is showcased as a smart, practical feature.
The Octagon CrossTie Bracket’s arms have upward facing open U-channels to easily receive 2×6 or 2×8 cross tie beams.
The crosstie bracket attaches to the rafter’s bottom and side surfaces using four (4) 1/4″ x 1-1/2″ lag screws.
Each crosstie beam is secured to the U-channel with two (2) 1/4″ x 1-1/2″ lag screws.
Included are eight (8) 1/4″ x 1-1/2″ lag screws to complete the job.

Don’t forget that you will have to drive 10D X 3″ nails at an angle to secure the top of the crosstie beams to the rafter. These 10D nails are not included.

This bracket is constructed from 1/8″ thick high strength steel.
This bracket is laser cut and formed and coated with durable black powder paint.
This bracket may be spray painted over with any desired exterior-grade paint color.

This bracket is also listed for sale at RioOutdoors.com and at Etsy.com/RioOutdoors

SKU# O-CT Technical Specifications

Weight N/A
Dimensions N/A
Product Type

,

Shape

Octagon
Rafters Lumber Size

2×6, 2×8
Metal Thickness

1/8"
Paint

Black Textured Powder Paint
Select A Multiple Pack

, , ,
