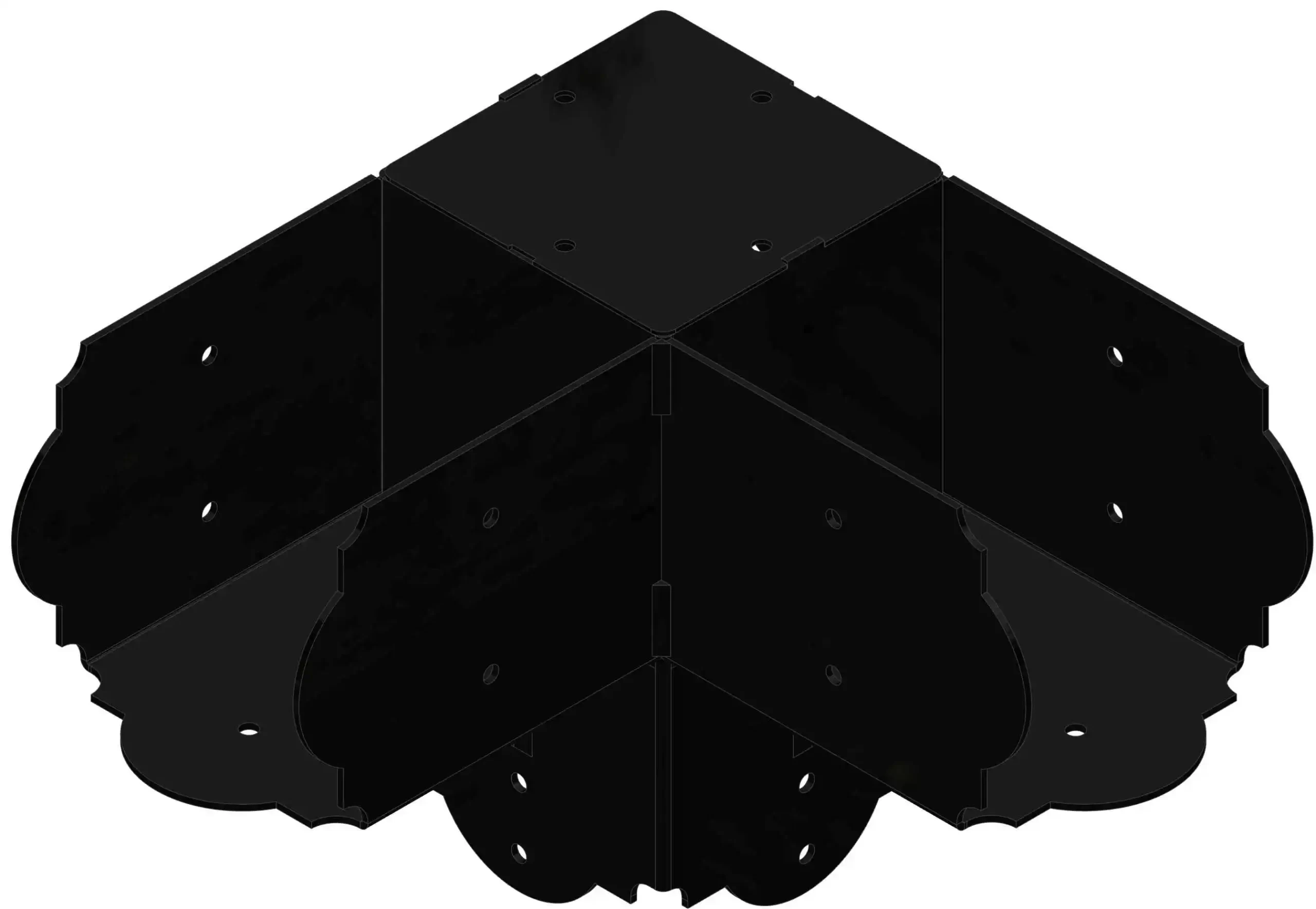

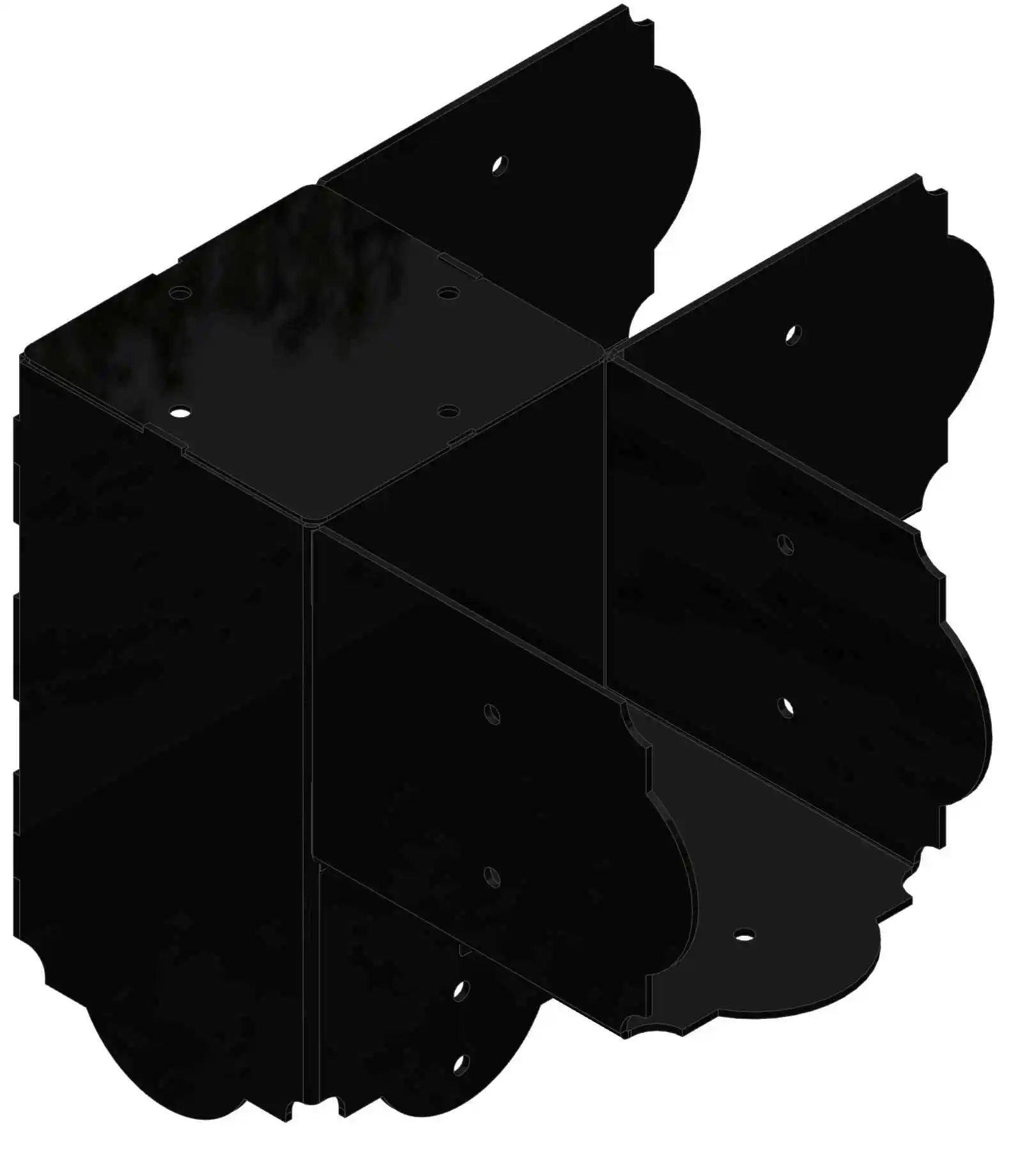

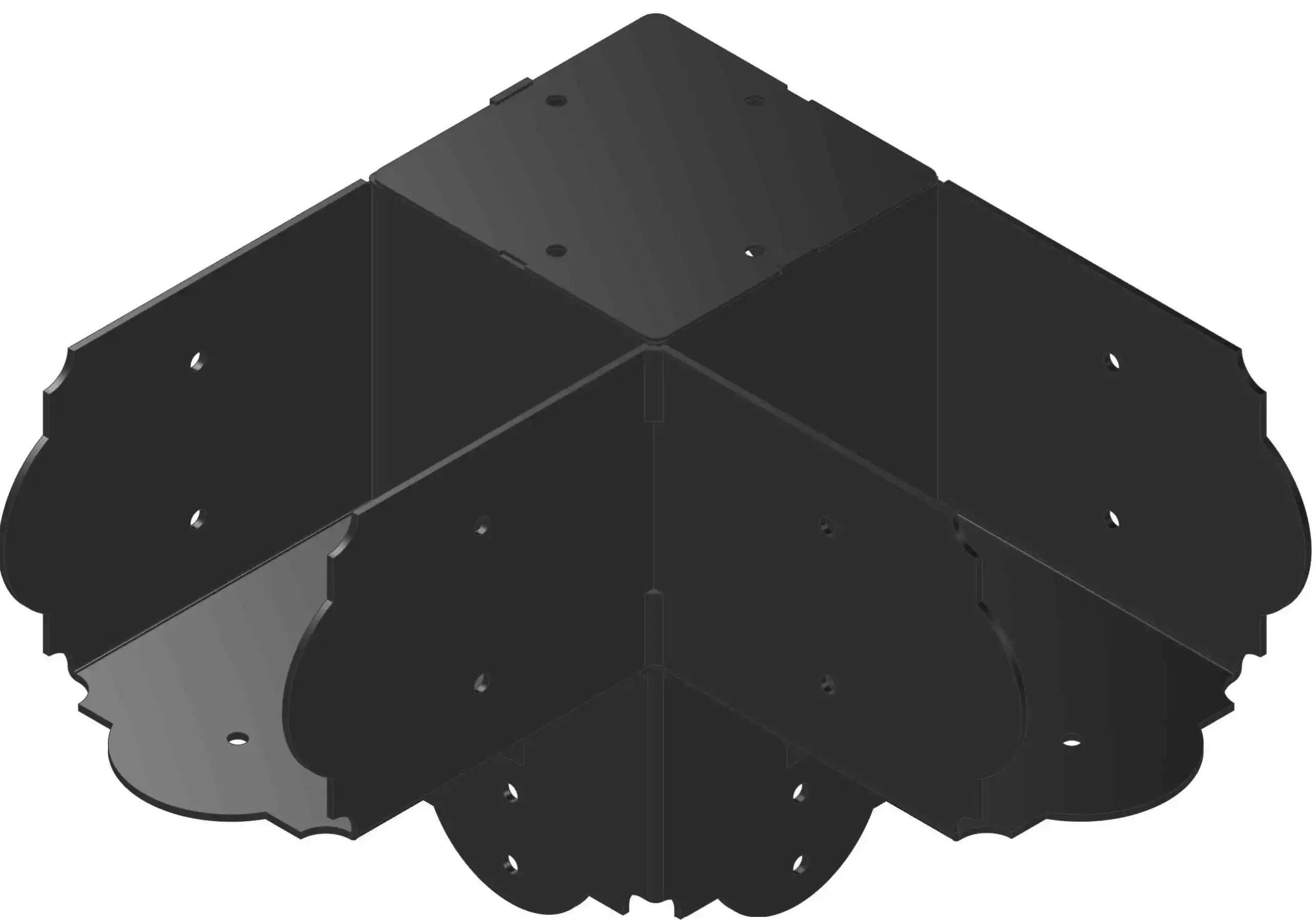

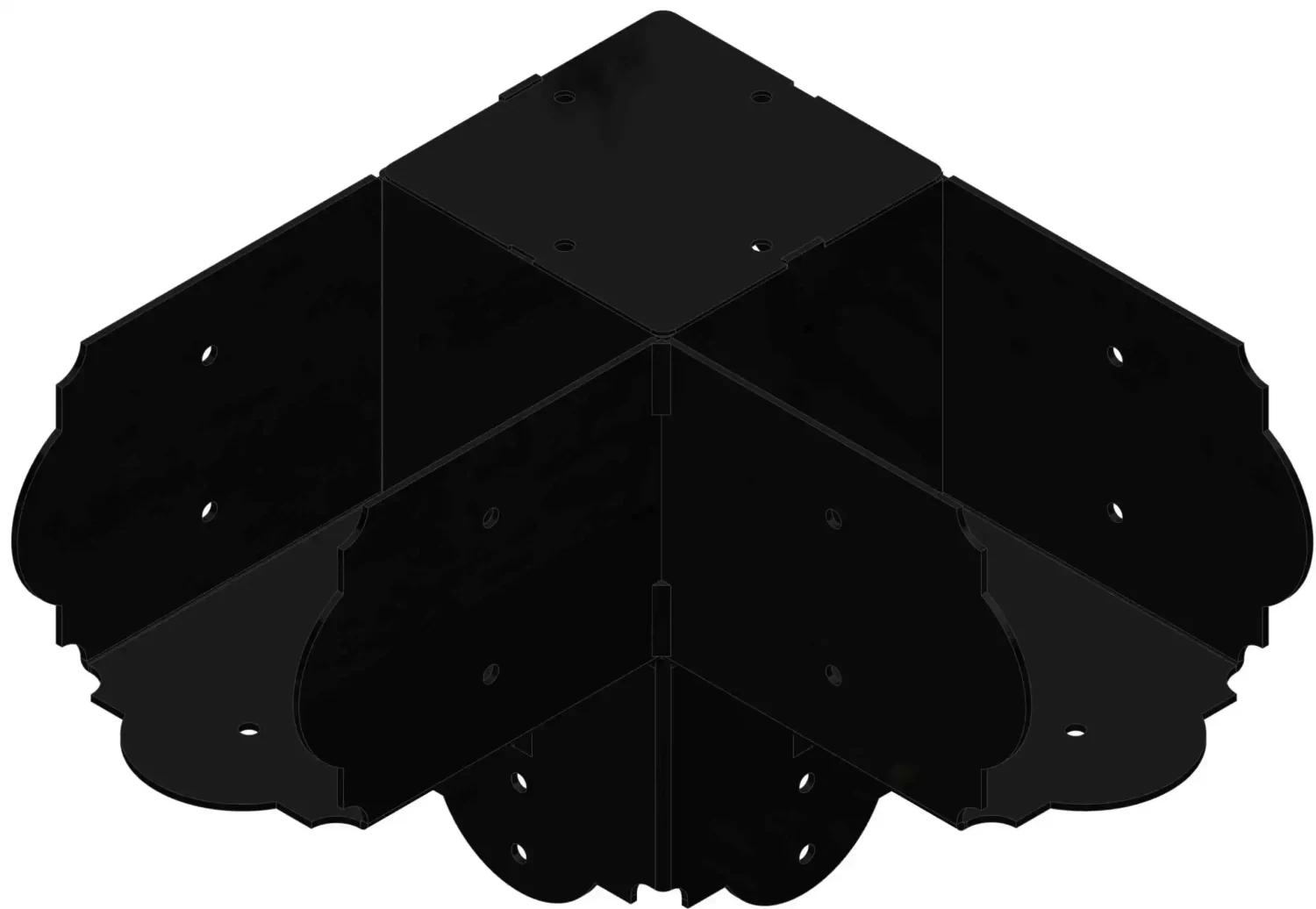

DIY  2-way 90 degree 6×6 Elbow Bracket

This versatile and durable DIY 6×6 2-way 90 degree Elbow Bracket is perfect for a wide range of projects, from constructing sturdy decks to building strong outdoor structures. With its precise design and high-quality iron construction, this bracket provides reliable support and stability. Whether you’re a seasoned craftsman or a novice DIY enthusiast, this corner bracket is a must-have for all your building needs.

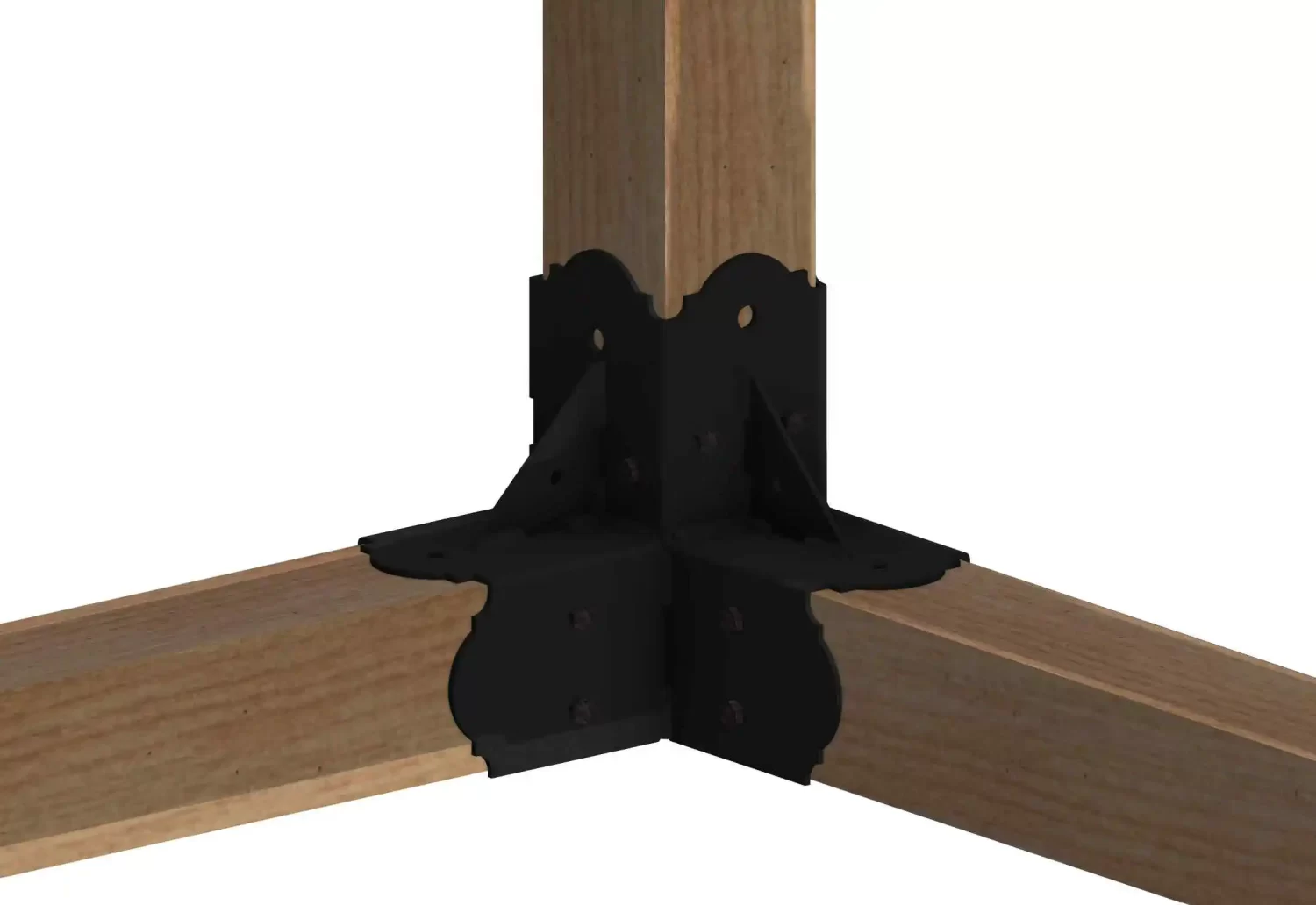

2-way 90 deg heavy duty corner bracket for 6×6 (5.5″ x 5.5″) size lumber members is designed to create a strong 3-way 90-degree joint between three 6×6 lumber members.
This bracket is commonly used for 6×6 Rectangle Pergolas, 6×6 Pavilions, 6×6 Lean-To and for any 6×6 structure.

DIY Smart

Drop-in Smart DIY design allows easy, accurate, and safe assembly work.
Open U-channels allow easy and safe placement of header.

This 6×6 elbow bracket can be use anywhere a strong 2-way joint between 6x6s is required.
It can be positioned in any orientation.
11-1/4” deep tube slides over 6×6 (5.5″ x 5.5″) post end.
This elbow brackets can be moved up or down at post ends for height adjustment, if necessary.

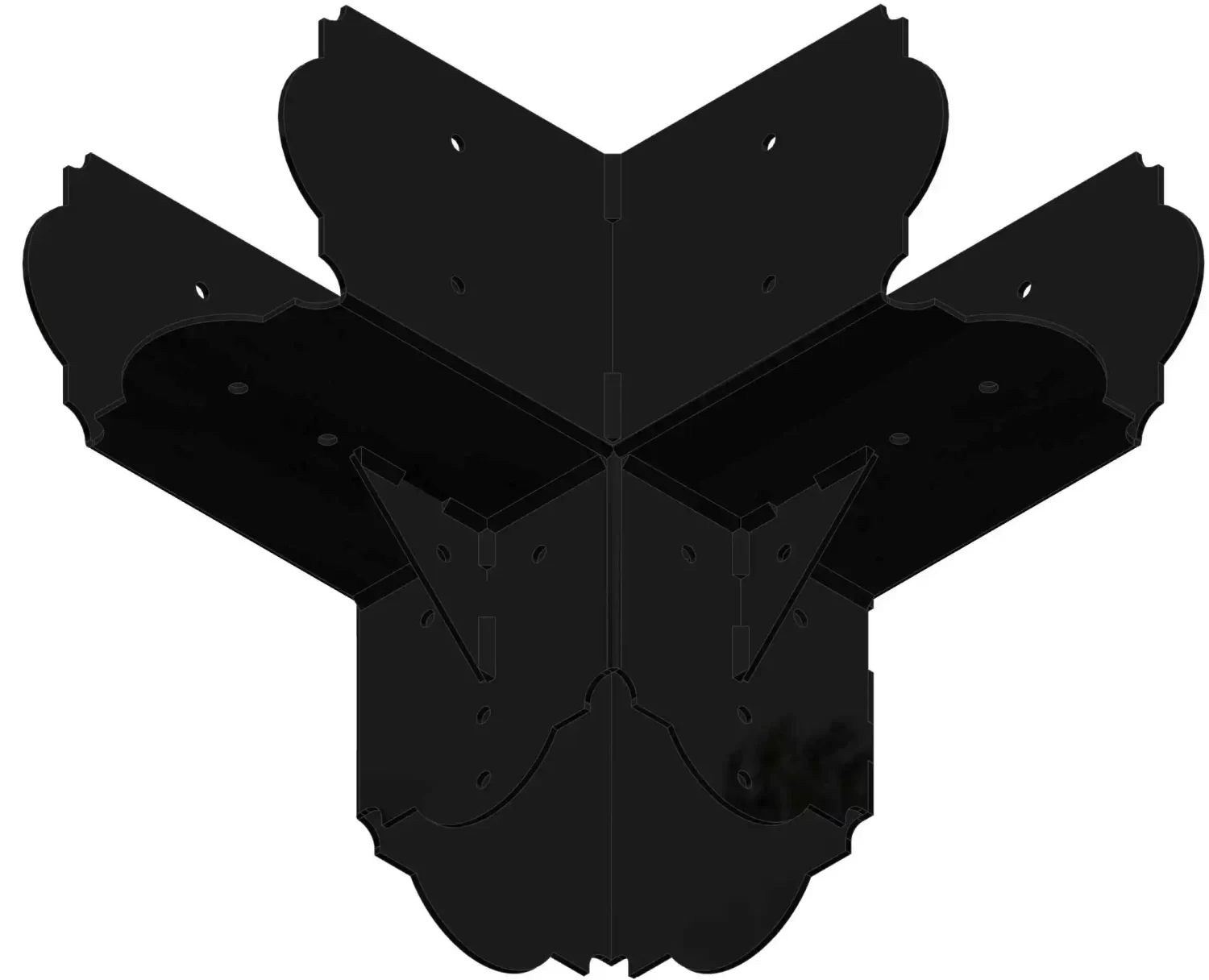

Heavy welded-on gussets under U-channel provides high load resistance and sway resistance. Eliminates the need for lumber gussets at corners.

Physical Properties

Four predrilled 7/16” holes present, 2 holes in each vertical face of U-channels, for securing headers to the bracket using 3/8”X 2” Lag Screws which are included.
Four 7/16” holes present in two vertical tube walls to secure post to the bracket using 3/8”X 2” Lag Screws.
1/8” high strength steel, fully welded construction.

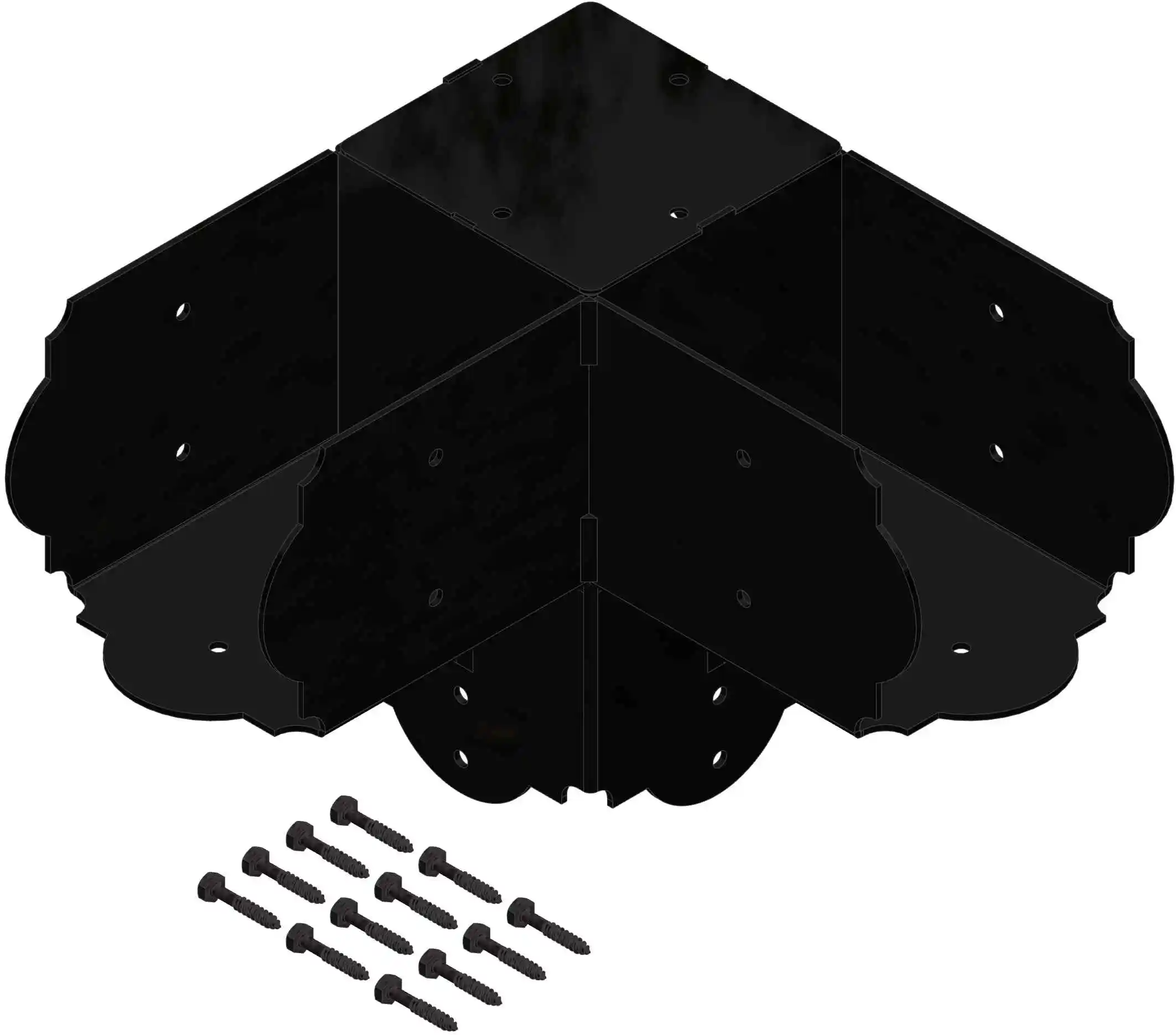

Includes QTY 8 of 3/8″ x 2″ Black Lag Screws

Highest quality materials and workmanship for high durability and long life.
Decorative laser cut profiles provide refined aesthetics.
Black powder painted for corrosion resistance.
Can be spray painted over, using any exterior grade paint.
