DIY 6×6 CarPort Kit with 3-12 Pitch Gable Roof

Enhance your outdoor parking space with our versatile DIY 6×6 Carport Structure! This 20ft. x 20ft. beauty is perfect for parking and protecing your cars from the elements. Crafted with quality materials, this structure is sure to impress. Bring your vision to life today!

Note: This is a DIY brackets kit. Lumber & Roofing Materials are not included. You acquire them locally.

DIY Smart 6×6 Carport Kit

Our Drop-in Smart DIY post top elbows make it super easy and safe to assemble the headers. Unlike closed tube elbows which require extreme effort and heavy lifting equipment, our Drop-in Smart DIY design requires minimal physical effort and eliminates physical injury risks.

This easy-to-assemble kit includes all steel brackets to create a permanent parking space in your yard. The 6×6 kit is perfect for universal use and provides ample space for storage, workspace, or for hosting gatherings or simply relaxing in the shade. With simple instructions and durable materials, this carport kit is the ideal solution for adding both style and functionality to your outdoor space.

Easily build it within 2 days with 2 people working together. Easily add solid walls to convert this structure to an enclosed garage or enclosed storage shed etc.

20 ft. x 20 ft. Sized DIY 6×6 Carport Kit

Length: 20 ft.
Width: 20 ft.

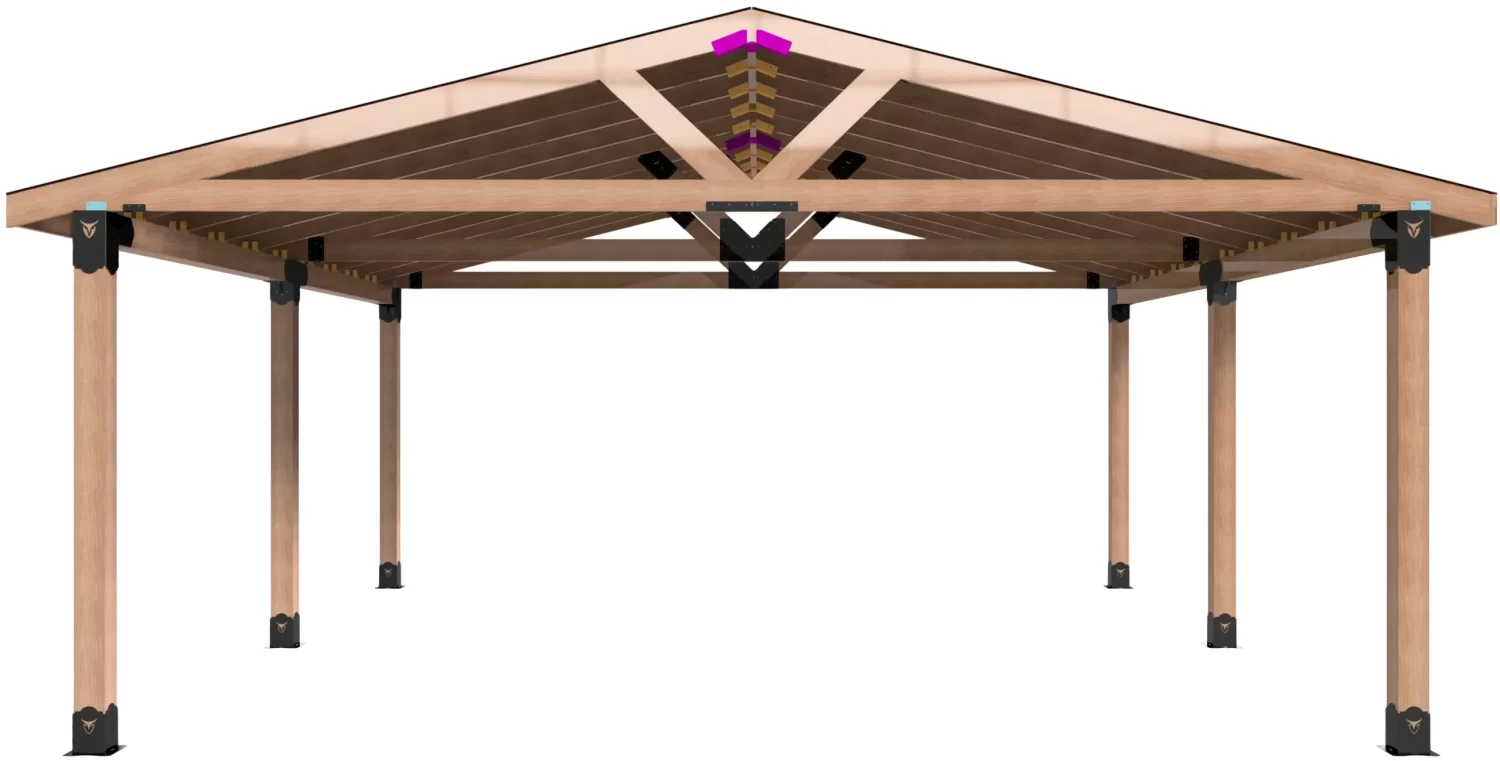

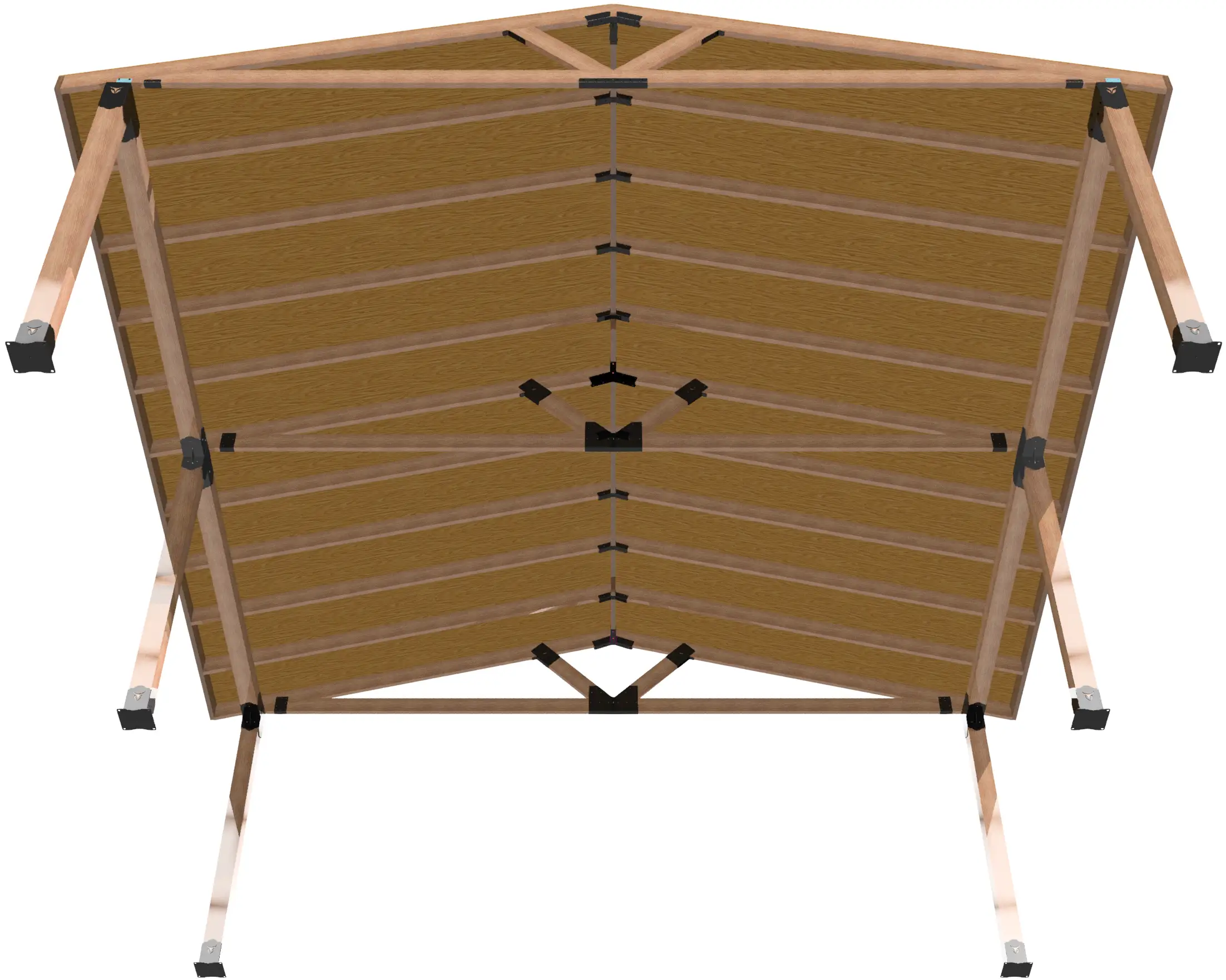

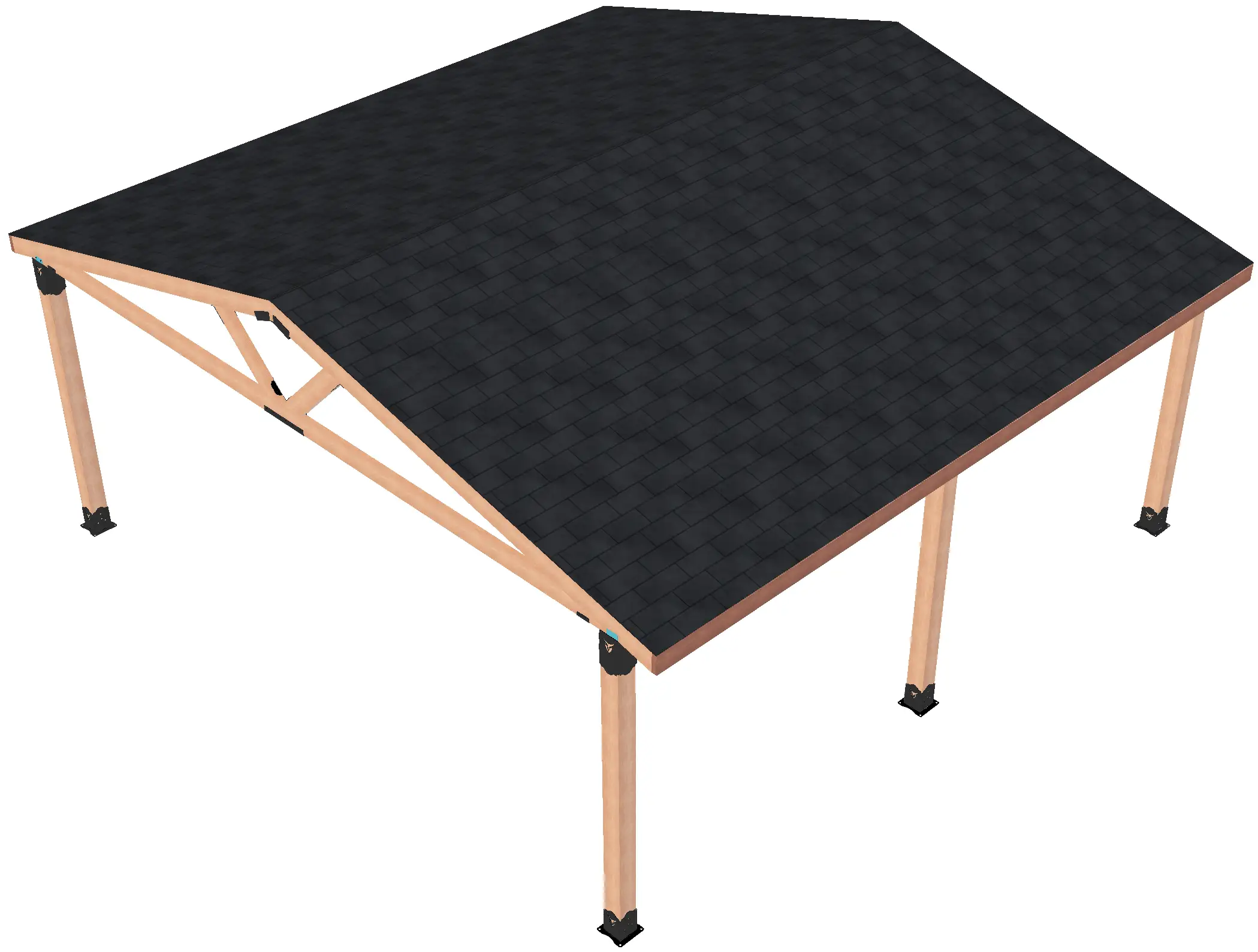

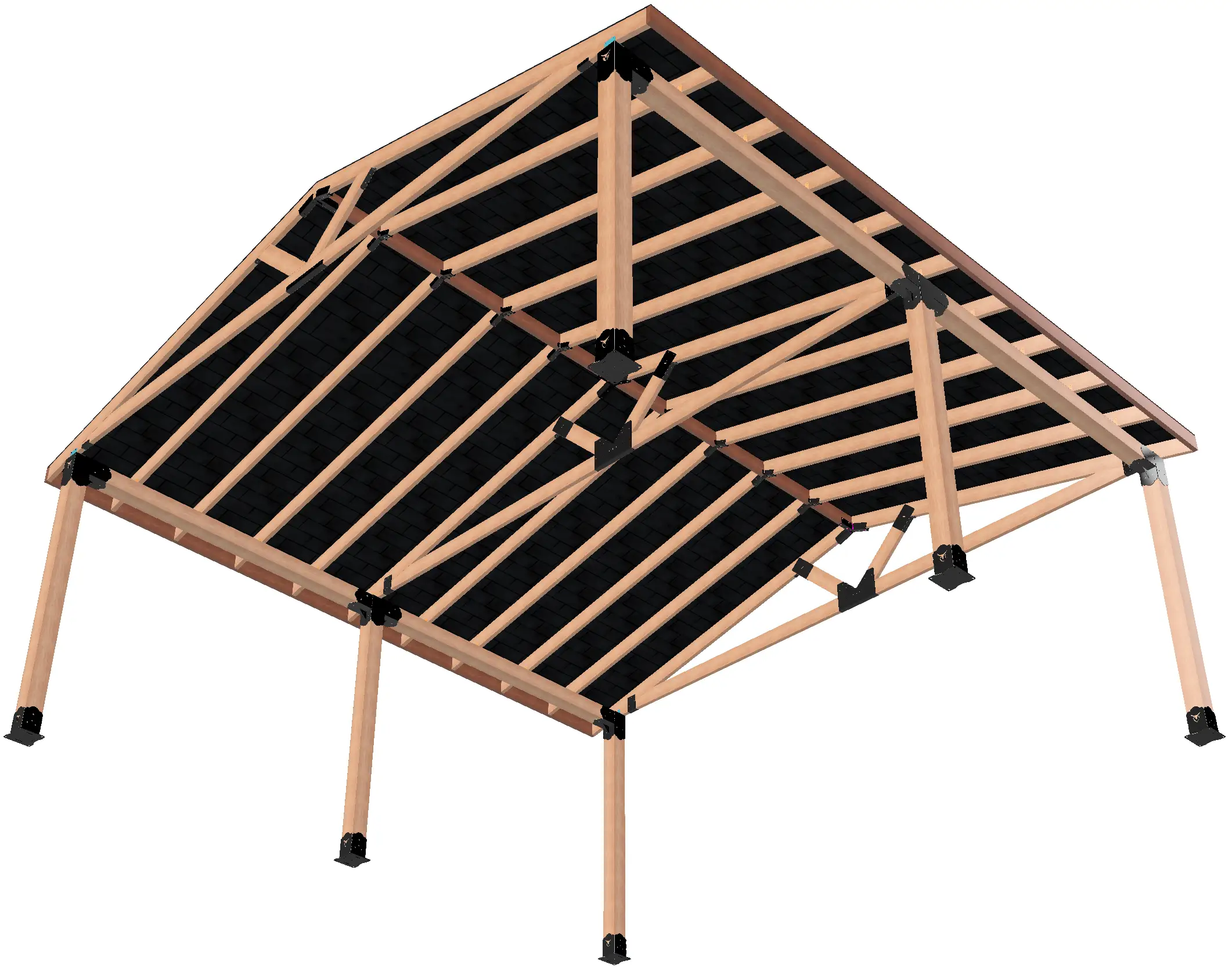

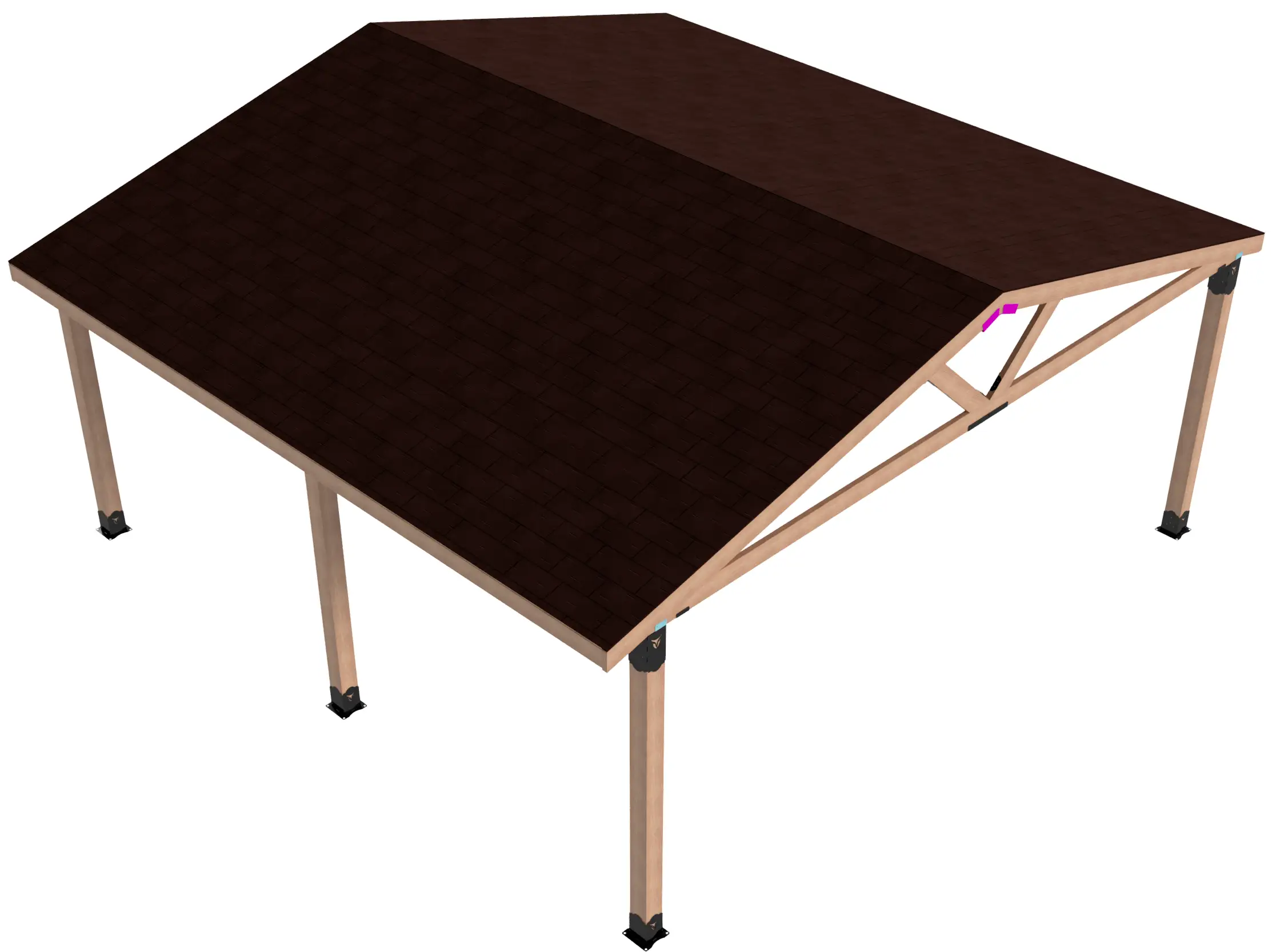

In the images is shown a 20 ft. long x 20 ft deep structure with 6×6 posts and headers, 2×6 rafters, and roofing.

This 20 ft. x 20 ft. structure creates 400 sq. ft. of parking area.

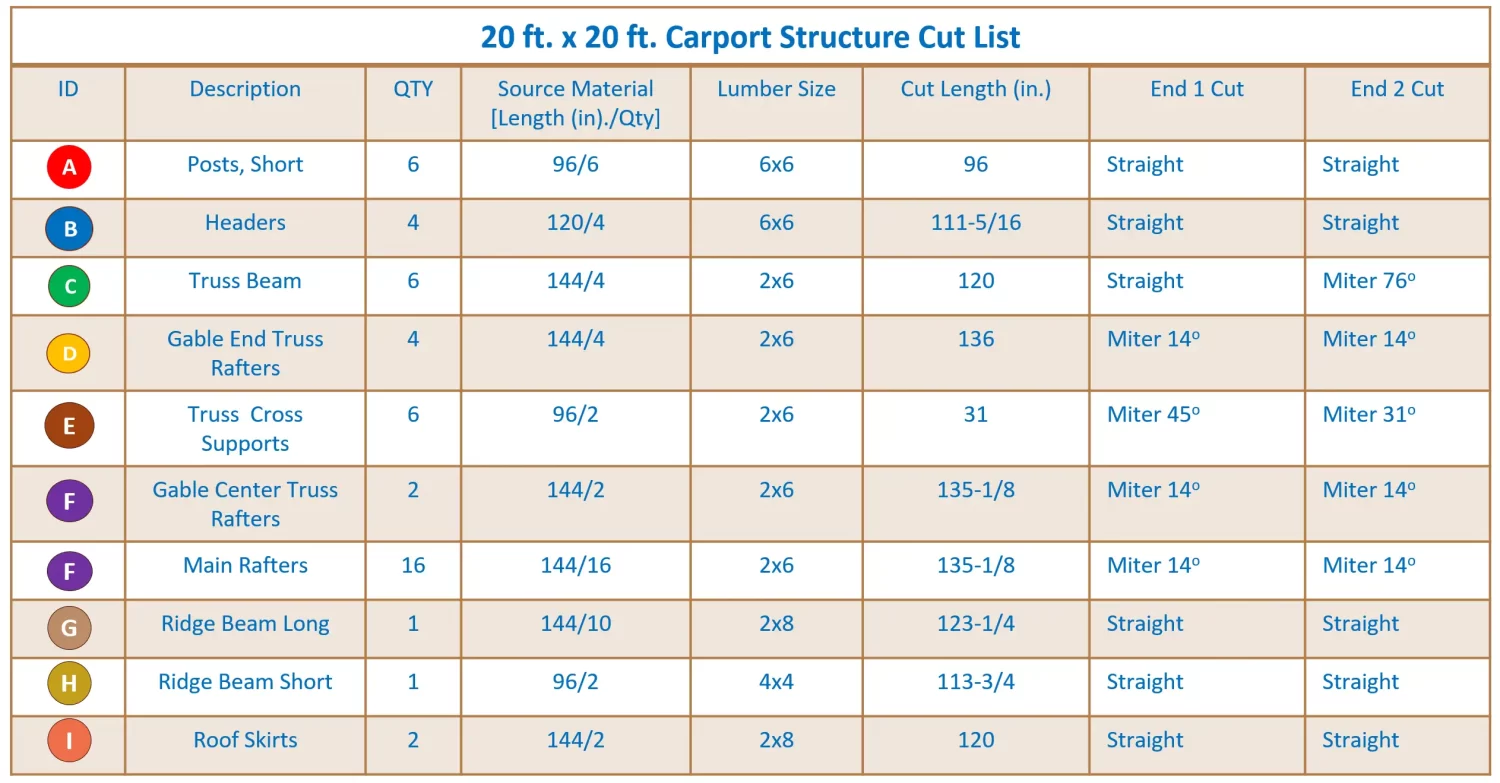

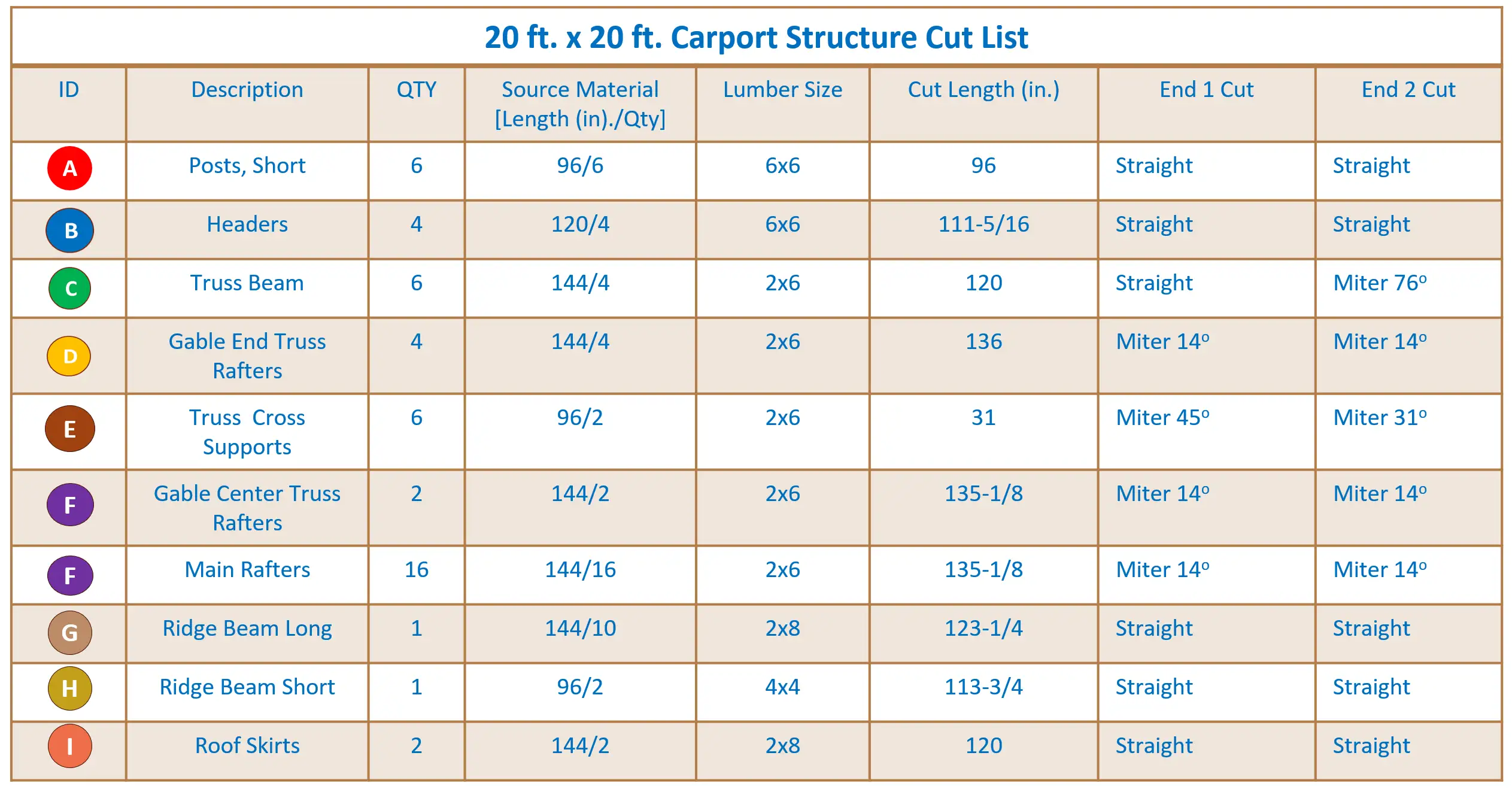

We provide full cut list for all lumber and plywood pieces, and full installation instructions for every bracket.

DIY Price

We also provide all raw material cost estimates for you.

Universal Applications

This diy 6×6 pavilion structure can be used as a carport, garage, a storage shed or for any other purpose. The length of the structure (left to right) can range from 12 ft. to 36 ft. with the brackets included in this kit. The width can range from 12 ft. to 30 ft. with the brackets included in this kit.

For smaller structures costs will be lower due to fewer metal bracket, less lumber, less roofing, and less concrete costs . Contact me directly for prices through Etsy messenger or directly at [email protected].

This structure uses six 6×6 posts to hold 6×6 headers and the roof loads.

This 6×6 carport can be built on concrete footings and concrete slabs (slabs require new footing under posts). The posts can also be buried into the ground and concrete poured around the posts. However, we do not recommend this method which leads to inaccurate post locations and buried posts in the ground will eventually rot. Instead, pour concrete into the post hole first, then use our post anchor bracket to attach posts to the top of the concrete footings. This will yield a permanent structure with no worries about posts rottting out in the future.

12 ft. maximum open span between the 6×6 posts is recommended to make your DIY work safe by keeping the 6×6 header lengths less than12 feet; keeping header weight managable and DIY work safe.

Rafters required 24″ on center for proper load bearing and to provide easy roof deck osb/plywood addition.

Open span of rafters between the two walls of this diy 6×6 pavilion are limited to code approved spans based on 2-by rafter size.
Rafters allow roof to overhang past each wall end.
You can also overhang the roof past the gable ends.

Shingles and metal standing seam-type roofing materials are approved.
Standing seam metal roofing panels available at Home Depot, Lowes, and Menards are comparable in price to regular grade shingles. For these pavilion roof structures, metal roofing panels are easier and faster to install and provide longer lifetime.

Uses 6×6 lumber for headers and 2×6 rafters, ridge beams, and roof skirts.
Rafters, ridge beam, and roof skirts must all be of the same size 2×8 lumber.

Contact by email to [email protected] to request cutlists, buy list, and complete installation instructions before starting your diy 6×6 Pavilion project.

Note: This is a DIY brackets kit. Lumber & Roofing Materials are not included. You acquire them locally.

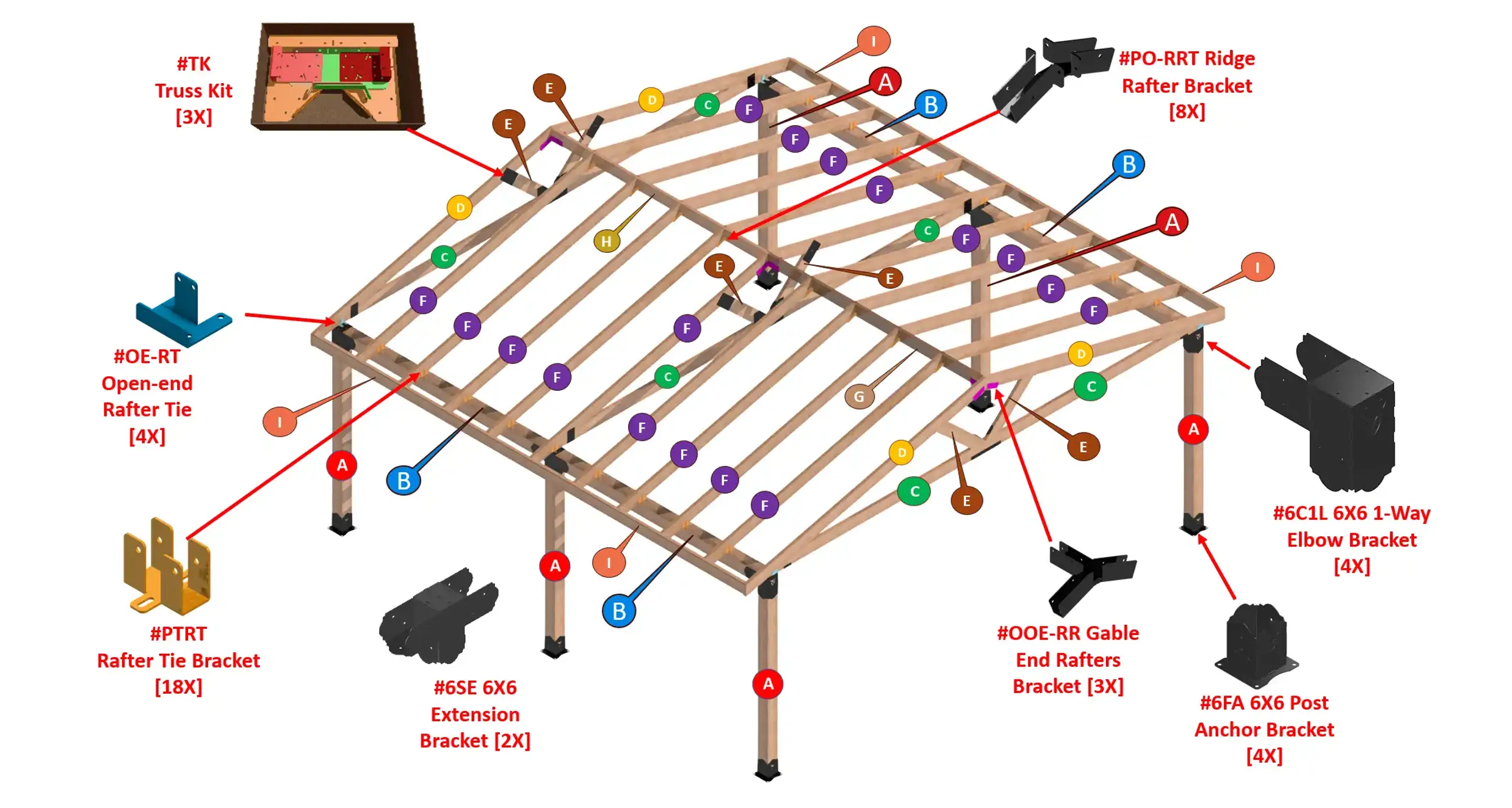

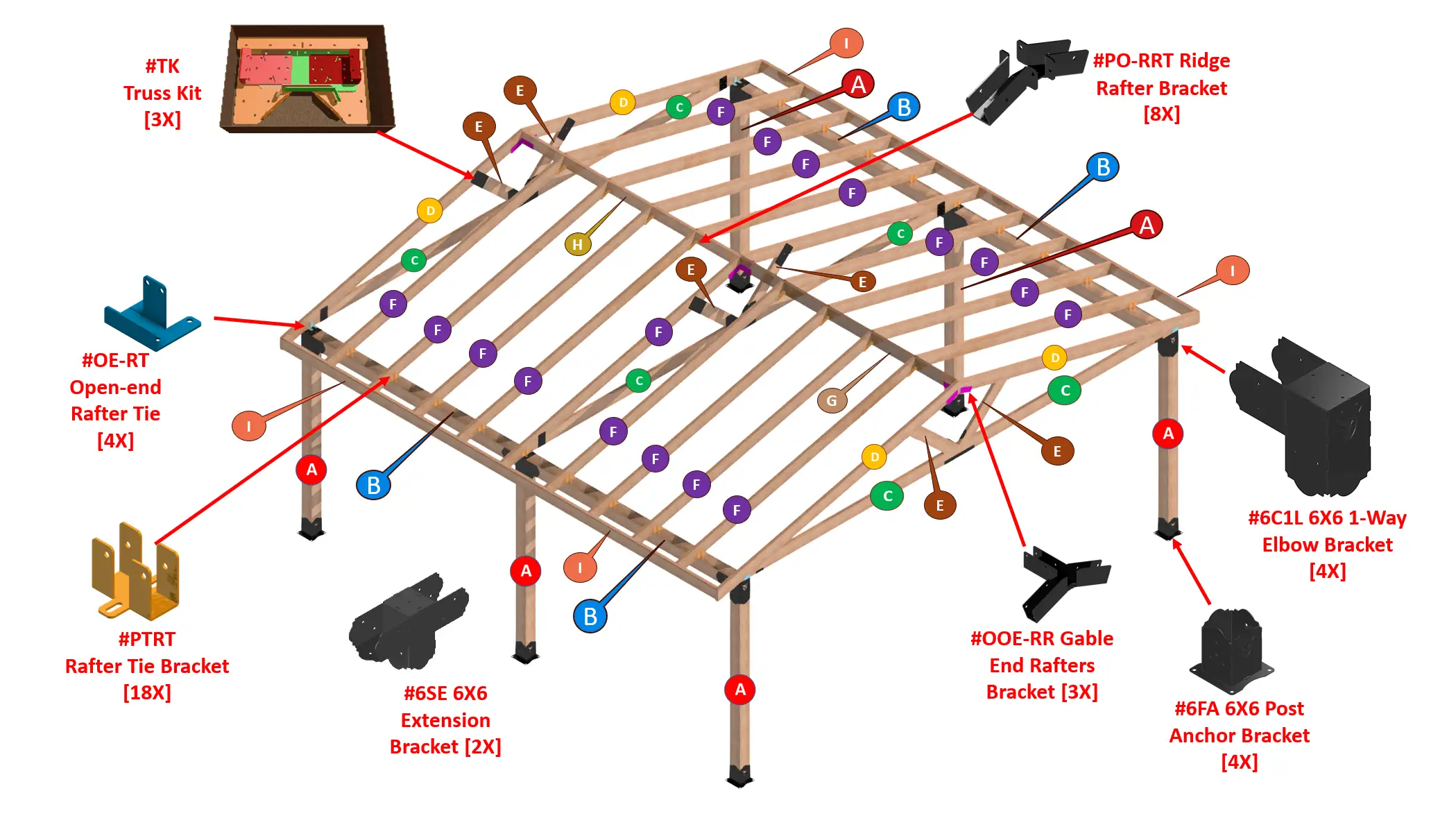

Kit includes all steel parts to build posts and header structure and to join all roof lumber pieces securely for infinite lifetime.
6×6 Post Anchors
6×6 Post Top Elbows
6X6 Post Top Tee Brackets
Gable Roof Brackets Kit (qty of ridge rafer bracket and rafter tie brackets vary by length of pavilion.
Lag screws to secure all brackets are included in black color.

1/8″ thick steel used for all parts, laser cut, and welded, powder painted for rust proofing.

You can view this kit on our Etsy store at RioOutdoors.Etsy.com.
