DIY 6×6 Pavilion Kit with 4-12 Pitch Gable Roof

Enhance your outdoor space with our versatile DIY 6×6 Pavilion Structure! This 24ft. x 36ft. beauty is perfect for any use – from hosting events to relaxing in the shade. Crafted with quality materials, this structure is sure to impress. Bring your vision to life today!

Note: This is a DIY brackets kit. Lumber & Roofing Materials are not included. You acquire them locally.

DIY Smart

Our Drop-in Smart DIY post top elbows make it super easy and safe to assemble the headers. Unlike closed tube elbows which require extreme effort and heavy lifting equipment, our Drop-in Smart DIY design requires minimal physical effort and eliminates physical injury risks.

This easy-to-assemble kit includes all steel brackets to create a stunning pavilion space in your own backyard, a parking space, or a storage space. The 6×6 kit is perfect for universal use and provides ample space for hosting gatherings or simply relaxing in the shade. With simple instructions and durable materials, this pavilion kit is the ideal solution for adding both style and functionality to your outdoor space.

Easily build it within 2 days with 2 people working together. Easily add solid walls to convert this structure to a workshop, garage, storage shed etc.

Large Structure, Universal Sized DIY 6×6 Pavilion

Universal Length: 12ft. to 36 ft. (price varies by length. Rafters required every 24″.)
Universal Width: 12 ft. to 30 ft. (price increases by width over 16 feet width as more parts are required to extend the side walls.)

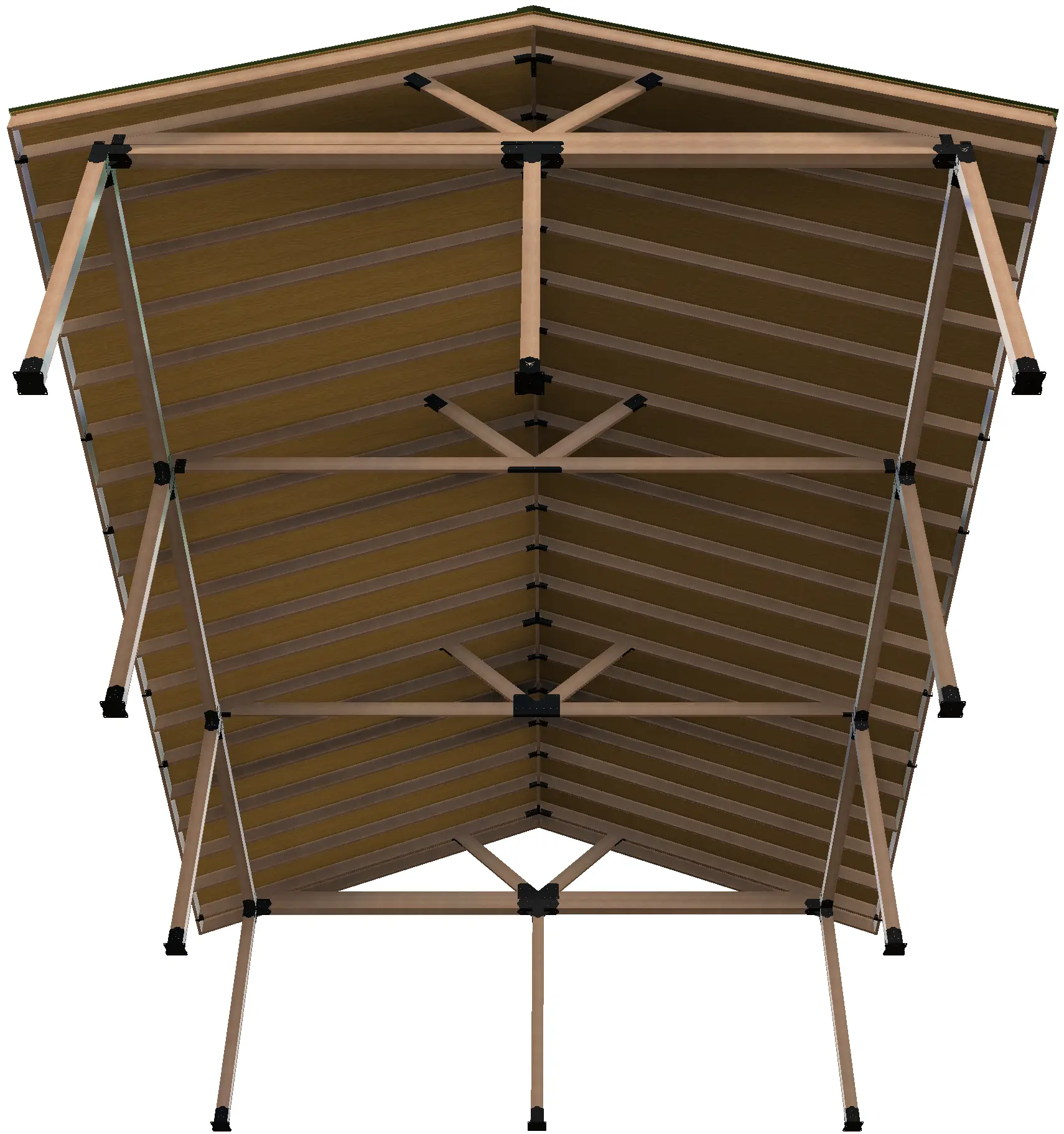

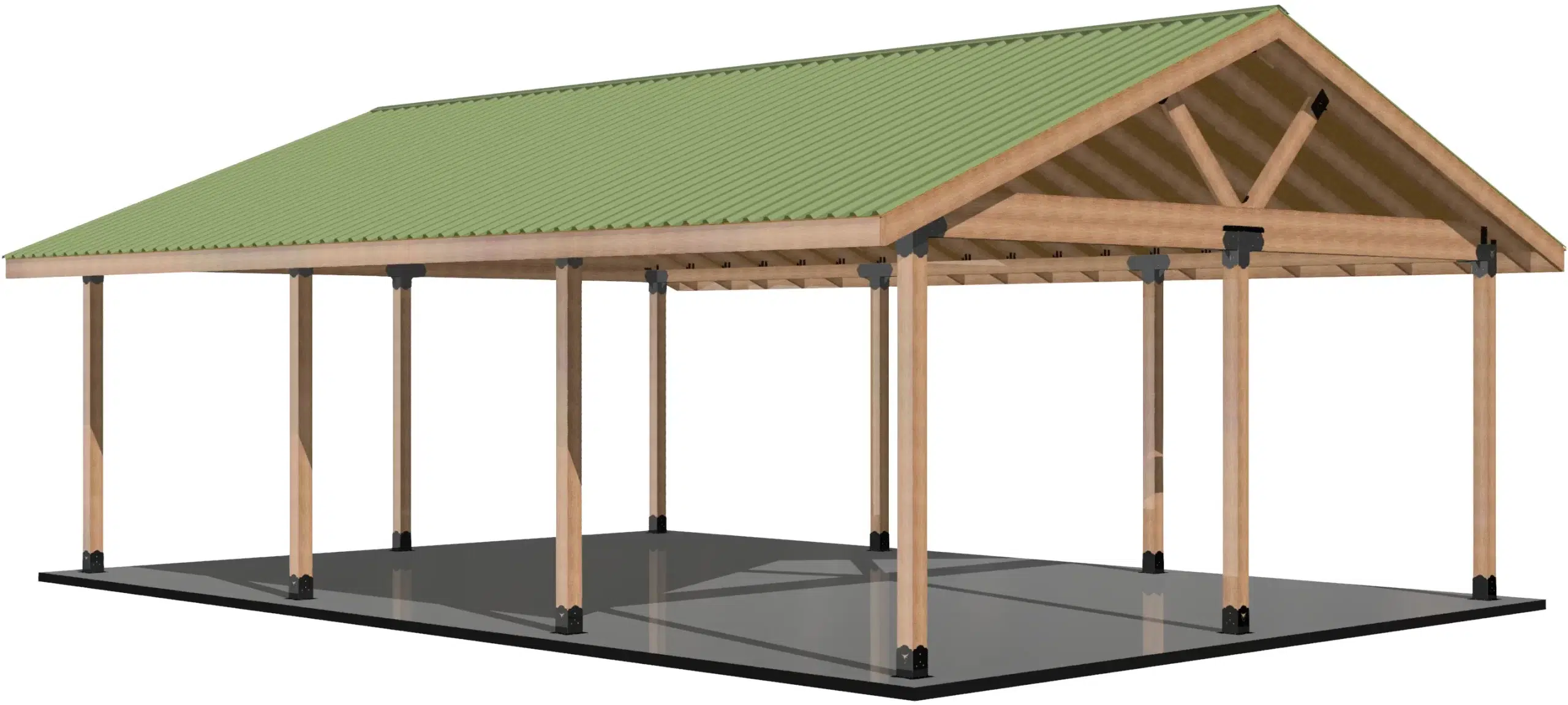

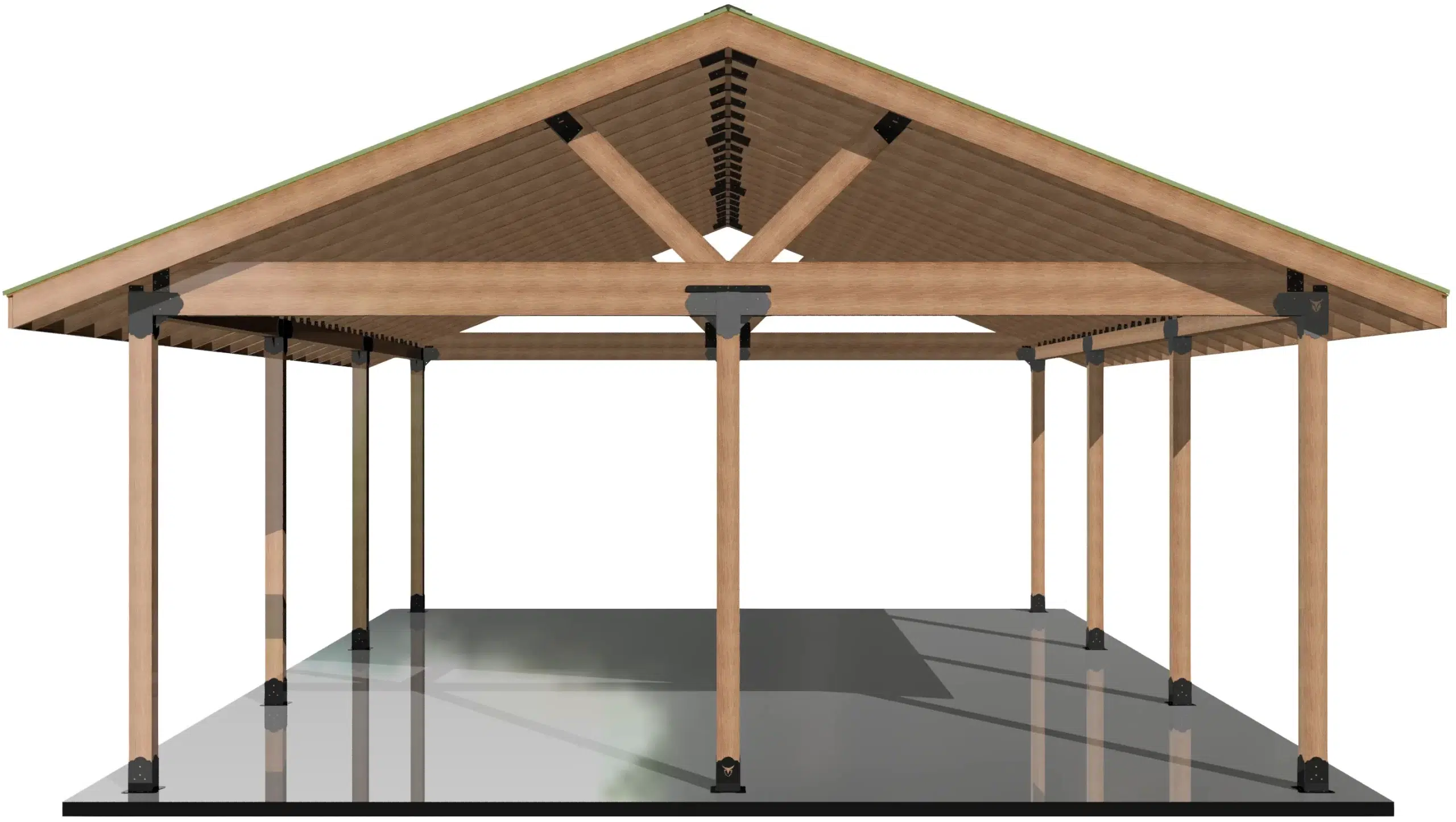

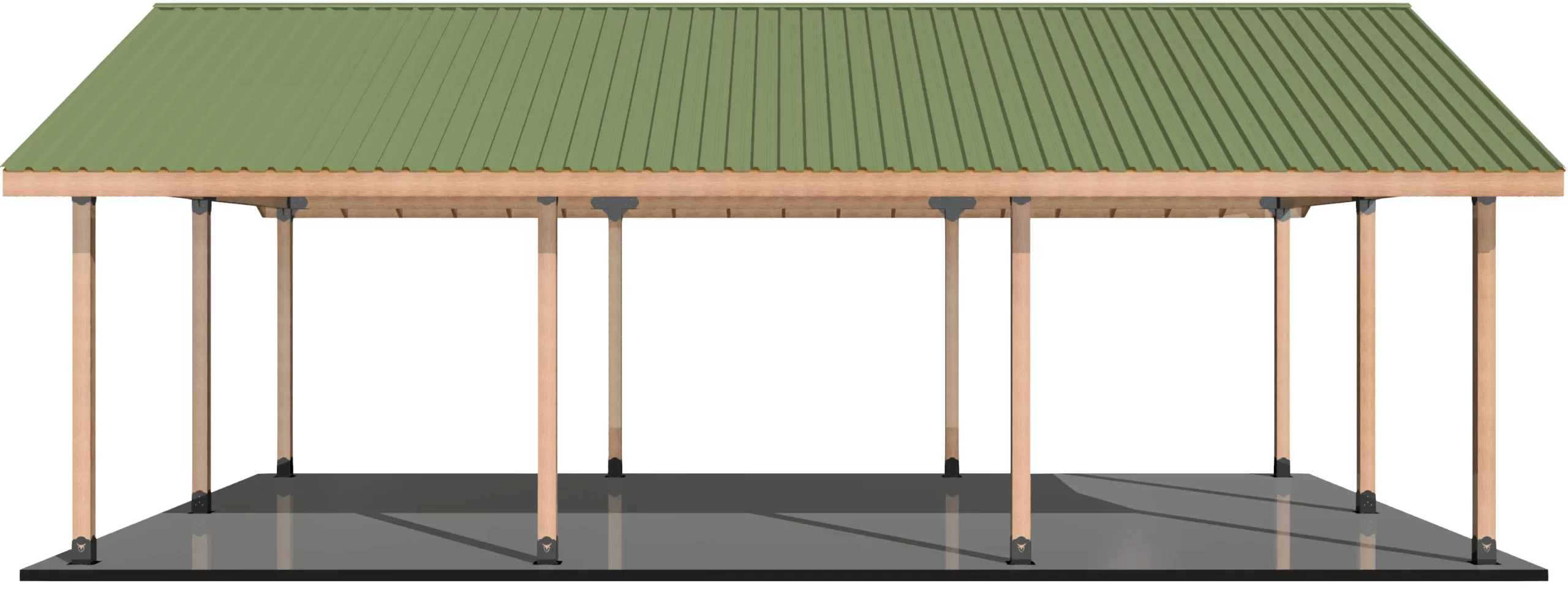

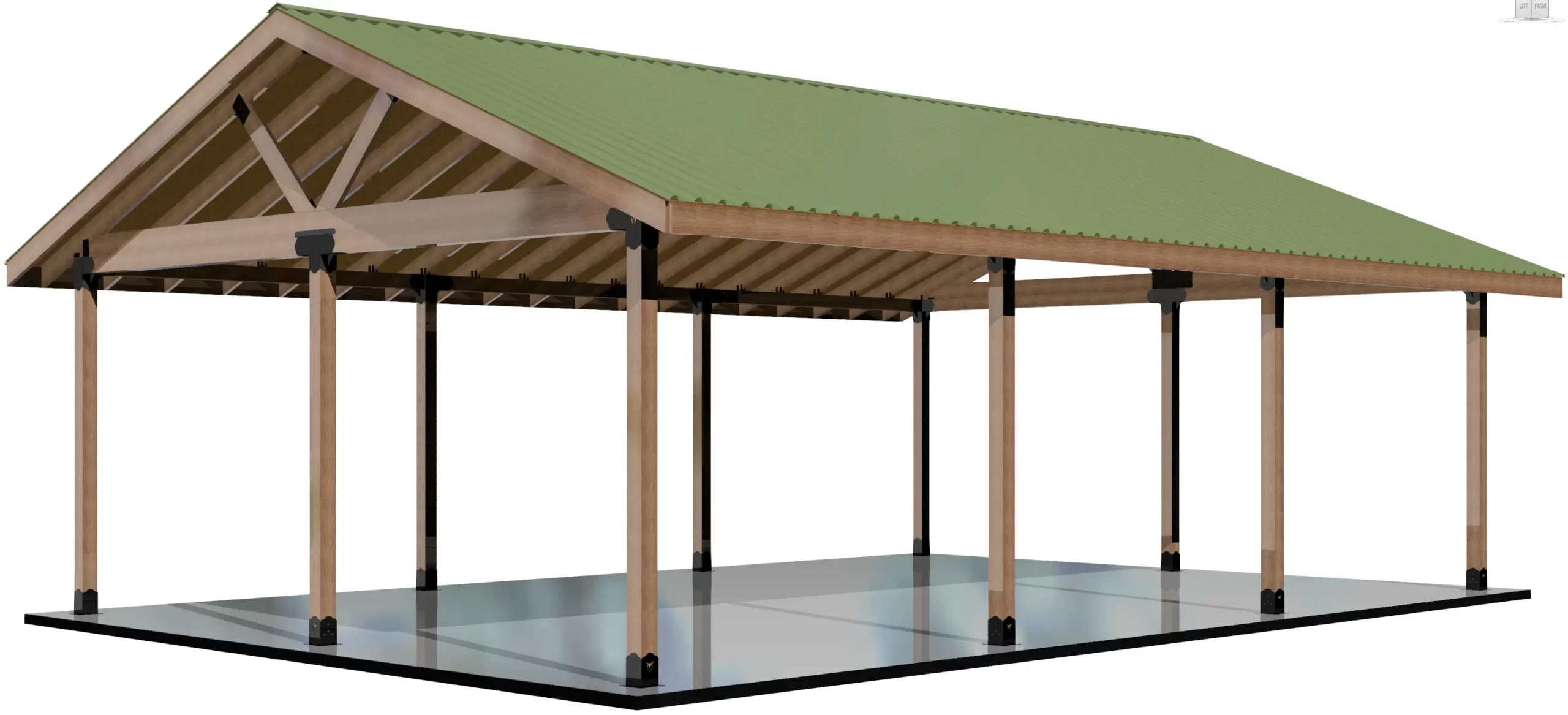

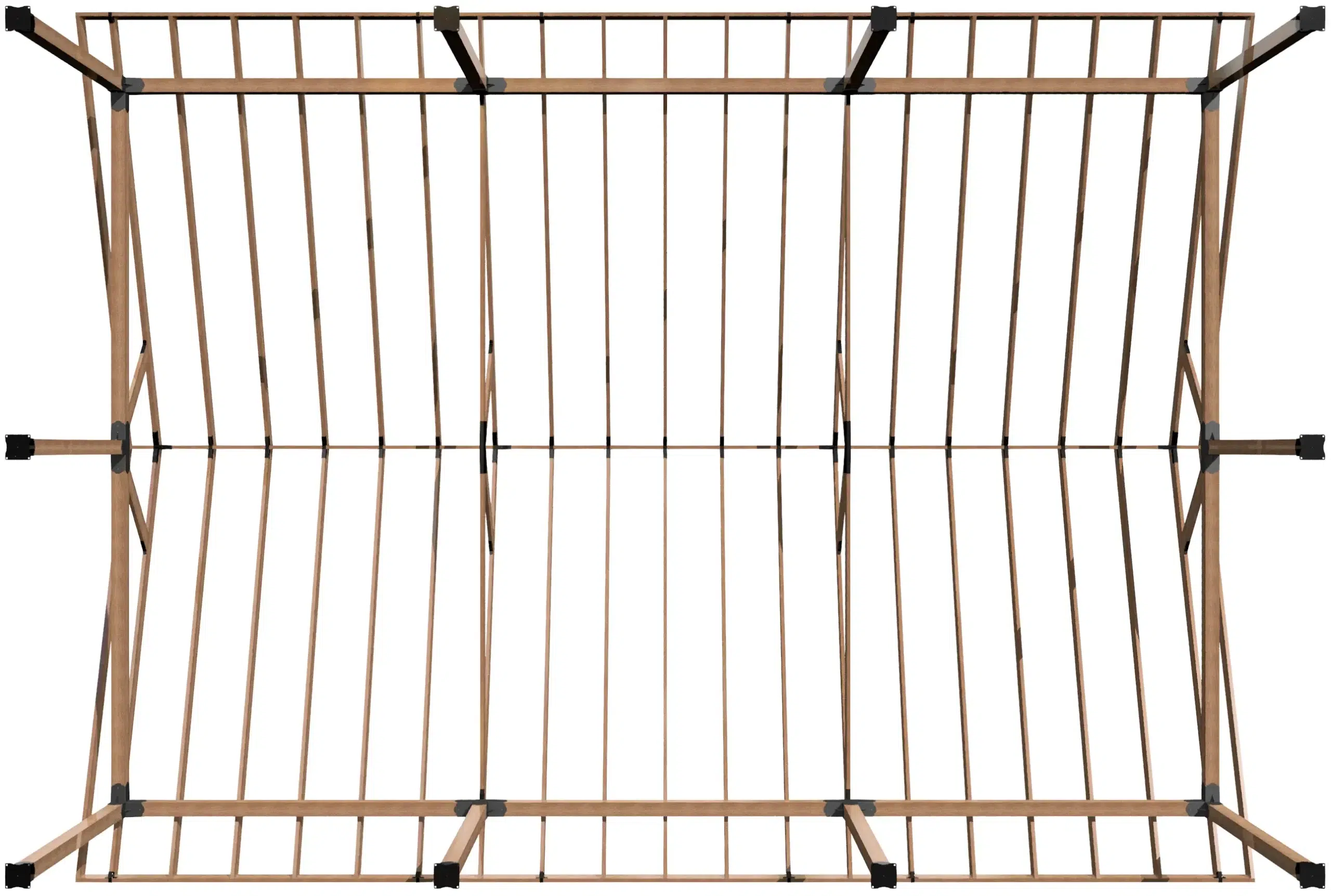

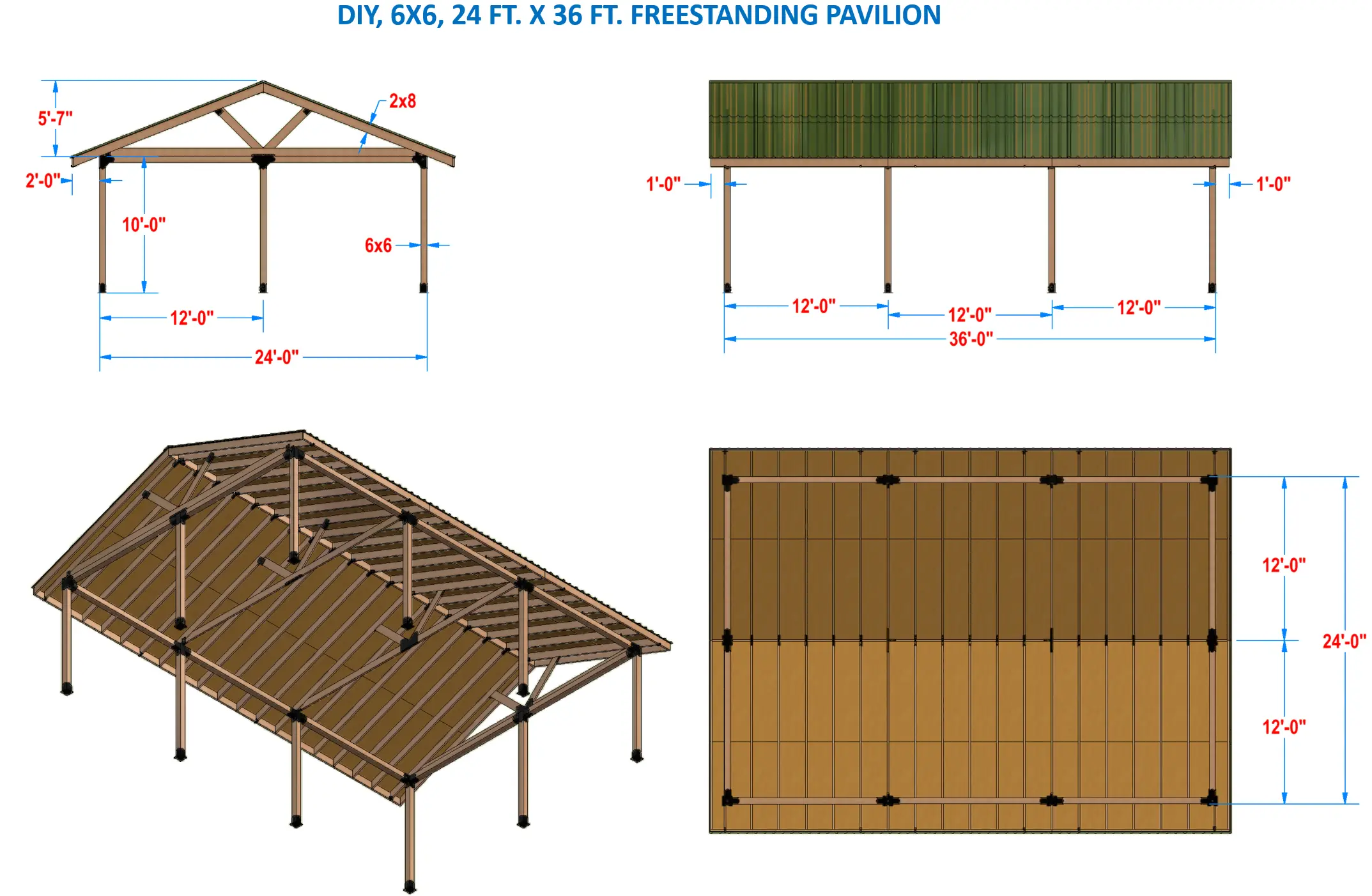

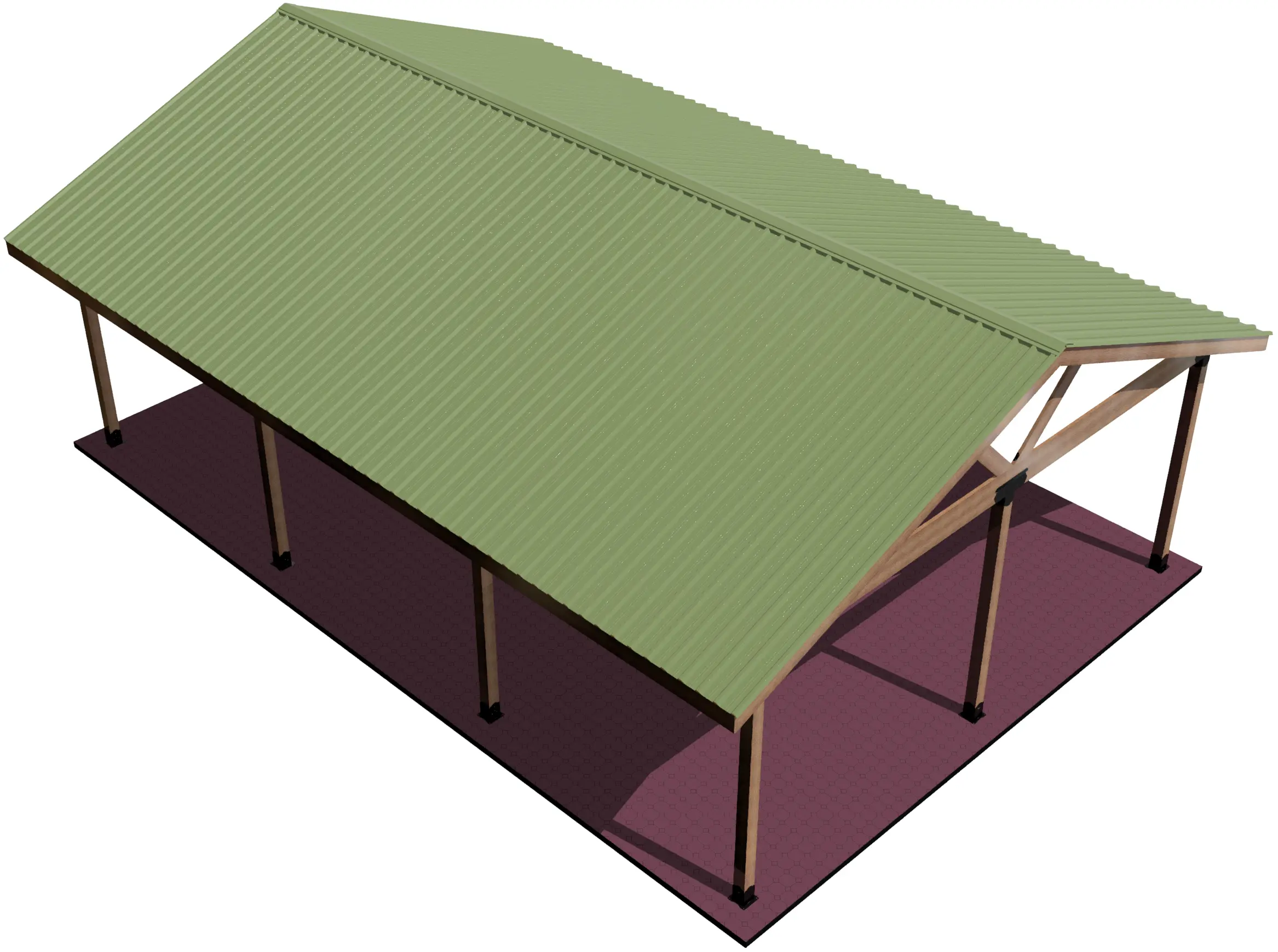

In the images is shown a 36 ft. long x 24 ft deep structure with 6×6 posts and headers, 2×8 rafters, and metal roofing.

This 24 ft. x 36 ft. structure creates 864 sq. ft. of living area.

We will provide full cut list for all lumber and plywood pieces, and full installation instructions for every bracket. Please supply length, width, roof overhangs size on all four sides which will drive our cut list and installation instructions work.

DIY Price

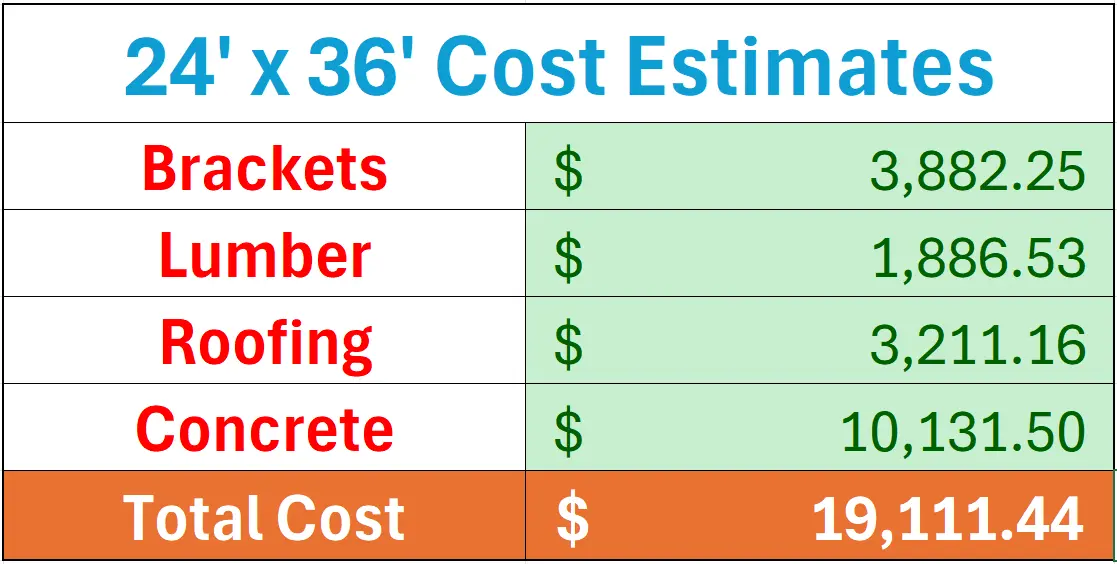

We also provide all raw material cost estimates for you. Cost estimates for this 24 ft. x 36 ft. diy 6×6 pavilion, based on current market conditions, are as follows:
Metal Brackets Kit cost= $3,885
Lumber cost = $1,887
Roofing Materials cost = $3,211
Concrete Pad with post footing and wall footings (fully prepared, installed, and finished by a contractor) = $10,132
Total cost = $19,112

Note: costs do not include shipping charges or sales tax. Cost are much lower for smaller structures. Contact us with your size and we will supply you with accurate cost estimates for your size.

Universal Applications

This diy 6×6 pavilion structure can be used as a carport, garage, a storage shed or for any other purpose. The length of the pavilion (left to right) can range from 12 ft. to 36 ft. with the brackets included in this kit. The width can range from 12 ft. to 30 ft. with the brackets included in this kit.

For smaller structures costs will be lower due to fewer metal bracket, less lumber, less roofing, and less concrete costs . Contact me directly for prices through Etsy messenger or directly at [email protected].

This structure uses six 6×6 posts to hold 6×6 headers and the roof loads.

This 6×6 pavilion can be built on concrete footings, concrete slab (slabs require new footing under posts). The posts can also be buried into the ground and concrete poured around the posts. However, we do not recommend this method which leads to inaccurate post locations and buried posts in the ground will eventually rot. Instead, pour concrete into the post hole first, then use our post anchor bracket to attach posts to the top of the concrete footings. This will yield a permanent structure with no worries about posts rottting out in the future.

12 ft. maximum open span between the 6×6 posts is recommended to make your DIY work safe by keeping the 6×6 header lengths less than12 feet; keeping header weight managable and DIY work safe.

Rafters required 24″ on center for proper load bearing and to provide easy roof deck osb/plywood addition.

Open span of rafters between the two walls of this diy 6×6 pavilion are limited to code approved spans based on 2-by rafter size.
Rafters allow roof to overhang past each wall end.
You can also overhang the roof past the gable ends.

Shingles and metal standing seam-type roofing materials are approved.
Standing seam metal roofing panels available at Home Depot, Lowes, and Menards are comparable in price to regular grade shingles. For these pavilion roof structures, metal roofing panels are easier and faster to install and provide longer lifetime.

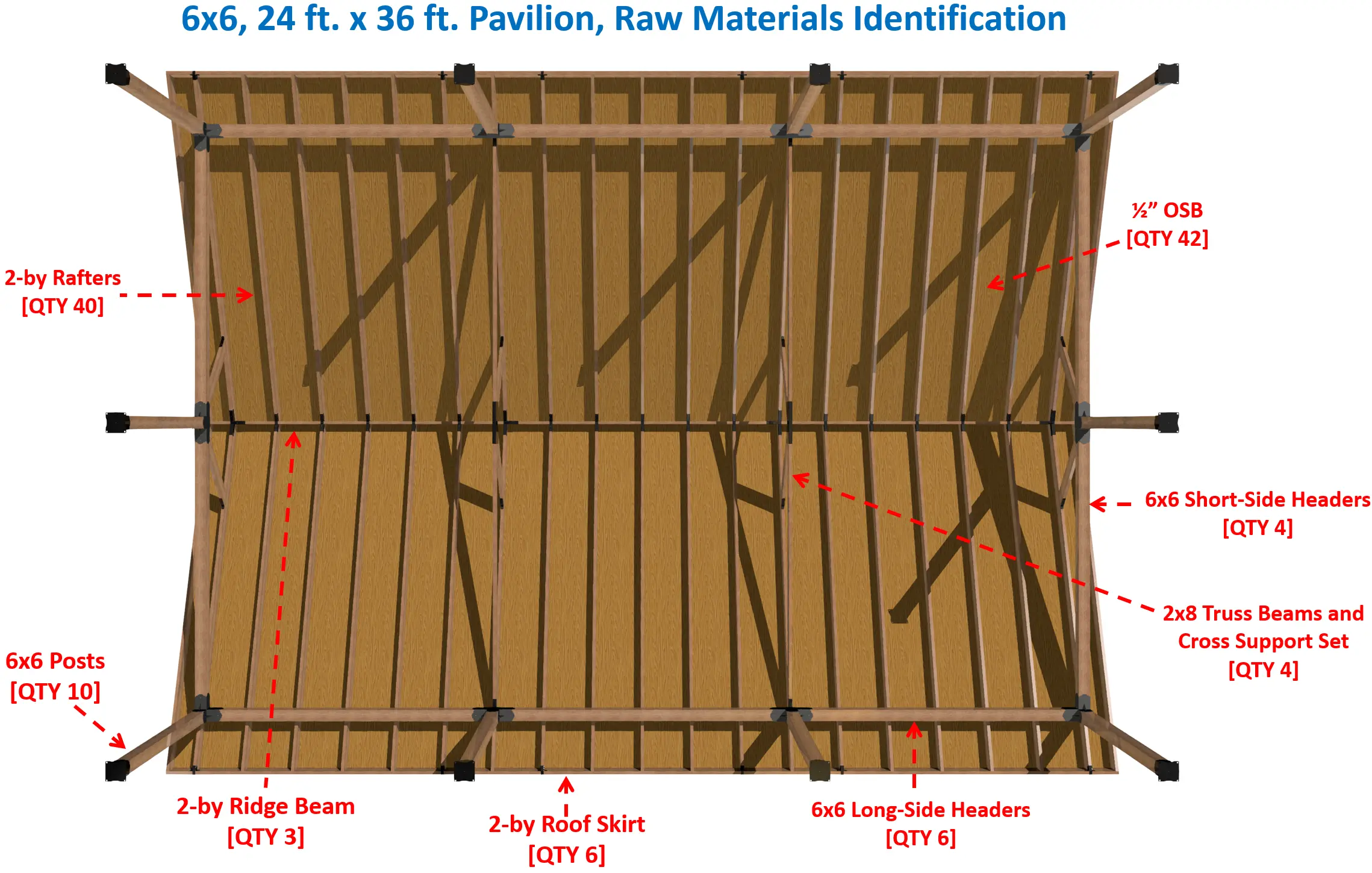

Uses 6×6 lumber for headers and 2×8 rafters, ridge beams, and roof skirts.
Rafters, ridge beam, and roof skirts must all be of the same size 2×8 lumber.

Contact by email to [email protected] to request cutlists, buy list, and complete installation instructions before starting your diy 6×6 Pavilion project.

Note: This is a DIY brackets kit. Lumber & Roofing Materials are not included. You acquire them locally.

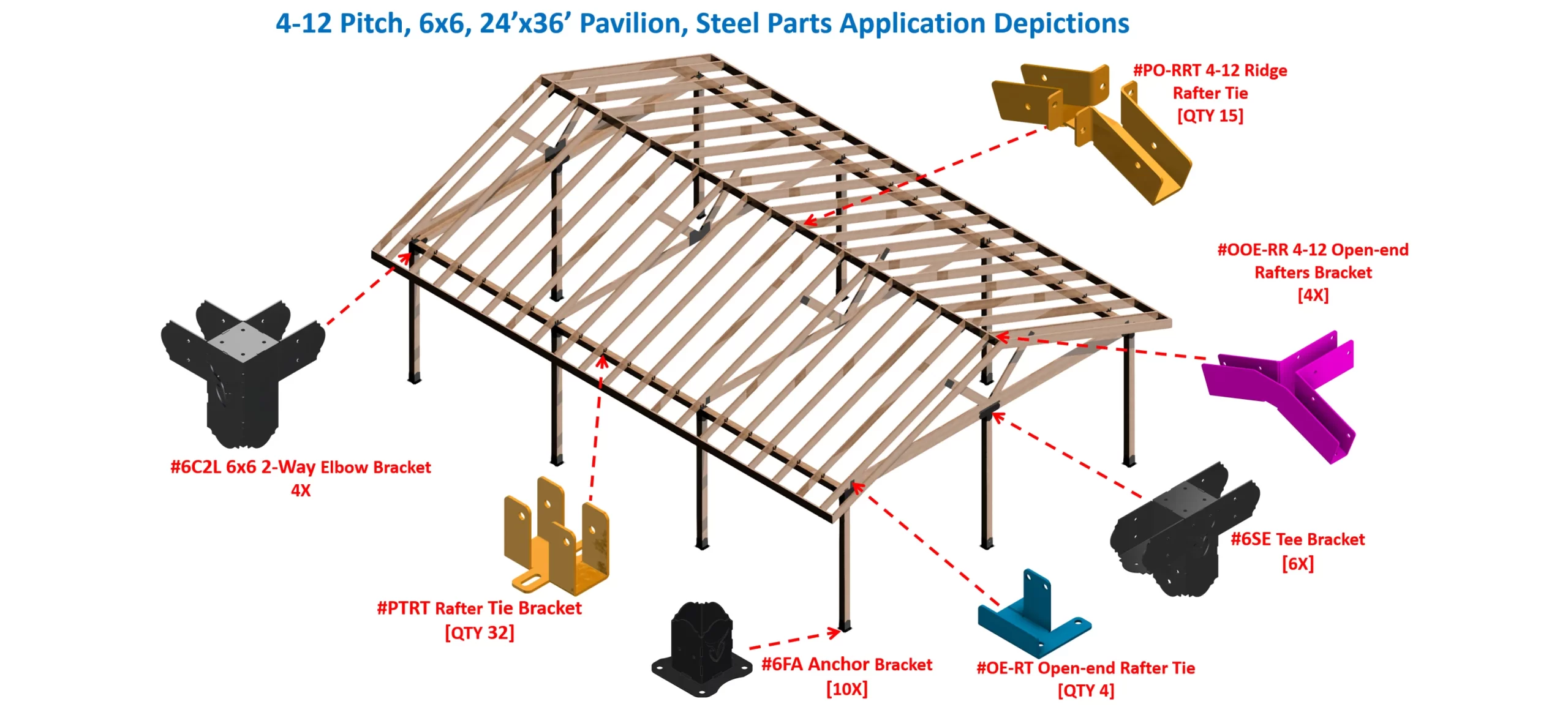

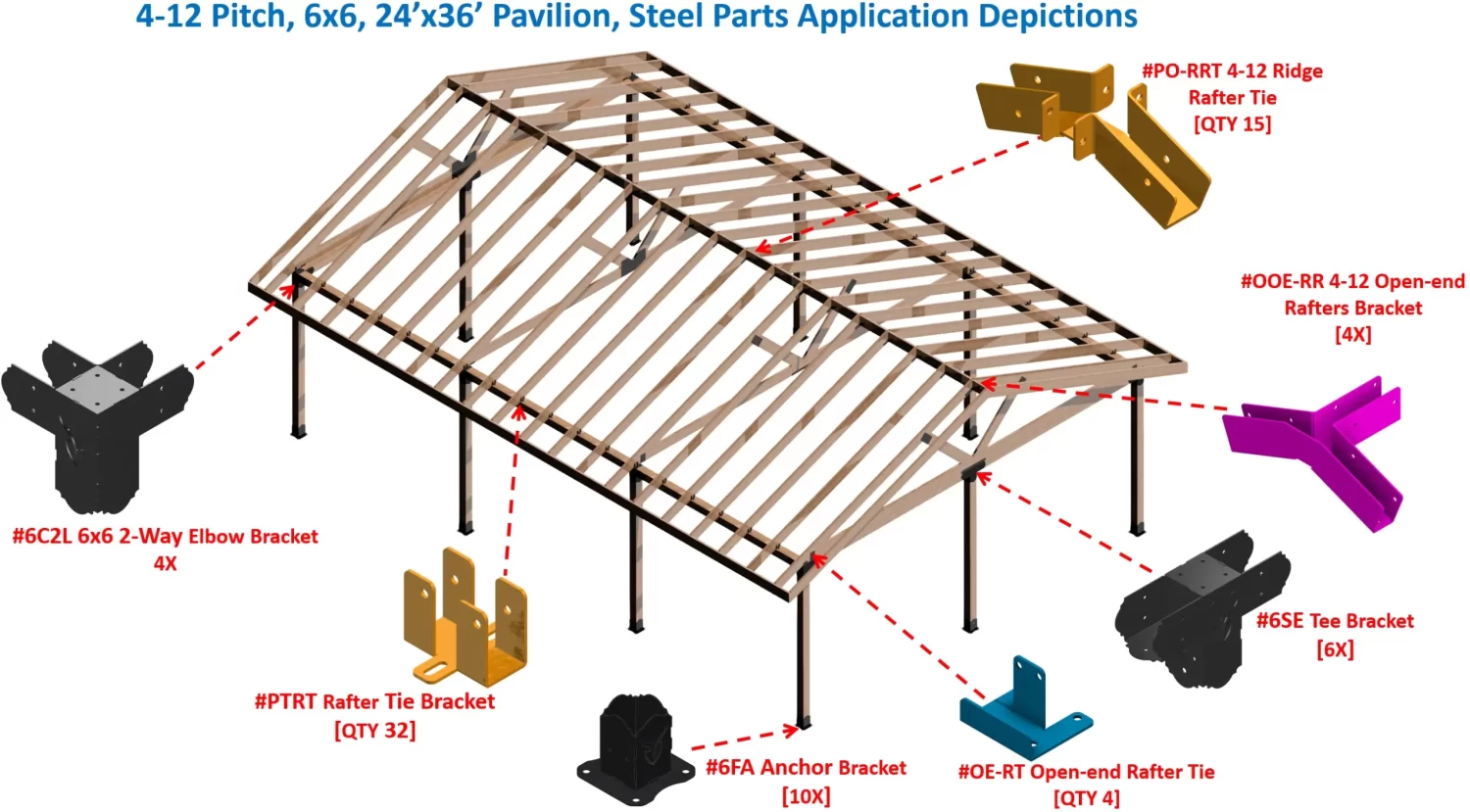

Kit includes all steel parts to build posts and header structure and to join all roof lumber pieces securely for infinite lifetime.
6×6 Post Anchors
6×6 Post Top 2-way Elbows
6X6 Post Top Tee Brackets
Gable Roof Brackets Kit (qty of ridge rafer bracket and rafter tie brackets vary by length of pavilion.
Lag screws to secure all brackets are included in black color.

1/8″ thick steel used for all parts, laser cut, and welded, powder painted for rust proofing.

You can view this kit on our Etsy store at RioOutdoors.Etsy.com.
