DIY Heavy Duty 6×6 90 degree Elbow Bracket

Enhance the security and stability of your projects with this DIY Heavy Duty 6×6 90 degree Elbow Bracket. Crafted for durability and strength, this bracket is perfect for constructing sturdy structures or reinforcing existing frames. The 90 degree angle offers versatile connection options, making it a versatile addition to any DIY enthusiast’s toolkit. Upgrade your projects with this high-quality bracket today!

DIY Smart

DIY Smart “Drop-in” design allows easy lifting and drop-in of the header member. Eliminates the need for heavy lifting equipment!

Made in America using local materials and local labor.

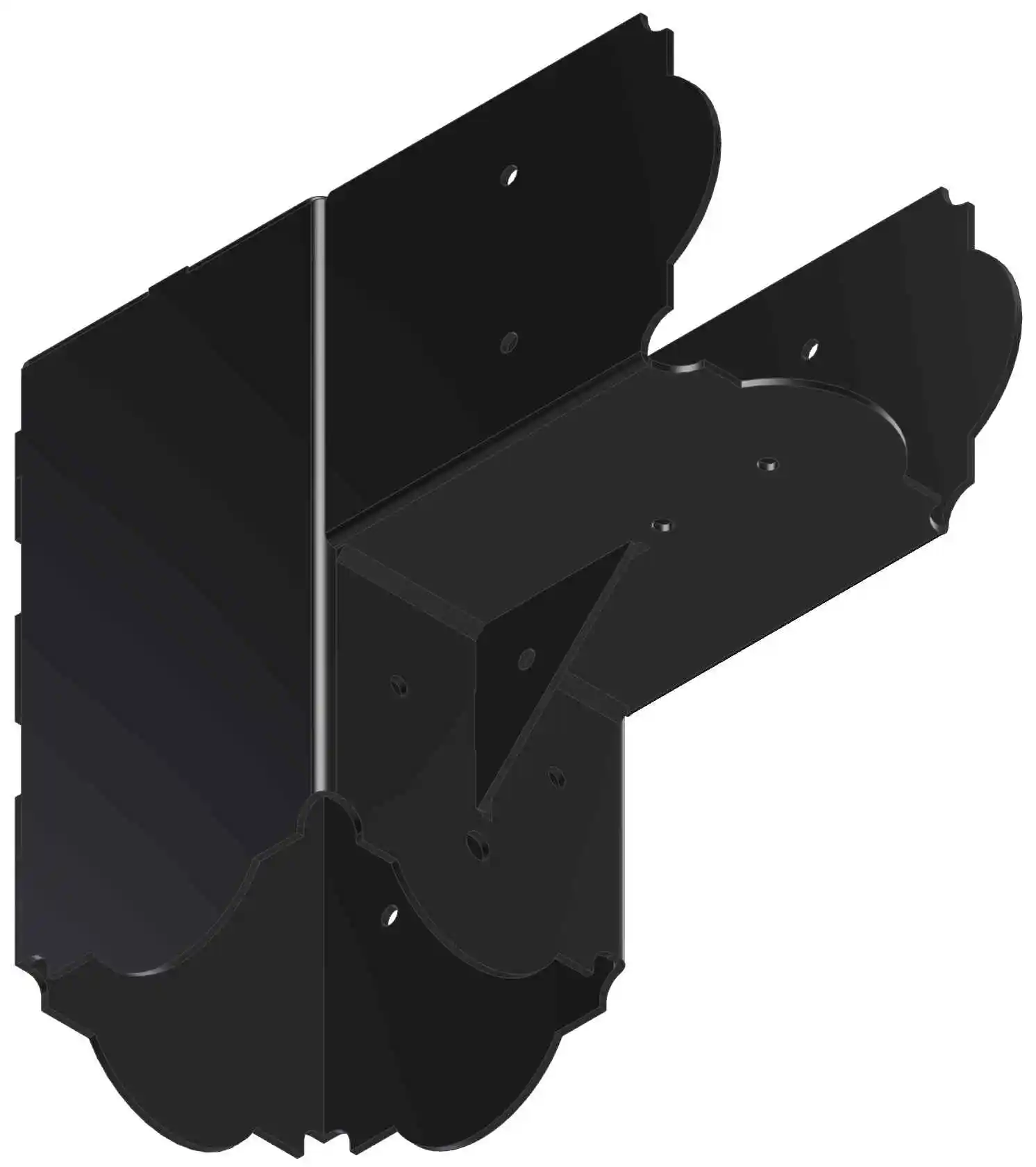

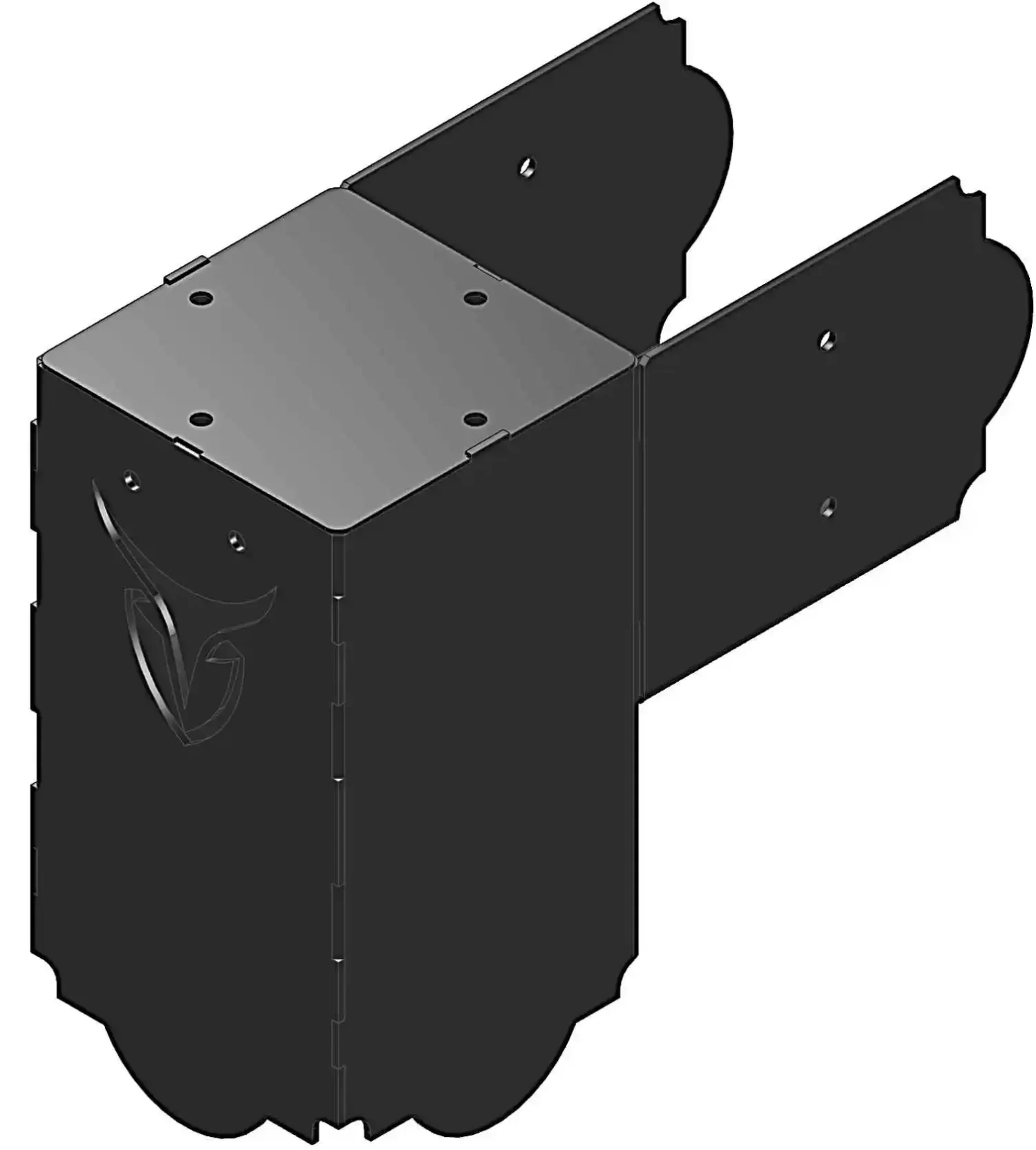

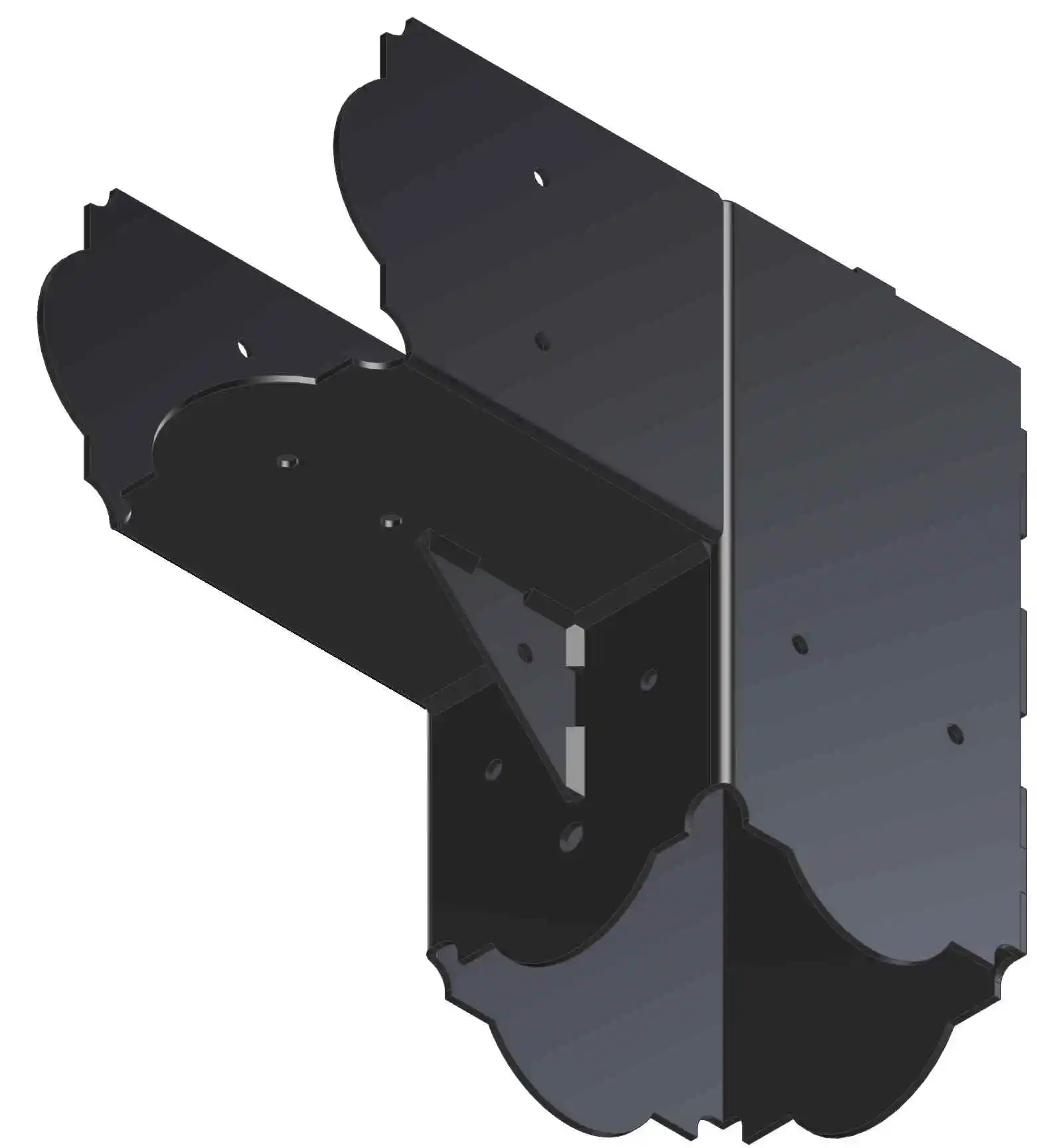

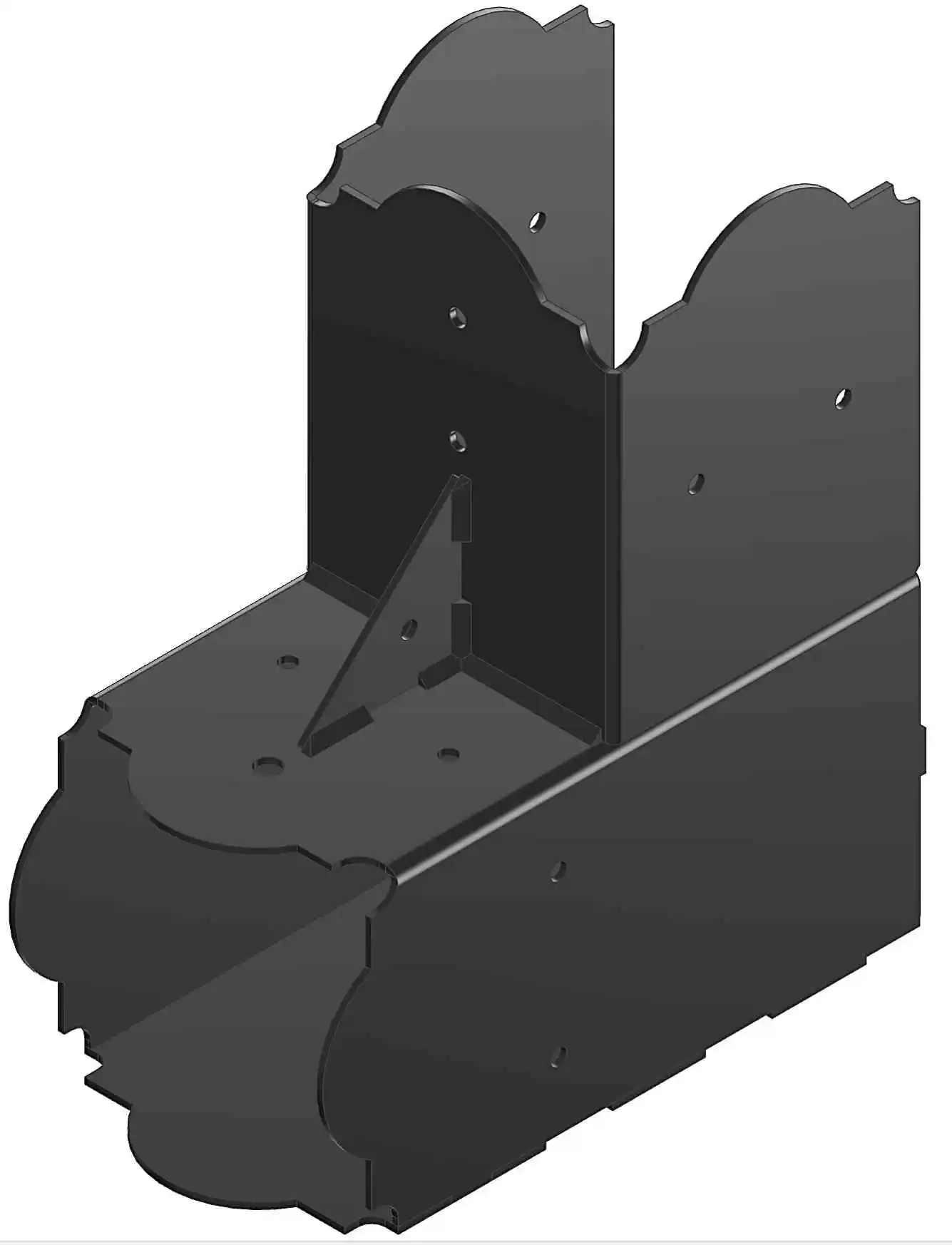

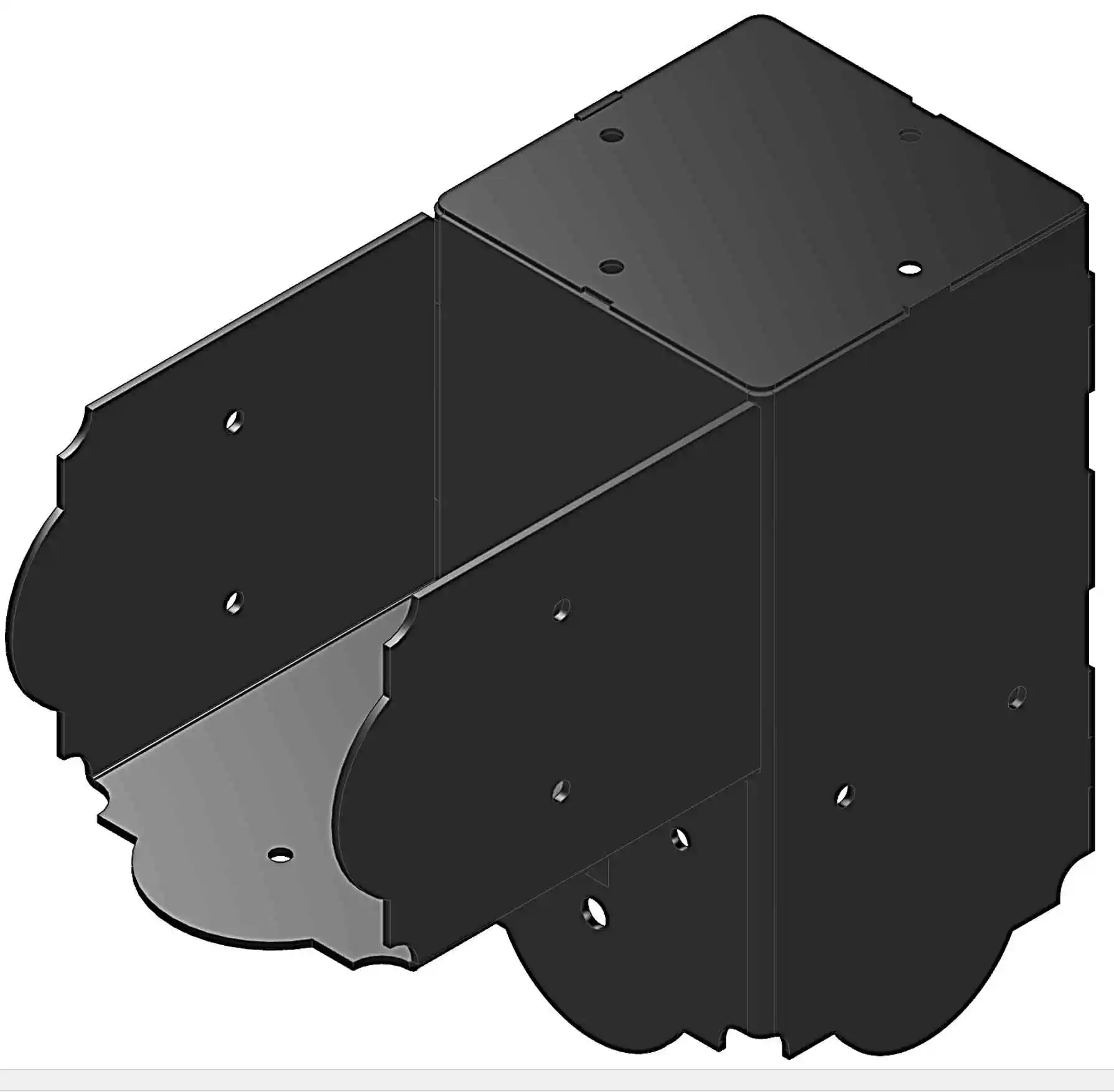

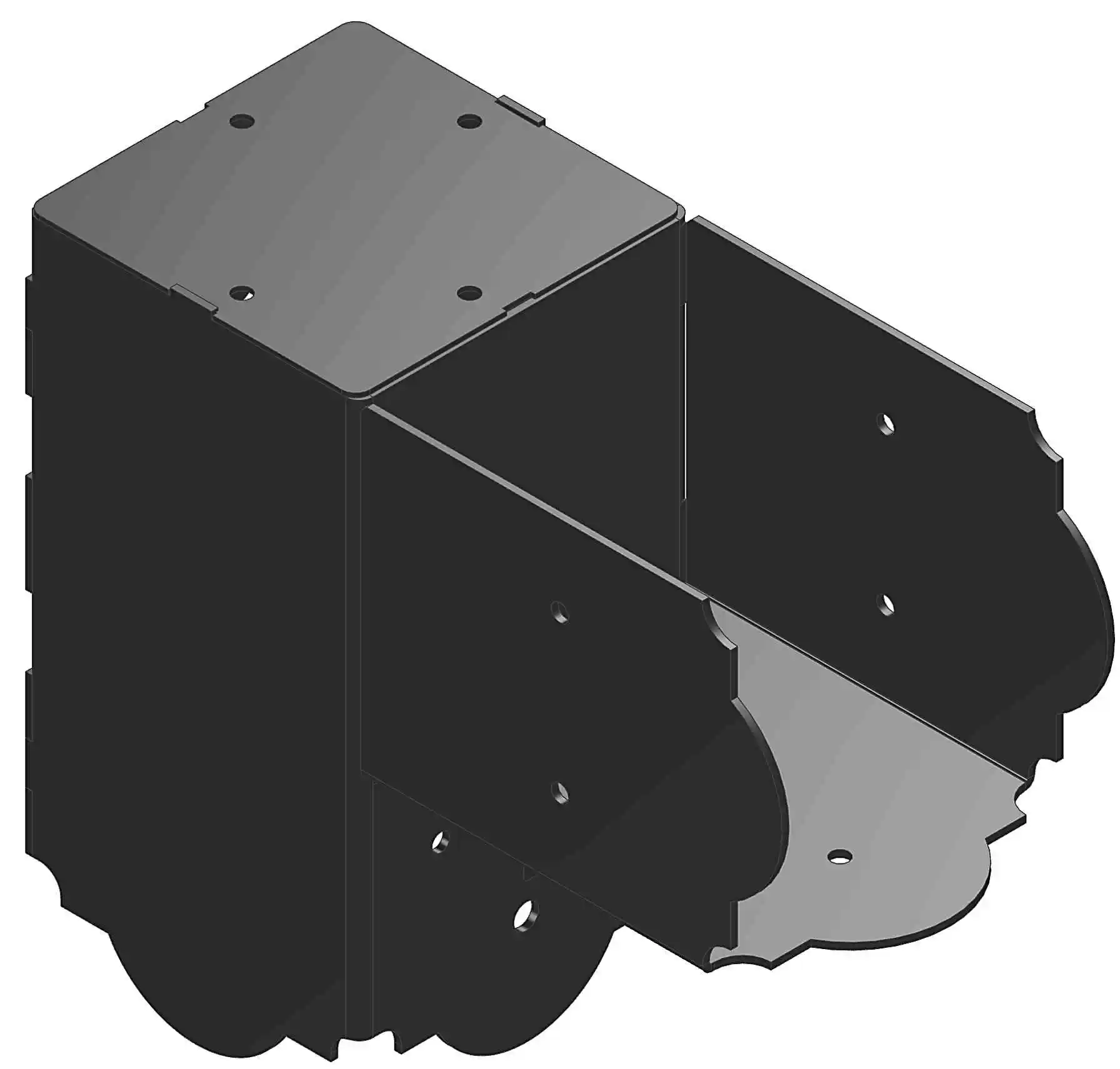

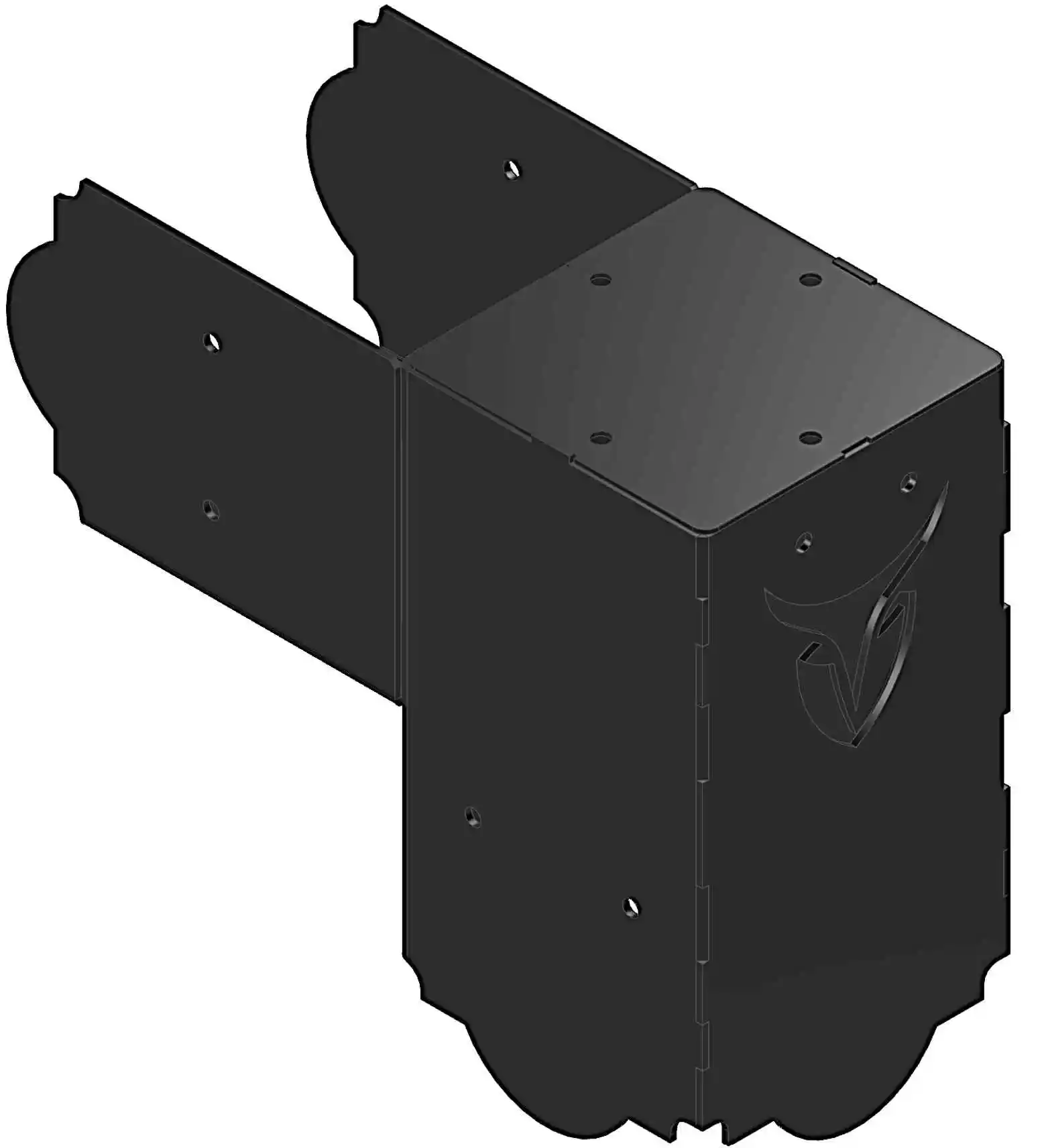

2-way 90-deg heavy duty elbow bracket for 6×6 size lumber members.
Designed for use with 6×6 dimensional lumber measuring 5.5″ x 5.5″.
Suitable anywhere you need to join two 6x6s at a 90 degree angle.

In our products, this bracket is employed for 6×6 Partial Hexagons, 6×6 Partial Octagons, and 6×6 Lean-Tos.

CAUTION: 6×6 dim sizes vary greatly. Only use 5-1/2 x 5-1/2 sized lumber. Check post dimensions before buying. Due to lumber dim variances you may need to shave material using a planar.

Physical Properties

Highest quality materials and workmanship for high durability and long life.
1/8″ steel, welded, powder painted for rust proofing.
Smart DIY design allows easy, accurate, and safe assembly work.
Cosmetically enhanced.
Open U-channels allow easy and safe placement of 2nd 6×6 easily.

This DIY Industrial Strength 6×6 2-Way Elbow Bracket is also available at RioOutdoors.myShopify.com and at RioOutdoors.Etsy.com.
