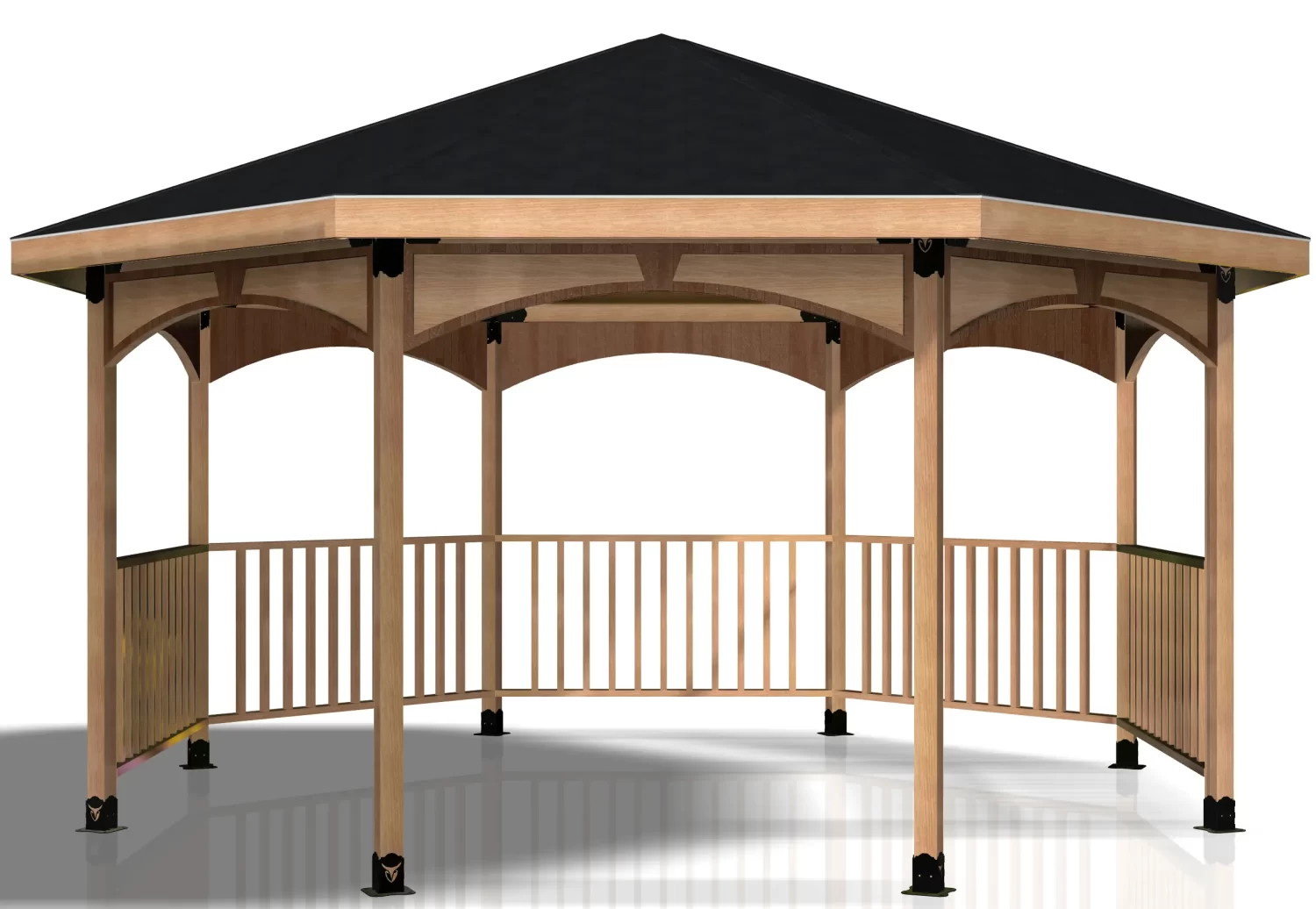

• The octagon solid roof brackets kit is a unique and novel creation by RioOutdoors.com.
• When constructed as instructed in the installation instructions, this solid roof structure will withstand any snow load and will be an all-weather structure.
• This novel roof joinery brackets kit simplifies roof construction work and yields a super-strong roof structure which can withstand snow loads exceeding 165 lbs./sq. ft.
• This octagon solid roof will have a 4-12 pitched slope. The rafters will be angled at 20 degrees.
• This strong roofed structure will be a permanent structure for any geographic location.
• The novel Octagon-specific steel brackets eliminate all wood joinery skills and work making it ideal for all DIY projects and for contractors.
• All steel parts are made of 1/8″ thick steel and powder painted for permanent rust proofing and durability.

What Octagon Size will this roof kit fit on?

• The size shown in the Kit Description (e.g., 10ft. to 13ft. Wide Octagon, Solid Roof) defines the width of the base octagon wall structure.
• The octagon solid roof kit that you select (e.g., 10ft. to 11ft. Wide Octagon, Solid Roof) is designed to create a solid roof that can cover an octagon shape that is between 10ft. and 13ft. wide.
• The roof outer edges will overhang the octagon walls by 12″. The “10ft. to 13ft. Wide Octagon, Solid Roof” dimension does not include the overhang dimension.
• To determine what size octagon will fit in the space available in your yard, include and add the extra space required for the roof overhangs past the octagon walls. We recommend a 12″ roof overhang past the octagon walls.

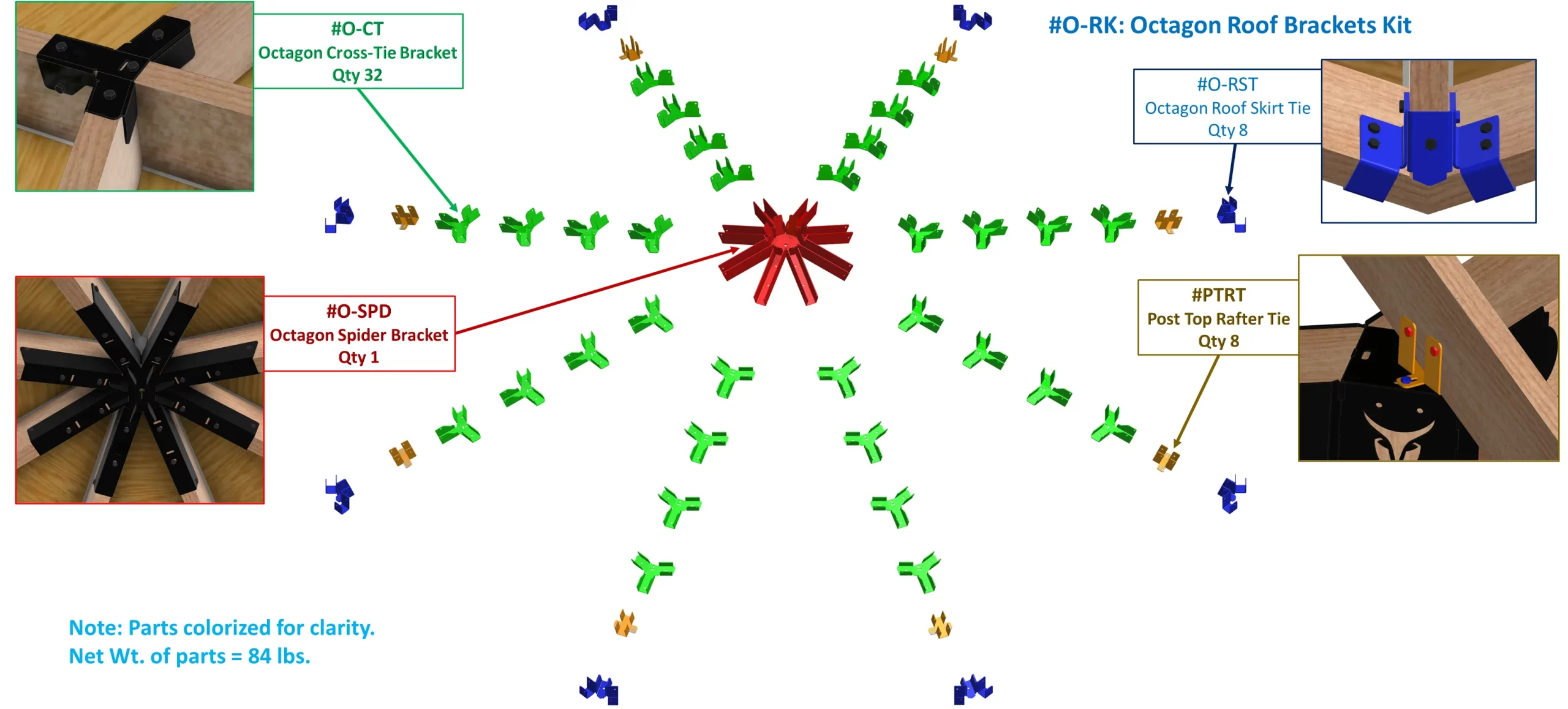

The octagon solid roof kit brackets bundle includes:

• • 1 Qty of Roof Peak Octagon 8-way Spider Bracket.
  • 8 Qty of post top Rafter Tie Brackets.
  • Cross-tie Support Brackets (Qty varies by size):
    • Qty 24: 10 ft. to 13 ft.
    • Qty 32: 13-1/2 ft. to 16-1/2 ft.
    • Qty 40: 17 ft. to 20ft.
  • 8 Qty of Roof Skirt Tie Brackets.
  • 1/4″ x 1-1/4″ Black Lag Screw (Qty varies by size).

Roof Framing Lumber Requirements:

• • Roof rafter and crosstie lumber to be kiln dried lumber (pine, cedar, redwood, etc.).
  • Roof skirt members to be pressure treated pine, cedar, or redwood.
  • Roof rafters’ size to be 2×6 or 2×8 for widths up to 16 feet and 2×8 (minimum) for widths more than 16 feet.
  • Cross Tie Beams and Roof skirt members’ size must be the same size as the roof rafter size.
• Roof rafters’ pitch angle is fixed at 20-degrees.
• Cross support beams are required every 24″ between adjacent rafters to support roof deck plywood/OSB boards.
• Follow all steps and instructions provided to achieve a professional finish and superb architectural exposed beam roof structure.
• Areas between cross tie beams can be filled with acoustic panels attached with PL Glue or other construction adhesive.
