Introduction

• The Partial Hexagon Solid Roof Brackets Kit is a unique and novel creation by RioOutdoors.com.
• When constructed as instructed in the installation instructions, this solid roof structure will withstand any snow load and will be an all-weather structure.
• This novel roof joinery brackets kit simplifies roof construction work and yields a super-strong roof structure which can withstand snow loads exceeding 165 lbs./sq. ft.
• This strong roofed structure will be a permanent structure for any geographic location.
• The novel steel brackets eliminate the need for all wood joinery skills and work making it ideal for all DIY projects and for contractors.

Hexagon Size

The size shown in the Kit Description (e.g., 9ft. to 12ft. Wide Solid Roof) defines the width between two parallel hexagon walls.
The size of a Partial Hexagon structure is defined by the outer width dimension between two parallel walls of the Partial Hexagon structure.
To determine what size Hexagon will fit in the space available in your yard, include and add the extra space required for the roof overhangs past the Hexagon walls. We recommend a 6″ to 12″ roof overhang past the Hexagon walls.
The size of the partial hexagon you can build employing this bracket kit (measuring across two parallel sides) ranges from 8 feet to 20 feet, depending on the length of the headers.

The living space you can create ranges between 50 sq. ft to 285 sq. ft.
Detailed specifications for header length to hexagon size and living area are provided in the Instructions Manual.

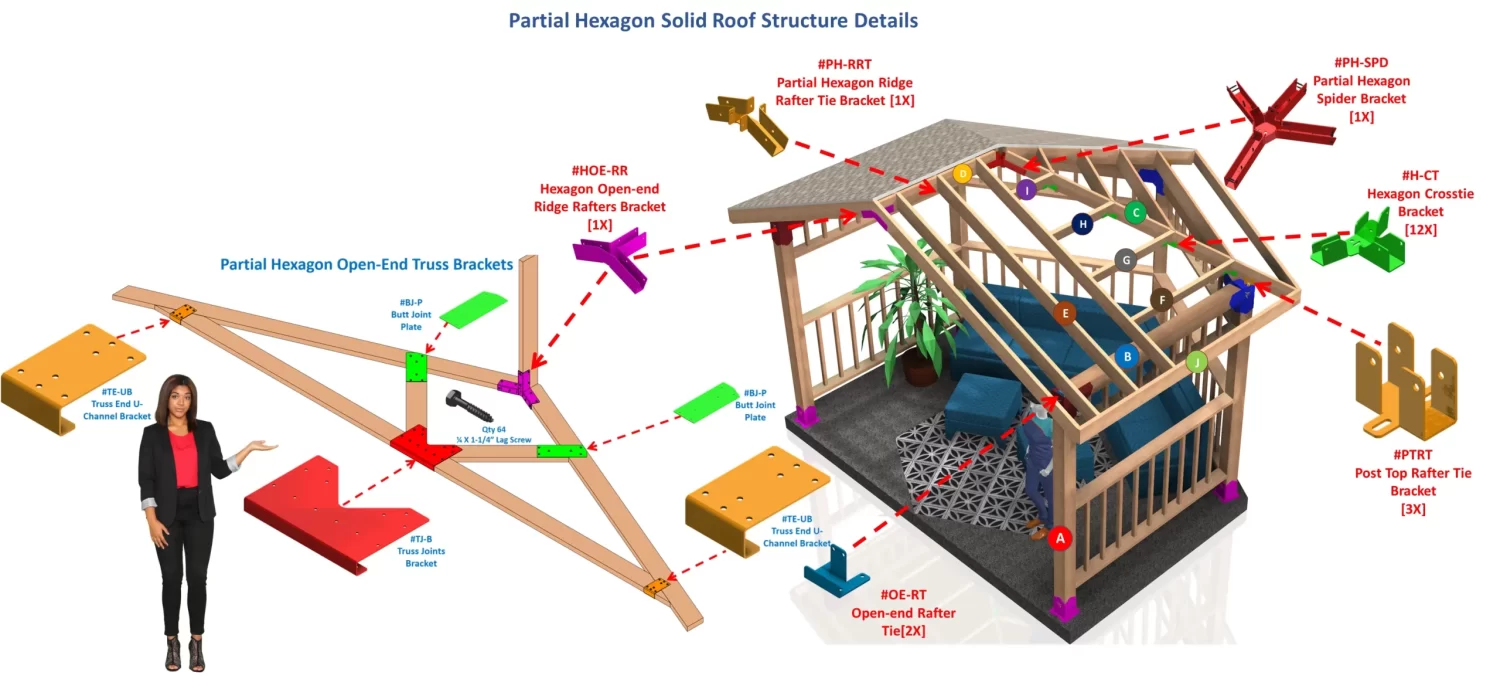

Solid Roof Information

The solid roof kit is designed to eliminate all wood joinery skills requirements.
All roof brackets are designed to provide superior structural support and strength to the structure, far exceeding the strength provided by wood joinery.
The brackets simplify wood members cutting and adding end treatments.
The brackets provide precise fit and alignment yielding an architechtural roof structure.

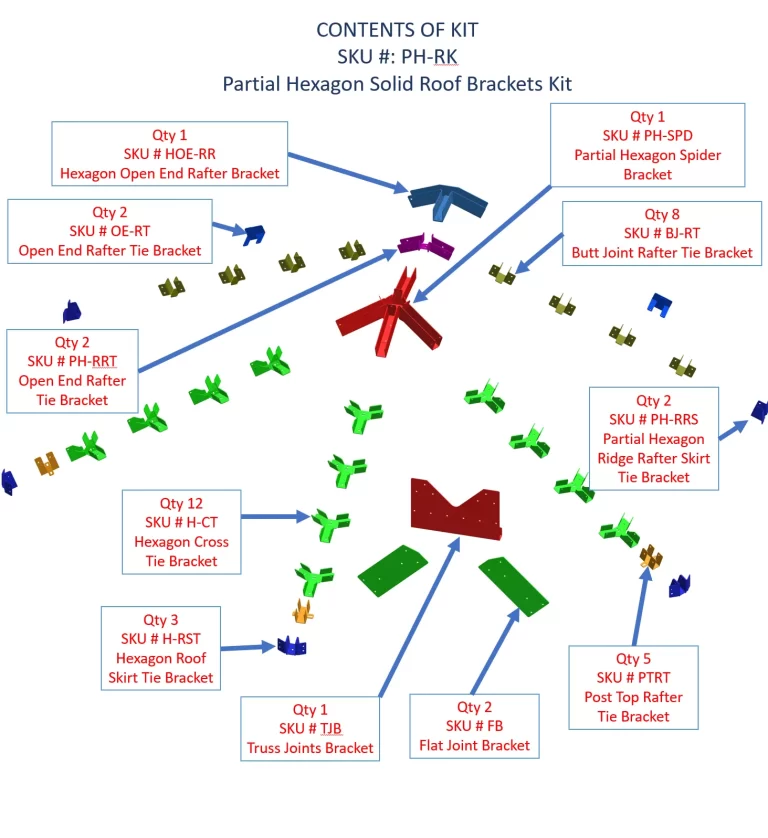

Parts included with all Partial Hexagon Solid Roof Kits:
Qty 1, Partial Hexagon, 4-way, Spider Bracket
Qty 1, Hexagon Open End Rafter Bracket
Qty 3, Hexagon Cross Tie Brackets
Qty 2, Butt Joint Rafter Tie Brackets
Qty 1, Truss Center Joints Bracket
Qty 1, Butt-Joint Plate, LH
Qty 1, Butt-Joint Plate, RH
Qty 1, Truss End U-Channel Bracket, LH
Qty 1, Truss End U-Channel Bracket, RH
¼”x1-1/4” Blk Lag Screws

Additional Parts included with Partial Hexagon sizes larger than 8ft. Wide:

9ft. to 12ft Wide, Solid Roof includes:
Qty 3, Hexagon Cross Tie Brackets
Qty 2, Butt Joint Rafter Tie Brackets
13ft. Wide, Solid Roof includes:
Qty 6, Hexagon Cross Tie Brackets
Qty 4, Butt Joint Rafter Tie Brackets
14ft. to 15ft. Wide, Solid Roof includes:
Qty 6, Hexagon Cross Tie Brackets
Qty 4, Butt Joint Rafter Tie Brackets
Qty 1, Partial Hexagon Ridge Rafter Tie Bracket
Qty 2, Partial Hexagon Ridge Rafter Skirt Tie Brackets
16ft. to 18ft. Wide, Solid Roof includes:
Qty 9, Hexagon Cross Tie Brackets
Qty 6, Butt Joint Rafter Tie Brackets
Qty 1, Partial Hexagon Ridge Rafter Tie Bracket
Qty 2, Partial Hexagon Ridge Rafter Skirt Tie Brackets
19ft. Wide, Solid Roof includes:
Qty 9, Hexagon Cross Tie Brackets
Qty 6, Butt Joint Rafter Tie Brackets
Qty 2, Partial Hexagon Ridge Rafter Tie Bracket
Qty 4, Partial Hexagon Ridge Rafter Skirt Tie Bracket
20ft. Wide, Solid Roof includes:
Qty 12, Hexagon Cross Tie Brackets
Qty 8, Butt Joint Rafter Tie Brackets
Qty 2, Partial Hexagon Ridge Rafter Tie Bracket
Qty 4, Partial Hexagon Ridge Rafter Skirt Tie Brackets

Roof Framing Lumber Requirements:

• • Roof rafter and crosstie lumber to be kiln dried lumber (pine, cedar, redwood, etc.).
  • Roof skirt members to be pressure treated pine, cedar, or redwood.
  • Roof rafters’ size to be 2×6 for widths up to 14 feet and 2×8 for widths more than 14 feet.
  • Roof skirt members’ size to be 2×6 or 2×8 and must be the same size as Roof rafter size.
