Heavy Duty Partial Hexagon Spider Bracket

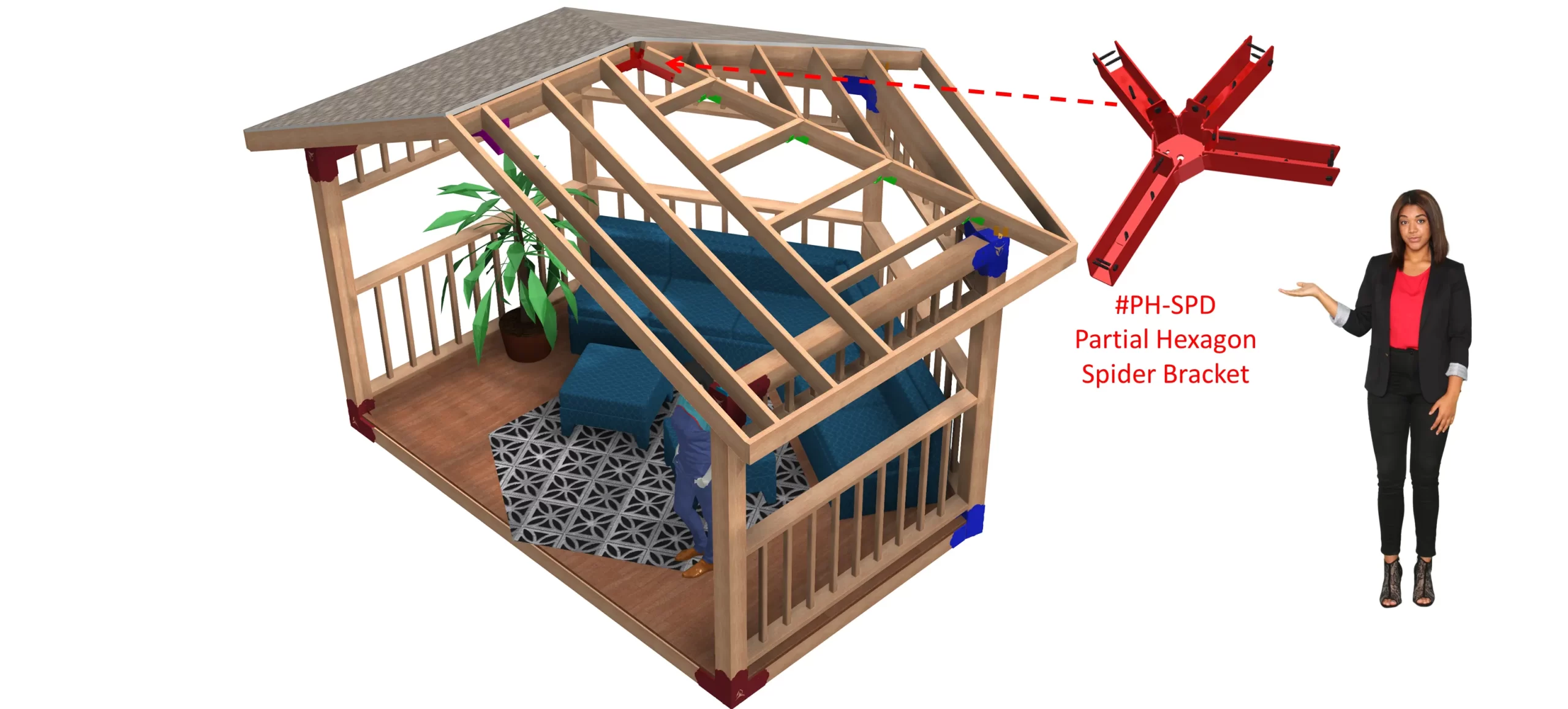

Introducing our Heavy Duty Partial Hexagon Spider Bracket, the perfect solution for securely mounting the rafters for your partial hexagon solid roof. Crafted with durability in mind, this bracket features a unique partial hexagon design that adds a modern touch to any space. Its sturdy construction ensures reliable support, making it ideal for creating a partial hexagon roof structure which is both decorative and functional.

Unique design only offered by RioOutdoors.
Clever DIY part which allows novices to create an amazingly beautiful architectural roof structure.

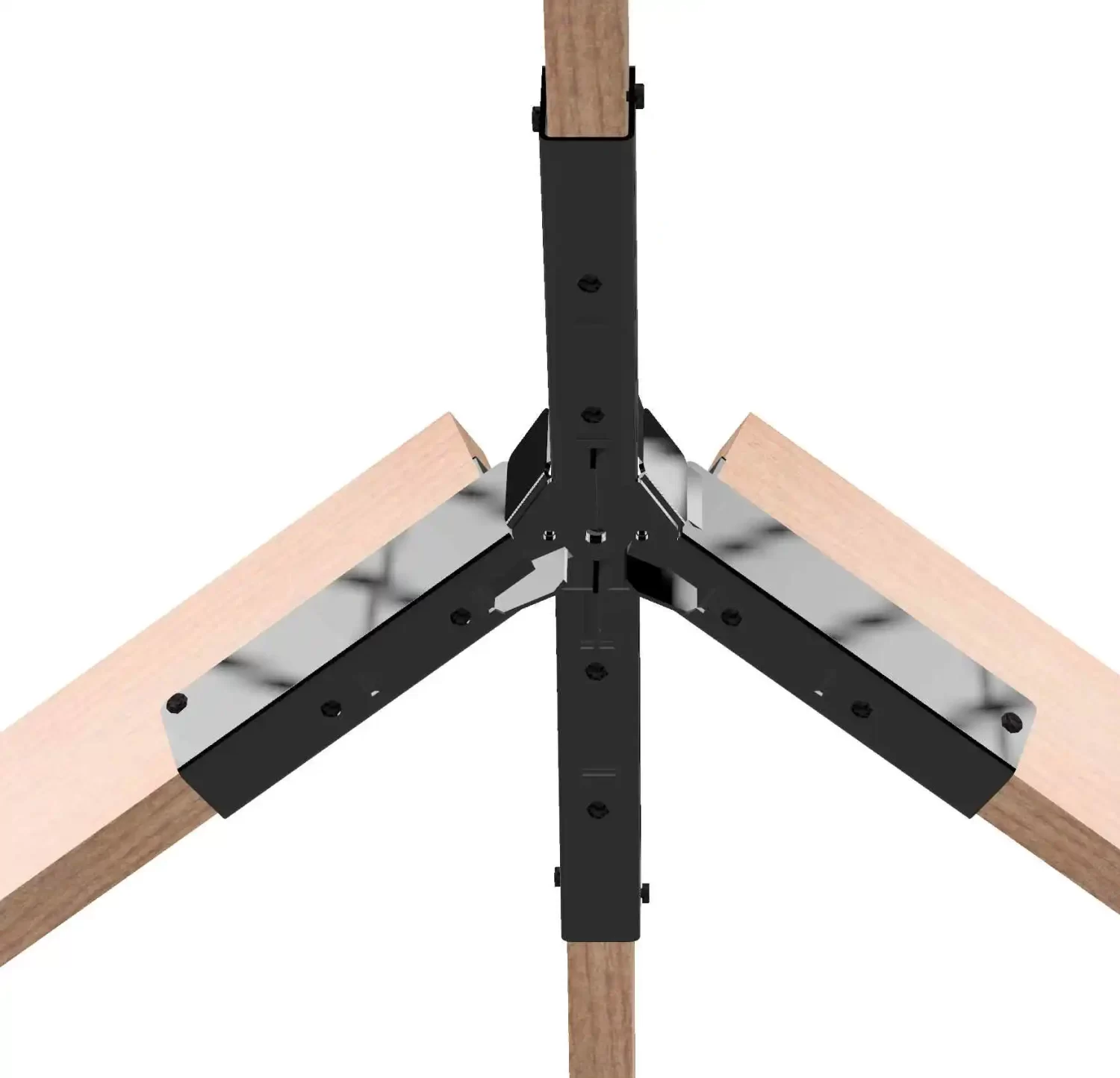

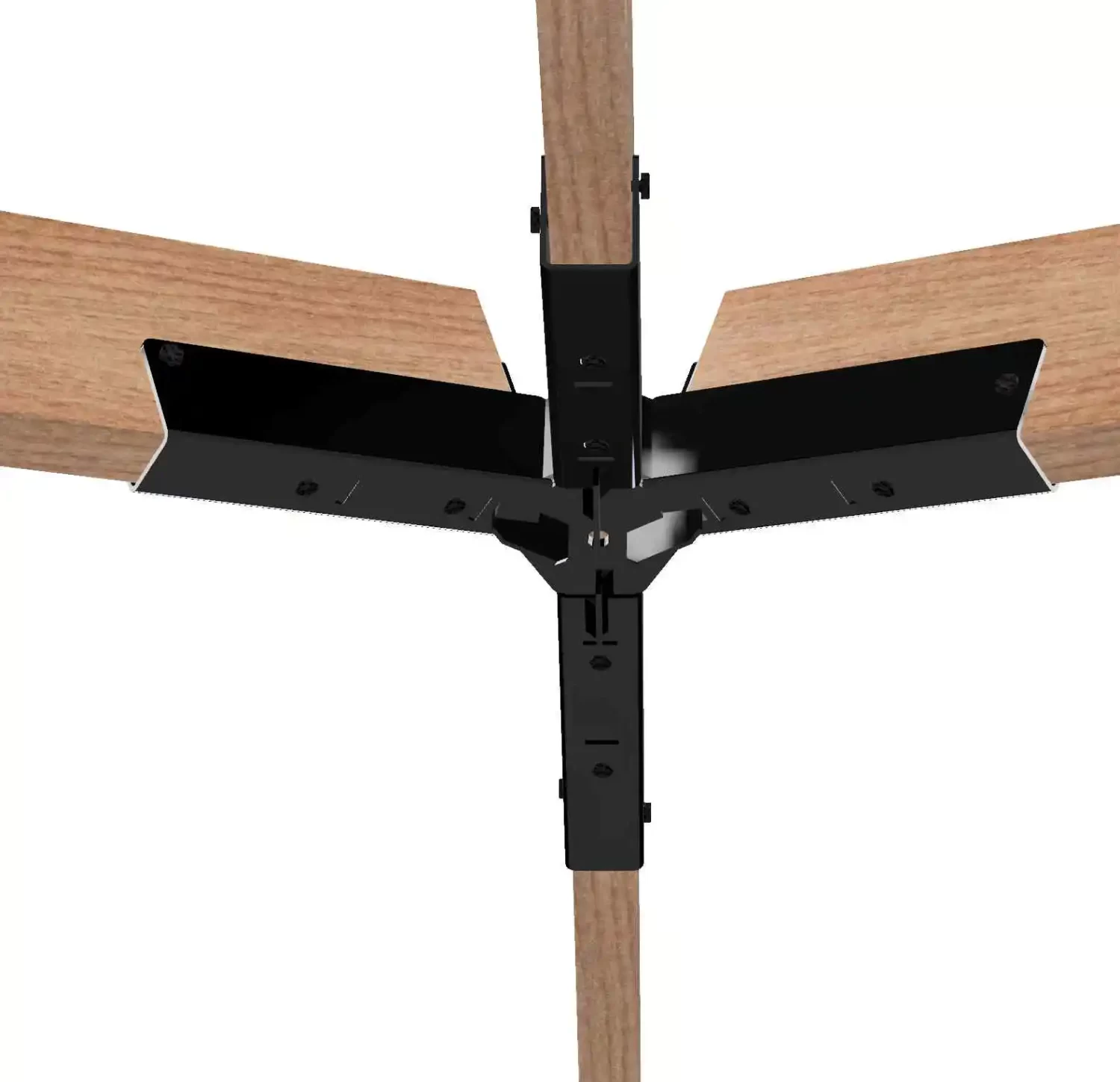

Partial Hexagon 4-way spider bracket creates a perfect 5-way rafters joints at the peak of the partial Hexagon gazebo roof and peaks of linear hexagon pavillions.

This bracket is employed for 6×6, Partial Hexagon Gazebo kit, 4×4, Linear Hexagon Pavilion Kit, and for freestanding 4×4 and 6×6 Partial Hexagon Gazebo kits.
This novel Hexagon 4-way spider bracket simplifies roof construction work and yields a super-strong roof structure which can withstand snow loads exceeding 165 lbs./sq. ft.
This strong roofed structure will be a permanent structure for any geographic location.
The novel Hexagon 4-way steel bracket eliminates all wood joinery skills and work making it ideal for all DIY projects and for contractors.
Made of 1/8″ thick steel, welded structure coated with powder paint for permanent rust proofing and durability.
The Partial Hexagon spider bracket includes:
Qty 1, of Roof Peak Partial Hexagon 4-way Spider Bracket.
Qty 20, of 1/4″ x 1-1/2″ Lag Screws.

Roof rafters’ pitch angle is fixed at 20-degrees.
Roof rafters and cross-tie beam lumber to be kiln dried lumber (pine, cedar, redwood, etc.).
Roof rafters’ size to be 2×6 for widths up to 14 feet and 2×8 for widths more than 14 feet.
Cross-tie support beams are required every 24″ between adjacent rafters to support roof deck plywood/OSB boards and snowloads.

This bracket is constructed from 1/8″ thick high strength steel.
This bracket is laser cut, formed, welded, and coated with durable black powder paint.
This bracket may be spray painted over with any desired exterior-grade paint color.
