• Novel and unique rafter tie bracket for 2X is made for DIYers to easily construct a beautiful Single, Double, or Quad Header Raftered Pergola living space.
• This rafter tie bracket for 2X is designed with DIYers in mind. It eliminates the need for bird’s mouth cuts and all wood joinery skills and workmanship requirements.
• Smart Design receives rafters easily and holds the rafter weight safely and frees your hands to drive required lag screws.

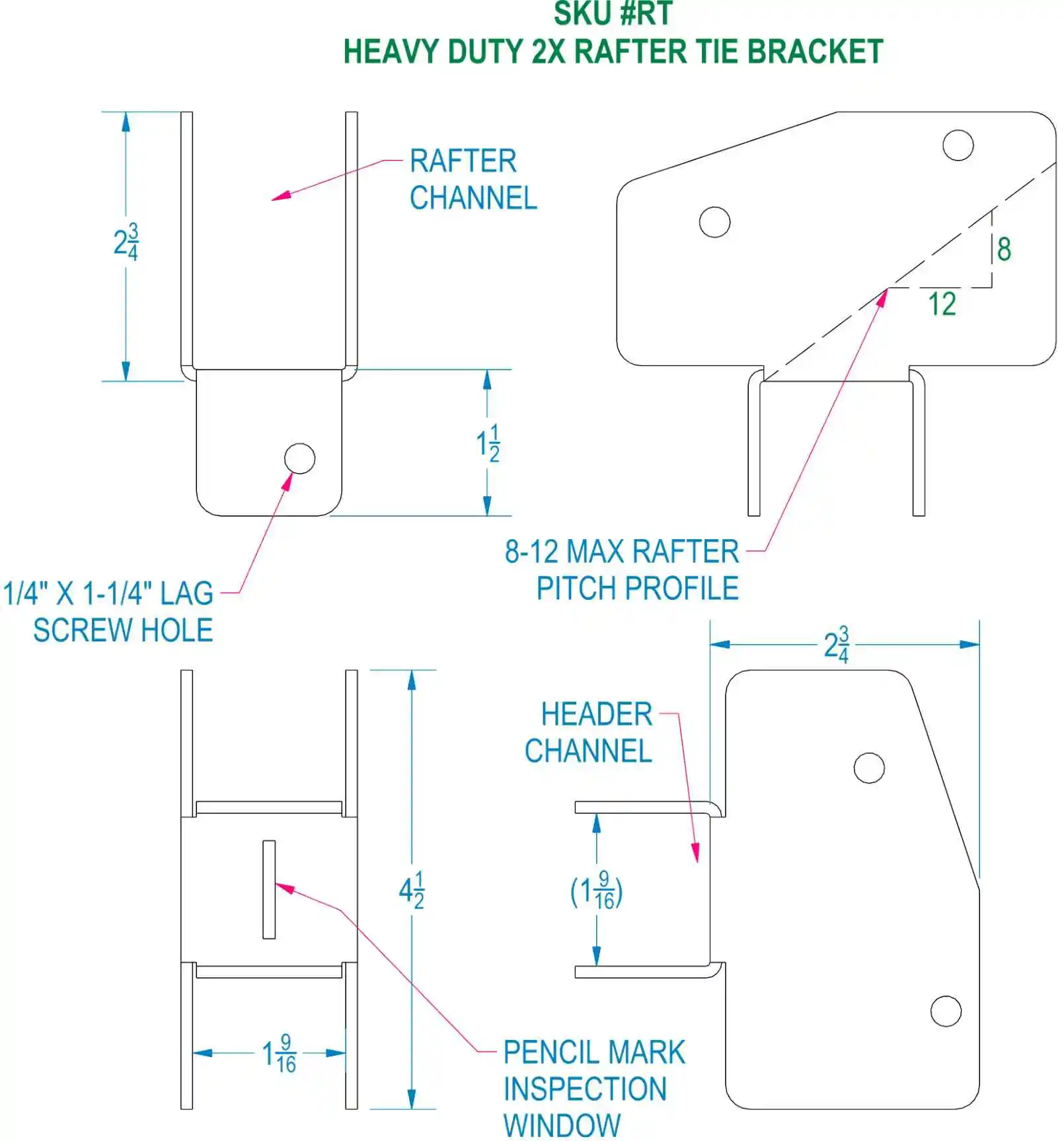

• Smart Design includes pencil mark inspection window which allows exact location placement on headers.
• This rafter tie bracket for 2X is super strong and durable construction for long lifetime and high wind resistance beyond 100 mph.
• Designed to slide on top of a 2X header and hold a 2×6 or 2×8 rafters for a single, double, or quad header raftered pergolas.
• This rafter tie bracket design allows rafters angles up to 8-12 pitch.
• Six 5/16” holes provided for securing bracket to the header and rafter.
• 1/8” high strength steel construction.
• Black powder painted for corrosion resistance.
• This rafter tie bracket can be spray painted over, using exterior grade paints.
• Includes Six (6) 1/4″ x 1-1/4″ Lag Screws.

For 12 ft long headers, order Qty 18.

For 16 ft long headers, order Qty 22.
