Parts Included and Parts Application Depiction

Price

$21.95

Availability: 26 in stock (can be backordered)

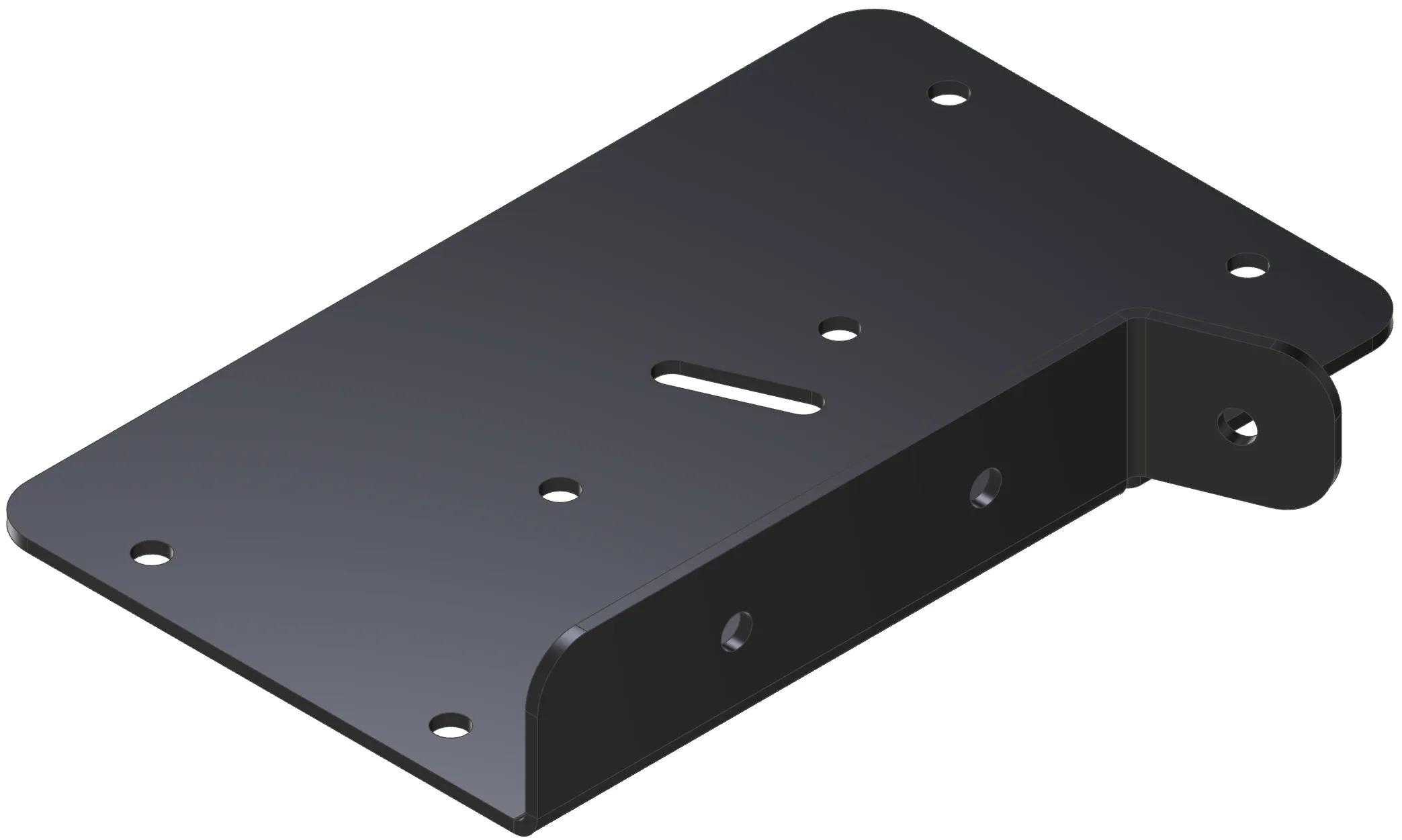

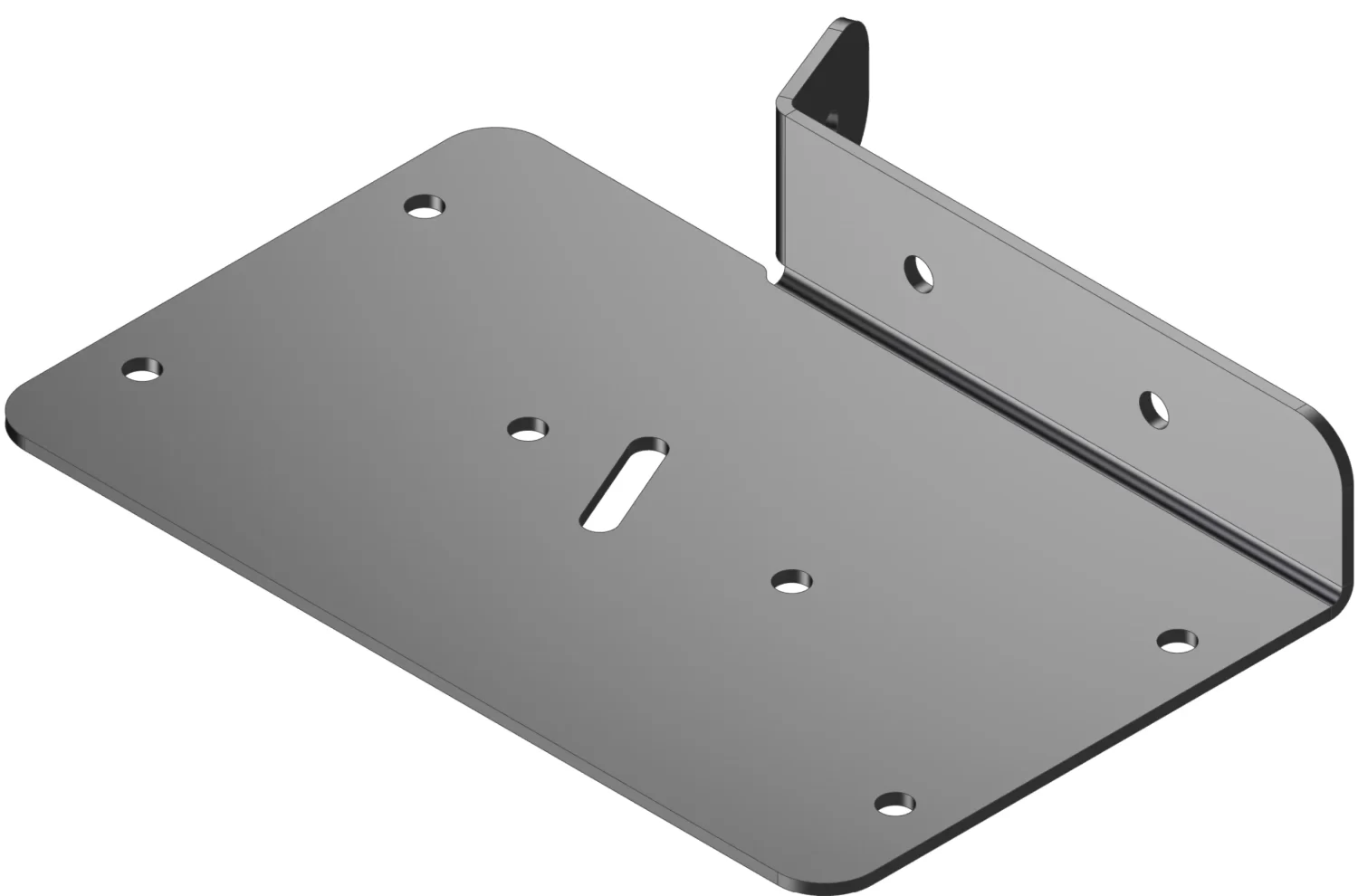

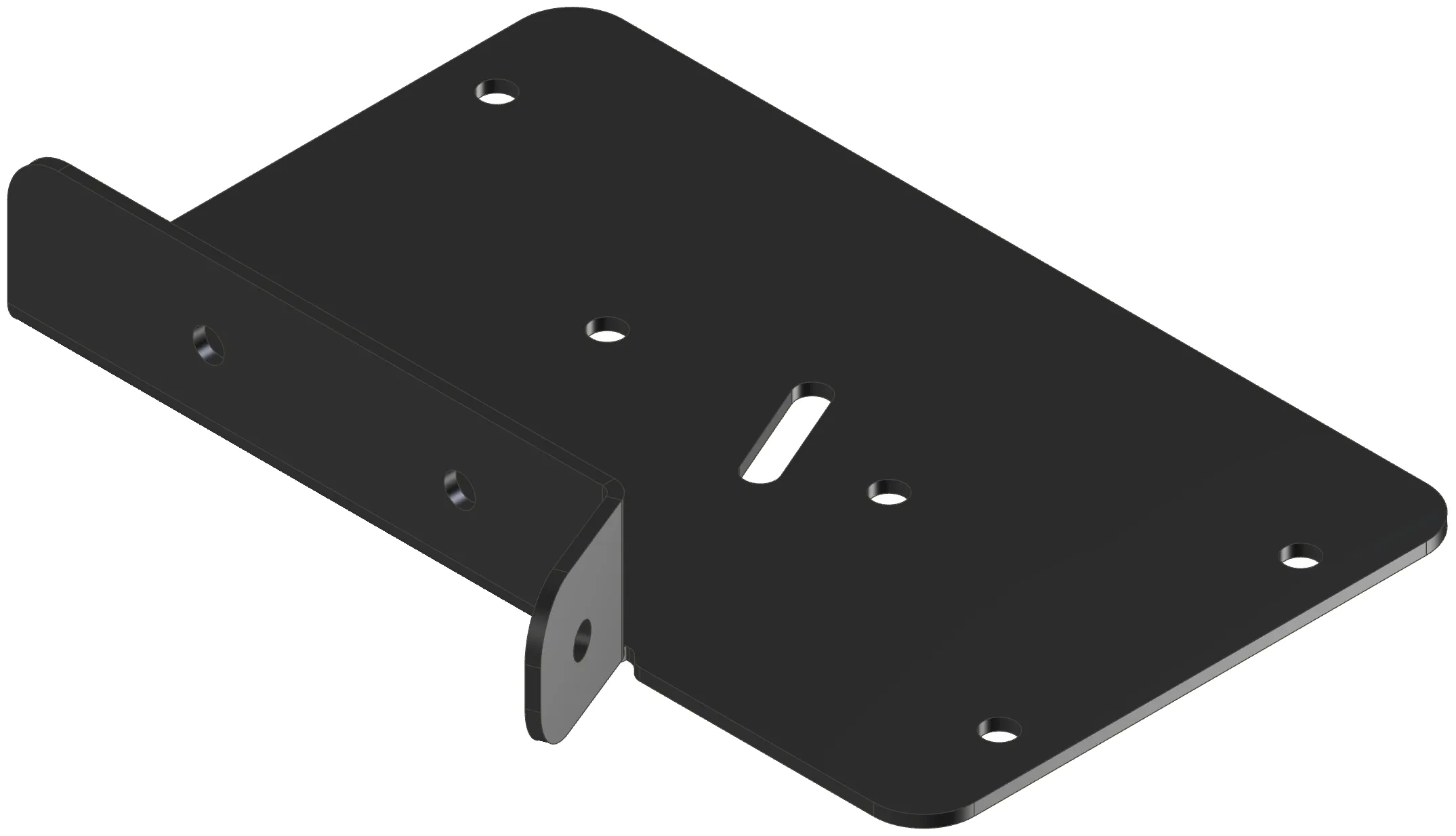

This is a novel bracket designed to attach the right hand 45-degree brace member to the right side open-end rafter.
The Truss Butt Joint Plate, RH is employed to assemble a partial hexagon and partial octagon open-end truss structure.
The Truss Butt Joint Plate, RH Bracket attaches to the side face of the right hand 45-degree brace member and provides a flat face to attach to the side of the right side open-end rafter.
In conjuncution with Truss Center Joints Bracket and the Truss End U-channel bracket, this bracket allows DIYers to easily create a strong and lasting open end truss structure.

No reviews to show

This is a novel bracket designed to attach the right hand 45-degree brace member to the right side open-end rafter.
The Truss Butt Joint Plate, RH is employed to assemble a partial hexagon and partial octagon open-end truss structure.
The Truss Butt Joint Plate, RH Bracket attaches to the side face of the right hand 45-degree brace member and provides a flat face to attach to the side of the right side open-end rafter.
In conjuncution with Truss Center Joints Bracket and the Truss End U-channel bracket, this bracket allows DIYers to easily create a strong and lasting open end truss structure.

Truss Butt Joint Plate, Right Hand - RioOutdoors.com

The Truss Butt Joint Plate, RH Bracket attaches to the face and right edge of the 45-degree brace member using five (5) 1/4″ x 1-1/4″ lag screws.
The Truss Butt Joint Plate, RH Bracket attaches to one face of the right side rafter using three (3) 1/4″ x 1-1/4″ lag screws and the bottom edge of the right side rafter using one (1) 1/4″ x 1-1/4″ lag screws.
The high strength design of this bracket creates a strong joint between the 45 degree brace member and the rafter member.
This bracket is designed to work with both 2×6 and 2×8 45 degree brace member and rafter member.

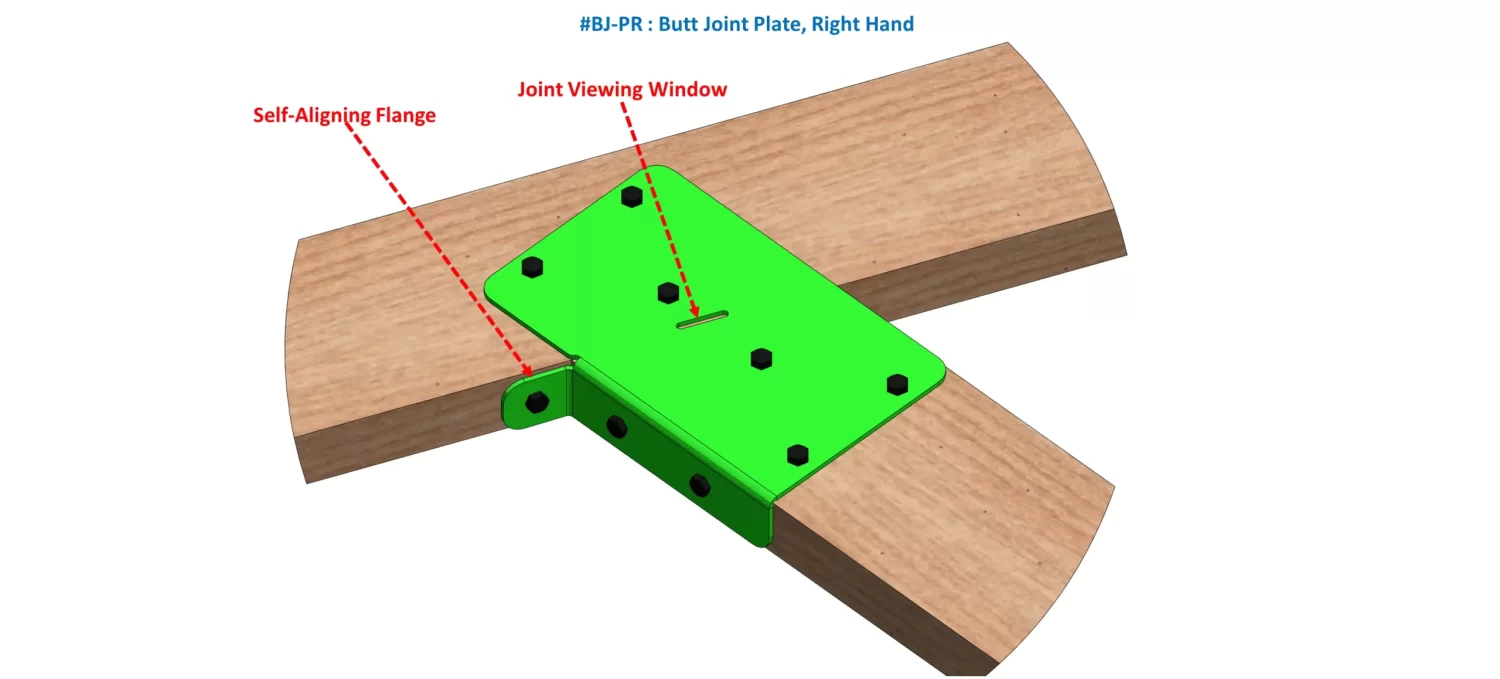

This bracket self-aligns the 45 degree brace at a proper angle to the rafter and provides a joint viewing window which aligns with the joint between the 45 degree brace and the rafter.

Included are nine (9) 1/4″ x 1-1/4″ lag screws to complete the job.
This bracket is constructed from 1/8″ thick high strength steel.
This bracket is laser cut and formed and coated with durable black powder paint.
This bracket may be spray painted over with any desired exterior-grade paint color.

Weight	2.5 lb
Dimensions	8 × 6 × 4 in
Product Type	Truss Brackets, Roofing Brackets, Loose Brackets
Shape	Hexagon, Octagon
Rafters Lumber Size	2×6, 2×8
Metal Thickness	1/8"
Paint	Black Textured Powder Paint
