Diy Truss Joint Bracket

Take your DIY projects to the next level with our innovative truss joint bracket. Sturdy and easy to install, these brackets are designed to provide exceptional support and stability to your truss structures. Whether you are building a pergola, greenhouse, or shed, these brackets will streamline your construction process. Crafted from high-quality materials, they ensure durability and longevity. Elevate your craftsmanship with our DIY truss center joints brackets today!

This is a novel bracket designed to create a permanent joint between two horizontal beam members at the center of a truss. Choose one bracket for 2×6 beams or the other for 2×8 beams.

NOTE: All lumber members of the entire truss assembly must be of the same 2×6 or 2×8 size, depending on the bracket you choose.

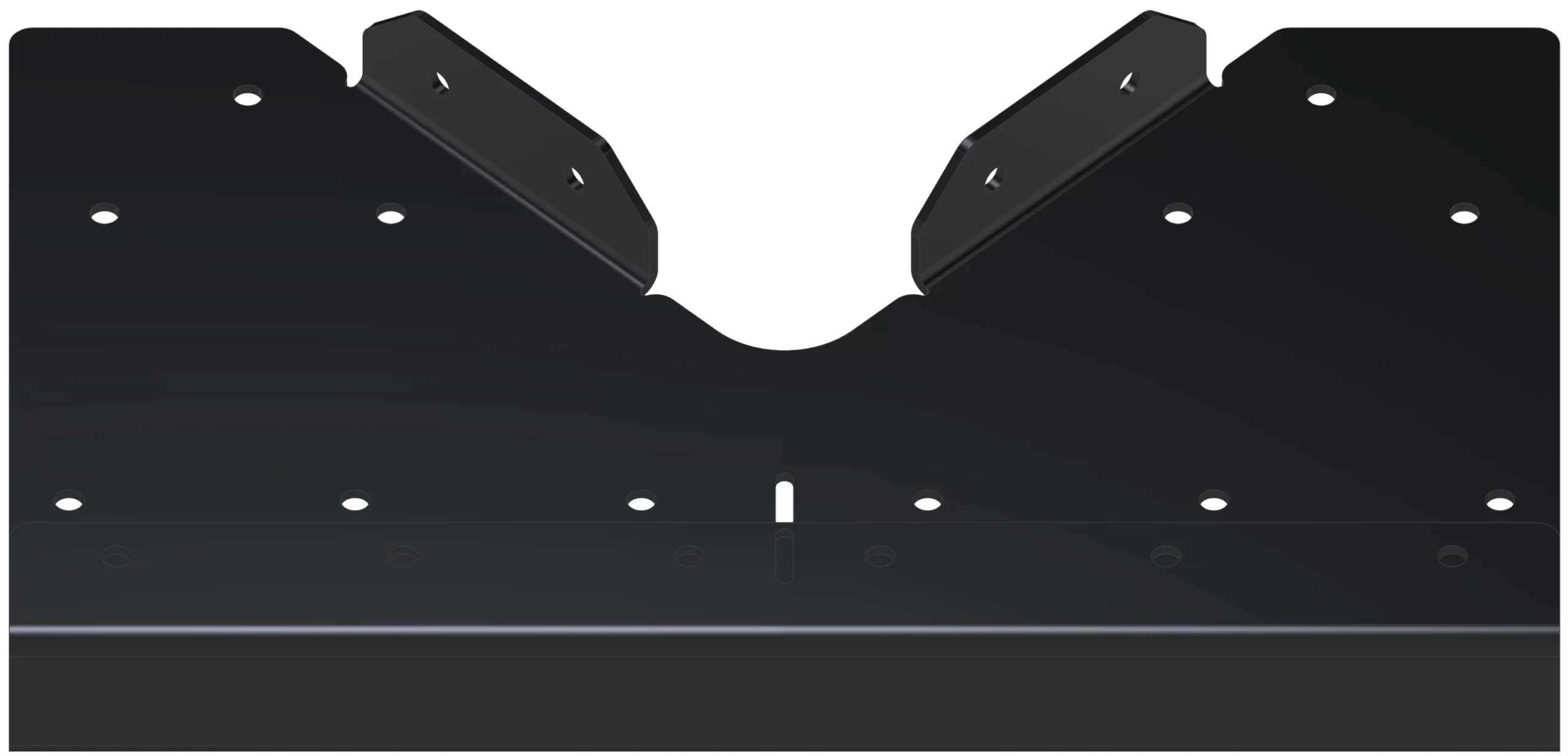

This bracket allows addition of two 45 degree angled braces to run upward and attach to the rafters. it creates a super-strong junction between the two 2×6 or 2×8 horizontal beams and eliminates all sagging at the truss center joint. Use this bracket to create a super strong joint between two 2X lumber pieces. Repair weak trusses which have plywood or osb pieces supporting the joints.

Initially designed for a truss in partial hexagon and partial octagon gazebos, this bracket can be use for trusses on any rectangle or square gable roofed structure.

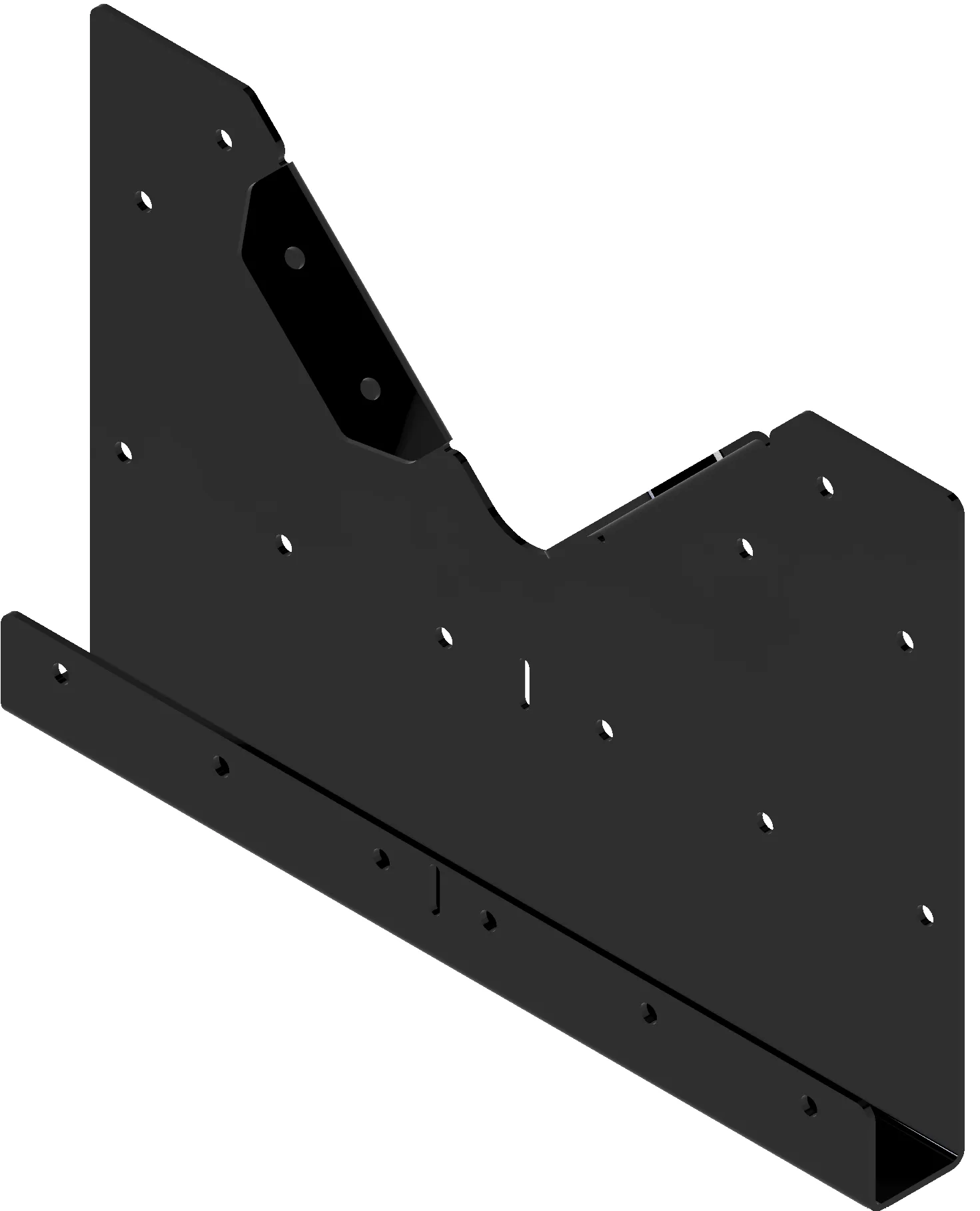

This bracket has an upward facing open U-channel to receive two ends of the horizontal beams.

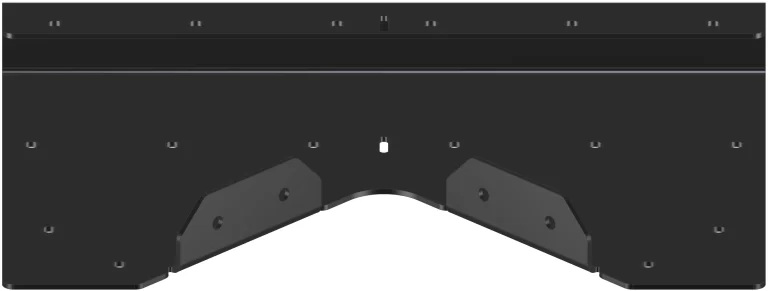

This steel part includes a joint inspection window which allows precise alignment of the two beam members at the center of this bracket.

Each horizontal beam is secured to the bracket’s U-channel using six (6) 1/4″ x 1-1/4″ lag screws.
The angled 45 degree brace members are secured to this bracket using three (3) 1/4″ x 1-1/4″ lag screws, each.
Included are eighteen (18) 1/4″ x 1-1/4″  lag screws to complete the job.
This bracket is constructed from 1/8″ thick high strength steel.
This bracket is laser cut and formed and coated with durable black powder paint.
This bracket may be spray painted over with any desired exterior-grade paint color.

This Diy Truss Joint Bracket is listed at RioOutdoors.myShopify.com and at RioOutdoors.Etsy.com.
