DIY 6-12 Pitch Heavy Duty Iron Octagon Spider Bracket

Parts Included and Parts Application Depiction

DIY 6-12 Pitch Heavy Duty Iron Octagon Spider Bracket

SKU# O-SPD-612

Price

Original price was: $295.00.Current price is: $279.50.

Availability: 2 in stock (can be backordered)

- +

DIY 6-12 Pitch Heavy Duty Iron 8-Way Octagon Spider Bracket

Introducing our DIY Heavy Duty Iron 8-Way Octagon Spider Bracket, perfect for your next octagon gazebo project! Constructed from high-quality iron, this bracket is strong and durable, capable of holding heavy snowloads with ease. The unique octagon design adds a touch of style to the octagon roof structure. Let your creativity run wild!

Facebook
Twitter
LinkedIn
Pinterest

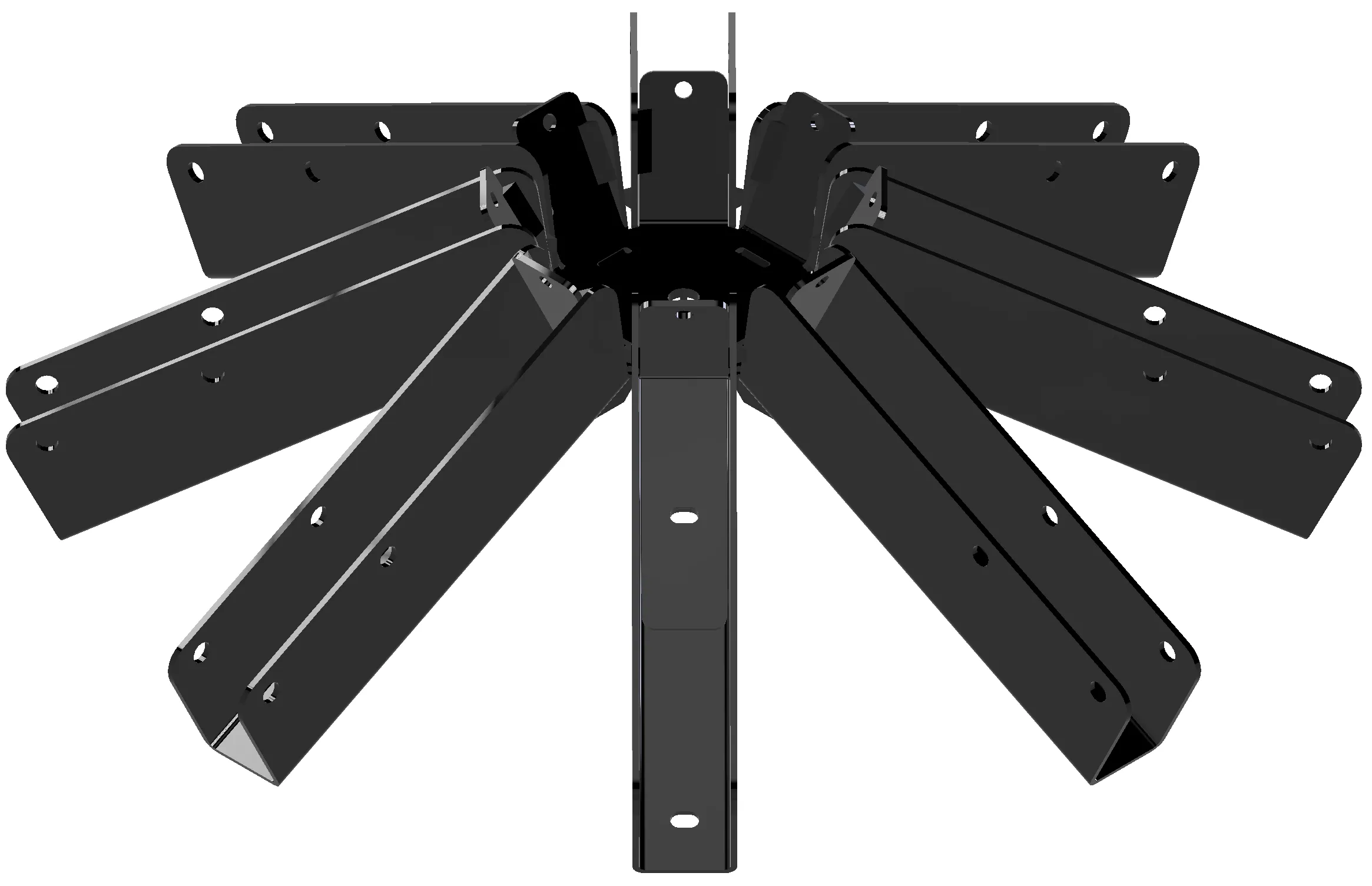

The DIY Heavy Duty Iron Octagon Spider Bracket features eight flat, rectangular arms extending radially like spokes; each arm has multiple holes for assembly or mounting.

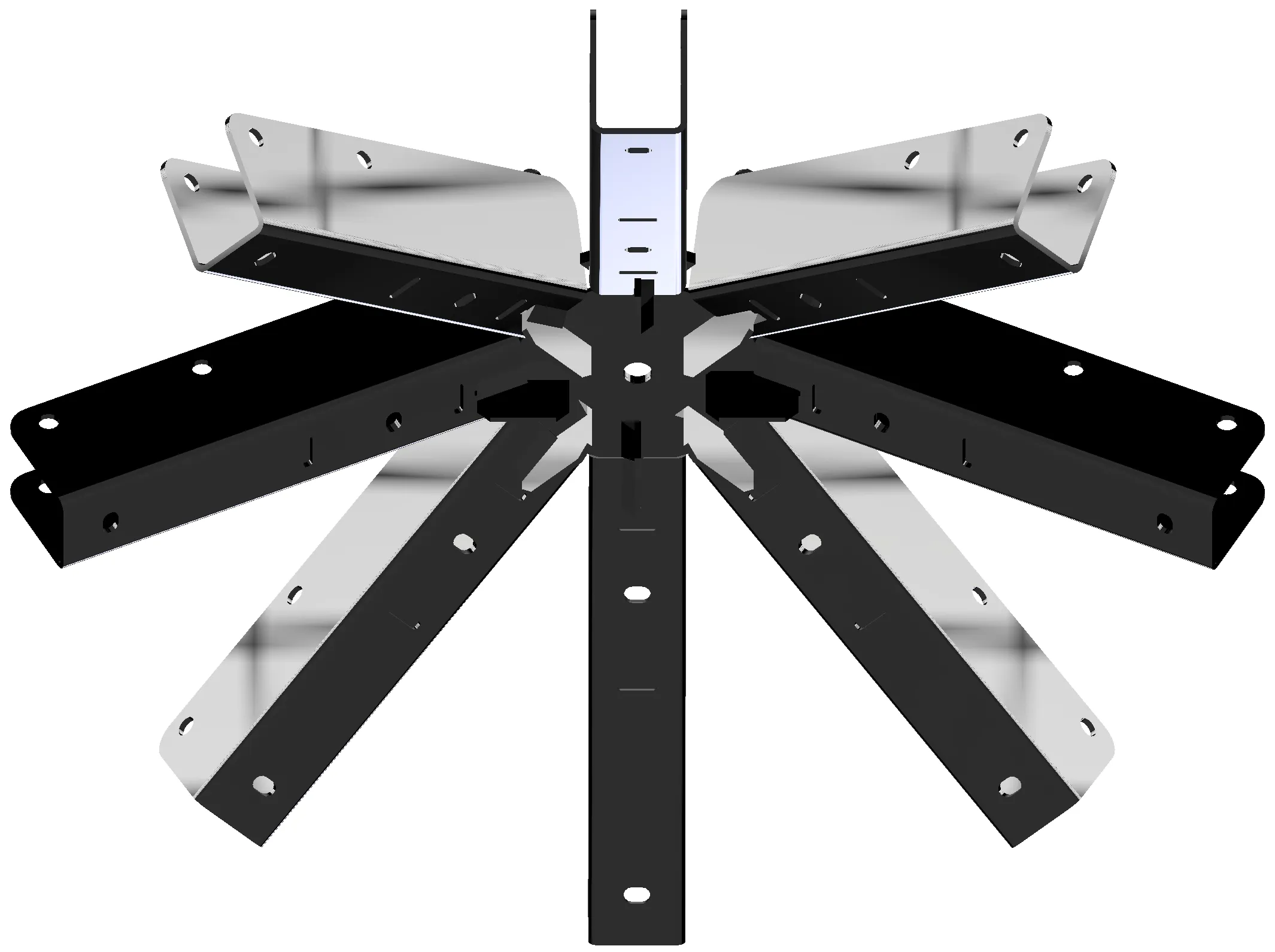

The DIY Heavy Duty Iron Octagon Spider Bracket (Copy) is a black metal bracket with multiple arms extending outward in a circular pattern, each arm featuring several holes for mounting, shown against a white background to highlight its design.

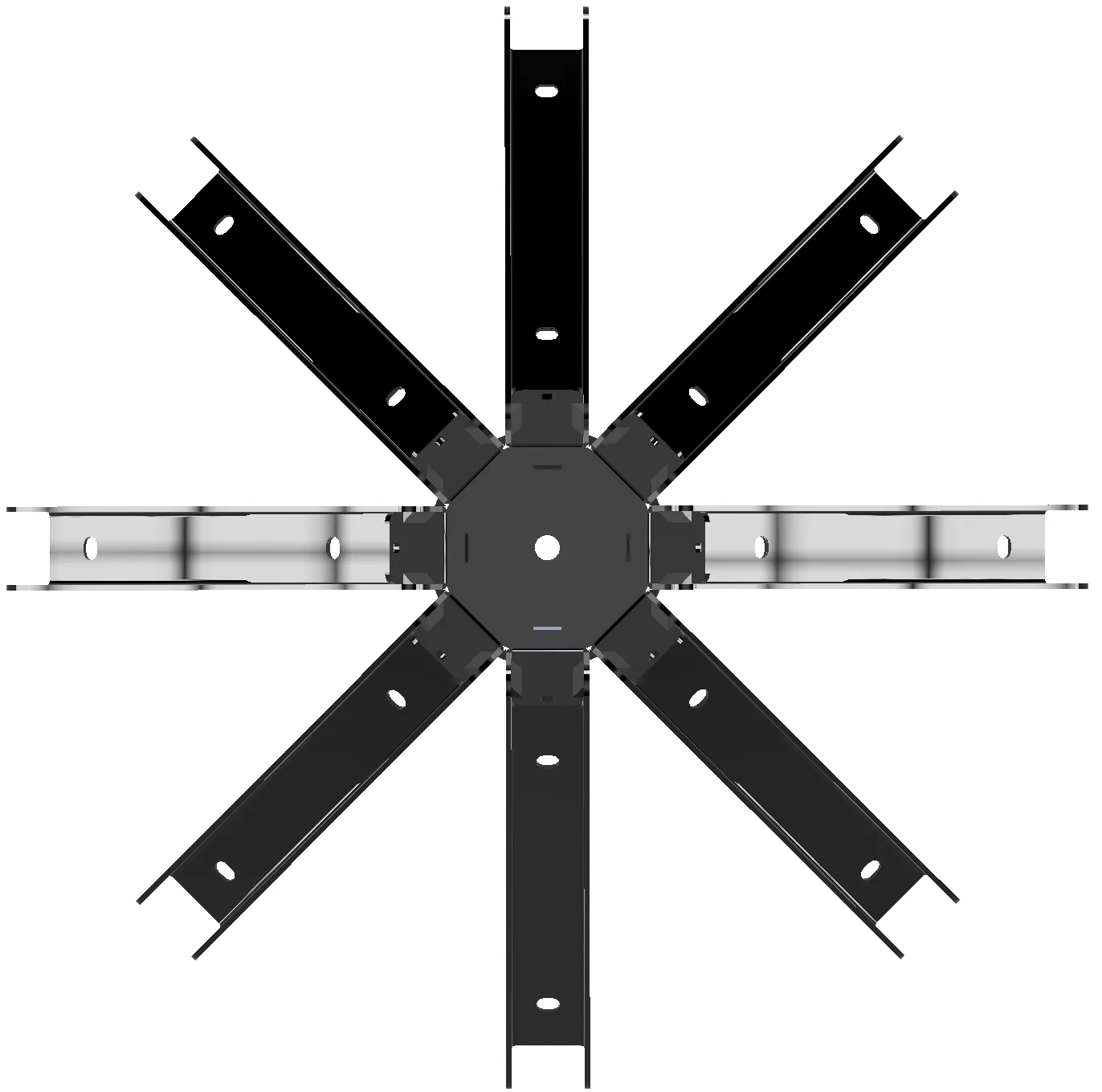

A top-down view of the DIY Heavy Duty Iron Octagon Spider Bracket (Copy): an eight-arm black metal hub with a hexagonal center, geometric industrial design, and holes near the ends of each blade.

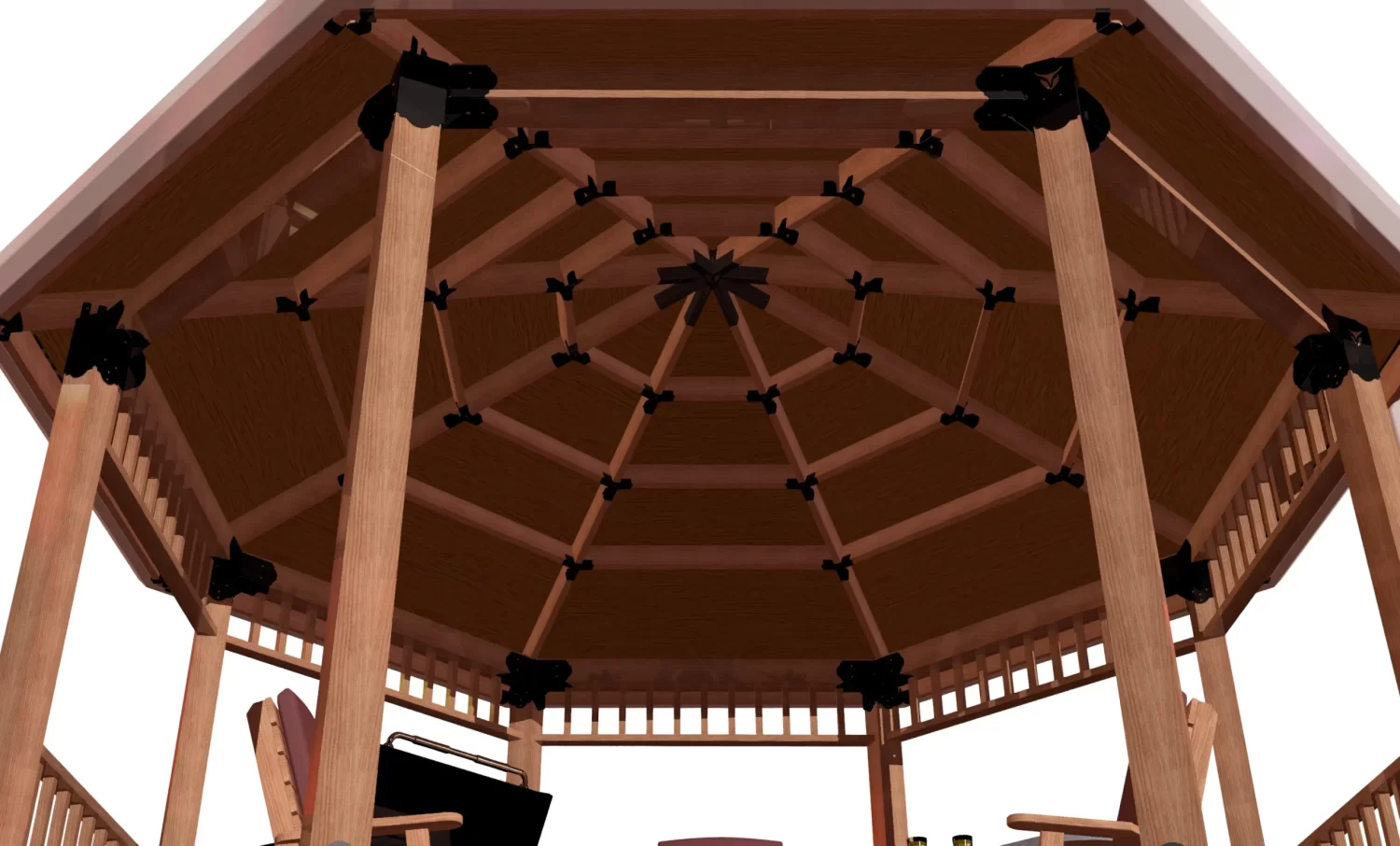

Looking up from inside, the roof beams of the gazebo are joined by DIY Heavy Duty Iron Octagon Spider Brackets, with chairs and a table partly visible below.
A woman stands in the center of a gazebo built with the DIY Heavy Duty Iron Octagon Spider Bracket, giving two thumbs up. Chairs, a table, and a grill create a cozy and inviting outdoor seating area inside the octagonal space.
A woman in athletic wear stands smiling in front of a large gazebo built with the DIY Heavy Duty Iron Octagon Spider Bracket, featuring a dark roof. Inside are chairs and a grill on a tiled floor.
A woman smiles inside a spacious DIY Octagon Gazebo Kit - 6x6 Surface Mounted, featuring a shingled roof, with chairs and a table arranged on the tiled floor.
View from below of the 6x6 Octagon Gazebo, featuring wooden beams joined at the center with the DIY Heavy Duty Iron Octagon Spider Bracket, creating a striking radial, star-like pattern.
The DIY Heavy Duty Iron Octagon Spider Bracket connects six wooden beams in a star-shaped, symmetrical pattern radiating outward, creating a striking visual effect when viewed from above.
The DIY Heavy Duty Iron Octagon Spider Bracket features eight flat, rectangular arms extending radially like spokes; each arm has multiple holes for assembly or mounting.
The DIY Heavy Duty Iron Octagon Spider Bracket (Copy) is a black metal bracket with multiple arms extending outward in a circular pattern, each arm featuring several holes for mounting, shown against a white background to highlight its design.
A top-down view of the DIY Heavy Duty Iron Octagon Spider Bracket (Copy): an eight-arm black metal hub with a hexagonal center, geometric industrial design, and holes near the ends of each blade.
Looking up from inside, the roof beams of the gazebo are joined by DIY Heavy Duty Iron Octagon Spider Brackets, with chairs and a table partly visible below.
A woman stands in the center of a gazebo built with the DIY Heavy Duty Iron Octagon Spider Bracket, giving two thumbs up. Chairs, a table, and a grill create a cozy and inviting outdoor seating area inside the octagonal space.
A woman in athletic wear stands smiling in front of a large gazebo built with the DIY Heavy Duty Iron Octagon Spider Bracket, featuring a dark roof. Inside are chairs and a grill on a tiled floor.
A woman smiles inside a spacious DIY Octagon Gazebo Kit - 6x6 Surface Mounted, featuring a shingled roof, with chairs and a table arranged on the tiled floor.
View from below of the 6x6 Octagon Gazebo, featuring wooden beams joined at the center with the DIY Heavy Duty Iron Octagon Spider Bracket, creating a striking radial, star-like pattern.
The DIY Heavy Duty Iron Octagon Spider Bracket connects six wooden beams in a star-shaped, symmetrical pattern radiating outward, creating a striking visual effect when viewed from above.
DOWNLOAD: PDF Installation Instructions
Explore Brackets & How-to-videos
Request Customized CutList and Instructions
Richard Jones
Richard Jones
Verified ownerVerified owner
5/5

Heavy built, very well engineered, good finish, best item of this type I could find anywhere. Made for big lumber, I used treated 2x12. great cornerstone for any gazebo project. Raj went out of his way to design and manufacture a product for me that they didn’t even offer. They had 4/12 pitch brackets, I needed 6/12 pitch. So, if you want the real thing for gazebo brackets, buy from these guys. The shipment packaging looked like the way you’d ship an antique Tiffany lamp! All screws provided too. Great overall experience. Thanks Raj.

2 weeks ago
DIY Heavy Duty Iron Octagon Spider Bracket (#O-SPD): Red, eight-arm octagonal bracket with center hub. Includes Qty 1 spider bracket and Qty 40 1/4 x 1-1/4 lag screws.
DIY 6-12 Pitch Heavy Duty Iron Octagon Spider Bracket

6-12 Pitch DIY Heavy Duty Iron Octagon Spider Bracket

Introducing our DIY Heavy Duty Iron 8-Way Octagon Spider Bracket, perfect for your next octagon gazebo project! Constructed from high-quality iron, this bracket is strong and durable, capable of holding heavy snowloads with ease. The unique octagon design adds a touch of style to the octagon roof structure. Let your creativity run wild!

Super Heavy Duty Octagon 8-way spider bracket creates a perfect 8-way rafters joints at the peak of the octagon roof. Allows universal size octagon roof ranging from 8 feet wide to 24 feet wide.

When used together with the octagon crosstie bracket, post top rafter tie bracket, and octagon roof skirt bracket, you can build a super-strong architectural octagon solid roof.

This bracket is used to build our 4×4, Surface Mounted, Full Octagon Gazebo, 4×4, Floating Deck, Full Octagon Gazebo, 6×6, Surface Mounted, Full Octagon Gazebo, and 6×6, Floating Deck, Full Octagon Gazebo.

This octagon 8-way spider bracket yields a super-strong 6-12 pitch roof structure which can withstand snow loads exceeding 165 lbs./sq. ft.

This strong roofed structure will be a permanent structure for any geographic location.
The Octagon 8-way steel brackets eliminates all wood joinery skills and work making it ideal for all DIY enthusiasts and contractors.

This bracket is made of double layered 1/8″ thick steel, welded structure coated with powder paint for permanent rust proofing and durability.

The octagon spider bracket package includes:
Qty 1, of 6-12 Pitched Roof Peak Octagon 8-way Spider Bracket.
Qty 16, of 1/4″ x 1-1/2″ Lag Screws.
Qty 16 of 3/8″ x 2″ Through Bolts not included.

  • Roof rafters’ pitch angle is fixed at 6-12 pitch.
  • Roof rafters and cross-tie beam lumber to be kiln dried lumber (pine, cedar, redwood, etc.).
  • Roof rafters’ size to be 2×6 for octagon widths up to 14 feet and 2×8 for widths more than 14 feet.
  • Cross-tie support beams are required every 24″ between adjacent rafters to support roof deck plywood/OSB boards and to support snowloads.

This DIY Heavy Duty Iron Octagon 8-Way Spider Bracket is also available at RioOutdoors.myShopify.com and at RioOutdoors.Etsy.com.

SKU# O-SPD-612 Technical Specifications

Weight 25 lb
Dimensions 24 × 24 × 8 in
Rafters Quantity

8
Select One Item (Open Top/ Solid Roof-Size)

Product Type

,

Shape

Octagon
Metal Thickness

1/8"
Paint

Black Textured Powder Paint
