Hexagon CrossTie Bracket

Parts Included and Parts Application Depiction

Hexagon CrossTie Bracket

SKU# H-CT

Price

Price range: $16.95 through $101.70

- +

Hexagon CrossTie Bracket

Elevate your DIY game with our Hexagon CrossTie Bracket. Crafted with high-quality materials, this bracket is designed to provide sturdy support while exuding modern charm.

Optimized for low shipping when you add multiples of this parts to your cart. We combine all parts in one box and quote the lowest shipping rate.

Facebook
Twitter
LinkedIn
Pinterest
The Heavy Duty Octagon CrossTie Bracket, made of black metal with three mounting sections, is displayed on a beige surface with seven black screws arranged in two rows below it.
Close-up of a Heavy Duty Octagon CrossTie Bracket joining three light wooden beams on an OSB surface. The bracket is secured with screws, creating a strong triangular connection.
Close-up of a wooden truss roof with Heavy Duty Gable-End Truss Bracket for 4-12 Pitch Rafters connecting beams to a plywood ceiling. A section of gray, horizontally-paneled wall is seen below the structure.
Close-up of a Heavy Duty Octagon CrossTie Bracket mounted on a light wooden beam. The black metal bracket has a vertical oval hole with a bubble level and an adjacent octagonal hole, set against a concrete background.
The Heavy Duty Octagon CrossTie Bracket in black connects three wooden beams at right angles on a concrete surface, demonstrating robust construction hardware for framing or building sturdy structures.
Two long wooden beams on a garage floor, each fitted with multiple Heavy Duty Octagon CrossTie Brackets. In the background near an open garage door are tools, a tape measure, wooden blocks, and cords.
An overhead view shows a Heavy Duty Octagon CrossTie Bracket in black metal connecting two wooden beams at a right angle with bolts, all positioned on a wooden floor.
Top-down view of the Heavy Duty Octagon CrossTie Bracket joining three wooden beams at right angles with bolts over a wooden floor. The bracket secures the beams in a sturdy, interlocking configuration.

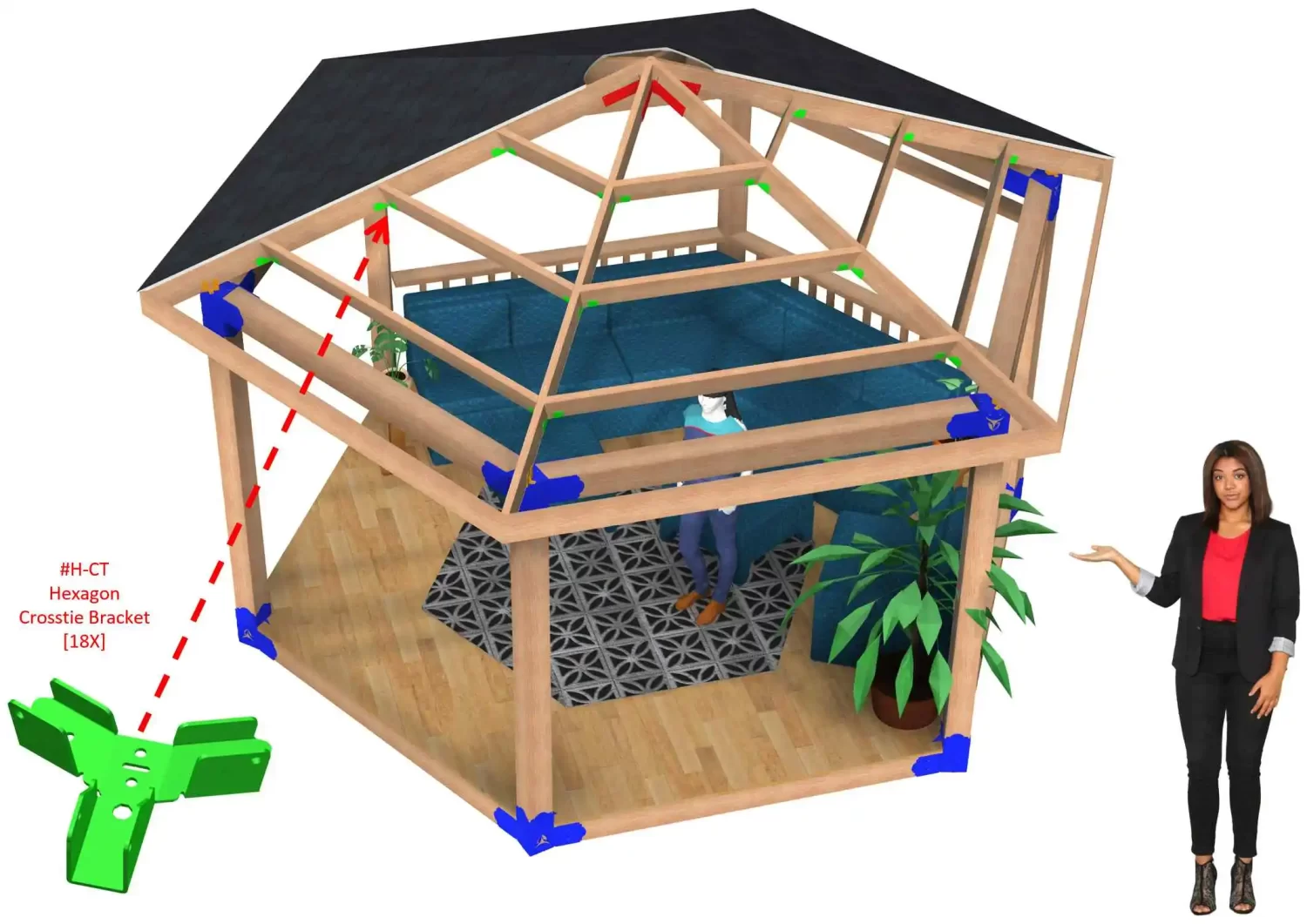

3D illustration of a wooden gazebo with a hexagonal roof, showing blue and green Hexagon CrossTie Brackets at the joints. Two people are inside, plants nearby, and a woman outside gestures toward the structure. Bracket detail is highlighted.
A Heavy Duty Octagon CrossTie Bracket in black metal with multiple holes is placed on a beige textured surface next to a yellow measuring tape showing about 6 inches.
A Heavy Duty Octagon CrossTie Bracket in black, featuring three angled sections, sits on a beige textured surface next to a yellow measuring tape showing its width is about 8 inches.
A Heavy Duty Octagon CrossTie Bracket with three flanges rests on a beige speckled surface. A yellow measuring tape beneath the black metal bracket shows its width is approximately 7 inches.
A Heavy Duty Octagon CrossTie Bracket with three angled arms and multiple holes rests on a beige textured surface, with a yellow measuring tape beside it for scale.
Heavy Duty Octagon CrossTie Bracket featuring multiple angled flanges and holes, shown on a light-colored stone surface beside a yellow measuring tape.
The Heavy Duty Octagon CrossTie Bracket, made of black metal with three mounting sections, is displayed on a beige surface with seven black screws arranged in two rows below it.
Close-up of a Heavy Duty Octagon CrossTie Bracket joining three light wooden beams on an OSB surface. The bracket is secured with screws, creating a strong triangular connection.
Close-up of a wooden truss roof with Heavy Duty Gable-End Truss Bracket for 4-12 Pitch Rafters connecting beams to a plywood ceiling. A section of gray, horizontally-paneled wall is seen below the structure.
Close-up of a Heavy Duty Octagon CrossTie Bracket mounted on a light wooden beam. The black metal bracket has a vertical oval hole with a bubble level and an adjacent octagonal hole, set against a concrete background.
The Heavy Duty Octagon CrossTie Bracket in black connects three wooden beams at right angles on a concrete surface, demonstrating robust construction hardware for framing or building sturdy structures.
Two long wooden beams on a garage floor, each fitted with multiple Heavy Duty Octagon CrossTie Brackets. In the background near an open garage door are tools, a tape measure, wooden blocks, and cords.
An overhead view shows a Heavy Duty Octagon CrossTie Bracket in black metal connecting two wooden beams at a right angle with bolts, all positioned on a wooden floor.
Top-down view of the Heavy Duty Octagon CrossTie Bracket joining three wooden beams at right angles with bolts over a wooden floor. The bracket secures the beams in a sturdy, interlocking configuration.
3D illustration of a wooden gazebo with a hexagonal roof, showing blue and green Hexagon CrossTie Brackets at the joints. Two people are inside, plants nearby, and a woman outside gestures toward the structure. Bracket detail is highlighted.
A Heavy Duty Octagon CrossTie Bracket in black metal with multiple holes is placed on a beige textured surface next to a yellow measuring tape showing about 6 inches.
A Heavy Duty Octagon CrossTie Bracket in black, featuring three angled sections, sits on a beige textured surface next to a yellow measuring tape showing its width is about 8 inches.
A Heavy Duty Octagon CrossTie Bracket with three flanges rests on a beige speckled surface. A yellow measuring tape beneath the black metal bracket shows its width is approximately 7 inches.
A Heavy Duty Octagon CrossTie Bracket with three angled arms and multiple holes rests on a beige textured surface, with a yellow measuring tape beside it for scale.
Heavy Duty Octagon CrossTie Bracket featuring multiple angled flanges and holes, shown on a light-colored stone surface beside a yellow measuring tape.
DOWNLOAD: PDF Installation Instructions
Explore Brackets & How-to-videos
Request Customized CutList and Instructions
No reviews to show

Hexagon CrossTie Bracket

Elevate your DIY game with our Hexagon CrossTie Bracket. Crafted with high-quality materials, this bracket is designed to provide sturdy support while exuding modern charm. Perfect for adding a sleek and architectural accent to your hexagon roof projects, this versatile piece will inspire your creativity. Create a one-of-a-kind look that showcases your craftsmanship and attention to detail. Make a statement with our Hexagon CrossTie Bracket and transform your space with ease.

This is a novel bracket designed to connect two roof deck support cross tie beams to the main hexagon rafters in a 4-12 to 5-12 pitched roof.
The Hexagon CrossTie Bracket is designed to attach to the bottom and side surfaces of the main hexagon rafters and provide two cross tie receiver U-channels at precise angles.
This part is common between full hexagon gazebo solid roofs and partial hexagon gazebo roofs.

This bracket works in tandem with the Hexagon Spider Bracket, Post Top Rafter Tie Bracket, and the Hexagon Roof Skirt Bracket. These parts, together, simplify building the architectural hexagon roof structure.

This bracket simplifies addition of the cross tie beams at perfect angles to form decorative deck support structures in a perfect hexagon shape.
DIY-Centric Smart Designs have been injected in these brackets providing precise angular alignment and precise positioning using the “Pencil Mark Viewing Window”.

The high strength design of this bracket holds the cross tie support beams securely.
The Hexagon CrossTie Bracket’s arms have upward facing open U-channels to easily receive 2×6 or 2×8 cross tie beams.
The crosstie bracket attaches to the rafter’s bottom and side surfaces using four (4) 1/4″ x 1-1/2″ lag screws.
Each crosstie beam is secured to the U-channel with two (2) 1/4″ x 1-1/2″ lag screws.
Included are eight (8) 1/4″ x 1-1/2″  lag screws to complete the job.

Don’t forget that you will have to drive 10D X 3″ nails at an angle to secure the top of the cross tie beams to the rafter. These 10D nails are not included.

This bracket is constructed from 1/8″ thick high strength steel, laser cut, formed, and coated with durable black powder paint.
This bracket may be spray painted over with any desired exterior-grade paint color.
