DIY Heavy Duty Iron Octagon Spider Bracket

Parts Included and Parts Application Depiction

DIY Heavy Duty Iron Octagon Spider Bracket

SKU# O-SPD

Price

$219.50

Availability: 14 in stock (can be backordered)

- +

DIY Heavy Duty Iron 8-Way Octagon Spider Bracket

Introducing our DIY Heavy Duty Iron 8-Way Octagon Spider Bracket, perfect for your next octagon gazebo project! Constructed from high-quality iron, this bracket is strong and durable, capable of holding heavy snowloads with ease. The unique octagon design adds a touch of style to the octagon roof structure. Let your creativity run wild!

Facebook
Twitter
LinkedIn
Pinterest
Looking up from inside, the roof beams of the gazebo are joined by DIY Heavy Duty Iron Octagon Spider Brackets, with chairs and a table partly visible below.
A woman stands in the center of a gazebo built with the DIY Heavy Duty Iron Octagon Spider Bracket, giving two thumbs up. Chairs, a table, and a grill create a cozy and inviting outdoor seating area inside the octagonal space.

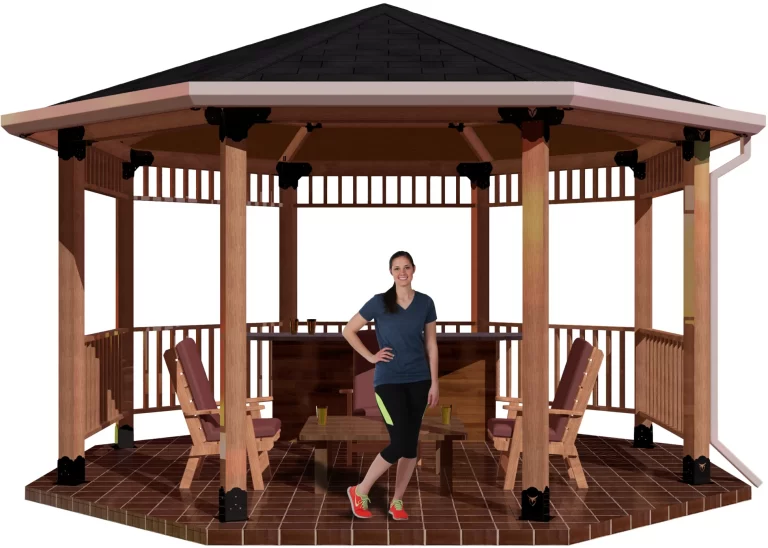

A woman in athletic wear stands smiling in front of a large gazebo built with the DIY Heavy Duty Iron Octagon Spider Bracket, featuring a dark roof. Inside are chairs and a grill on a tiled floor.
A woman smiles inside a spacious DIY Octagon Gazebo Kit - 6x6 Surface Mounted, featuring a shingled roof, with chairs and a table arranged on the tiled floor.

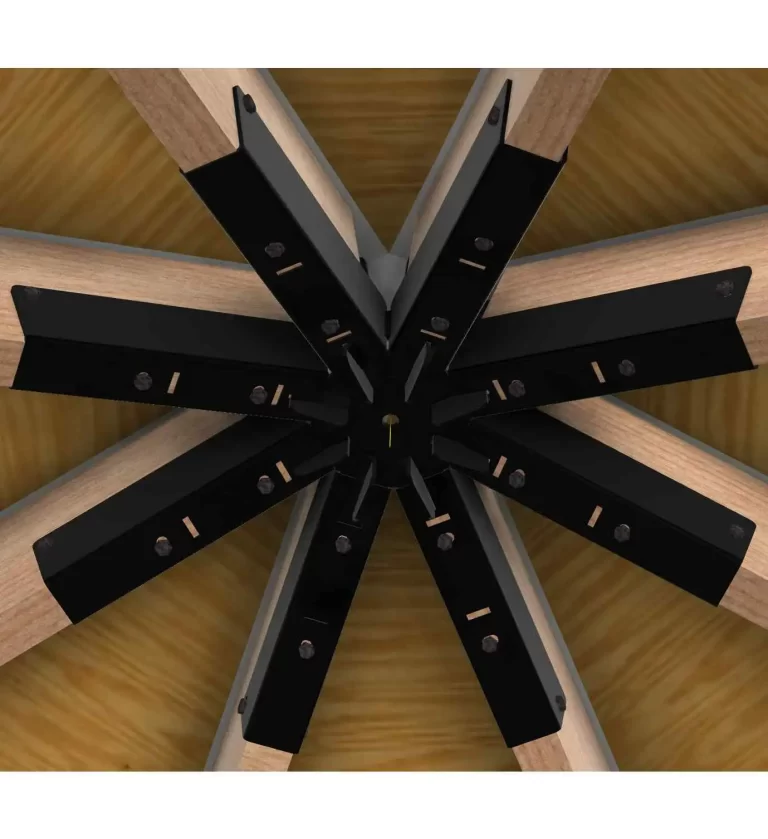

View from below of the 6x6 Octagon Gazebo, featuring wooden beams joined at the center with the DIY Heavy Duty Iron Octagon Spider Bracket, creating a striking radial, star-like pattern.
The DIY Heavy Duty Iron Octagon Spider Bracket connects six wooden beams in a star-shaped, symmetrical pattern radiating outward, creating a striking visual effect when viewed from above.

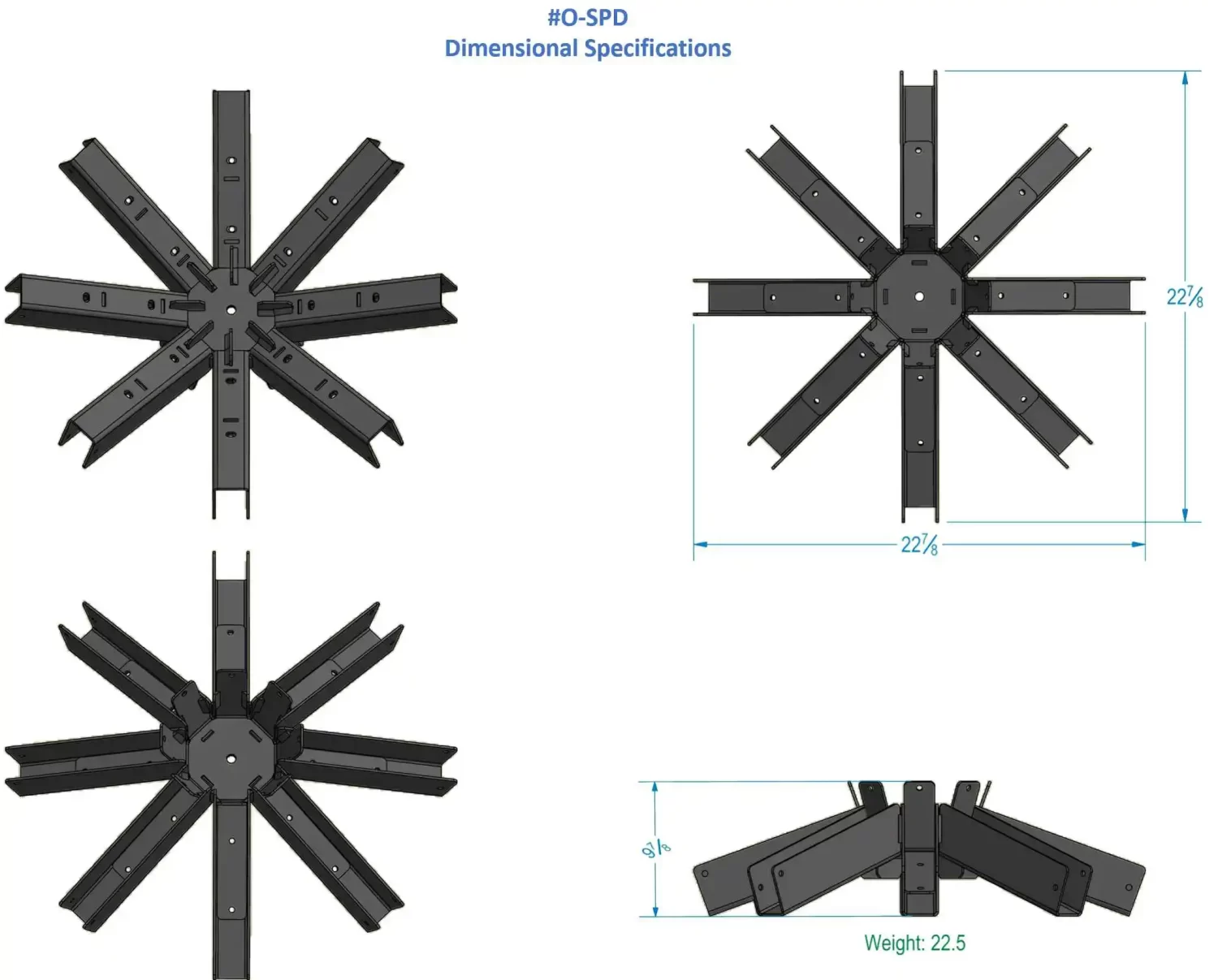

Technical diagram of a DIY Heavy Duty Iron Octagon Spider Bracket, star-shaped with eight arms. Labeled #0-SPD Dimensional Specifications: 22.5 wide, 6 high, weighs 22.5 lbs. Four viewing angles displayed.

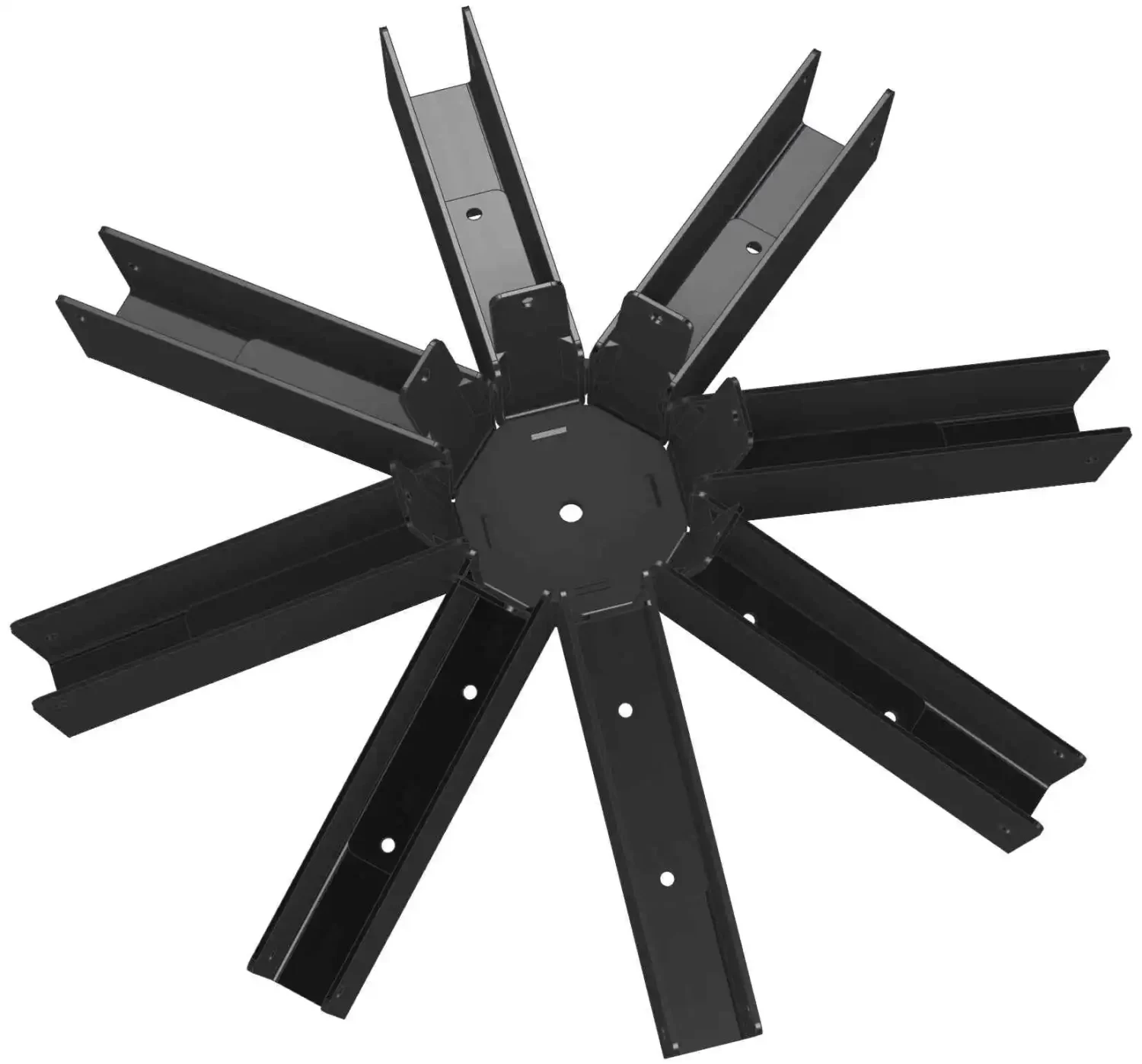

The DIY Heavy Duty Iron Octagon Spider Bracket features a black metal design with eight evenly spaced, rectangular arms extending from a central hexagonal hub, creating a striking star or wheel spoke pattern.

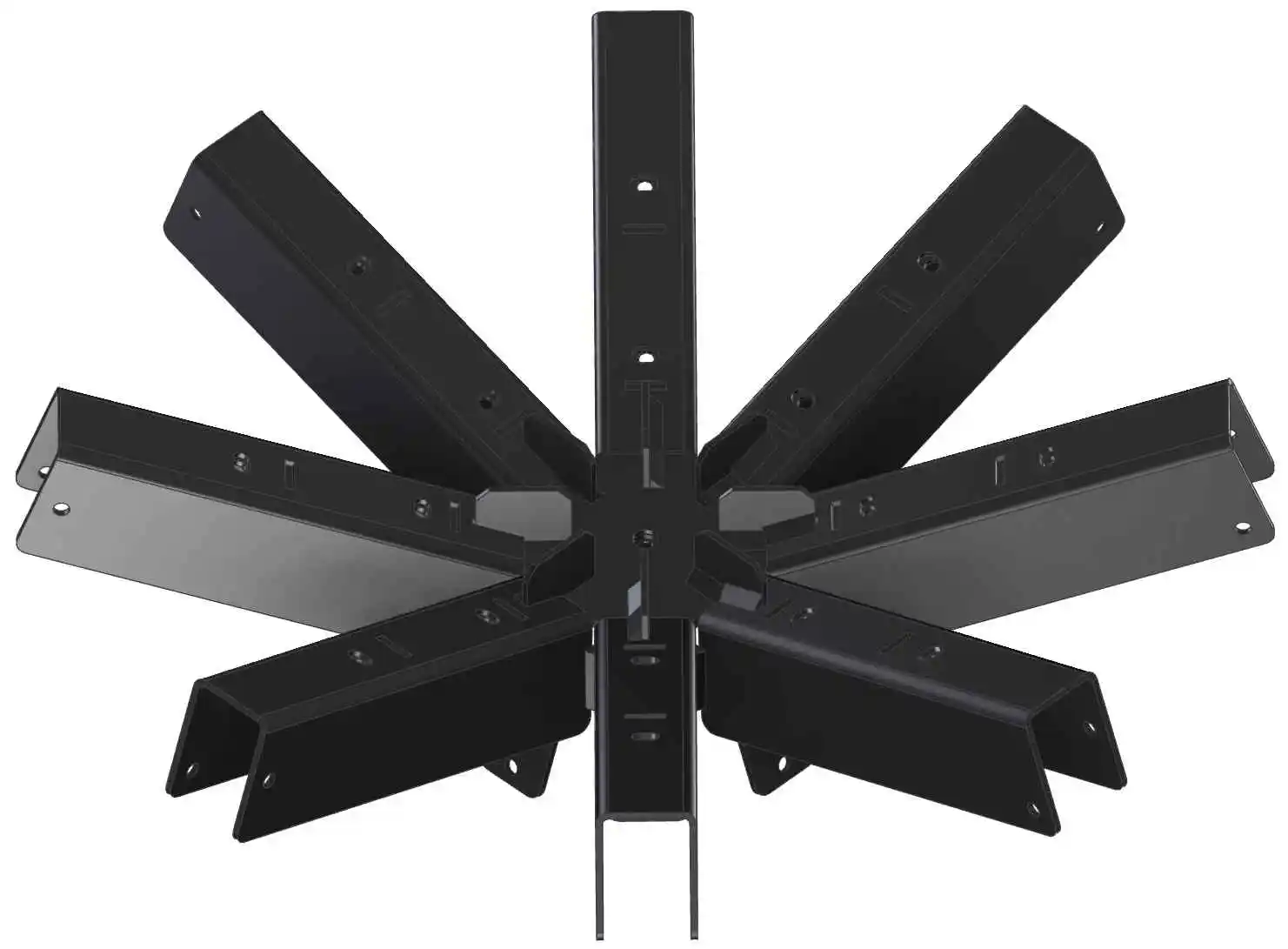

The DIY Heavy Duty Iron Octagon Spider Bracket is a black metal connector with multiple angled arms in a starburst pattern, designed for supporting and joining beams or posts in construction projects.

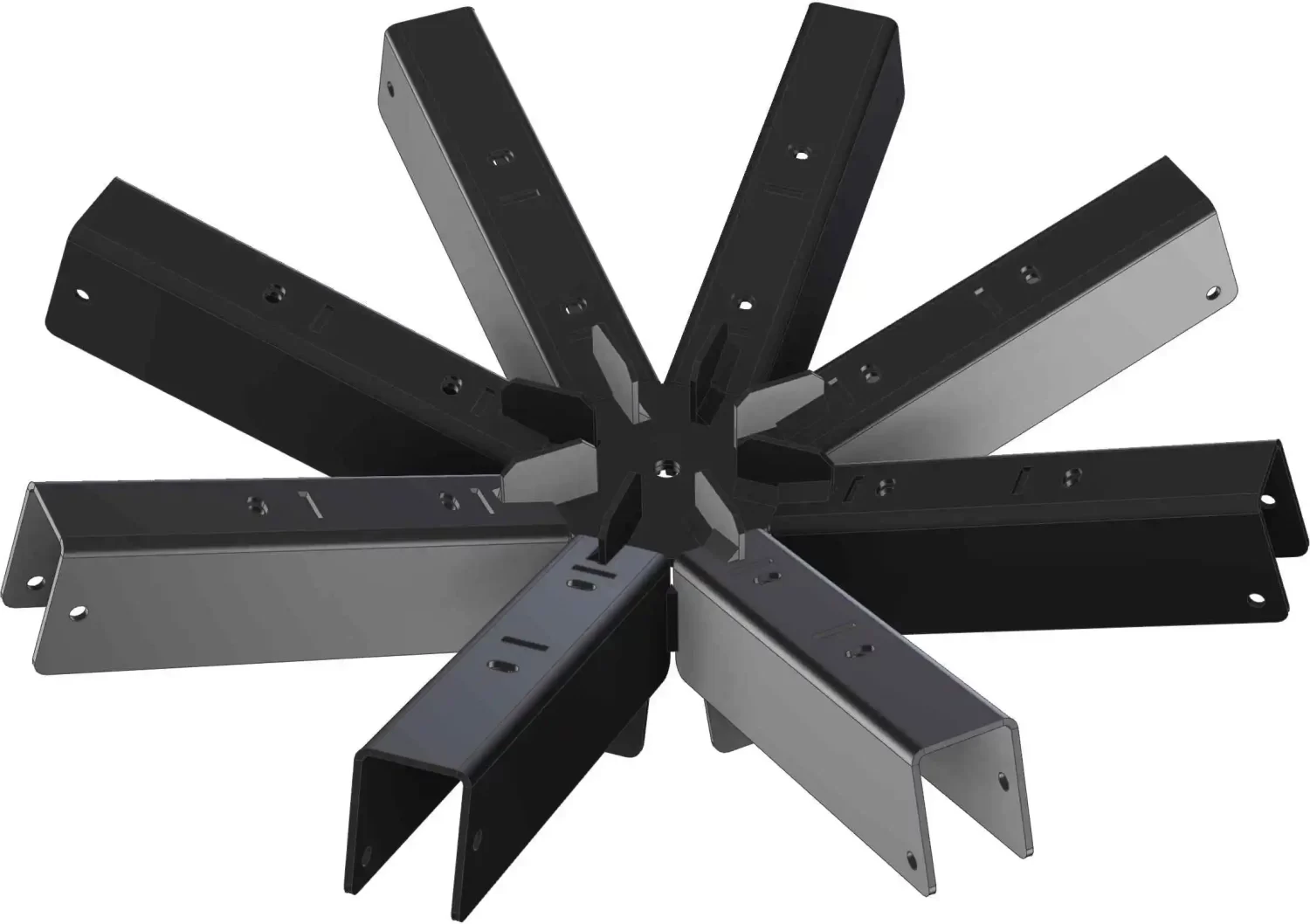

The DIY Heavy Duty Iron Octagon Spider Bracket features eight metal L-brackets in alternating black and gray colors, joined at the center to form a unique octagonal, star-like structure.

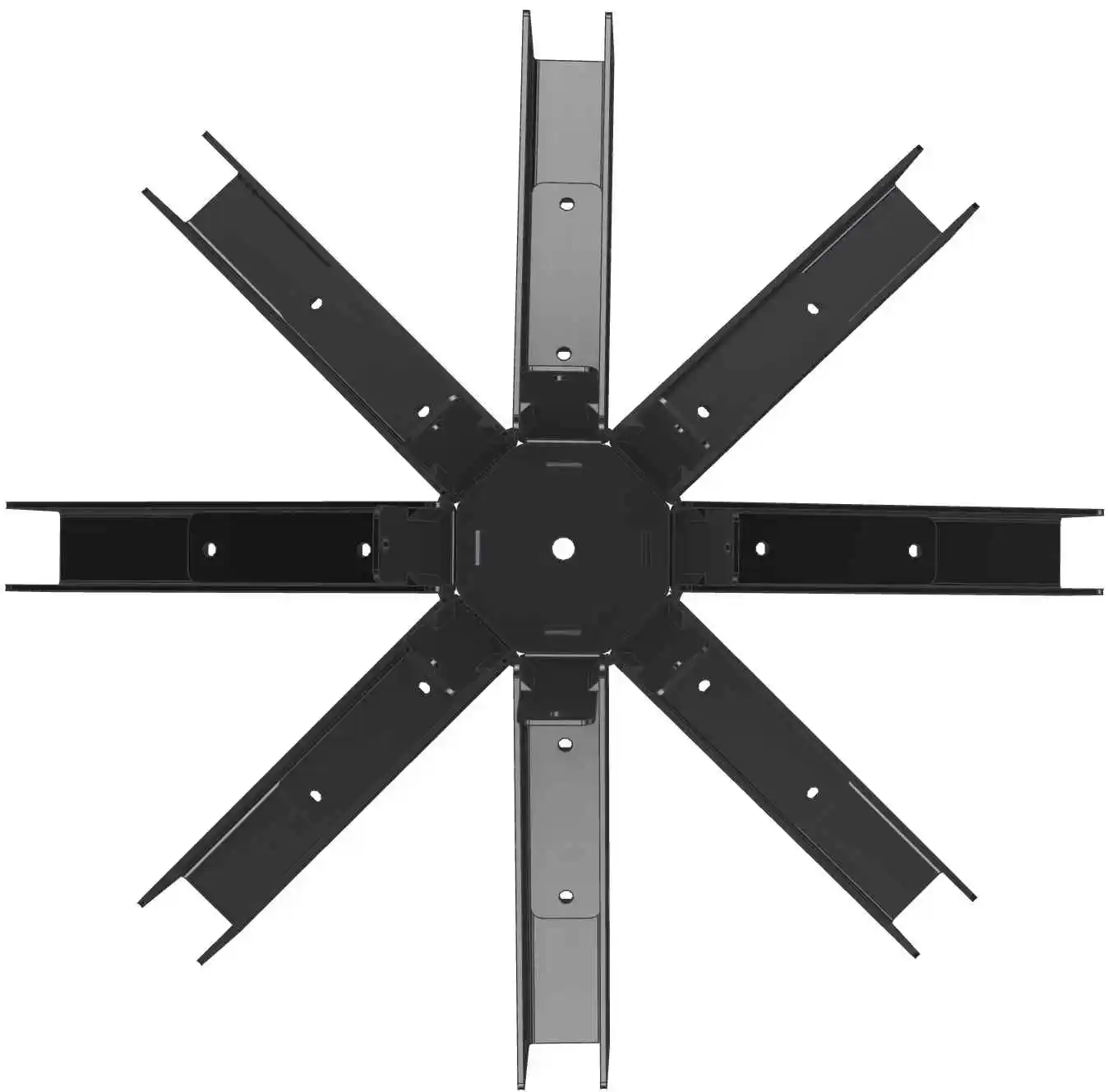

The DIY Heavy Duty Iron Octagon Spider Bracket is a black, metal bracket with eight straight, evenly spaced rectangular blades in a radial octagonal pattern around a central hub, resembling an octagon spider when viewed from above.
Looking up from inside, the roof beams of the gazebo are joined by DIY Heavy Duty Iron Octagon Spider Brackets, with chairs and a table partly visible below.
A woman stands in the center of a gazebo built with the DIY Heavy Duty Iron Octagon Spider Bracket, giving two thumbs up. Chairs, a table, and a grill create a cozy and inviting outdoor seating area inside the octagonal space.
A woman in athletic wear stands smiling in front of a large gazebo built with the DIY Heavy Duty Iron Octagon Spider Bracket, featuring a dark roof. Inside are chairs and a grill on a tiled floor.
A woman smiles inside a spacious DIY Octagon Gazebo Kit - 6x6 Surface Mounted, featuring a shingled roof, with chairs and a table arranged on the tiled floor.
View from below of the 6x6 Octagon Gazebo, featuring wooden beams joined at the center with the DIY Heavy Duty Iron Octagon Spider Bracket, creating a striking radial, star-like pattern.
The DIY Heavy Duty Iron Octagon Spider Bracket connects six wooden beams in a star-shaped, symmetrical pattern radiating outward, creating a striking visual effect when viewed from above.
Technical diagram of a DIY Heavy Duty Iron Octagon Spider Bracket, star-shaped with eight arms. Labeled #0-SPD Dimensional Specifications: 22.5 wide, 6 high, weighs 22.5 lbs. Four viewing angles displayed.
The DIY Heavy Duty Iron Octagon Spider Bracket features a black metal design with eight evenly spaced, rectangular arms extending from a central hexagonal hub, creating a striking star or wheel spoke pattern.
The DIY Heavy Duty Iron Octagon Spider Bracket is a black metal connector with multiple angled arms in a starburst pattern, designed for supporting and joining beams or posts in construction projects.
The DIY Heavy Duty Iron Octagon Spider Bracket features eight metal L-brackets in alternating black and gray colors, joined at the center to form a unique octagonal, star-like structure.
The DIY Heavy Duty Iron Octagon Spider Bracket is a black, metal bracket with eight straight, evenly spaced rectangular blades in a radial octagonal pattern around a central hub, resembling an octagon spider when viewed from above.
DOWNLOAD: PDF Installation Instructions
Explore Brackets & How-to-videos
Request Customized CutList and Instructions
No reviews to show

DIY Heavy Duty Iron Octagon Spider Bracket

Introducing our DIY Heavy Duty Iron 8-Way Octagon Spider Bracket, perfect for your next octagon gazebo project! Constructed from high-quality iron, this bracket is strong and durable, capable of holding heavy snowloads with ease. The unique octagon design adds a touch of style to the octagon roof structure. Let your creativity run wild!

Super Heavy Duty Octagon 8-way spider bracket creates a perfect 8-way rafters joints at the peak of the octagon roof. Allows universal size octagon roof ranging from 8 feet wide to 24 feet wide.

When used together with the octagon crosstie bracket, post top rafter tie bracket, and octagon roof skirt bracket, you can build a super-strong architectural octagon solid roof.

This bracket is used to build our 4×4, Surface Mounted, Full Octagon Gazebo, 4×4, Floating Deck, Full Octagon Gazebo, 6×6, Surface Mounted, Full Octagon Gazebo, and 6×6, Floating Deck, Full Octagon Gazebo.

This octagon 8-way spider bracket yields a super-strong 4-12 pitch roof structure which can withstand snow loads exceeding 165 lbs./sq. ft.

This strong roofed structure will be a permanent structure for any geographic location.
The Octagon 8-way steel brackets eliminates all wood joinery skills and work making it ideal for all DIY enthusiasts and contractors.

This bracket is made of double layered 1/8″ thick steel, welded structure coated with powder paint for permanent rust proofing and durability.

The octagon spider bracket package includes:
Qty 1, of Roof Peak Octagon 8-way Spider Bracket.
Qty 40, of 1/4″ x 1-1/2″ Lag Screws.

  • Roof rafters’ pitch angle is fixed at 21.5-degrees, close to 4-12 pitch.
  • Roof rafters and cross-tie beam lumber to be kiln dried lumber (pine, cedar, redwood, etc.).
  • Roof rafters’ size to be 2×6 for octagon widths up to 14 feet and 2×8 for widths more than 14 feet.
  • Cross-tie support beams are required every 24″ between adjacent rafters to support roof deck plywood/OSB boards and to support snowloads.

This DIY Heavy Duty Iron Octagon 8-Way Spider Bracket is also available at RioOutdoors.myShopify.com and at RioOutdoors.Etsy.com.

SKU# O-SPD Technical Specifications

Weight 20 lb
Dimensions 22 × 22 × 6 in
Rafters Quantity

8
Select One Item (Open Top/ Solid Roof-Size)

Product Type

,

Shape

Octagon
Metal Thickness

1/8"
Paint

Black Textured Powder Paint
