DIY Rafter Tie Bracket

Parts Included and Parts Application Depiction

DIY Rafter Tie Bracket

SKU# PTRT

Price

Price range: $13.95 through $390.60

- +

Heavy Duty Diy Universal Rafter Tie Bracket

Introducing our Heavy Duty Rafter Tie Bracket, the perfect solution for your structural support needs! Crafted with durability in mind, this sturdy bracket is designed to provide reliable reinforcement for your building projects. Whether you’re constructing a new deck, pergola, or porch, our rafter tie bracket ensures a secure connection that will withstand the test of time. With easy installation and a heavy-duty design, this bracket is a must-have for any DIY enthusiast or professional builder.

Optimized for low shipping rates when you order multiples of this part. We combine your order into one box and quote low shipping rate for your order.

Facebook
Twitter
LinkedIn
Pinterest
The DIY Rafter Tie Bracket is a black metal connector with five upright tabs, each with a hole or slot, arranged in a cross shape. Shown on a beige textured surface, it’s ideal for versatile roof bracket installations.
3D diagram of the DIY 6x6 Pavilion Kit (4-12 Pitch Gable Roof, 24×36 ft) frame, showing labeled steel connectors—elbow brackets, rafter ties, anchor brackets, and tee brackets—in different colors with quantities displayed.

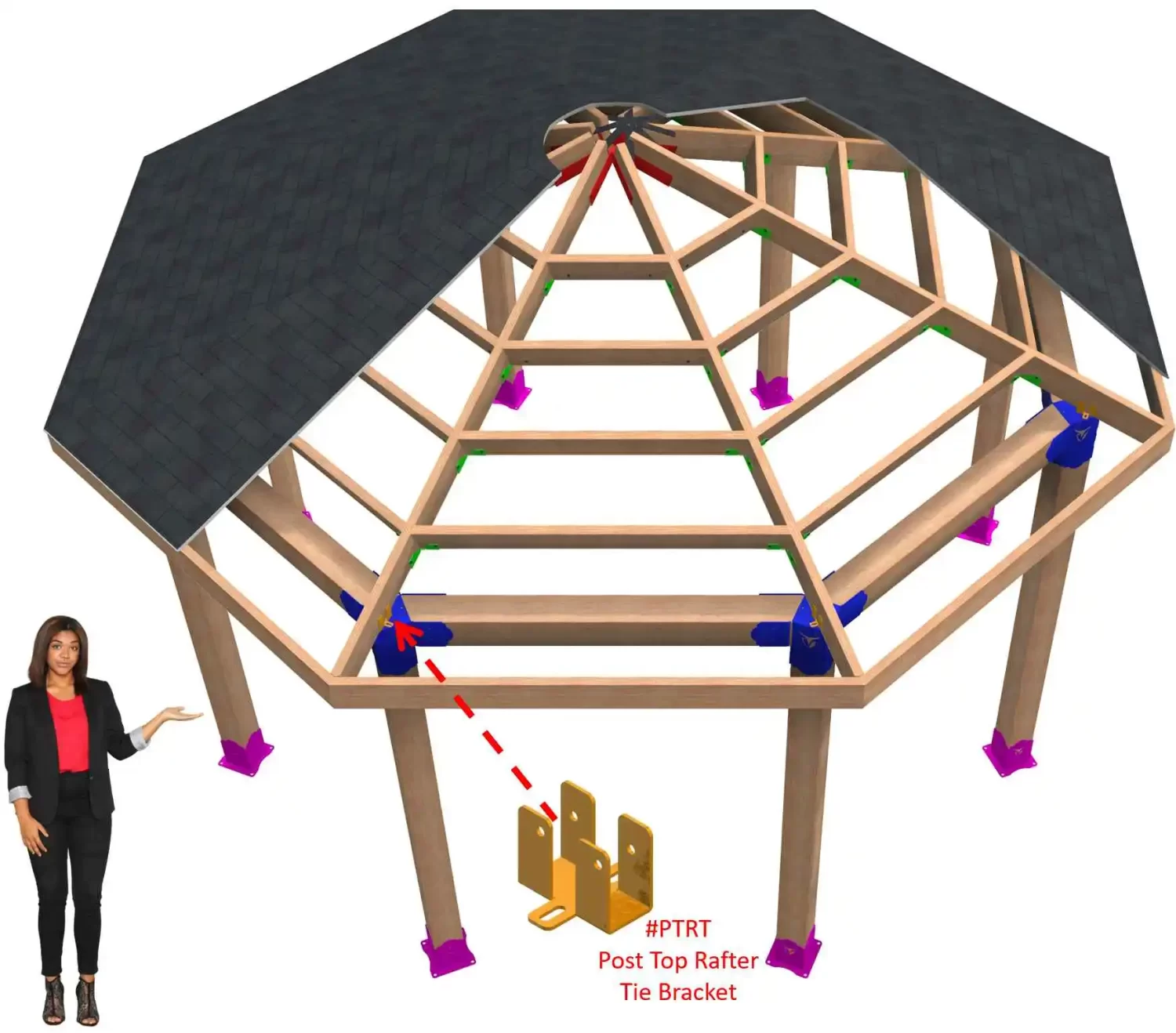

A woman stands beside a 3D wooden octagonal roof frame on posts. Colored brackets connect beams, with an arrow highlighting a post top DIY Rafter Tie Bracket.
3D diagram of a wooden roof shows labeled locations for the Heavy Duty Gable-End Truss Bracket for 4-12 Pitch Rafters, with bracket positions color-coded and marked by quantity for DIY projects.

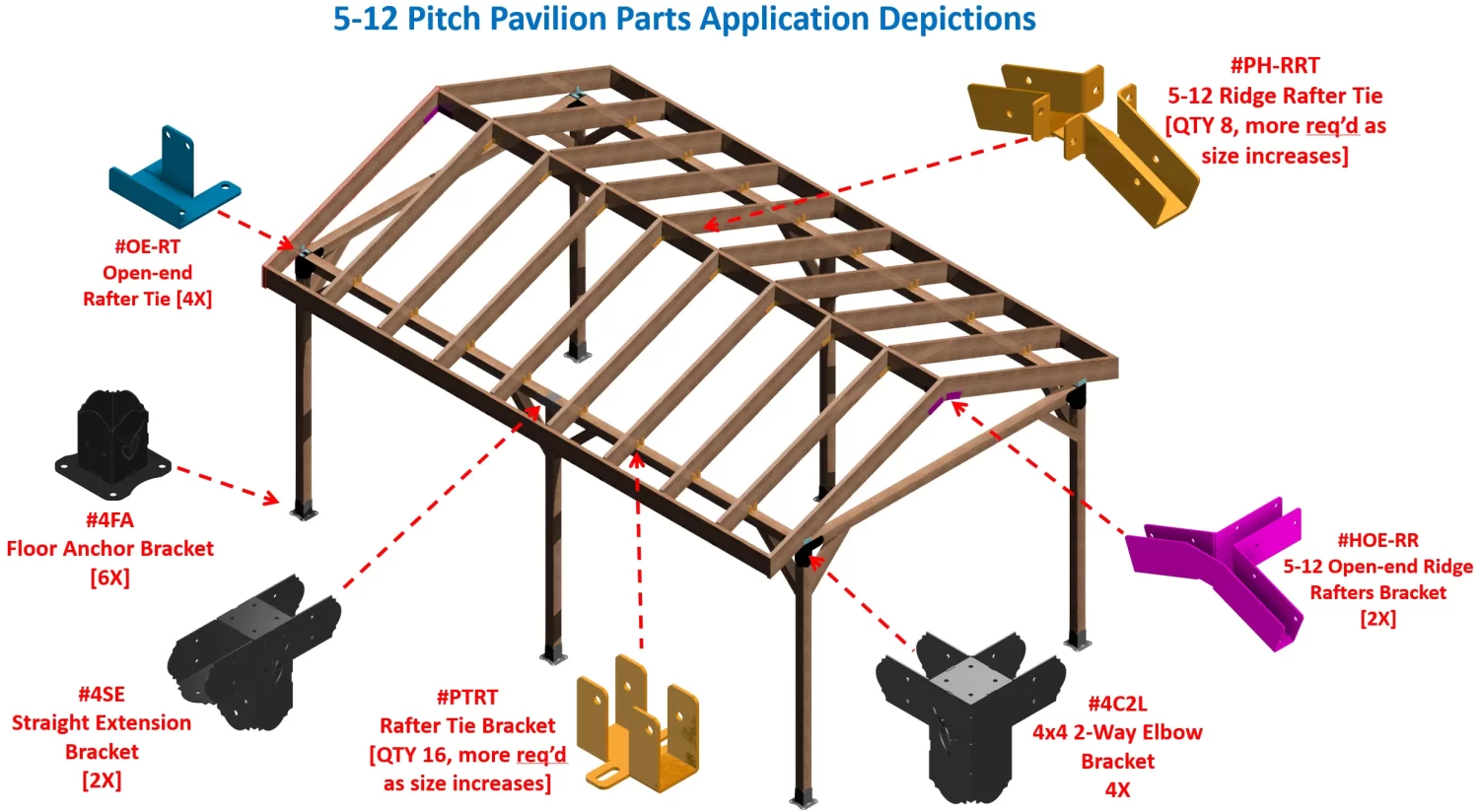

3D diagram of a wooden pavilion frame showing labeled 5-12 Pitch Gable End Truss Rafter Brackets and connectors, with each bracket color-coded and marked by part code for use in 5-12 pitch roof assemblies.

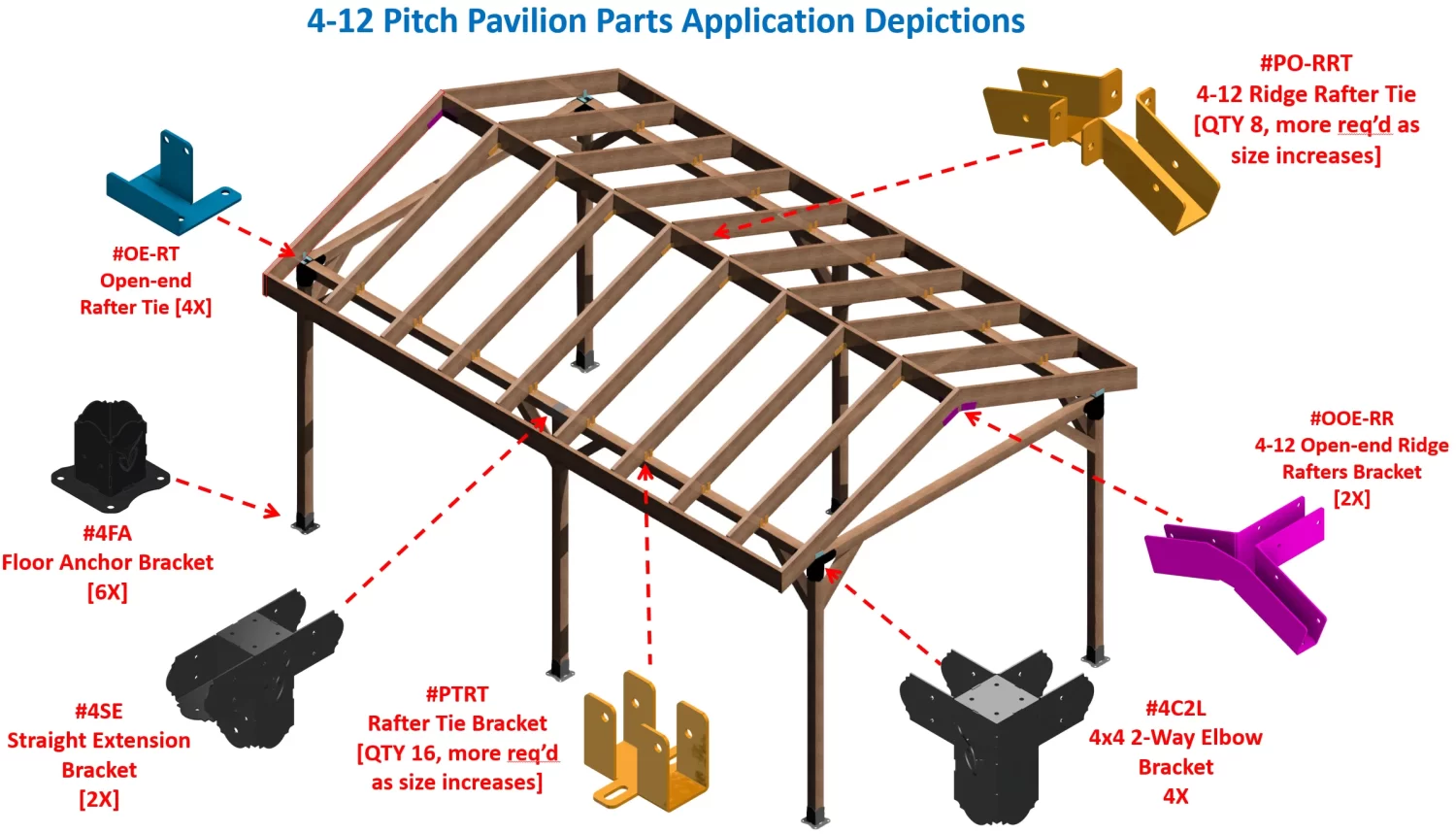

Diagram of a pavilion frame with labeled parts: the Heavy Duty Gable-End Truss Bracket for 4-12 Pitch Rafters, open-end rafter ties, ridge rafter ties, 2-way elbows, straight extension brackets, and floor anchor brackets highlighted in different colors.
The DIY Rafter Tie Bracket is black, features four upright tabs with holes and two elongated slots on the base, shown on a beige textured surface—perfect for DIY roof bracket projects.
The DIY Rafter Tie Bracket features four vertical sides with circular holes and a horizontal base with an elongated slot, ideal for DIY roof bracket projects. Displayed here on a beige textured surface.

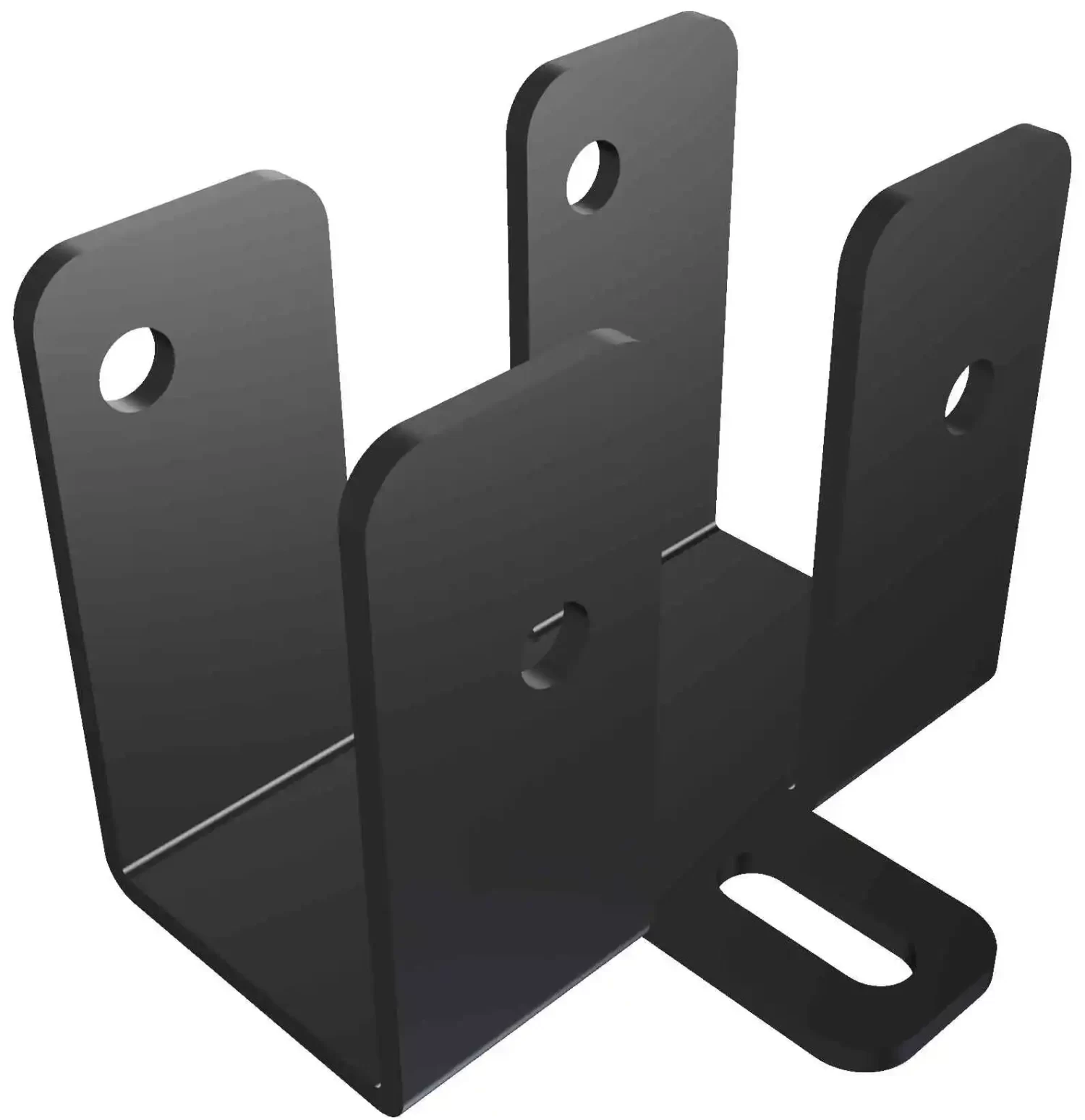

3D render of the DIY Rafter Tie Bracket in black metal, featuring four vertical plates with circular holes and a base with an elongated oval slot—perfect for DIY roof bracket projects.
