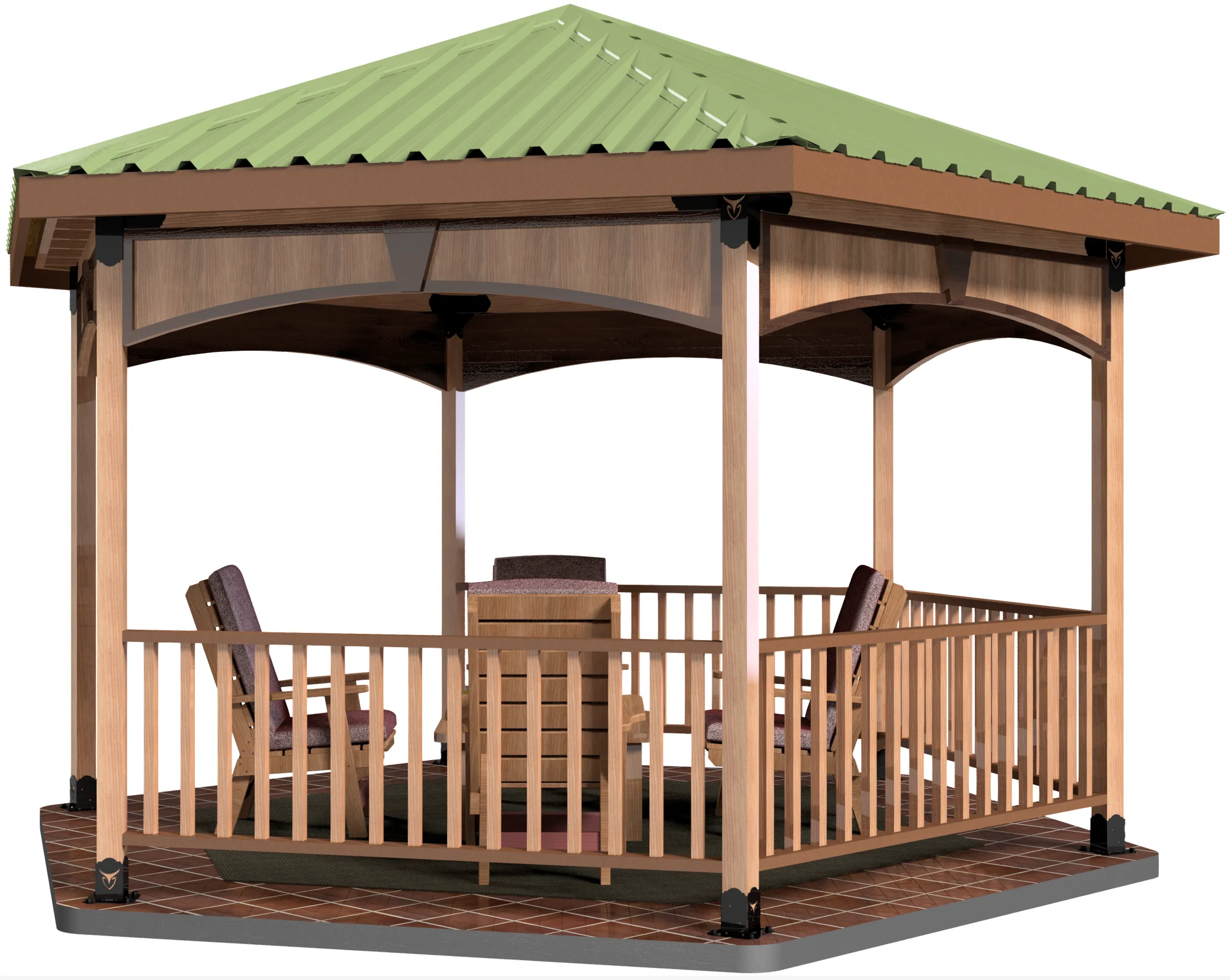

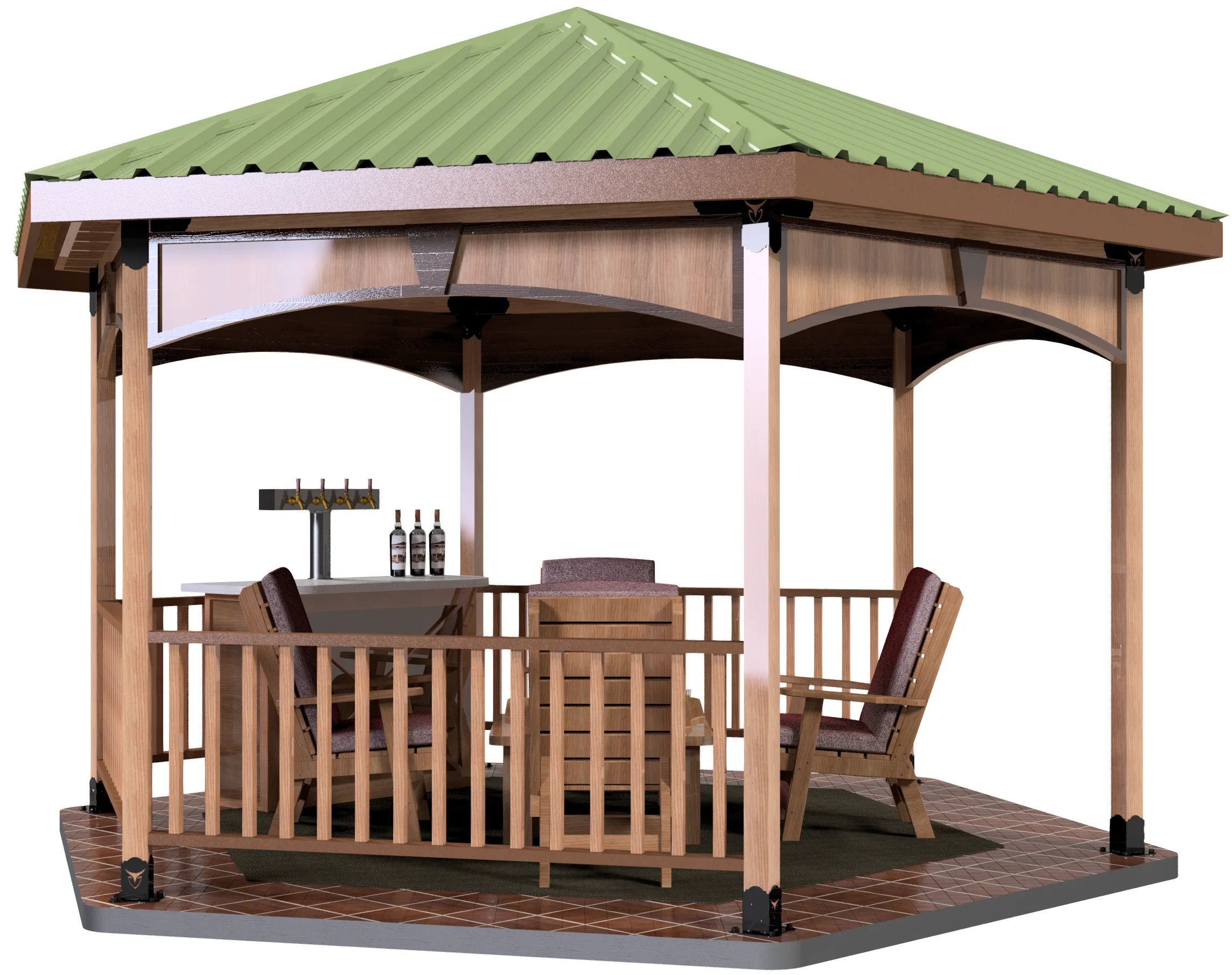

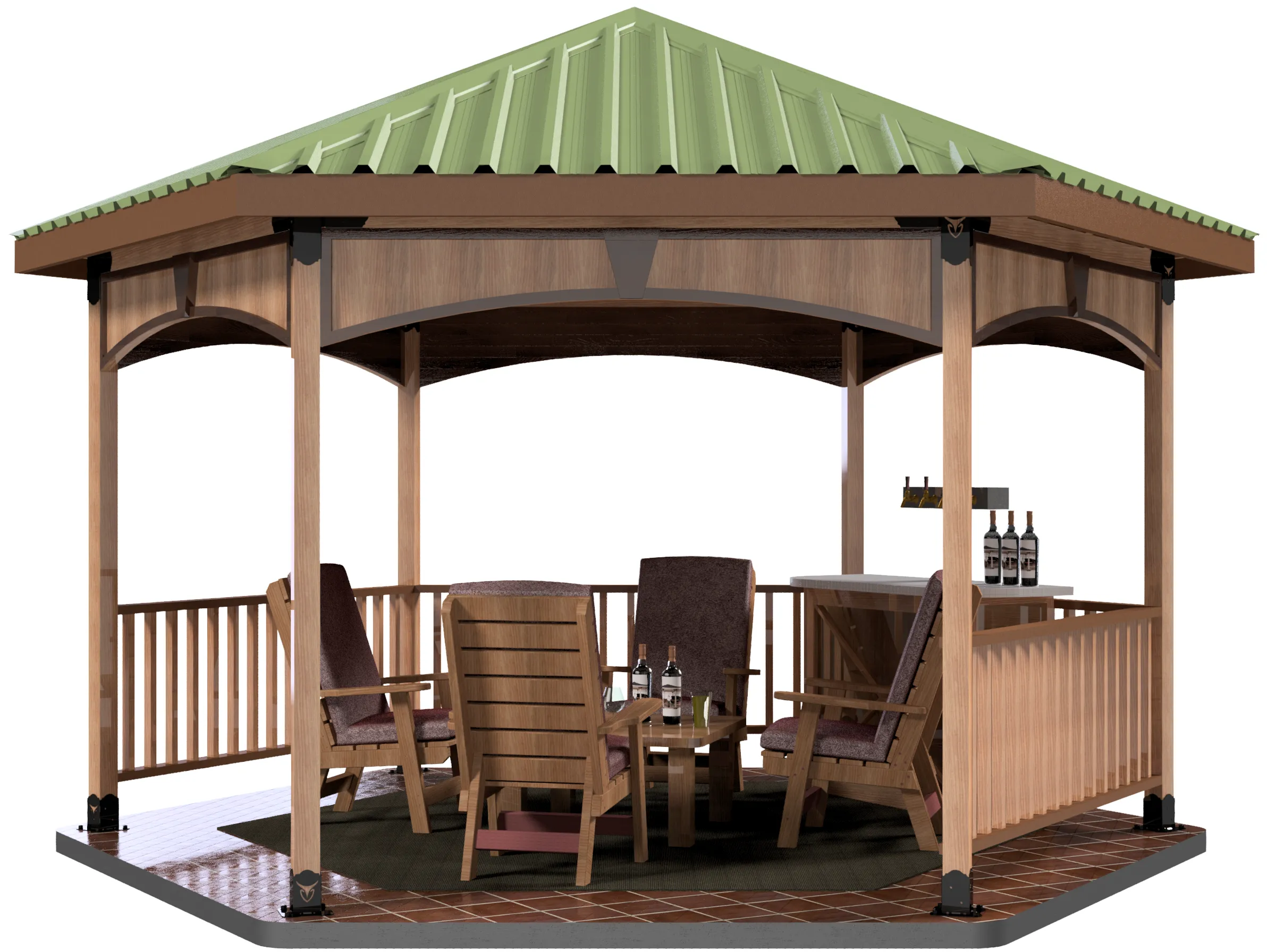

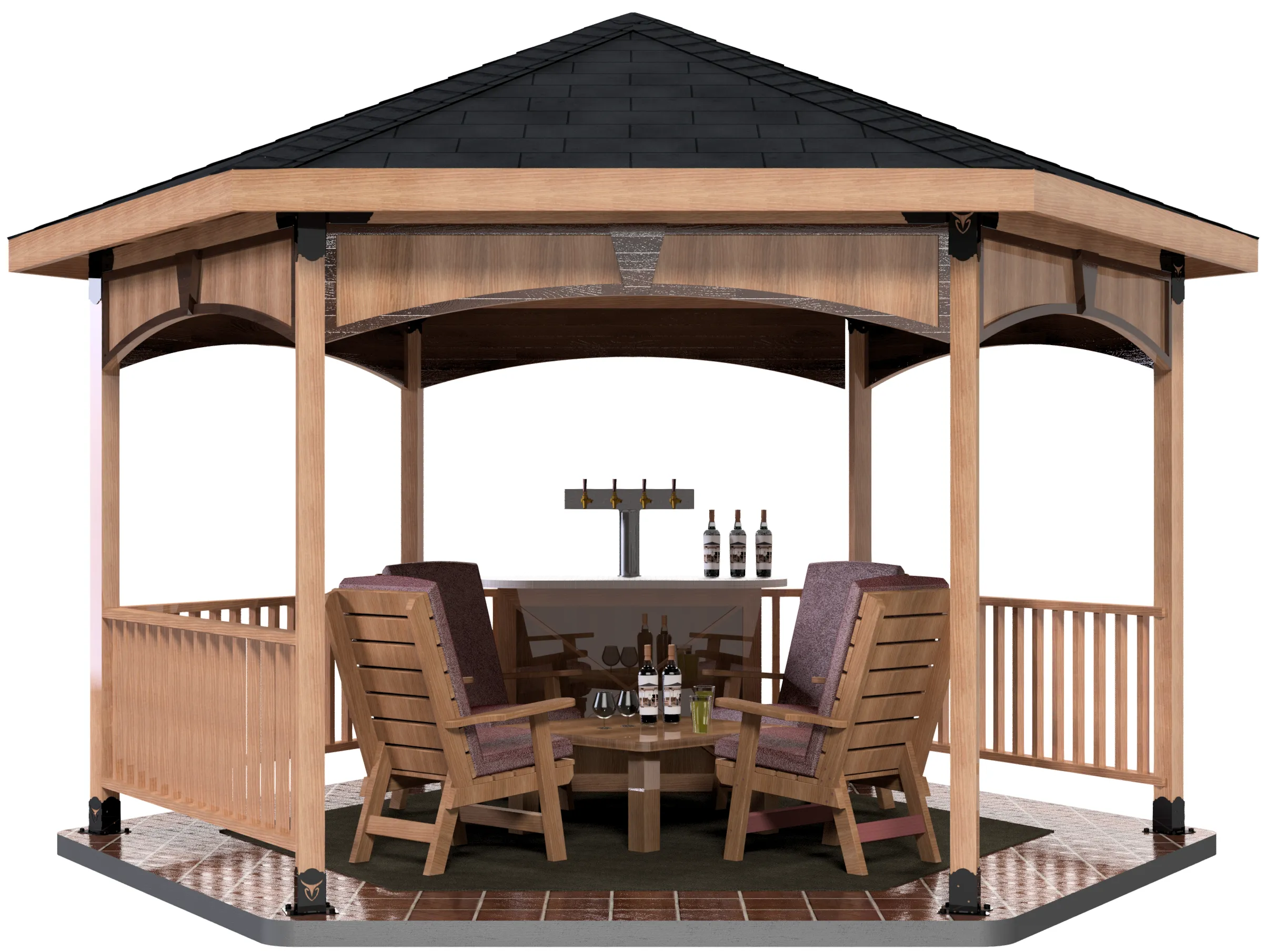

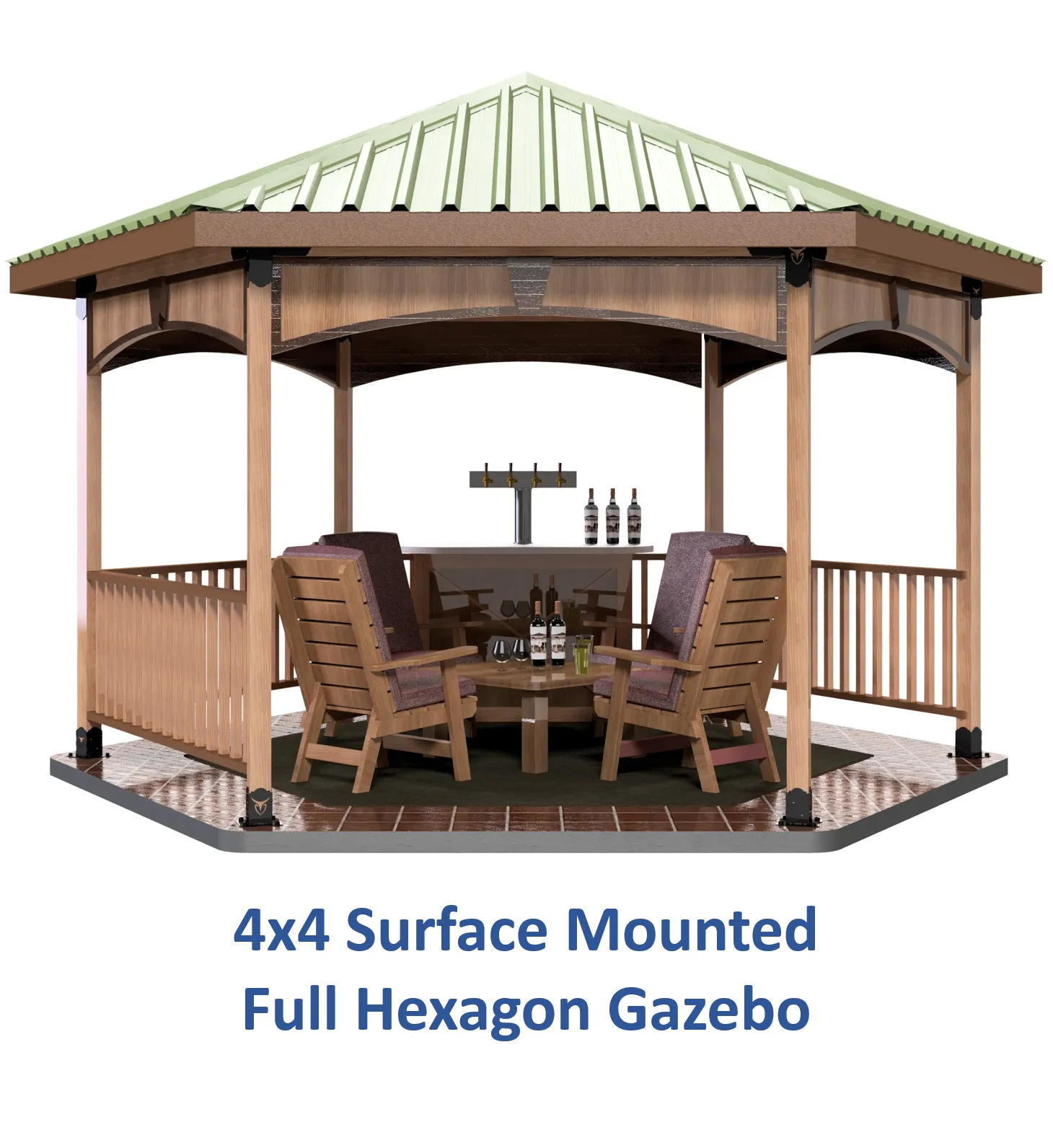

4×4, Surface Mounted, Full Hexagon Gazebo Brackets Kit

Parts Included and Parts Application Depiction

4×4, Surface Mounted, Full Hexagon Gazebo Brackets Kit

Size-based Price Range

Original price was: $819.00 – $1,871.00.Current price is: $690.00 – $1,565.00.

(12 customer reviews)
SKU: 4S-H/R Categories: , Tags: , , , , , , , ,
  • The one and only, true 100% DIY-friendly, 4×4, Surface Mounted, Hexagon Gazebo Brackets Kit by RioOutdoors.com…
  • This bracket kit is designed to use 4×4 dimensional posts and headers
  • Universal Size: Any size structure between 8ft. and 20 ft. can be created. Determine your space availability, decide upon the gazebo size. Contact us with your final size information and request the custom installation instructions and custom lumber cutlists, for free. Click here to request customized installation instructions and lumber cutlist.
  • The size shown in the kit description (e.g. 9-1/2ft. to 12-1/2ft. Wide Solid Roof) defines the width between two parallel hexagon walls.



  • Solid Roof Compatible. See solid roof details in Description, below.

Hexagon Size: See the long description, below, for specifications and details.

  • This kit is designed to be mounted on a concrete slab, pier blocks, or wood deck.
  • (6 Qty) 60-degree Post Top/Bottom Elbow Brackets included.
  • (6 Qty) Floor Anchor Brackets included.
  • (92 Qty) 1/4×1-1/4″ Lag Screws included.
  • (24 Qty) 1/2 x 2-3/4″ Bull Stud Anchor for concrete included.

NOTE: Solid Roof Kit prices vary by size. As size increases, additional cross tie brackets are required. The size-based price automatically adjusts the price for each kit based on its selected size.

  • Lumber not included.
  • DIY design allows easy, fast, and safe construction work
Sale!
DIY 2024-05-05 4×4, Surface Mounted, Full Hexagon Gazebo Brackets Kit 224

DOWNLOAD: PDF Installation Instructions
Explore Brackets & How-to-videos
Request Customized CutList and Instructions
Loading...

Introduction

  • This is the one and only, true 100% DIY-friendly, 4×4, Surface Mounted, Hexagon Gazebo Brackets Kit. Offered only by RioOutdoors.com now.
  • Surface Mounted, Hexagon Gazebo Brackets Kit is made to be surface mounted on existing concrete pad, new concrete pad, new concrete footings, concrete pier blocks, or wood decks with additional load transfer posts under the hexagon gazebo posts.

General Information

  • First to market 60-degree post top elbow brackets make constructing a perfect hexagon shaped outdoor living space a breeze.
  • True DIY-friendly design allows 2 people to build the main gazebo structure within 2 hours.
  • Gusseted construction provides ultimate load resistance and sway resistance.
  • Gussets eliminate the need for wooden corner gussets and provide a wide open
  • Designed to construct a high quality and high strength structure which will last for a lifetime.
  • Thoughtfully engineered gazebo bracket designs provide easy installation without any wood working skills, low labor time, low effort, low net cost, and low injury risks.
  • Flexible designs of the brackets allow for unlimited shapes, sizes, and aesthetics configurations.
  • Eliminates the need to outsource skilled laborers and makes outdoor living space creation affordable.
  • You select the lumber type and acquire it. Avoid low quality and low grade imported soft wood lumber gazebo kits sold at big box stores which deteriorate within 3 seasons.

Hexagon Size

  • The size shown in the kit description (e.g., 9-1/2ft. to 12-1/2ft. Wide Solid Roof) defines the width between two parallel hexagon walls.
  • The size of a hexagon structure is defined by the outer width dimension between two parallel walls of the hexagon structure.
  • To determine what size hexagon will fit in the space available in your yard, include and add the extra space required for the roof overhangs past the hexagon walls. We recommend a 12″ roof overhang past the hexagon walls.
  • The living space you can create ranges between 50 sq. ft and 345 sq. ft.
  • Detailed specifications for header length to hexagon size and living area are provided in the Instructions Manual.



Lumber size

  • Lumber NOT included.
  • Uses dimensional 4×4 posts and headers lumber members.
  • For the roof structure rafters, use 2×6 or 2×8 sized lumber members. 2×6 is structurally more than adequate for all sizes, however, 2×8 may be preferable for cosmetic enhancement.

What is included with all kits?

  • Commonly used brackets and hardwares required to build each gazebo kit are included.
  • (6 Qty) 60-degree Post Top/Bottom Elbow Brackets included.
  • (6 Qty) Floor Anchor Brackets included.
  • (92 Qty) 1/4×1-1/4″ Lag Screws included.
  • (24 Qty) 1/2 x 2-3/4″ Bull Stud Anchor for concrete included.

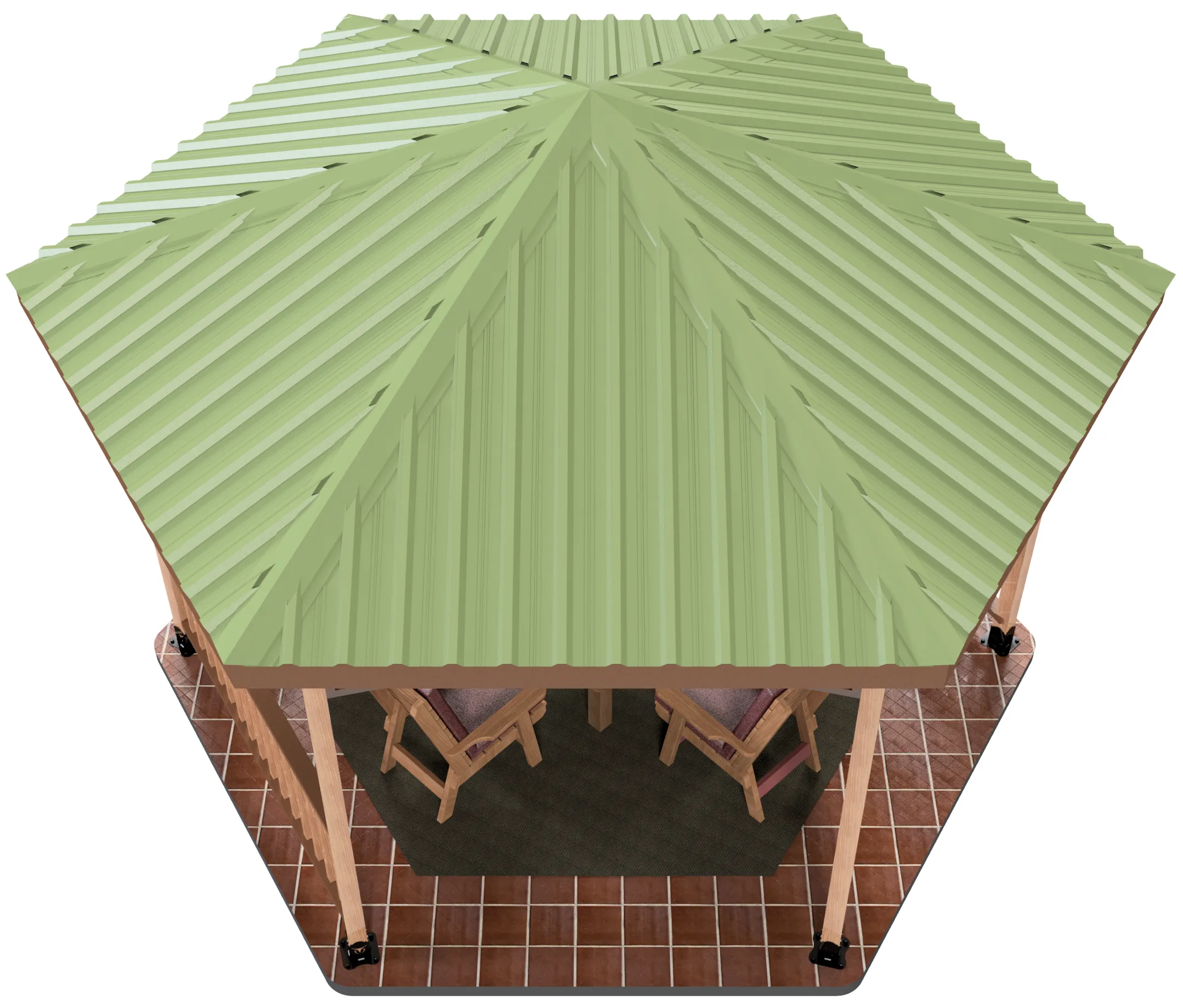

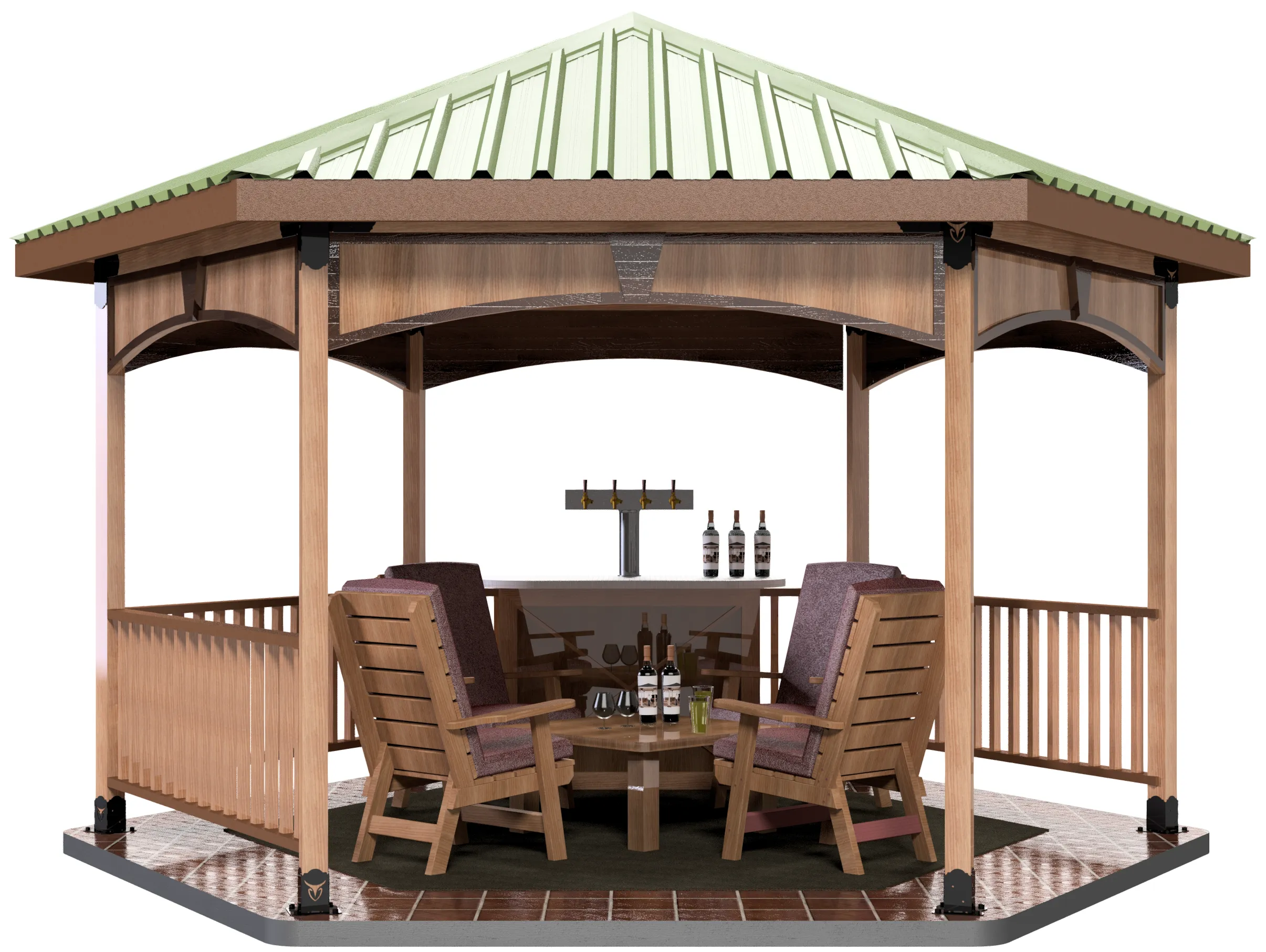

Solid Roof Compatible

  • The solid roof kit is designed to eliminate all wood joinery requirements.
  • All roof brackets are designed to provide superior structural support and strength to the structure, far exceeding the strength provided by wood joinery.
  • The brackets simplify wood members cutting work and adding end treatments.
  • The brackets provide precise fit and alignment yielding an architechtural roof structure.

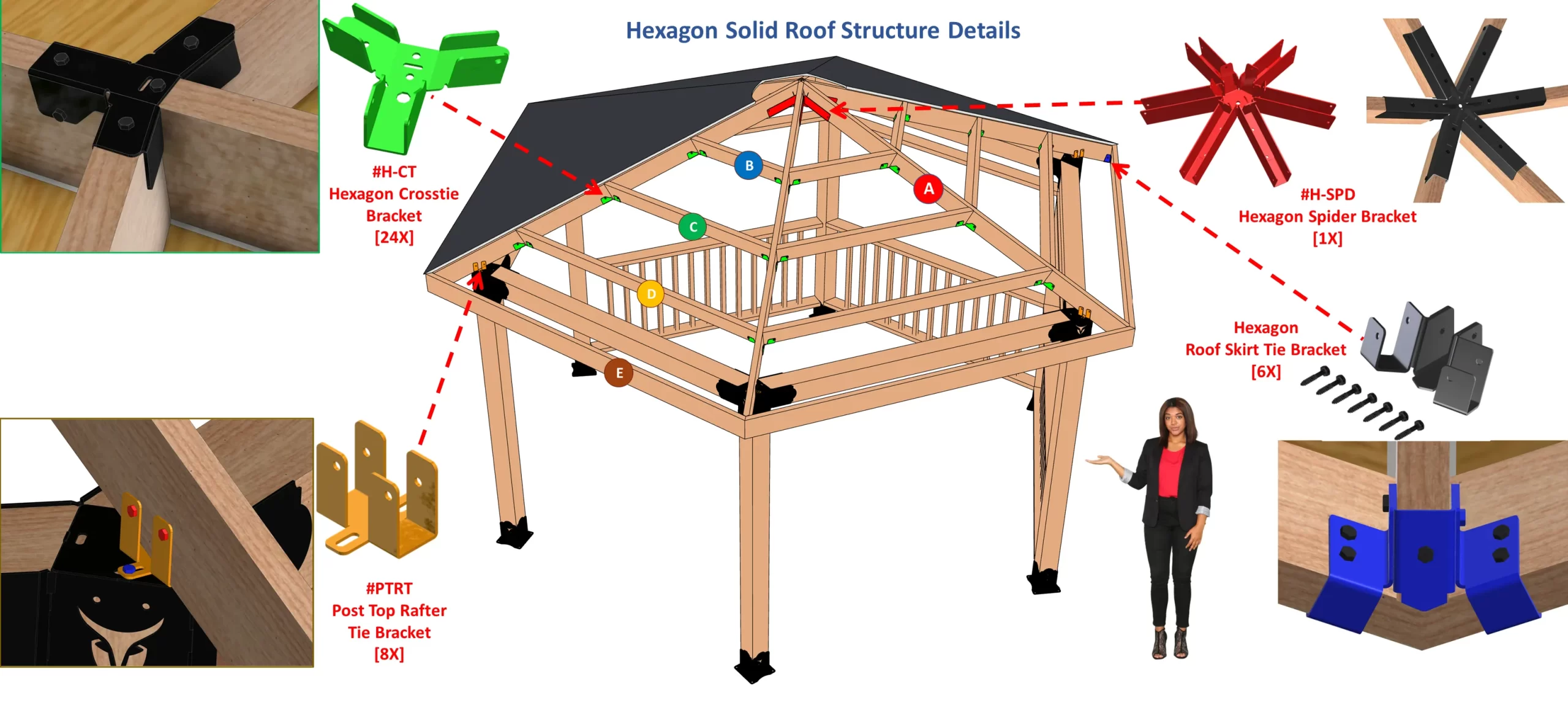

Common parts included with all Solid Roof Kits

  • Qty 1, Hexagon Spider Bracket
    Qty 12, Hexagon Cross Tie Brackets
    Qty 6, Post Top Rafter Tie Brackets
    Qty 6, Hexagon Roof Skirt Tie Brackets
    Qty 288, 1/4″ x 1-1/4″ Lag Screws

Additional Parts included with various sized Solid Roof Kits

  • 9-1/2 ft. to 12-1/2 ft. Solid Roof Kit:  Qty 6, Hexagon Cross Tie Brackets
  • 13 ft. to 15-1/2 ft. Solid Roof Kit:  Qty 12, Hexagon Cross Tie Brackets
  • 16 ft. to 18-1/2 ft. Solid Roof Kit:  Qty 18, Hexagon Cross Tie Brackets
  • 19 ft. to 20ft. Solid Roof Kit:  Qty 24, Hexagon Cross Tie Brackets

Lumber not included.

  • Brackets are powder painted black. They may be spray painted over with any exterior grade paint.
  • Brackets are made from 1/8″ thick welded steel for high strength and load resistance.
  • All wood lag screws required to build each gazebo kit are included.

Related Links

Weight 87 lb
Dimensions 28 × 28 × 24 in
Product Type

Configuration

Freestanding
Shape

Hexagon
Floor Anchor Type

Surface Mounted
Solid Roof Width Range (ft.)

10 ft. to 20 ft.
Post Lumber Size

4×4
Post Quantity

6
Header Lumber Size

4×4
Header Quantity

6

12 reviews for 4×4, Surface Mounted, Full Hexagon Gazebo Brackets Kit

  1. Matt and Amy –

    It took us less than 6 hours to put up the main structure and all roof rafters and crosstie beams. Everything fit perfectly. Then it took another 6 hours to add the roof deck and shingles. We are very impressed with this real DIY KIT design. We highly recommend.

  2. Kent Jaimeson –

    Very high quality brackets. Not like those China made parts. Heavy thick metal and nice hard black powder coating. The staff at RioOutdoors were very helpful and quick to accommodate our needs. The installation instructions were clear and precise. The cut-list was fantastic and made my life so easy to buy the materials and to plan the cutting work.
    The best part of it all are the videos which are available for every single part showing how to install them. They made the asembly work so simple and fast.
    I highly recommend the products that RioOudoors has. I plan to add a wall mounted structure to the back of my house soon. I will surely use parts made by RioOutdoors.

  3. Paula and John –

    Absolutely blows away any competition! Perfect parts, heavy duty and high quality. Very professional support from staff. Quick answers and amazingly detailed cut lists and install instructions. Worth every single penny. I thought things were expensive but I quickly understood why to buy American and not foreign imports. We started our project on Saturday morning. We had all lumber and materials ready based on the materials requirements that RioOutdoors provided. We did not have to run to the store again. This saved us tons of time. Sunday afternoon, we had completed the whole project.

  4. Kane and Janice –

    Truely unique parts designs. Every part worked exactly as described. We especially love the cross tie brackets and roof skirt brackets. By following the cutting instructions provided by RioOutdoors, every piece of cross tie beam and roof skirt fit perfectly. An amazing added benefit they provided were the nesting diagrams for the roof plywood. We did not have to figure out anything ourselves. They had it all figured out for us. This saved us tons of time and eliminated waste and errors. We will be repeat customers for RioOutdoors. We cannot say enough or recommend enough. You will also be thrilled with their support and quick responses.

  5. Rafael Wilson –

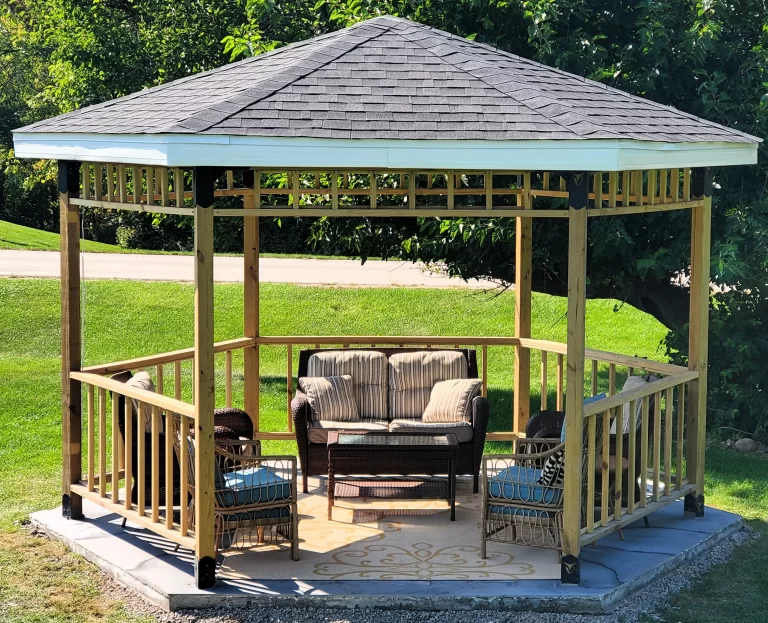

    We love our hexagon gazebo. It took 2 people 2 days to finish the structure with roof shingles. Very fast. We saw amazing progress throughout the days the work was being done. We followed the instructions, which are amazing and accurate, and some online videos which show how each part is to be used. Everything was straight forward and simplified. This is truly a DIY kit that any person can take on. We did. We highly recommend riooutdoors and their products.

  6. Pat Sununu –

    Very happy with all the timely shipment and fast responses. Everything went as planned and all parts fit easily. Recommend.

  7. Frank Smith –

    I thought I hated shingling the roof. I had bad memories beause I did not know to do it in my youth. But with new shingles and youtube videos, it made it super easy and actually enjoyable to finish a perfect shingled roof. The DIY parts from this company were very well made and fit perfectly. Very thorough step by step instructions for every single piece of wood and plywood. Very professional and accurate. Loved everythign. We are very happy with our gazebo.

  8. Nathaniel Lopez –

    Very happy with our purchase of this 4×4 Hexagon Solid Roof Kit. There were 6 unique parts in the kit. The bottom structure used 2 parts: hex elbow and floor anchor. The roof used 4 parts: Spider, cross tie bracket, post top rafter tie bracket, and roof skirt bracket. We downloaded the instructions for lower structure and roof structure. Lower structure was very simple. Roof structure was more complex but the instructions included cut layouts for every single piece of wood and also full assembly instructions for placement location and how to for every other part. Most amazing was the nesting diagrams for the roof plywood pieces. We replicated the nested plywood by snapping lines.
    Best of all, every piece of wood and plywood fit easily. No modificaiton was needed and nothing was wasted. With 2 days between 2 people, we had the roof shingled and finished.
    We are very happy with how everything went together and the supporting documents available to us. We highly recommend product from this company.

  9. Charles Levin –

    RioOutdoors sent us a layout with how to create a hexagon shaped frame using OSB to layout the exact location of each post. It took a hour to build. We laid it out in the area where we wanted the gazebo to be built. Spray paint marked the corner points and we know exactly where each post was going to be. Then we dug at each post location, add round footing forms, leveled them all using a laser level and poured concrete. This was the hardest work. Remaining contruction work was busy but very easy. We really appreciate the extra effort the staff put in to make it easy for us to layout. We surely recommend.

  10. Jojo Valdez –

    All parts were good and worked easily. All instructions were good and accurate. Very easy to assemble design. Impressive.

  11. Janet and Chris –

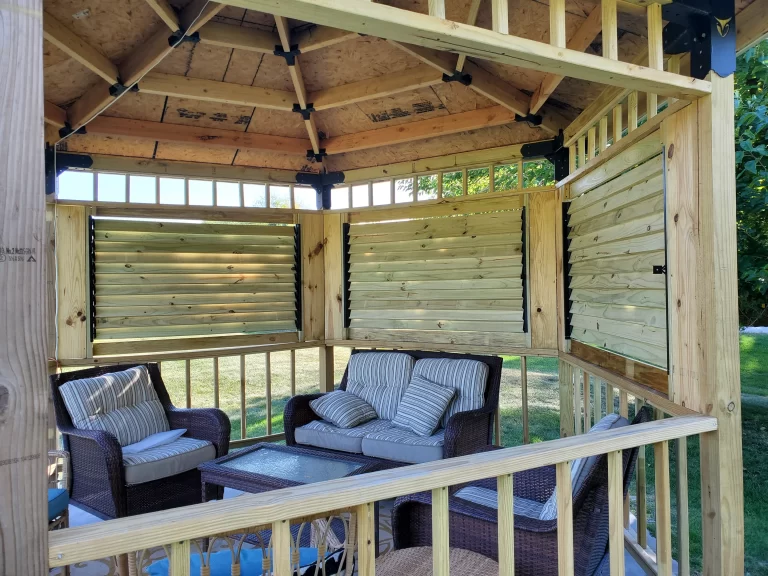

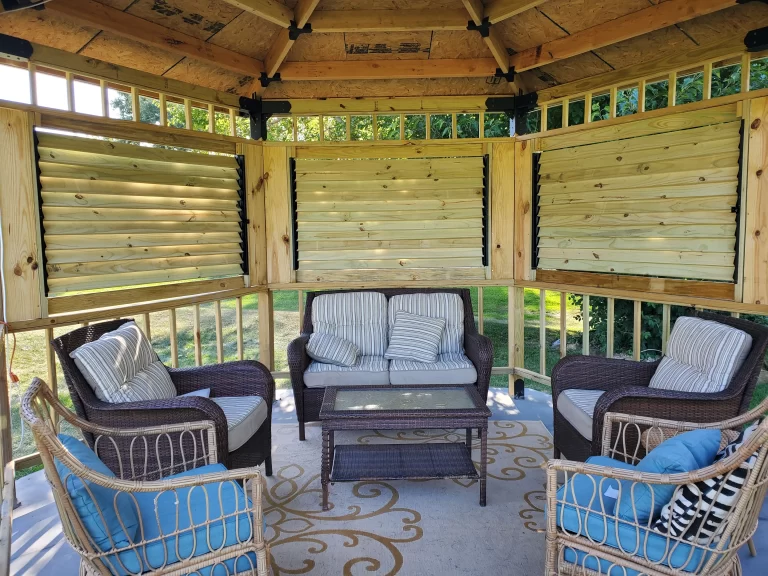

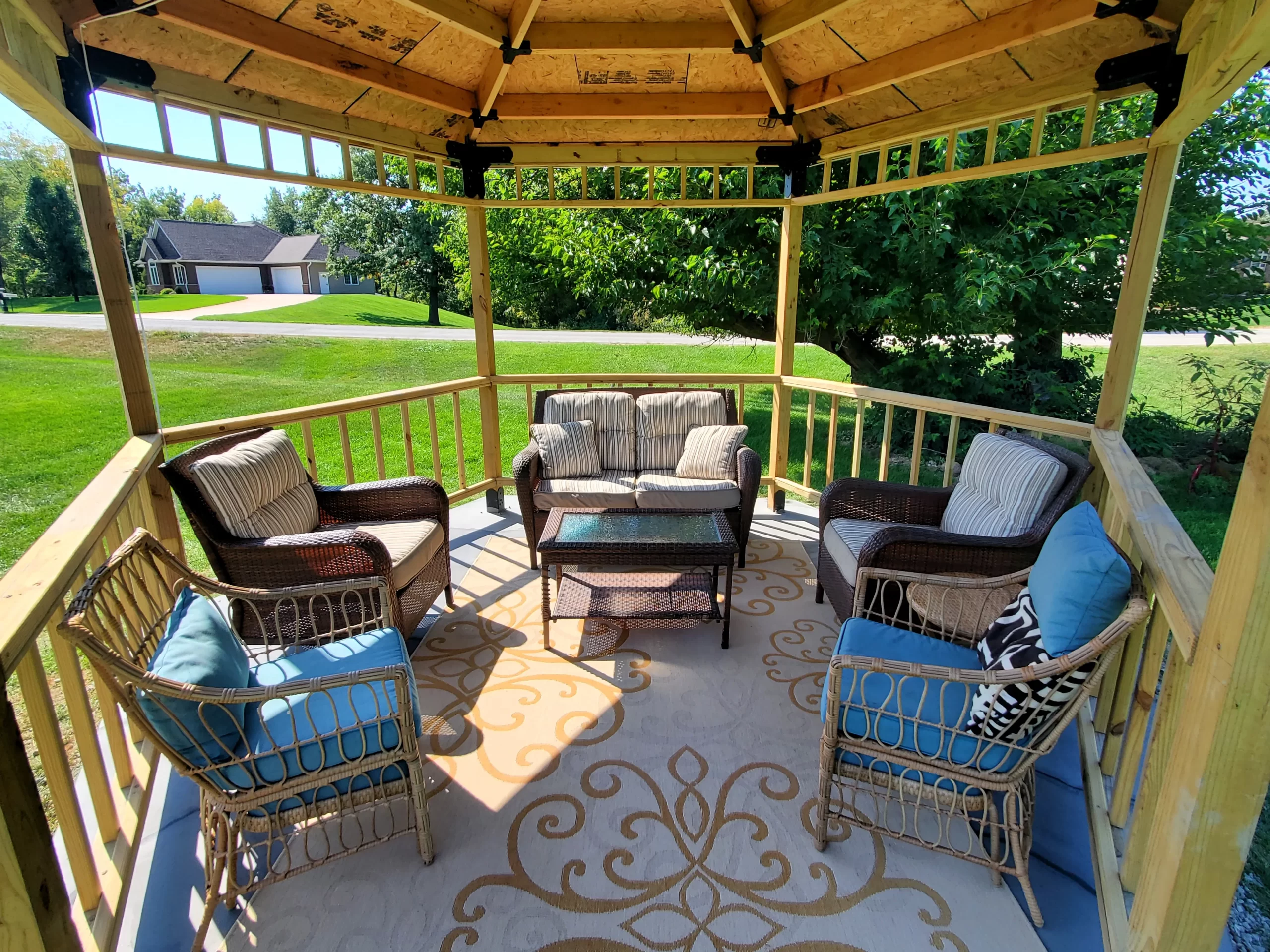

    Started by building an open top 4×4 hexagon. We were impressed with how easy and fast we were able to build it. It took less than 2 hours for 2 of us. Then after a few weeks, we decided to add the solid roof. The roof related bracket were even more impressive and made it so easy to build the roof frames. Very happy with all parts, instructions, and fast responses by staff.

  12. Mathew Young –

    Built our lower structure very easily. Prepared all posts with floor anchor bracket and the 60 deg elbow bracket. Cut all headers and got them ready. With help from a friend and few sand bags, we had the lower structure assembled in less than 1 hour. We then made sure all headers were level before anchoring to the concrete pad. We anchored the floor brackets down and everything was very sturdy.
    We then prepared the six rafers with cross tie brackets and roof skirts. We made the starter assembly with the hexagon spider. It took us 5 minutes to lift and place this starter assembly and center it. After securing to post top rafter ties, it took another 30 minutes to install remaining rafters. It was so easy to do. We then added cross tie beams which fit easily and perfectly. That took another 2 hours to add them and drive all lag screws.
    Next day, we added roof deck plywood pieces and then drip edges, tar paper, shingles and ridge shingles.
    Everything went smoothly and all work was straight forward. We are very impressed with the cut lists and roof deck nesting diagrams they provided. That made our work so easy.
    We are now adding railings with ballusters between posts and decorative ballusters below the top headers.
    We are super impressed and highly recommend this kit.
