Introduction

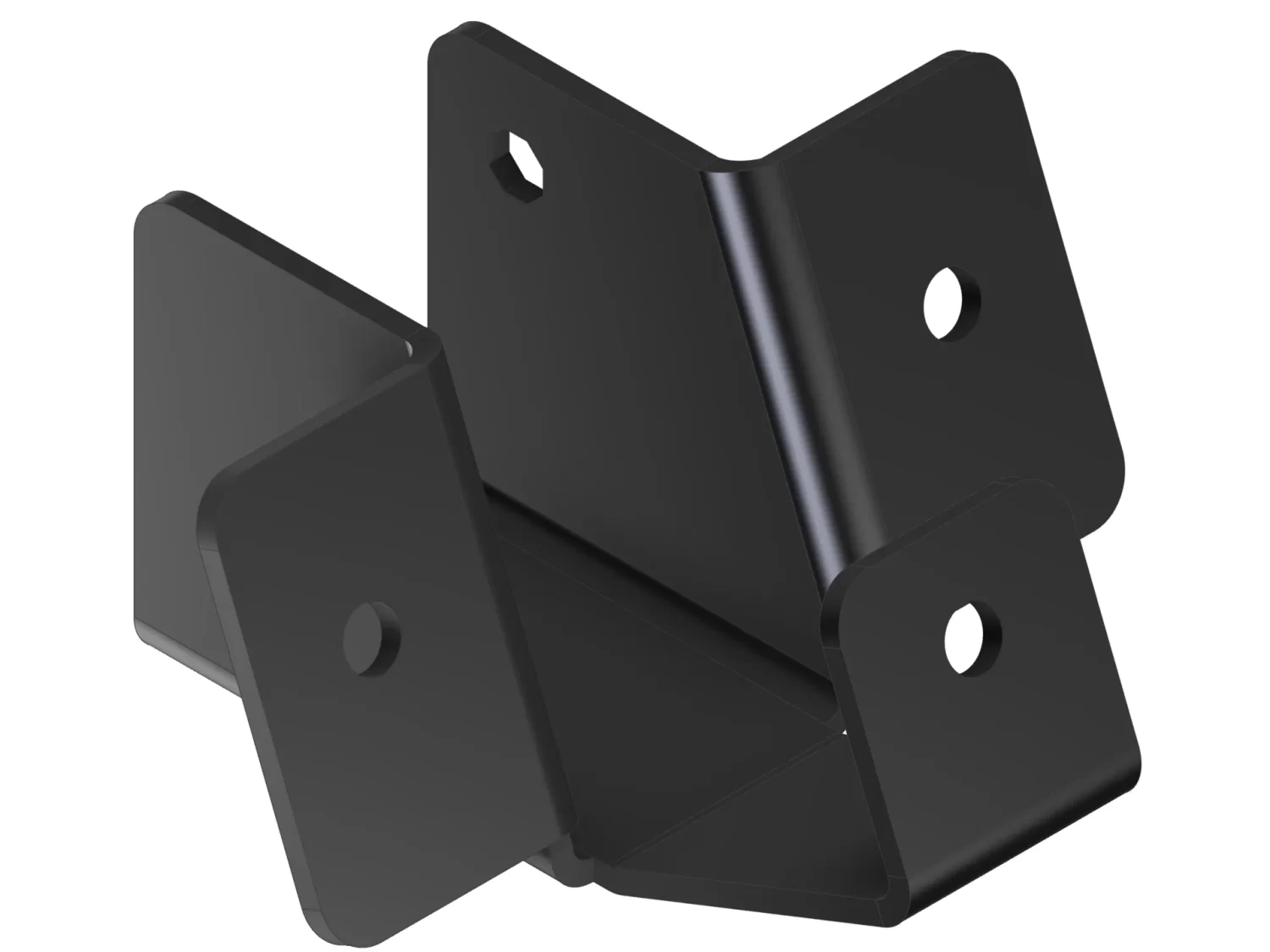

- This unique bracket supports a roof skirt beam which mounts to the floating end of a Ridge Rafter.
- This bracket adds roof skirts to a shed, green house, garage, lean to, or octagon gazebo with a 4-12 pitch roof.
- The 4-12 (~21 deg.) Pitch Roof Rafter Skirt Tie Bracket mouts to the bottom and side surfaces of the Ridge Rafter.
- It provides one U-channels at a precise angle to hold a roof skirt beam.
Purpose
- This bracket holds the roof skirt and to free up your hands to drive the lag screws and nails.
- This true DIY part allows one person to add all roof skirt beams.
- The 4-12 Pitch Roof Rafter Skirt Tie bracket mounts using four (4) 1/4″ x 1-1/2″ lag screws.
Construction

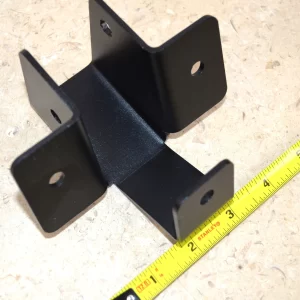

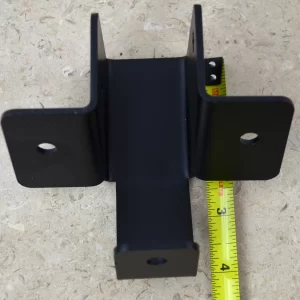

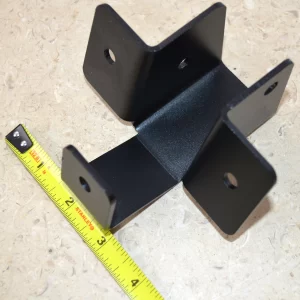

- Made of 1/8″ thick high strength steel.
- Painted black.
- You can spray paint over with any desired exterior grade paint color.
- Has an upward facing open U-channel to receive 2×6 or 2×8 roof skirt beam.
- Roof skirts mount to the bracket with three (3) 1/4″ x 1-1/2″ lag screws and two #10D x 3″ nails.
Included
- Five (5) 1/4″ x 1-1/4″ lag screws.
- You must drive 10D X 3″ nails to secure the top of the roof skirt beams to the rafter end.
- 10D nails not included.
-
External links
- https://riooutdoors.com/product/partial-hexagon-ridge-rafter-skirt-tie-bracket/
Universal 4-12 Pitch Roof Skirt Tie Bracket
$10.95
SKU: PO-RRST
Categories: Brackets, Octagon, Octagon Brackets, Octagon Roof Kits
Availability: 120 in stock (can be backordered)
Introduction
- This bracket supports a roof skirt beam that mounts to the floating end of a Ridge Rafter.
- It adds a roof skirts to a shed, green house, garage, lean to, or octagon gazebo with a 4-12 pitch roof.
- The 4-12 (~21 deg.) Pitch Roof Rafter Skirt Tie Bracket mounts to the bottom and sides of the Ridge Rafter.
- It provides one U-channels at a precise angle to hold a roof skirt beam.
Purpose
-
- This bracket holds the roof skirt and to free up your hands to drive the lag screws and nails.
- This is a true DIY part which allows one person to add all roof skirt beams.
- The 4-12 Pitch Roof Rafter Skirt Tie bracket mounts with four (4) 1/4″ x 1-1/2″ lag screws.
Loading...
Weight | 1 lb |
---|---|
Dimensions | 5 × 4 × 2.5 in |
Product Type | |
Shape | Octagon |
Rafters Lumber Size | 2×6, 2×8 |
Metal Thickness | 1/8" |
Paint | Black Textured Powder Paint |
4 reviews for Universal 4-12 Pitch Roof Skirt Tie Bracket
Add a review Cancel reply
You must be logged in to post a review.
Related products
-
Partial Hexagon Open End Ridge Rafter Bracket
$59.50Original price was: $59.50.$52.50Current price is: $52.50.
Roberto Perrone –
This part made my work very easy to complete. It fit perfectly as advertised and all screws were also included with the part. Very professional packaging was used. The installation instruction video make it “brainless” to install.
I am very happy with the product and service provided by this company. I highly recommend to all.
Marcus Adams –
This part was in the partial octagon roof kit that we ordered. Online instructions and video make it easy to know how to install it and where. Works well, just like they say on their website. Very helpful part.
Henry Green –
Nice idea. Heavy bracket. Mounts easily and hold roof skirt easily in place.
Francisco Flores –
Easy to install. Works great as helper to hold the roof skirt and frees your hands. Makes it easy to align roof skirt edges and secure them to rafter ends.
