5-12 DIY Heavy Duty Custom Offset Ridge Rafter Bracket

Introducing our 5-12 Pitch DIY Heavy Duty Custom Offset Ridge Rafter Bracket! This essential hardware is perfect for securing your roof structure with ease. Crafted with durability in mind, this bracket withstands the elements and provides ultimate support for your roofing project. Whether you’re a seasoned builder or a DIY enthusiast, this reliable bracket is a must-have for your construction projects. Make sure to add it to your cart today for a sturdy and secure roofing solution.

Durable

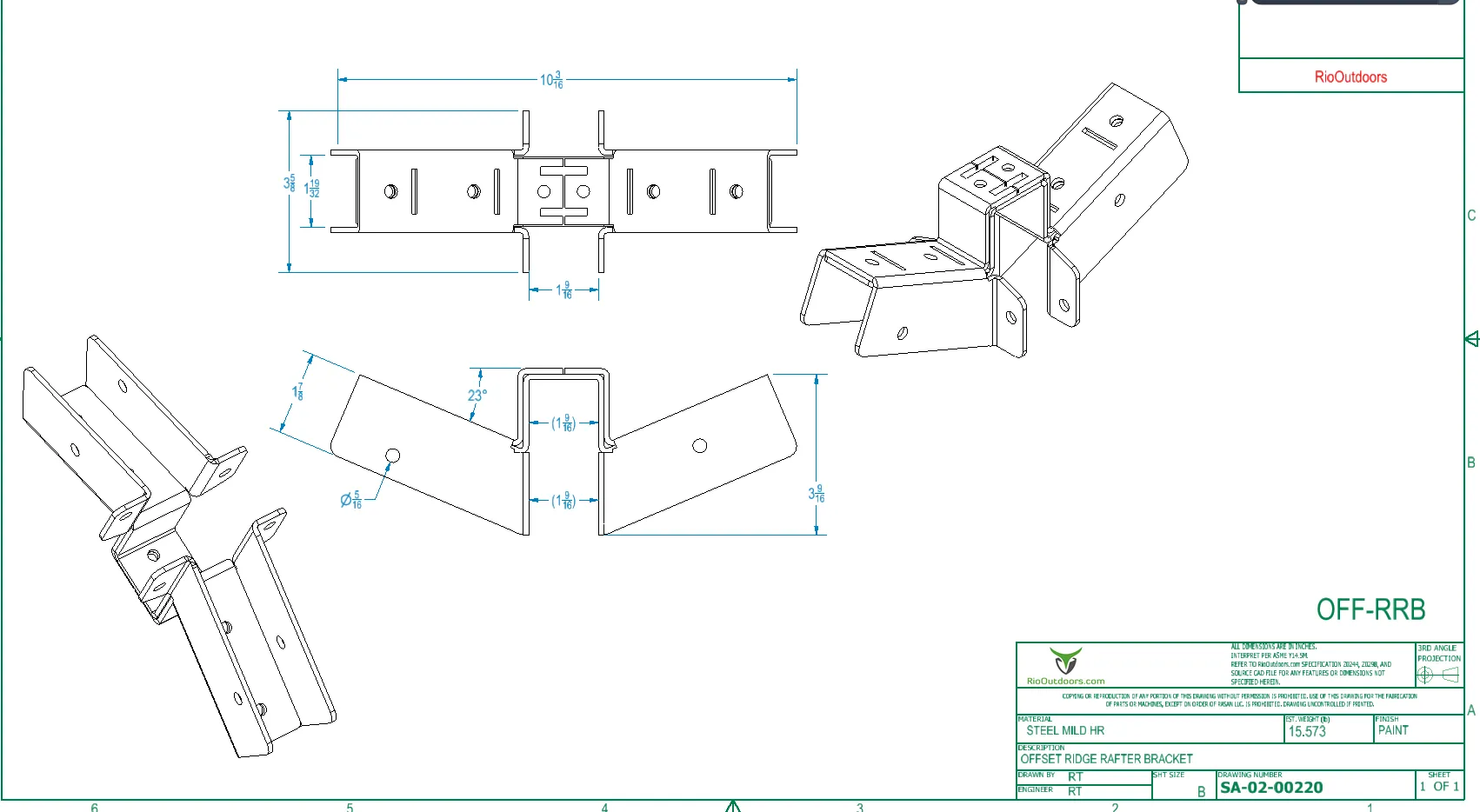

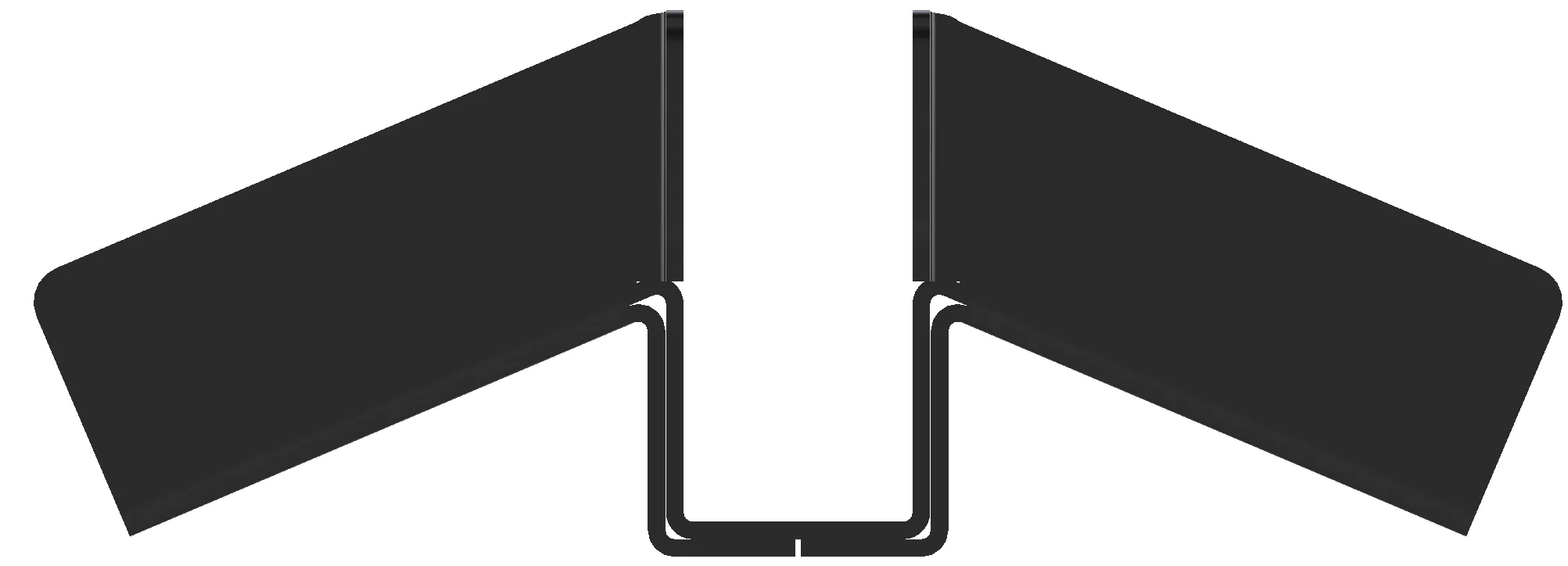

A truely unique part which has an offset to fit properly and fully strengthen the joint between the rafter and ridge beam. You will not find a comparable product offered anywhere else. This bracket connects two Rafters to a 2X Ridge Beam at ~23-degree (5-12 pitch) angles. It simplifies addition of the ridge rafters at perfect angles to form a strong support structure. This bracket is constructed from double layered 1/8″ thick steel provide the strength of 1/4″ steel.. The high strength design of this bracket holds the ridge rafters securely.

Versatile

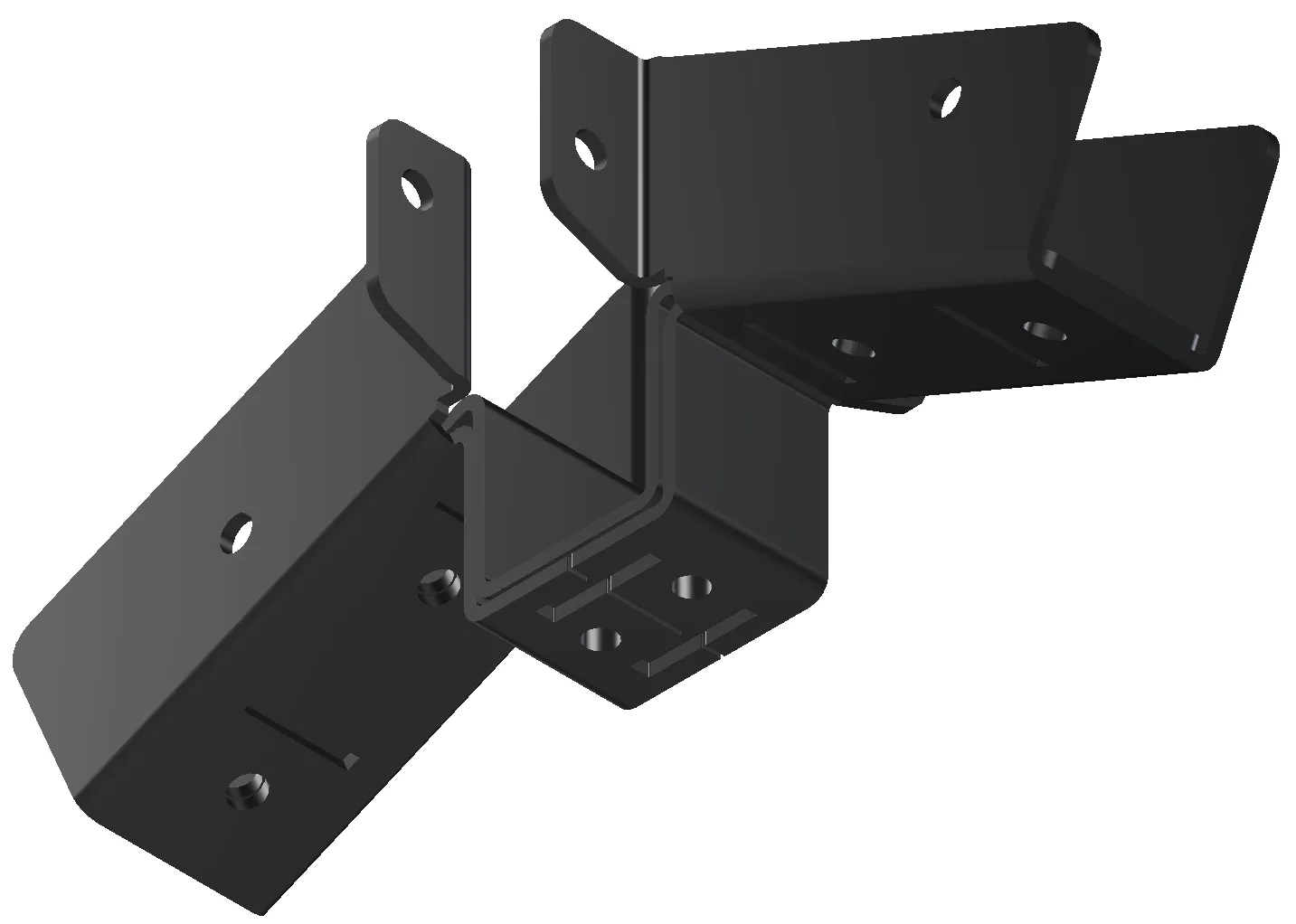

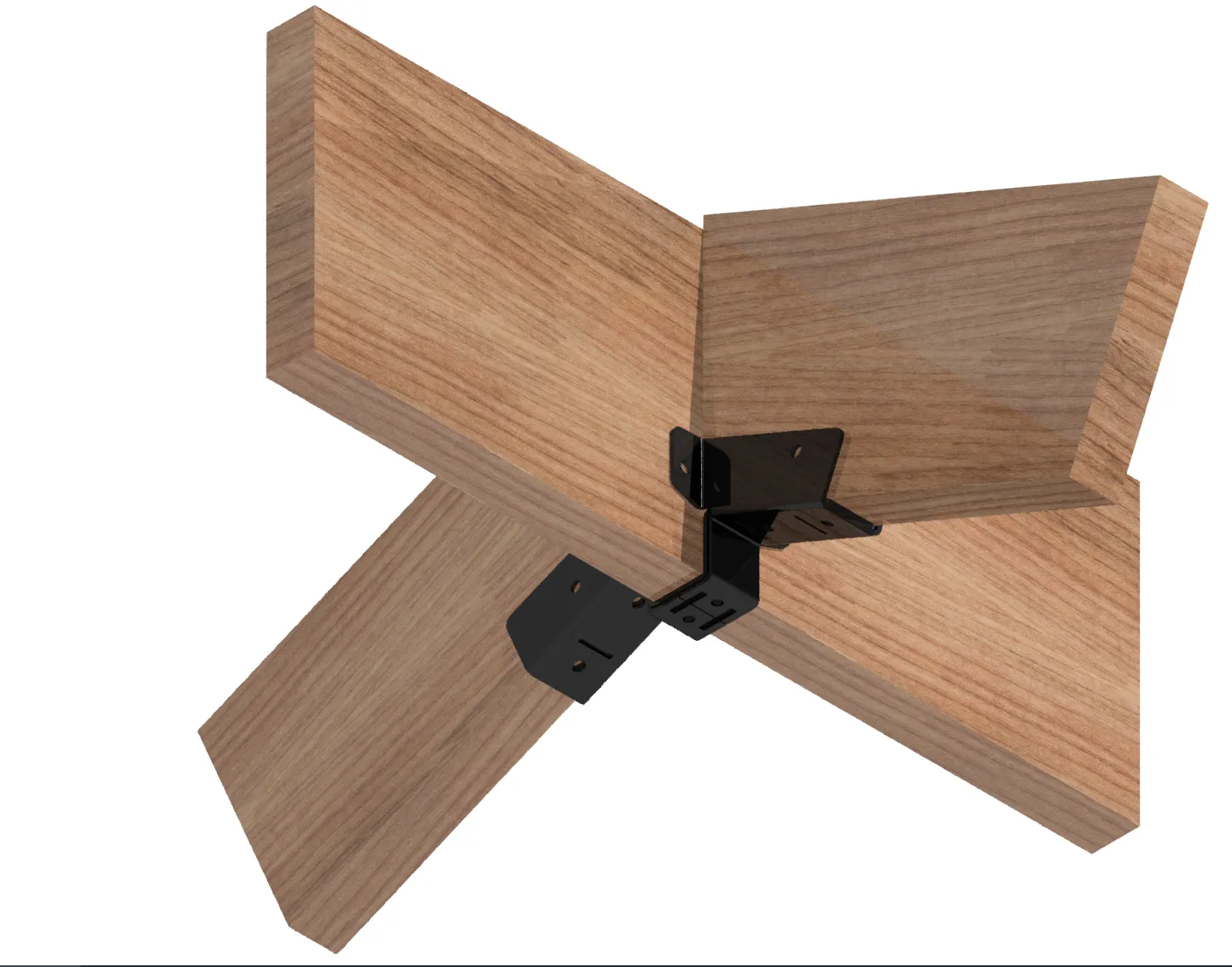

The DIY Heavy Duty Ridge Rafter Tie Bracket is custom made for applications where 2×10 Ridge Beams are conneced to 2×8 Rafters. These brackets simplify addition of the ridge rafters at perfect angles to form strong support structures. Couple this with our universal rafter tie bracket to build a super-sturdy gable roof structure. Use this bracket in conjunction with bracket #PTRT (Wall Top Rafter Tie). This bracket helps to create an open vaulted ceiling. The Custom Offset Ridge Rafter Tie Bracket’s arms have upward facing open U-channels to easily receive 2×8 ridge rafters. The Custom Offset ridge rafter tie bracket attaches to the ridge beam’s bottom and side surfaces using six (6) 1/4″ x 1-1/2″ lag screws. Each rafter is secured to the U-channel with four (4) 1/4″ x 1-1/2″ lag screws. Included are forteen (14) 1/4″ x 1-1/2″  lag screws to complete the job. Don’t forget that you will have to drill 1/8″ pilot holes to drive 10D X 3″ nails, not included, at an angle to secure the top of the rafters to the ridge beam.

Physical Properties

This bracket is constructed from double walled 1/8″ thick high strength steel. This bracket is laser cut and formed and unpainted. This bracket must be spray painted over with Rustoleum Exterior Grade spray paint.
