Introduction

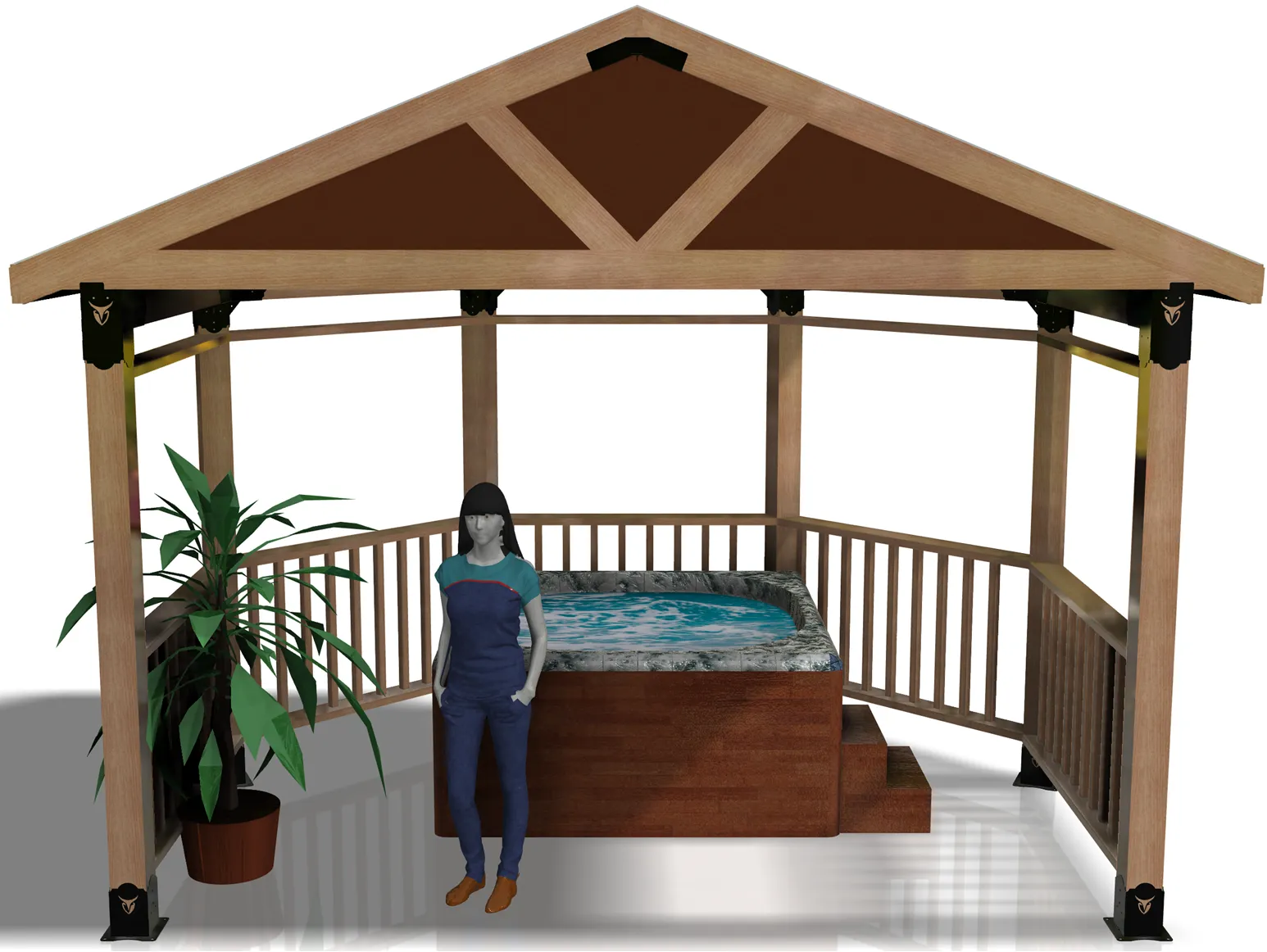

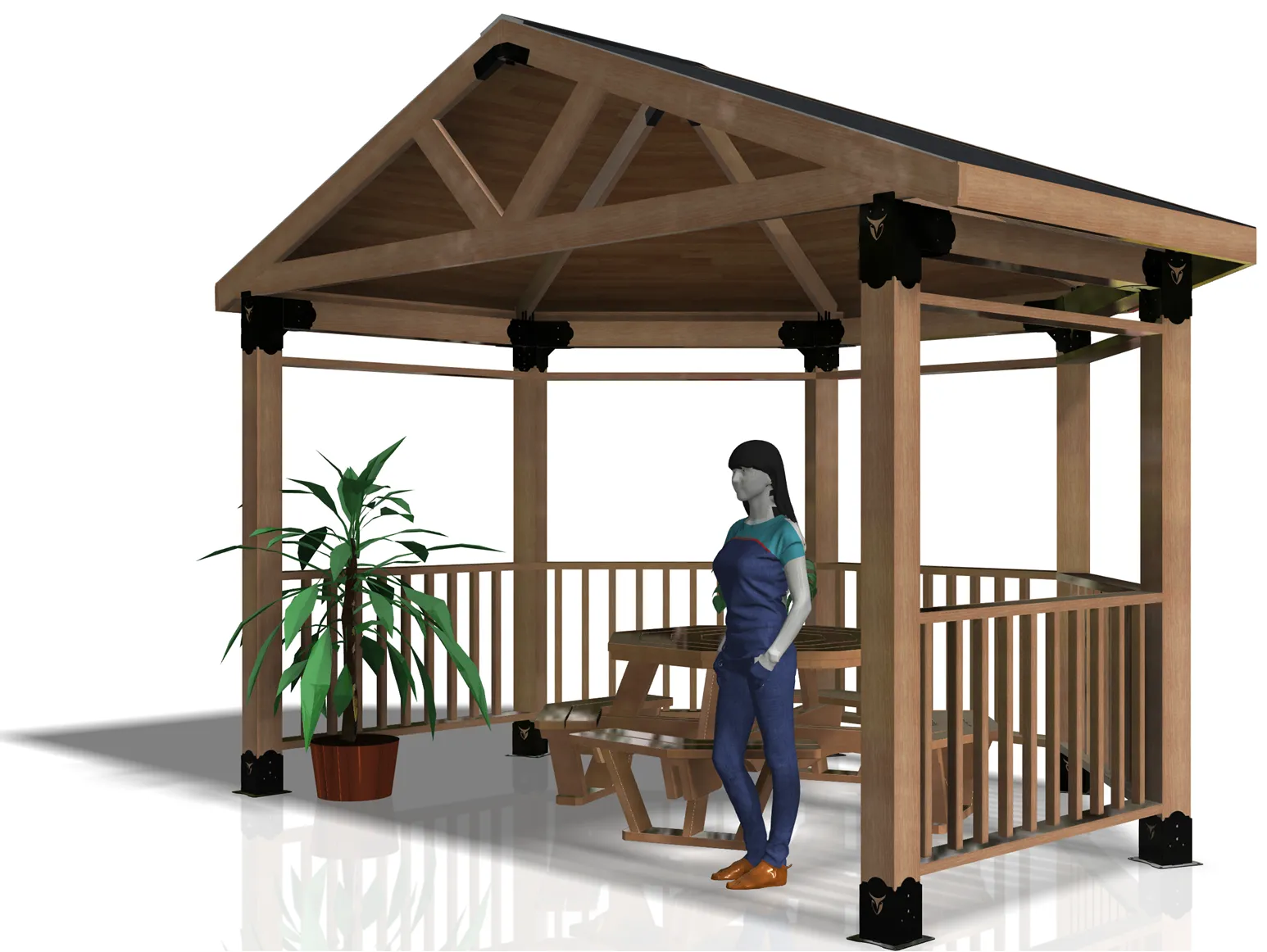

- The Partial Octagon Solid Roof Brackets Kit is a unique and novel creation by RioOutdoors.com.
- When constructed as instructed in the installation instructions, this solid roof structure will withstand any snow load and will be an all-weather structure.
- This solid roof will have a 4-12 pitched slope. The rafters will be angled at 20 degrees.
- These novel roof joinery brackets simplify roof construction work and yield a super-strong roof structure which can withstand snow loads exceeding 165 lbs./sq. ft.
- This strong roofed structure will be a permanent structure for any geographic location.
- The Partial Octagon-specific steel brackets eliminate all wood joinery skills and work making it ideal for all DIY projects and for contractors.
- All steel parts are made of 1/8″ thick steel and powder painted for permanent rust proofing and durability.
- The solid roof kit is designed to eliminate all wood joinery skills requirements.
- All roof brackets are designed to provide superior structural support and strength to the structure, far exceeding the strength provided by wood joinery.
- The brackets simply wood members cutting and adding end treatments.
- The brackets provide precise fit and alignment yielding an architechtural roof structure.

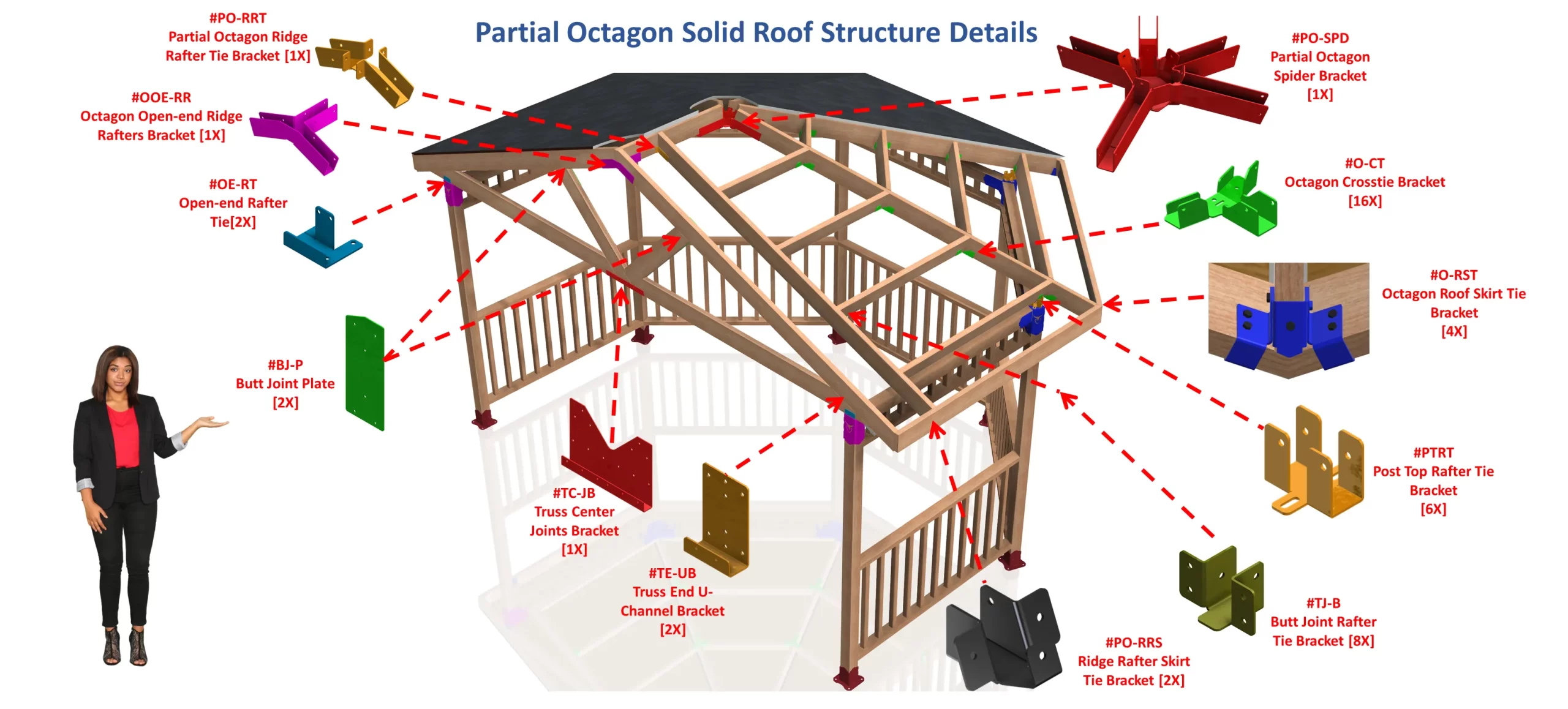

- Parts included with all Partial Octagon Solid Roof Kits:
-
- Qty 1, Partial Octagon, 5-way, Spider Bracket
- Qty 1, Octagon Open End Rafter Bracket
- Qty 4, Octagon Cross Tie Brackets
- Qty 2, Butt Joint Rafter Tie Brackets

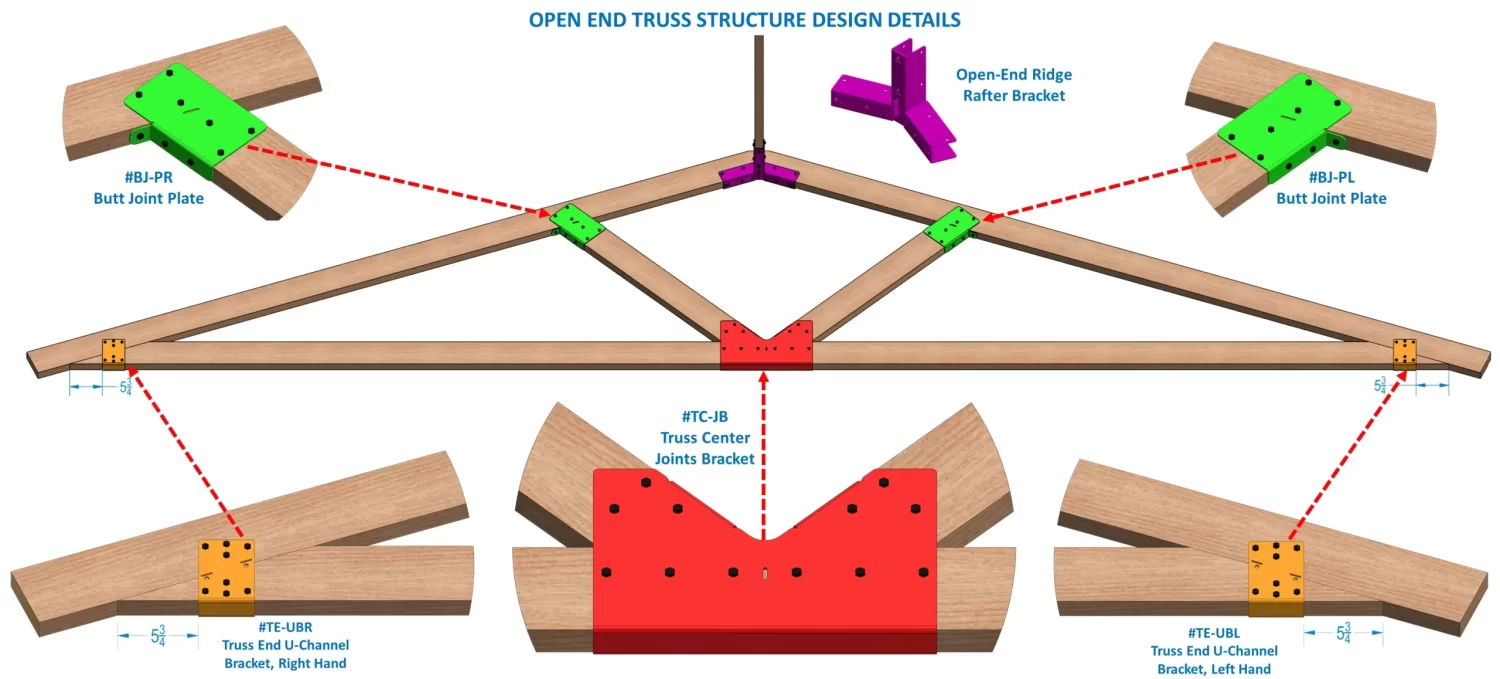

- Qty 1, Truss Center Joints Bracket
- Qty 1, Butt-Joint Plate, LH
- Qty 1, Butt-Joint Plate, RH
- Qty 1, Truss End U-Channel Bracket, LH
- Qty 1, Truss End U-Channel Bracket, RH
- ¼”x1-1/4” Blk Lag Screws
Additional Parts included with Partial Octagon sizes larger than 8ft. Wide:
- 9ft. to 12ft Wide, Solid Roof includes:
Qty 4, Octagon Cross Tie Brackets
Qty 2, Butt Joint Rafter Tie Brackets - 13ft. to 16ft. Wide, Solid Roof includes:
Qty 8, Octagon Cross Tie Brackets
Qty 4, Butt Joint Rafter Tie Brackets - 17ft. Wide, Solid Roof includes:
Qty 12, Octagon Cross Tie Brackets
Qty 6, Butt Joint Rafter Tie Brackets - 18ft. to 19ft. Wide, Solid Roof includes:
Qty 12, Octagon Cross Tie Brackets
Qty 6, Butt Joint Rafter Tie Brackets
Qty 1, Partial Octagon Ridge Rafter Tie Bracket
Qty 2, Partial Octagon Ridge Rafter Skirt Tie Brackets - 20ft. Wide, Solid Roof includes:
Qty 16, Octagon Cross Tie Brackets
Qty 8, Butt Joint Rafter Tie Brackets
Qty 1, Partial Octagon Ridge Rafter Tie Bracket
Qty 2, Partial Octagon Ridge Rafter Skirt Tie Brackets
-

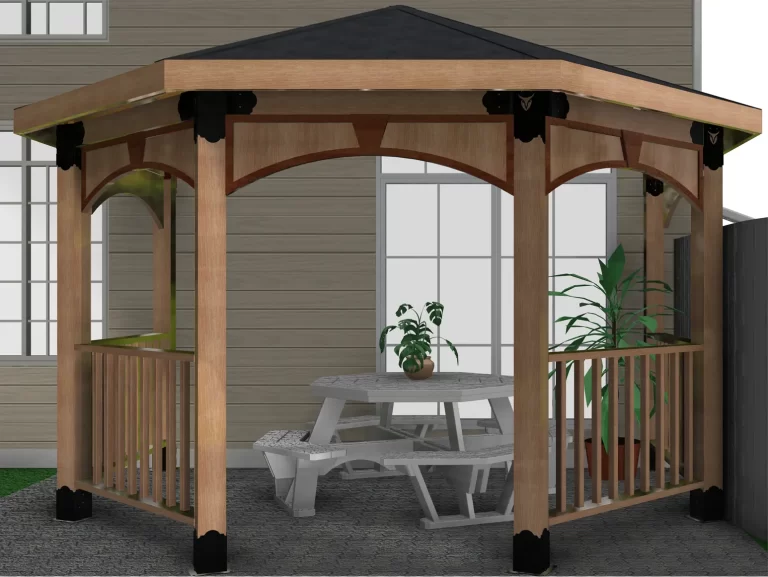

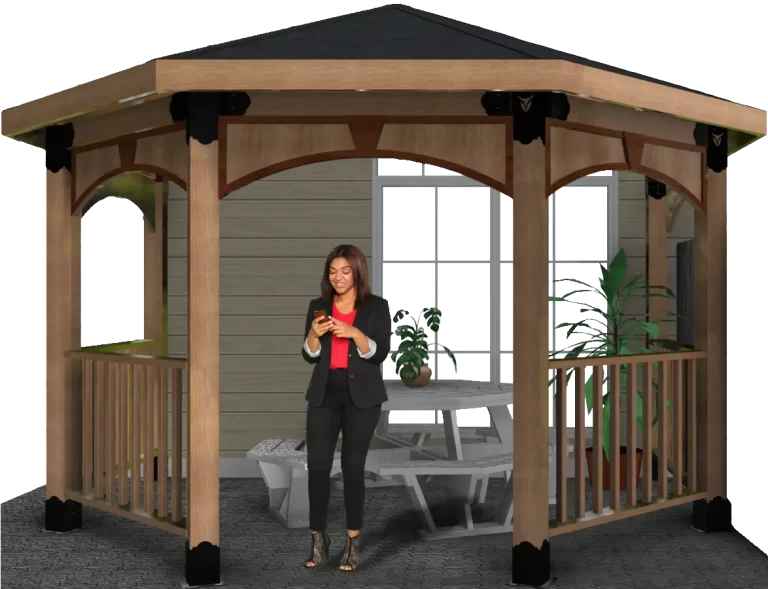

- The Partial Octagon Solid Roof Brackets Kit is a unique and novel creation by RioOutdoors.com.
- When constructed as instructed in the installation instructions, this solid roof structure will withstand any snow load and will be an all-weather structure.
- These novel roof joinery brackets simplify roof construction work and yield a super-strong roof structure which can withstand snow loads exceeding 165 lbs./sq. ft.
- This solid roof will have a 4-12 pitched slope. The rafters will be angled at 20 degrees.
- This strong roofed structure will be a permanent structure for any geographic location.
- The novel Partial Octagon-specific steel brackets eliminate all wood joinery skills and work making it ideal for all DIY projects and for contractors.
- All steel parts are made of 1/8″ thick steel and powder painted for permanent rust proofing and durability.

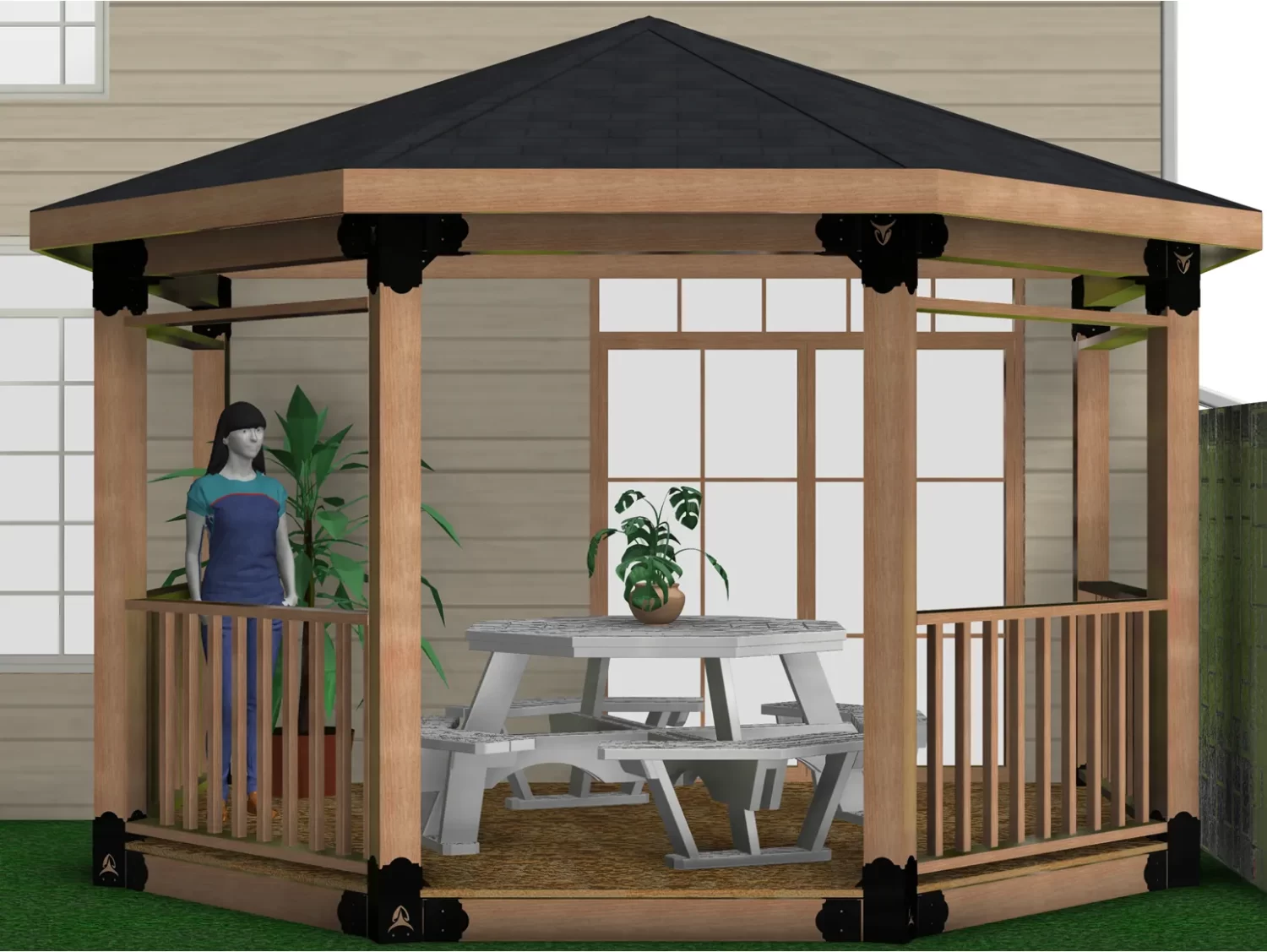

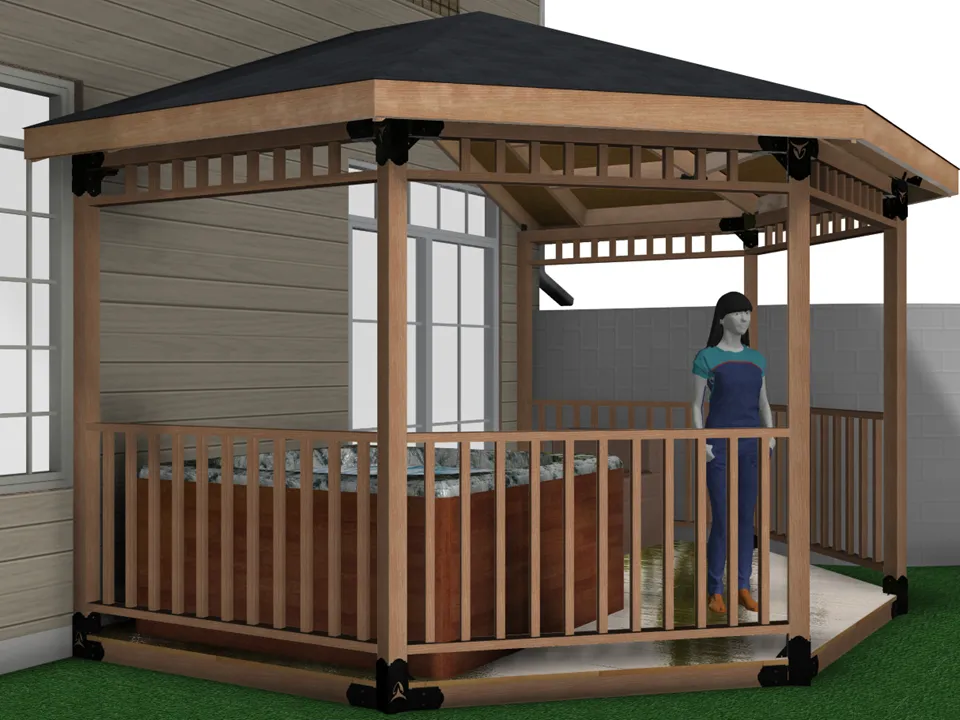

- The size shown in the Kit Description (e.g., 10ft. to 13ft. Wide Octagon, Solid Roof) defines the width of the base octagon wall structure.
- The roof kit that you select (e.g., 10ft. to 13ft. Wide Octagon, Solid Roof) is designed to create a solid roof that can cover an octagon shape that is between 10ft. and 13ft. wide.
- The roof outer edges shall overhang the octagon walls by 12″. The “10ft. to 13ft. Wide Partial Octagon, Solid Roof” dimension does not include the overhang dimension.
- To determine what size octagon will fit in the space available in your yard, include and add the extra space required for the roof overhangs past the octagon walls. We recommend a 12″ roof overhang past the octagon walls.
Each solid roof kit includes the roof structure joinery parts and hardware required to attach those parts.
NOTE: Solid Roof Kit prices vary by size. As size increases, additional brackets are required. The size-based price automatically adjusts the price for each kit based on the selected size.

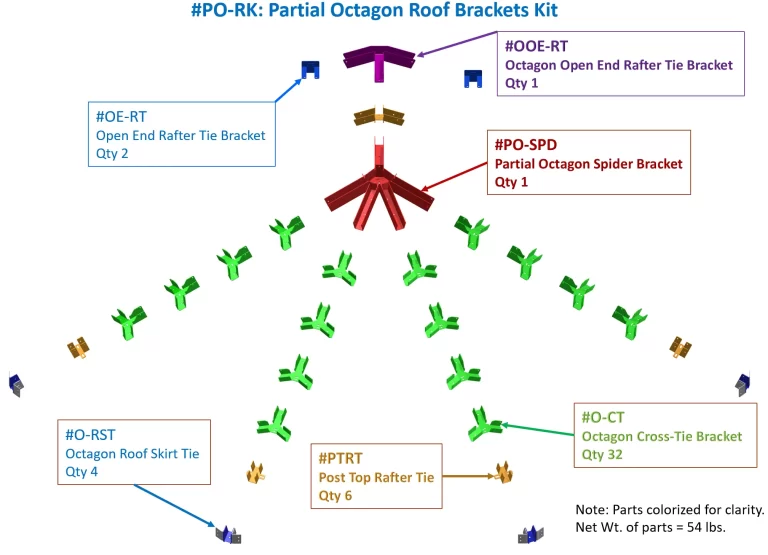

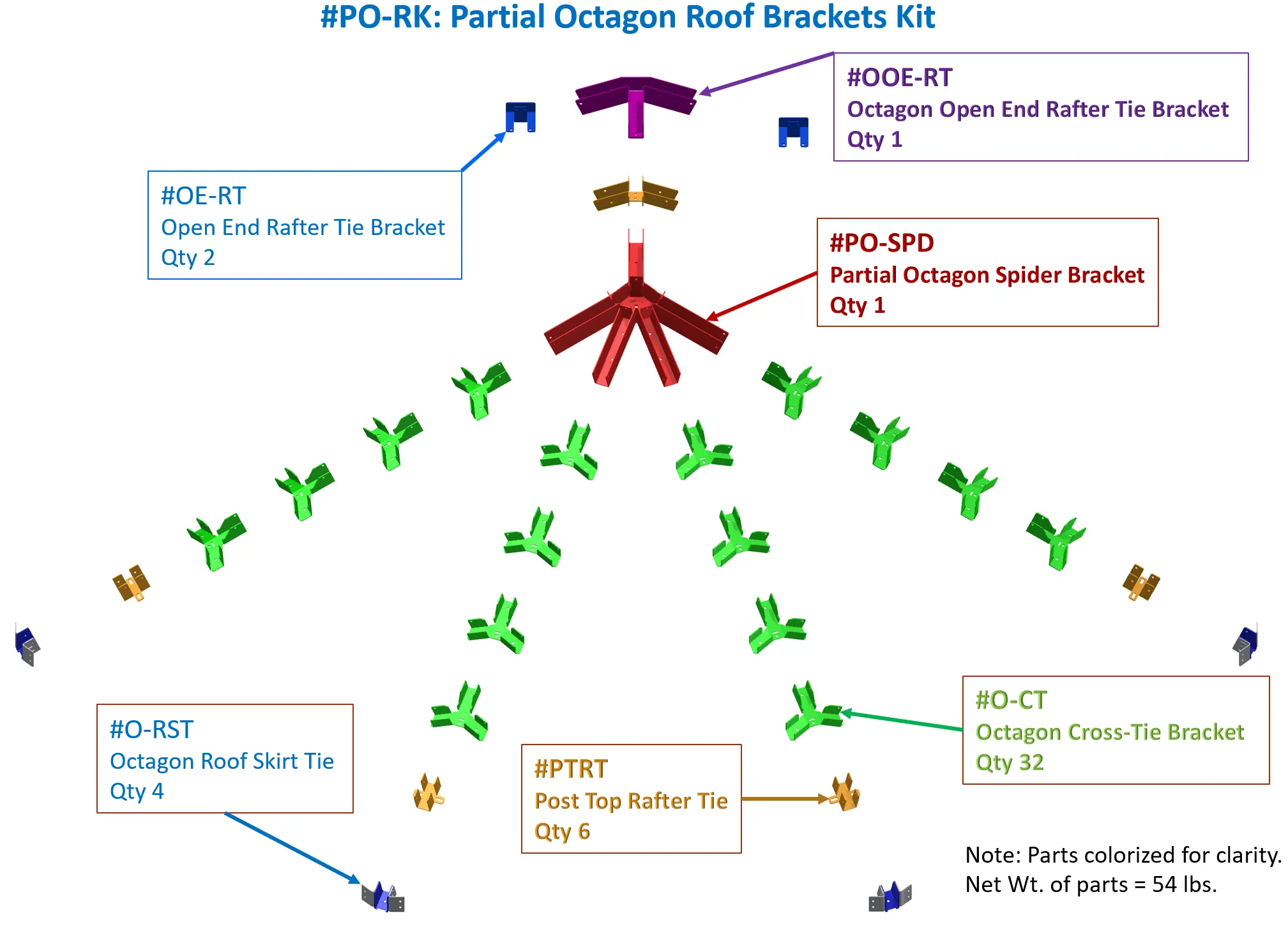

Parts included with all Partial Octagon Solid Roof Kits, 10 ft. to 13 ft.:
-
- Qty 1, Partial Octagon, 5-way, Spider Bracket
- Qty 1, Octagon Open End Rafter Bracket
- Qty 12, Octagon Cross Tie Brackets
- Qty 4, Post Top Rafter Tie Brackets
- Qty 2, Open End Rafter Tie Brackets
- Qty 4, Octagon Roof Skirt Tie Brackets

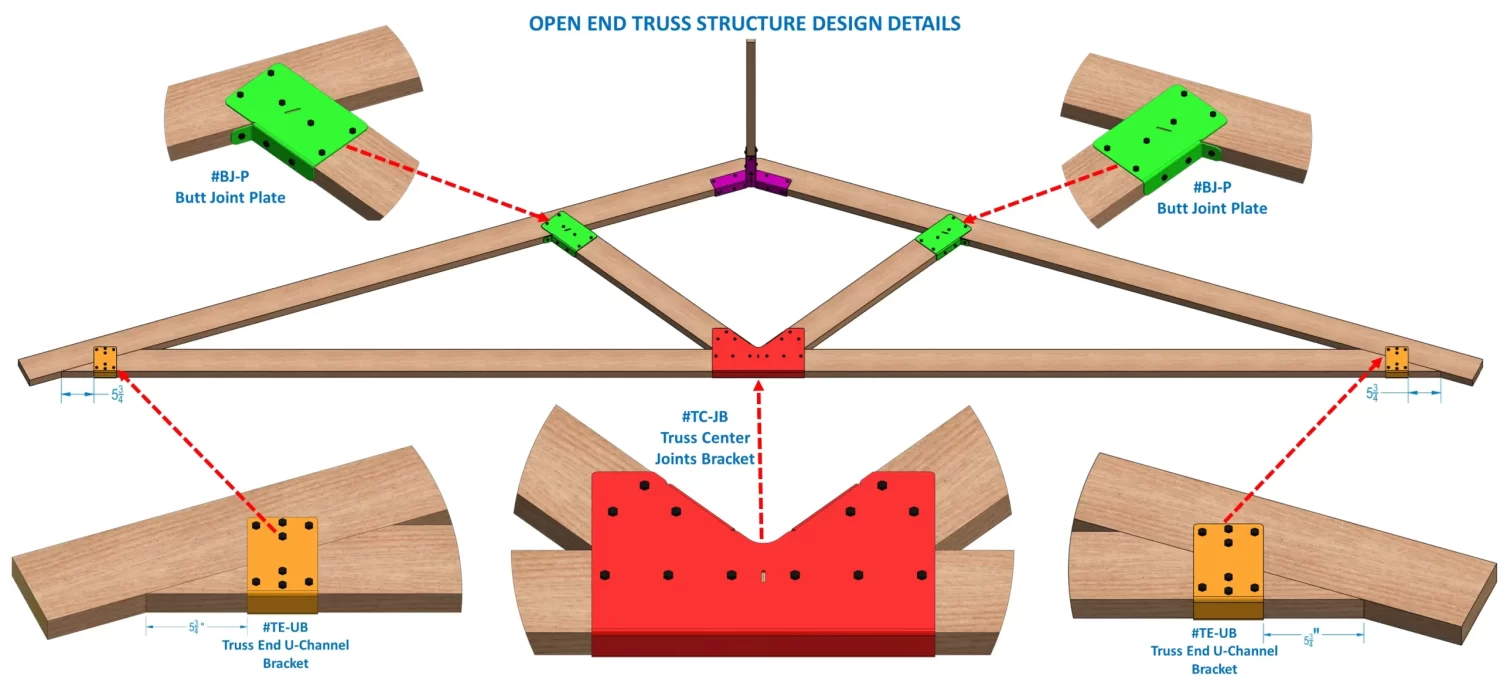

- Qty 1, Truss Center Joints Bracket
- Qty 1, Butt-Joint Plate, LH
- Qty 1, Butt-Joint Plate, RH
- Qty 1, Truss End U-Channel Bracket, LH
- Qty 1, Truss End U-Channel Bracket, RH
- ¼”x1-1/4” Blk Lag Screws
- 13-1/2 ft. to 16-1/2 ft. Wide, Solid Roof includes: Qty 4, Octagon Cross Tie Brackets Qty 8, Butt Joint Rafter Tie Brackets Qty 1, Partial Octagon Ridge Rafter Bracket Qty 2, Partial Octagon Ridge Rafter Skirt Tie Brackets
- 17 ft. to 20 ft. Wide, Solid Roof includes: Qty 8, Octagon Cross Tie Brackets Qty 10, Butt Joint Rafter Tie Brackets Qty 1, Partial Octagon Ridge Rafter Bracket Qty 2, Partial Octagon Ridge Rafter Skirt Tie Brackets
-
- Roof rafter and crosstie lumber to be kiln dried lumber (pine, cedar, redwood, etc.).
- Roof skirt members to be pressure treated pine, cedar, or redwood.
- Roof rafters’ size to be 2×6 or 2×8 for widths up to 16 feet and 2×8 (minimum) for widths more than 16 feet.
- Cross tie beams and Roof skirt members’ size must be the same size as the roof rafter size.
Technical Specifications
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Product Type | |
| Shape | Octagon |
| Solid Roof Width Range (ft.) | 10 ft. to 20 ft. |
| Post Lumber Size | 4×4, 6×6 |
| Rafters Lumber Size | 2×6, 2×8 |
| Rafters Quantity | 6 |
